BAXI
BRAZILIA 2 SLIMLINE 5 - (Appliance Overview)
Appliance Code: 35-077-19

Appliance Diagram


Appliance Overview diagram for Baxi Brazilia 2 Slimline 5Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE KIT OUTER CASE - 5 GREY
Baxi part no. 243881
4   OBSOLETE SHIELD HEAT ASSEMBLY 5/5S
Baxi part no. 224032
5   OBSOLETE GRILLE-OUTLET-BRAZ.SLIMLINE 5
Baxi part no. 224074
5   CLIP-EDGE-SPR.STEEL
Baxi part no. 102010		 £2.04
6   OBSOLETE SEAL WALL-SILICONE - 5/5S
Baxi part no. 224036
7 Part number 062548, SCR-ST-No 8x3/8in POZI FL.HD A SCR-ST-NO 8X3/8IN POZI FL.HD A
Baxi part no. 062548		 £3.01

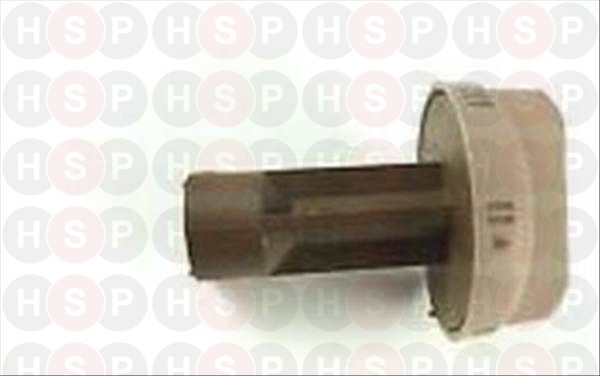

8 Part number 234632, OBSOLETE CONTROL KNOB ASSY BRAZ 2 S/L 5 OBSOLETE CONTROL KNOB ASSY BRAZ 2 S/L 5
Baxi part no. 234632
9   OBSOLETE AIR BOX-ASSY-BRAZ-5 & 5S
Baxi part no. 224038
12   OBSOLETE SCR-SET-M8 X 50MM-ZN PD
Baxi part no. 223996
13   OBSOLETE STUD-SPACER-M8-ZN PD
Baxi part no. 223990
14 Part number 225114, OBSOLETE GAUZE-BURNER-BRAZILIA SLIMLINE OBSOLETE GAUZE-BURNER-BRAZILIA SLIMLINE
Baxi part no. 225114
15   OBSOLETE PLATE RETAINING BURNER 5/5S
Baxi part no. 224044
16   OBSOLETE SCR-TF-M4X6MM HEX POZI ZNPD
Baxi part no. 225405
18 Part number 042941, IGNITOR-PIEZO-REF 66111 (VERN) IGNITOR-PIEZO-REF 66111 (VERN)
Baxi part no. 042941
20 Part number 223966, NUT-LOCK-M14 X 1-BRASS NUT-LOCK-M14 X 1-BRASS
Baxi part no. 223966		 £3.12
22   OBSOLETE GROMMET-GAS TAP-SEAL.
Baxi part no. 223969
25 Part number 224244, SCR-TF-M4x12mm-PAN.POZ-ZN.PD SCR-TF-M4X12MM-PAN.POZ-ZN.PD
Baxi part no. 224244		 £3.12
25   WASHER-RETAINING-SPECIAL-ST/S
Baxi part no. 110011		 £15.01
26 Part number 043043, OBSOLETE LEAD-ELECTRODE-BER B. OBSOLETE LEAD-ELECTRODE-BER B.
Baxi part no. 043043
26   GROMMET-RUBBER M36
Baxi part no. 042566		 £8.25
27   OBSOLETE SLEEVE 6MM ELAS.GLS/FIBX100MM
Baxi part no. 225054
28   OBSOLETE GROMMET AIR BOX. HEAT RESISTANT
Baxi part no. 082358
29   WASHER-PLAIN-5MM ZINC PLTD
Baxi part no. 062447		 £2.36
30   SCR-NO.8X1.5IN RD HD BLK JAP
Baxi part no. 062319
31 Part number 062320, PLUG WALL FIXING No8-PLASTIC PLUG WALL FIXING NO8-PLASTIC
Baxi part no. 062320		 £2.41
33 Part number 225121, OBSOLETE KIT-SIGHT WINDOW.BRAZ S/LINE OBSOLETE KIT-SIGHT WINDOW.BRAZ S/LINE
Baxi part no. 225121
35 Part number 082252, OBSOLETE WASHER.5/16 IDx7/8 OD MS ZN PD OBSOLETE WASHER.5/16 IDX7/8 OD MS ZN PD
Baxi part no. 082252
36   OBSOLETE FULL NUT M8 HEXAGON - STEEL GRADE 8. BS369
Baxi part no. 224318
37 Part number 225188, OBSOLETE 2M FLUE ASSEMBLY 30 50 OBSOLETE 2M FLUE ASSEMBLY 30 50
Baxi part no. 225188
39 Part number 080266, KIT-GUARD-TERMINAL-BRAZ 8000 KIT-GUARD-TERMINAL-BRAZ 8000
Baxi part no. 080266
40   OBSOLETE FLUE TERMINAL KIT - 5IN TO 9IN WALL
Baxi part no. 225174
41   OBSOLETE KIT FLUE TERM 15 19IN SLIM5/5S
Baxi part no. 225175
45   OBSOLETE FITTERS INSTRUCTIONS
Baxi part no. 224254
46   OBSOLETE USERS INSTRUCTIONS
Baxi part no. 224255
