BRAEMAR 2 WITH FUEL EFFECT - (Heat Exchanger)
Appliance Code: 32-077-07

Appliance Diagram


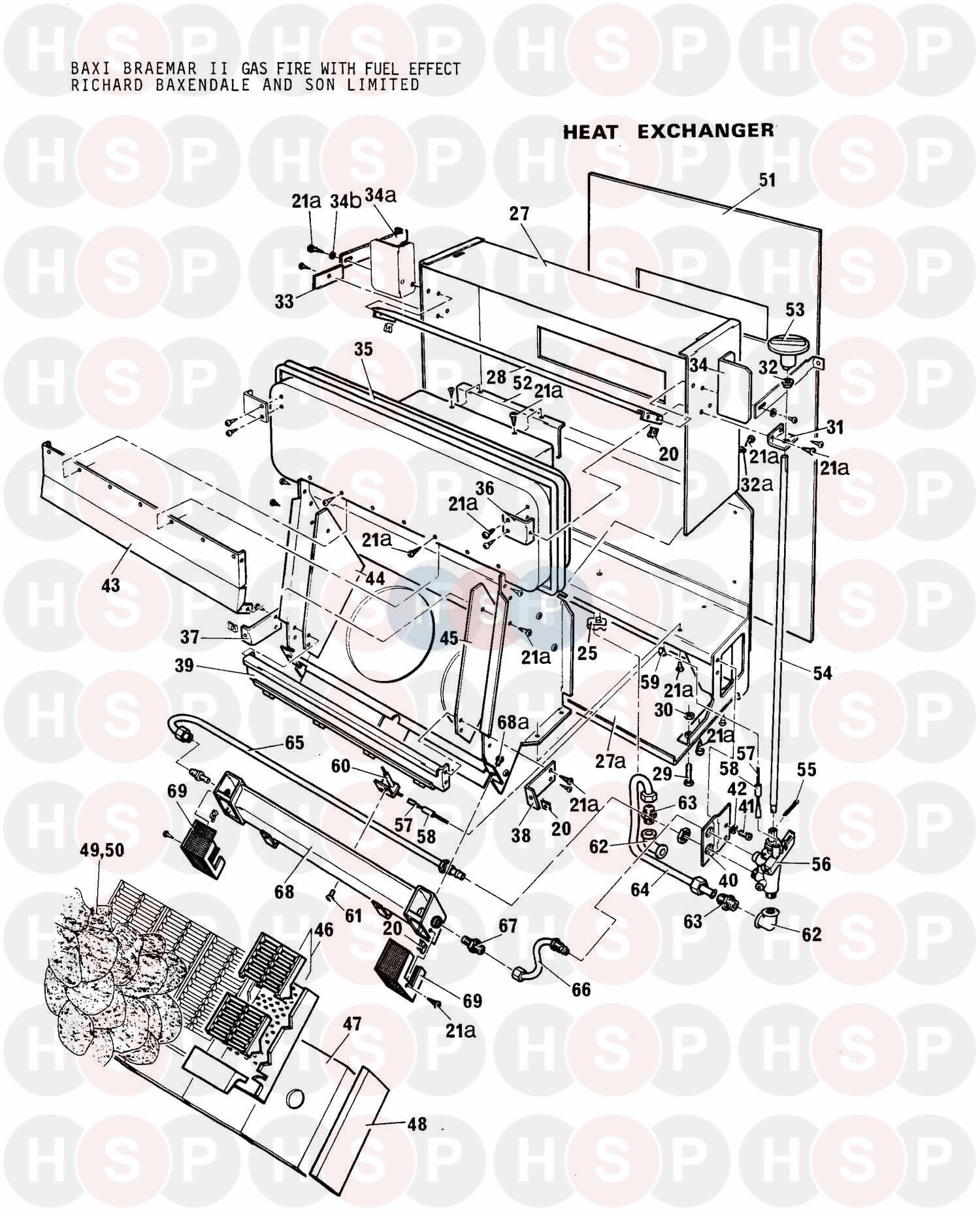

Heat Exchanger diagram for Baxi Braemar 2 With Fuel EffectClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE OUTER CASE COMPLETE (PARTS OF THIS ASSY
Baxi part no. 090004
2 Part number 062595, BUTTON-INDIC-UTD.CARR 70270-06 BUTTON-INDIC-UTD.CARR 70270-06
Baxi part no. 062595
3 Part number 060018, OBSOLETE Distance Piece OBSOLETE DISTANCE PIECE
Baxi part no. 060018
4   SCR-NO 8X14TPIX1/2 HARDTWIN-WD
Baxi part no. 042244		 £2.18
5   OBSOLETE BADGE - APPLIANCE IDENTIFICATION
Baxi part no. 092008
6   OBSOLETE FRAME - UPPER LEFT HAND SIDE
Baxi part no. 060019
7   OBSOLETE FRAME - UPPER RIGHT HAND SIDE
Baxi part no. 060020
8   OBSOLETE FRAME - LOWER LEFT HAND SIDE
Baxi part no. 060021
9   OBSOLETE FRAME - LOWER RIGHT HAND SIDE
Baxi part no. 060022
10   CLIP-EDGE-SPR.STEEL
Baxi part no. 102010		 £2.04
11   OBSOLETE BRKT-LOCATION-FIRE FRONT
Baxi part no. 060043
12   OBSOLETE PANEL-FRONT-BRAEMAR & LFE-ASSY
Baxi part no. 060023
13   OBSOLETE LOCATION BRACKET - FRONT PANEL
Baxi part no. 060024
15   OBSOLETE LOUVRE-TOP TRIM-BREAMAR & LFE.
Baxi part no. 060026
16   OBSOLETE LOUVRE-ASSY-BRAEMAR & LFE
Baxi part no. 060027
16   OBSOLETE CAP-TRIM
Baxi part no. 062544
17   OBSOLETE CLIP-EDGE-HARD-TEM CAR STL 1/2
Baxi part no. 082097
18   OBSOLETE REFLECTOR-BRAEMAR & LFE
Baxi part no. 042727
19   OBSOLETE BRKT-REFLECTOR SUPPORT-675C
Baxi part no. 040746
20 Part number 102012, NUT-CAPT-U-TYPE-No8 ZNPD CHRM NUT-CAPT-U-TYPE-NO8 ZNPD CHRM
Baxi part no. 102012		 £3.12
21 Part number 062600, OBSOLETE WASHER NYLON-CONTROLS COVER OBSOLETE WASHER NYLON-CONTROLS COVER
Baxi part no. 062600
22   OBSOLETE COVER-CONTROL-ASSY-BRAEMAR.
Baxi part no. 060030
23 Part number 060051, OBSOLETE Restrictor View OBSOLETE RESTRICTOR VIEW
Baxi part no. 060051
24   OBSOLETE RIVET-NYLON ROKUT
Baxi part no. 102009
25   OBSOLETE CABLE/PIPE CLIP (LATCHING TONGUE TYPE) FOR
Baxi part no. 042161
26   OBSOLETE GUARD-DRESS - BRAEMAR & LFE
Baxi part no. 042742
27   OBSOLETE SHIELD - HEARTH
Baxi part no. 090014
27   OBSOLETE CASE INNER (INCLUDES KEY NOS 28 TO 33)
Baxi part no. 090006
28   OBSOLETE BAFFLE-AIR GUIDE-BRAEMAR-LFE
Baxi part no. 060048
29   OBSOLETE PRECISION SCREW M6 X 25 HEXAGON HEAD - STE
Baxi part no. 062430
30 Part number 062441, NUT-FULL HEX-6mm ZINC PLTD NUT-FULL HEX-6MM ZINC PLTD
Baxi part no. 062441		 £3.01
31   OBSOLETE BRKT-CONTROL ROD-BRAEMAR & LFE
Baxi part no. 060032
32   WASHER-PLAIN-5MM ZINC PLTD
Baxi part no. 062447		 £2.36
32   OBSOLETE BUSH-CONTROL SHAFT
Baxi part no. 042752
33   OBSOLETE BADGE - PATENT
Baxi part no. 092007
34   OBSOLETE BLANKING PLATE - SURROUND
Baxi part no. 090030
34   OBSOLETE STRAP-FIXING-BRAEMAR
Baxi part no. 090012
34   OBSOLETE WASHER SHAKEPROOF.INT-M4 ZN PD
Baxi part no. 062451
35   OBSOLETE HEAT EXCH ASSY BRAEMAR
Baxi part no. 090001
36   OBSOLETE BRACKET - INNER CASE LOCATION
Baxi part no. 060039
37   OBSOLETE BRACKET - OUTER CASE LOCATION LH
Baxi part no. 060040
38   OBSOLETE BRACKET - OUTER CASE LOCATION RH
Baxi part no. 060033
39   OBSOLETE BAR-FUEL RETAINING-ASSY
Baxi part no. 060034
40   OBSOLETE BRKT-GAS CONTROL.TAP-BRAE2
Baxi part no. 090007
41   OBSOLETE MACHINE SCREW M5 X 8 SLOTTED CHEESE HEAD -
Baxi part no. 062413
42 Part number 062452, WASHER SHAKEPROOF INT-M5-ZN PD WASHER SHAKEPROOF INT-M5-ZN PD
Baxi part no. 062452		 £3.12
43   OBSOLETE BAFFLE-FRONT
Baxi part no. 042769
44   OBSOLETE REFLECTOR INNER CHROMISED LH
Baxi part no. 042770
45   OBSOLETE REFLECTOR-INNER-CHROME RH
Baxi part no. 042771
46   OBSOLETE RADIANT - FOUR PIECES
Baxi part no. 062587
47   OBSOLETE BRICK-BACK 575 LFE & BRAEMAR
Baxi part no. 062588
48   OBSOLETE BRICK-SIDE BRAEMAR
Baxi part no. 062590
49   OBSOLETE ARTIFICIAL FUEL - LARGE PACK
Baxi part no. 062506
51   OBSOLETE PLATE CLOSURE
Baxi part no. 090002
52   OBSOLETE RESTRICTOR FLUE
Baxi part no. 090003
54   OBSOLETE ROD CONTROL
Baxi part no. 092010
57   OBSOLETE LEAD-ELECTRODE-BRAEMAR 2
Baxi part no. 092011
59   CLIP-CABLE-F/E-T/CARR 23790-11
Baxi part no. 062539
60 Part number 092012, OBSOLETE ELECTRODE-IGNITION-BRAEMAR 2 OBSOLETE ELECTRODE-IGNITION-BRAEMAR 2
Baxi part no. 092012
61 Part number 062560, SCR-TF-M4 x 6mm PAN POZI ZN P SCR-TF-M4 X 6MM PAN POZI ZN P
Baxi part no. 062560		 £3.12
62   OBSOLETE ELBOW-90D-1/4" BSP FXF-M I
Baxi part no. 012008
64   OBSOLETE PIPE-INLET FEED.BRAEMAR 2
Baxi part no. 092013
65   OBSOLETE PIPE-FEED BRNR NUTS&OLVS BRA2
Baxi part no. 090008
66   OBSOLETE PIPE-FEED-BNR-NUTS-OLVS-RHBRA2
Baxi part no. 090009
67   OBSOLETE INJ-FIRE-N/GAS CAT 18-220 BRAY
Baxi part no. 092002
68   OBSOLETE BURNER-FIRE BRAEMAR 2 & LFE
Baxi part no. 062610
68   OBSOLETE SCR-SET-M5 X 12MM-CH HD ZNPD
Baxi part no. 062416
69 Part number 092006, OBSOLETE ARRESTER LINT-BRAE.LFE OBSOLETE ARRESTER LINT-BRAE.LFE
Baxi part no. 092006
