ARISTON
MICROCOMBI 23 MFFI EDITION 2 (FROM SERIAL NO 2320033400001 TO 2320101500001) - (Exploded View)
Appliance Code: 47-116-16 ED 2

Appliance Diagram


Exploded View diagram for Ariston Microcombi 23 MFFI Edition 2 (From Serial No 2320033400001 To 2320101500001)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2 Part number 998616, EXPANSION VESSEL 6L EXPANSION VESSEL 6L
Ariston part no. 998616		 £82,16
3 Part number 998776, BUSH (EXPANSION VESSEL) BUSH (EXPANSION VESSEL)
Ariston part no. 998776		 £6,63
4 Part number 998581, LOCK NUT 3/8" LOCK NUT 3/8"
Ariston part no. 998581		 £4,54
5   OBSOLETE FRAME SUPPORT
Ariston part no. 999594
6 Part number 573521, GASKET 3/8" GASKET 3/8"
Ariston part no. 573521		 £0,94
7   PIPE (EXPANSION VESSEL)
Ariston part no. 999105		 £8,17
8   CABLE HOLDER
Ariston part no. 998580		 £1,91
10 Part number 570717, SPRING (FASTENING) SPRING (FASTENING)
Ariston part no. 570717		 £4,21
11 Part number 998569, NOW USE 995492 PIVOT NOW USE 995492 PIVOT
Ariston part no. 998569
11 Part number 995492, PIVOT PIVOT
Ariston part no. 995492		 £5,30
12   BY-PASS PIPE
Ariston part no. 999923		 £7,38
13 Part number 573528, GASKET 1/2" GASKET 1/2"
Ariston part no. 573528		 £1,13
14 Part number 999104, PIPE (D.H.W. OUTLET) PIPE (D.H.W. OUTLET)
Ariston part no. 999104		 £31,15
15 Part number 998612, FLOW GROUP FLOW GROUP
Ariston part no. 998612		 £78,26
16 Part number 999601, GASKET (ANTI-VIBRATION) GASKET (ANTI-VIBRATION)
Ariston part no. 999601		 £1,45
17 Part number 998447, SAFETY VALVE SAFETY VALVE
Ariston part no. 998447		 £14,74
18 Part number 569390, GASKET 1/4 GASKET 1/4
Ariston part no. 569390		 £1,16
19 Part number 998627, NOW USE 995903 LOW PRESSURE SWITCH NOW USE 995903 LOW PRESSURE SWITCH
Ariston part no. 998627
19 Part number 995903, LOW PRESSURE SWITCH LOW PRESSURE SWITCH
Ariston part no. 995903		 £15,96
20   UNION (HOT WATER OUTLET)
Ariston part no. 998611		 £4,19
21 Part number 999075, D.H.W. FLOW SWITCH D.H.W. FLOW SWITCH
Ariston part no. 999075		 £33,70
22   OBSOLETE RETURN GROUP
Ariston part no. 995302
23 Part number 999162, PUMP BRACKET PUMP BRACKET
Ariston part no. 999162		 £3,84
24 Part number 999598, PUMP PLUG PUMP PLUG
Ariston part no. 999598		 £5,61
25 Part number 997182, GASKET GASKET
Ariston part no. 997182		 £1,74
26 Part number 999602, SPACER PLATE (PUMP) SPACER PLATE (PUMP)
Ariston part no. 999602		 £5,81
27 Part number 999100, LOCK WASHER LOCK WASHER
Ariston part no. 999100		 £0,79
28 Part number 998836, NOW USE 996614 PUMP (GOLD 50) NOW USE 996614 PUMP (GOLD 50)
Ariston part no. 998836
28 Part number 996614, KIT FOR REAR PUMP ATTACHMENT KIT FOR REAR PUMP ATTACHMENT
Ariston part no. 996614		 £256,70
29   OBSOLETE PILOT LIGHT
Ariston part no. 999593
30 Part number 999592, SPINDLE (KNOB) SPINDLE (KNOB)
Ariston part no. 999592		 £6,88
31 Part number 999596, CONTROL KNOB CONTROL KNOB
Ariston part no. 999596		 £7,23
32 Part number 999976, PUSH BUTTON PUSH BUTTON
Ariston part no. 999976		 £3,24
33 Part number 999595, SPRING (PUSH BUTTON) SPRING (PUSH BUTTON)
Ariston part no. 999595		 £1,04
34   OBSOLETE NAME BADGE
Ariston part no. 997824
35 Part number 999599, NOW USE 65120831 MECHANICAL CLOCK NOW USE 65120831 MECHANICAL CLOCK
Ariston part no. 999599
35   MECHANICAL TIMER 3V DC
Ariston part no. 65120831		 £84,11
36 Part number 995459, CONTROL PANEL CONTROL PANEL
Ariston part no. 995459		 £10,30
36 Part number 999384, NOW USE 995459 CONTROL PANEL NOW USE 995459 CONTROL PANEL
Ariston part no. 999384
37 Part number 999721, NOW USE 65100297 CABLE (CLOCK) NOW USE 65100297 CABLE (CLOCK)
Ariston part no. 999721
37 Part number 65100297, INTERCONNECTING CABLE INTERCONNECTING CABLE
Ariston part no. 65100297		 £11,38
38 Part number 569711, NYLON BUSH (10mm) NYLON BUSH (10MM)
Ariston part no. 569711		 £3,21
39   OBSOLETE PRINTED CIRCUIT BOARD (T2B-FFI)
Ariston part no. 999952
40 Part number 999245, NOW USE 65100695 PRESSURE GAUGE NOW USE 65100695 PRESSURE GAUGE
Ariston part no. 999245
40 Part number 65100695, PRESSURE GAUGE PRESSURE GAUGE
Ariston part no. 65100695		 £13,55
42 Part number 571548, U-CLIP U-CLIP
Ariston part no. 571548		 £4,35
43 Part number 999521, NOW USE 65101073 CABLE (POWER SUPPLY) NOW USE 65101073 CABLE (POWER SUPPLY)
Ariston part no. 999521
43 Part number 65101073, CABLE (POWER SUPPLY) CABLE (POWER SUPPLY)
Ariston part no. 65101073		 £7,41
44 Part number 998860, WIRING WIRING
Ariston part no. 998860		 £60,94
45   LOW VOLTAGE WIRING
Ariston part no. 999387		 £7,52
46 Part number 65102772, GASKET (ADHESIVE - 14X6 mm) GASKET (ADHESIVE - 14X6 MM)
Ariston part no. 65102772		 £10,13
46 Part number 998516, NOW USE 65102772 SEAL (COMBUSTION CHAMBER - 10X6) NOW USE 65102772 SEAL (COMBUSTION CHAMBER - 10X6)
Ariston part no. 998516
47 Part number 573327, Y PIECE (AIR PRESSURE) Y PIECE (AIR PRESSURE)
Ariston part no. 573327		 £6,24
48 Part number 571575, NOW USE 573576 SILICONE PIPE (POSITIVE SIGNAL) NOW USE 573576 SILICONE PIPE (POSITIVE SIGNAL)
Ariston part no. 571575
49 Part number 998484, NOW USE 998484-01 AIR PRESSURE SWITCH 40 Pa NOW USE 998484-01 AIR PRESSURE SWITCH 40 PA
Ariston part no. 998484
49 Part number 998484-01, AIR PRESSURE SWITCH 55 Pa AIR PRESSURE SWITCH 55 PA
Ariston part no. 998484-01		 £36,99
50 Part number 573329, AIR INTAKE COVER AIR INTAKE COVER
Ariston part no. 573329		 £6,22
51 Part number 997203, SUPPORT PLATE SUPPORT PLATE
Ariston part no. 997203		 £6,35
53 Part number 998565, COVER (FLUE TEST POINT) (TO 03/06) COVER (FLUE TEST POINT) (TO 03/06)
Ariston part no. 998565		 £3,28
54 Part number 998636, GASKET (FLUE TEST POINT) (TO 03/06) GASKET (FLUE TEST POINT) (TO 03/06)
Ariston part no. 998636		 £5,17
55 Part number 999980, RESTRICTOR (D=43) RESTRICTOR (D=43)
Ariston part no. 999980		 £4,34
56 Part number 999561, FLUE (EXHAUST MANIFOLD / HEADER) FLUE (EXHAUST MANIFOLD / HEADER)
Ariston part no. 999561		 £21,62
57 Part number 998637, GASKET (FLUE COLLAR) GASKET (FLUE COLLAR)
Ariston part no. 998637		 £1,65
58 Part number 998595, PLUG (AIR INTAKE) PLUG (AIR INTAKE)
Ariston part no. 998595		 £6,47
59 Part number 998633, FAN CABLE & SENSOR FAN CABLE & SENSOR
Ariston part no. 998633		 £11,66
60 Part number 998566, FIXING CLAMP (FAN) FIXING CLAMP (FAN)
Ariston part no. 998566		 £2,57
61 Part number 999135, PANEL (INSULATION - FAN) PANEL (INSULATION - FAN)
Ariston part no. 999135		 £5,81
62 Part number 999397, FAN FAN
Ariston part no. 999397		 £66,33
63 Part number 998640, PANEL (INSULATION - REAR) PANEL (INSULATION - REAR)
Ariston part no. 998640		 £8,75
64   NOW USE 995893 PANEL (COMBUSTION CHAMBER - L/H SIDE)
Ariston part no. 998600
64   PANEL (L.H. SIDE)
Ariston part no. 995893		 £7,58
65   TEMPERATURE PROBE
Ariston part no. 998458-01		 £7,34
65 Part number 998458, NOW USE 998458-01 TEMPERATURE PROBE NOW USE 998458-01 TEMPERATURE PROBE
Ariston part no. 998458
66 Part number 998619, EXCHANGER (TWIN PASS) EXCHANGER (TWIN PASS)
Ariston part no. 998619		 £277,71
67 Part number 998639, PANEL (INSULATION - SIDE) PANEL (INSULATION - SIDE)
Ariston part no. 998639		 £7,19
68 Part number 998618, NOW USE 996158 BURNER 12 RAMP (NATURAL GAS) NOW USE 996158 BURNER 12 RAMP (NATURAL GAS)
Ariston part no. 998618
68 Part number 996158, BURNER NG BURNER NG
Ariston part no. 996158		 £104,03
68   BURNER LPG
Ariston part no. 998669		 £85,21
69 Part number 569443, SILICONE SEAL SILICONE SEAL
Ariston part no. 569443		 £6,30
70 Part number 573325, RIVET RIVET
Ariston part no. 573325		 £0,98
71 Part number 573576, COMPENSATION TUBE COMPENSATION TUBE
Ariston part no. 573576		 £7,22
72   PIPE (COLD WATER INLET)
Ariston part no. 999394		 £7,90
73 Part number 998424, O-RING O-RING
Ariston part no. 998424		 £1,09
74 Part number 574279, GASKET (SPARK GENERATOR) GASKET (SPARK GENERATOR)
Ariston part no. 574279		 £1,45
75 Part number 998645, NOW USE 65100514 SPARK GENERATOR NOW USE 65100514 SPARK GENERATOR
Ariston part no. 998645
75 Part number 65100514, SPARK GENERATOR (KIT) SPARK GENERATOR (KIT)
Ariston part no. 65100514		 £30,16
76 Part number 65100516, GAS VALVE (SIT 845 SIGMA) GAS VALVE (SIT 845 SIGMA)
Ariston part no. 65100516		 £157,15
76 Part number 997089, NOW USE 65100516 gas valve NOW USE 65100516 GAS VALVE
Ariston part no. 997089
77 Part number 573520, GASKET 3/4" GASKET 3/4"
Ariston part no. 573520		 £0,94
78 Part number 998729, NOW USE 65100432 PIPE (GAS VALVE) NOW USE 65100432 PIPE (GAS VALVE)
Ariston part no. 998729
78 Part number 65100432, GAS PIPE GAS PIPE
Ariston part no. 65100432		 £16,01
79 Part number 572138, BURNER JET WASHER BURNER JET WASHER
Ariston part no. 572138		 £0,87
80 Part number 998434, BURNER JET (L.P.G. 0.77) BURNER JET (L.P.G. 0.77)
Ariston part no. 998434		 £1,49
80 Part number 998433, BURNER JET (NG 1.30) BURNER JET (NG 1.30)
Ariston part no. 998433		 £1,60
81 Part number 998731, PIPE (C.H. RETURN) PIPE (C.H. RETURN)
Ariston part no. 998731		 £18,19
82   PIPE (C.H. FLOW)
Ariston part no. 998727		 £23,89
83 Part number 997153, U-CLIP U-CLIP
Ariston part no. 997153		 £1,47
84 Part number 998862, CABLE (P.C.B.-DETECTION ELECTRODE) CABLE (P.C.B.-DETECTION ELECTRODE)
Ariston part no. 998862		 £6,85
85 Part number 569720, BLIND GROMMET BLIND GROMMET
Ariston part no. 569720		 £2,44
86 Part number 998953, CABLE HOLDER COVER CABLE HOLDER COVER
Ariston part no. 998953		 £4,27
87 Part number 998517, O-RING O-RING
Ariston part no. 998517		 £1,00
88   NOW USE 65100555 PANEL (COMBUSTION CHAMBER FRONT)
Ariston part no. 998598
88   FRONT PANEL
Ariston part no. 65100555		 £11,25
89 Part number 998147, IGNITION ELECTRODE CABLE RUBBER IGNITION ELECTRODE CABLE RUBBER
Ariston part no. 998147		 £4,28
90 Part number 998623, NOW USE 65100251 ELECTRODE (IGNITION R.H.) NOW USE 65100251 ELECTRODE (IGNITION R.H.)
Ariston part no. 998623
90 Part number 65100251, IGNITION ELECTRODE (R.H.) IGNITION ELECTRODE (R.H.)
Ariston part no. 65100251		 £6,32
91 Part number 65100250, IGNITION ELECTRODE (L.H.) IGNITION ELECTRODE (L.H.)
Ariston part no. 65100250		 £6,32
91 Part number 998622, NOW USE 65100250 ELECTRODE (IGNITION L.H.) NOW USE 65100250 ELECTRODE (IGNITION L.H.)
Ariston part no. 998622
92 Part number 998624, IONISATION ELECTRODE IONISATION ELECTRODE
Ariston part no. 998624		 £6,30
93 Part number 998582, FIXING SPRING (OVERHEAT THERMOSTAT) FIXING SPRING (OVERHEAT THERMOSTAT)
Ariston part no. 998582		 £2,71
94 Part number 996065, OVERHEAT THERMOSTAT OVERHEAT THERMOSTAT
Ariston part no. 996065		 £11,03
94 Part number 997206, NOW USE 996065 THERMOSTAT (OVERHEAT) NOW USE 996065 THERMOSTAT (OVERHEAT)
Ariston part no. 997206
95   OBSOLETE PANEL (COMBUSTION CHAMBER - R.H.SIDE)
Ariston part no. 998599
96   FLUE HOOD
Ariston part no. 65102262		 £38,75
96   NOW USE 65102262 FLUE HOOD
Ariston part no. 999385

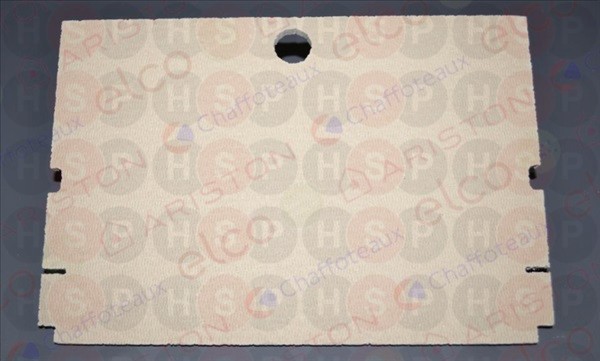

97 Part number 995995, PANEL (INSULATION - FRONT) PANEL (INSULATION - FRONT)
Ariston part no. 995995		 £9,43
97 Part number 998638, NOW USE 995995 PANEL (INSULATION - FRONT) NOW USE 995995 PANEL (INSULATION - FRONT)
Ariston part no. 998638
98 Part number 998076, NOW USE 65105371 GASKET (SIGHT GLASS) NOW USE 65105371 GASKET (SIGHT GLASS)
Ariston part no. 998076
98 Part number 65105371, SIGHT GLASS - GASKET SIGHT GLASS - GASKET
Ariston part no. 65105371		 £6,02
99 Part number 65105371, SIGHT GLASS - GASKET SIGHT GLASS - GASKET
Ariston part no. 65105371		 £6,02
99 Part number 998075, NOW USE 65105371 SIGHT GLASS NOW USE 65105371 SIGHT GLASS
Ariston part no. 998075
100 Part number 65101606, NOW USE 65105370 PANEL (FRONT - SEALED CHAMBER) NOW USE 65105370 PANEL (FRONT - SEALED CHAMBER)
Ariston part no. 65101606
100 Part number 65105370, PANEL (FRONT - SEALED CHAMBER) PANEL (FRONT - SEALED CHAMBER)
Ariston part no. 65105370		 £36,59
100 Part number 999151, NOW USE 65105370 PANEL (FRONT - SEALED CHAMBER) NOW USE 65105370 PANEL (FRONT - SEALED CHAMBER)
Ariston part no. 999151
101 Part number 999425, WIRING (AIR PRESSURE SWITCH/PROBE) WIRING (AIR PRESSURE SWITCH/PROBE)
Ariston part no. 999425		 £9,29
301   CASE PANEL (L.H. SIDE)
Ariston part no. 998477		 £161,57
302   OBSOLETE CASE PANEL (FRONT)
Ariston part no. 999316
303   CASE PANEL (R.H. SIDE)
Ariston part no. 998476		 £140,70
304 Part number 995305, WASHER WASHER
Ariston part no. 995305		 £7,68
311 Part number 998941, D.H.W. ACTUATOR KIT D.H.W. ACTUATOR KIT
Ariston part no. 998941		 £35,54
312 Part number 999473, BY-PASS BY-PASS
Ariston part no. 999473		 £6,48
351 Part number 998644, O-RING (PUMP) O-RING (PUMP)
Ariston part no. 998644		 £4,79
352 Part number 998643, AUTO AIR VENT + O-RING AUTO AIR VENT + O-RING
Ariston part no. 998643		 £18,41
353 Part number 998738, GASKET (PUMP HEAD) GASKET (PUMP HEAD)
Ariston part no. 998738		 £3,94
354 Part number 998961, NOW USE 996615 PUMP HEAD NOW USE 996615 PUMP HEAD
Ariston part no. 998961
354 Part number 996615, KIT (MOTOR PUMP) KIT (MOTOR PUMP)
Ariston part no. 996615		 £256,70
361 Part number 995304, D.H.W. INLET FILTER D.H.W. INLET FILTER
Ariston part no. 995304		 £3,56
371 Part number 998716, BURNER JET FULL KIT (NG) BURNER JET FULL KIT (NG)
Ariston part no. 998716		 £23,12
372 Part number 998717, BURNER JET FULL KIT (LPG) BURNER JET FULL KIT (LPG)
Ariston part no. 998717		 £25,61


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
