ALPHA
C27 - (01 Appliance Identification)
Appliance Code: 47-532-23

Appliance Diagram


01 Appliance Identification diagram for Alpha C27Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 3.013390, SEAL KIT- FAN/FLUE REPL. (CB24/28/SY ONLY) SEAL KIT- FAN/FLUE REPL. (CB24/28/SY ONLY)
Alpha part no. 3.013390		 £15.48
3 Part number 1.010430, CAP (SAMPLING POINT) CAP (SAMPLING POINT)
Alpha part no. 1.010430		 £2.75
4   PIPE CLAMP(SILICONE)
Alpha part no. 1.010500		 £1.35
5 Part number 1.010645, OBSOLETE FLAME SENSING ELECTRODE OBSOLETE FLAME SENSING ELECTRODE
Alpha part no. 1.010645		 £17.00
6 Part number 1.010771, AUTOMATIC AIR VENT (CB/CD/SY) (240/280/500) AUTOMATIC AIR VENT (CB/CD/SY) (240/280/500)
Alpha part no. 1.010771		 £23.47
9 Part number 3.013388, SEAL KIT- ISOL.VALVES & CONNS (CB24/28/SY)(CD24C/S) SEAL KIT- ISOL.VALVES & CONNS (CB24/28/SY)(CD24C/S)
Alpha part no. 3.013388		 £11.75
10 Part number 1.021762, TEMPERATURE SENSOR (NTC) (240/280/500/CB/CD/SY) TEMPERATURE SENSOR (NTC) (240/280/500/CB/CD/SY)
Alpha part no. 1.021762		 £14.92
10 Part number 1.015970, NOW USE 1.021762 Temperature sensor NOW USE 1.021762 TEMPERATURE SENSOR
Alpha part no. 1.015970
11 Part number 1.012711, NOW USE SEAL KIT 3.013392 NOW USE SEAL KIT 3.013392
Alpha part no. 1.012711
11 Part number 3.013392, SEAL KIT A.A.V/N.T.C/P/GGE/EXP (CB24/28/SY)(CD24C/S) SEAL KIT A.A.V/N.T.C/P/GGE/EXP (CB24/28/SY)(CD24C/S)
Alpha part no. 3.013392		 £5.70
12   INSULATION PANEL SET (C23)
Alpha part no. 3.015220		 £38.11
15 Part number 1.2363, SILICONE TUBE (CB50) SILICONE TUBE (CB50)
Alpha part no. 1.2363		 £7.22
16   CAP (CONTROL PANEL SCREW)
Alpha part no. 1.013751		 £1.44
18 Part number 1.018320, NOW USE 3.014379 PRIMARY PRESSURE SWITCH NOW USE 3.014379 PRIMARY PRESSURE SWITCH
Alpha part no. 1.018320
18 Part number 3.014379, BRASS PRESSURE SWITCH/WASHER BRASS PRESSURE SWITCH/WASHER
Alpha part no. 3.014379		 £31.65
19 Part number 3.013387, SEAL KIT - H/EXCHS./PUMP (CB24/28/SY ONLY) SEAL KIT - H/EXCHS./PUMP (CB24/28/SY ONLY)
Alpha part no. 3.013387		 £9.04
20   SEAL KIT AAV/NTC/PPS/EXP VESS/ PRESS GAUGE (CB50)
Alpha part no. 3.014732		 £7.37
20   NOW USE SEAL KIT 3.014732
Alpha part no. 1.015244
21   BURNER ASSY (C23)
Alpha part no. 1.017623		 £113.49
22   INJECTOR MANIFOLD (LPG) (CB24/24X/SY24)
Alpha part no. 1.016384		 £48.91
22   INJECTOR MANIFOLD (N/G) (CB24/SY24)
Alpha part no. 1.015371		 £47.83
23 Part number 1.015394, NOW USE 1.023560 EXPANSION VESSEL 8LT(CB/SY/CD)(HE) NOW USE 1.023560 EXPANSION VESSEL 8LT(CB/SY/CD)(HE)
Alpha part no. 1.015394
23 Part number 1.023560, EXPANSION VESSEL 8 LITRE EXPANSION VESSEL 8 LITRE
Alpha part no. 1.023560		 £115.83
24 Part number 1.015395, EXPANSION VESSEL PIPE D.8 EXPANSION VESSEL PIPE D.8
Alpha part no. 1.015395		 £17.27
25   PUMP-SEALED CHAMBER PIPE D.18
Alpha part no. 1.015396		 £28.50
28   GAS VALVE GAS MANIFOLD PIPE D.18
Alpha part no. 1.015408		 £19.82
29   PIPE D 14 COLD INLET (CB 24X)
Alpha part no. 1.015412		 £4.53
30 Part number 1.015413, HOT WATER OUTLET PIPE HOT WATER OUTLET PIPE
Alpha part no. 1.015413		 £18.94
32 Part number 1.016672, PIPE DHW OUTLET(LOWER) PIPE DHW OUTLET(LOWER)
Alpha part no. 1.016672		 £13.40
33 Part number 1.015421, ISOLATING VALVE 1/2 ISOLATING VALVE 1/2
Alpha part no. 1.015421		 £15.53
34 Part number 1.016673, PIPE GAS CONNECTION PIPE GAS CONNECTION
Alpha part no. 1.016673		 £4.17
35   WALL PLUG & SCREW PACK
Alpha part no. 1.015423		 £8.36
39   GAS COCK (CB50)
Alpha part no. 1.018129		 £25.98
40 Part number 1.015610, PUMP-GRUNDFOS 15/60 (240/280/CB/CD/SY) PUMP-GRUNDFOS 15/60 (240/280/CB/CD/SY)
Alpha part no. 1.015610		 £141.31
41 Part number 1.016671, PIPE COLD MAINS INLET PIPE COLD MAINS INLET
Alpha part no. 1.016671		 £4.69
43   LOWER PLASTIC GRATE CB/SY
Alpha part no. 1.015629		 £32.21
44   FLUE CONN. FLANGE
Alpha part no. 1.015630		 £29.86
45 Part number 1.015637, SILICONE PIPE CONNECTOR SILICONE PIPE CONNECTOR
Alpha part no. 1.015637		 £1.05
46 Part number 1.016870, OVERHEAT THERMOSTAT-105DEG (CB50) OVERHEAT THERMOSTAT-105DEG (CB50)
Alpha part no. 1.016870		 £13.89
47 Part number 1.018745, FAN ASSY (C23 & C27) FAN ASSY (C23 & C27)
Alpha part no. 1.018745		 £125.43
48   NUT (D15 PIPE)
Alpha part no. 1.016152		 £4.47
49   OLIVE (D15 PIPE)
Alpha part no. 1.016153		 £1.87
51   SCREW R/S CHAMBER
Alpha part no. 1.5244		 £1.22
52 Part number 1.013154, SEAL (ROOM SEALED CHAMBER) SEAL (ROOM SEALED CHAMBER)
Alpha part no. 1.013154		 £8.24
53 Part number 3.013392, SEAL KIT A.A.V/N.T.C/P/GGE/EXP (CB24/28/SY)(CD24C/S) SEAL KIT A.A.V/N.T.C/P/GGE/EXP (CB24/28/SY)(CD24C/S)
Alpha part no. 3.013392		 £5.70
54 Part number 3.013386, SEAL KIT - WATER COMPLETE (CB24/28/SY)(CD24C/S) SEAL KIT - WATER COMPLETE (CB24/28/SY)(CD24C/S)
Alpha part no. 3.013386		 £29.22
56   BRASS NUT (SHORTENED) 3/4
Alpha part no. 1.1260		 £1.92
57   BRASS NUT (SHORTENED) 1/2
Alpha part no. 1.1269		 £1.30
61   DOUBLE CLIP
Alpha part no. 1.1378		 £1.05
62   SCREW (CONTROL PANEL)
Alpha part no. 1.2337		 £0.99
65   GROMMET (ELECTRODES)
Alpha part no. 1.5780		 £1.29
66 Part number 1.6600, GROMMET (PRIMARY PIPES)(CB/SY) GROMMET (PRIMARY PIPES)(CB/SY)
Alpha part no. 1.6600		 £3.85
68 Part number 1.016884, AIR PRESSURE SWITCH (C23) AIR PRESSURE SWITCH (C23)
Alpha part no. 1.016884		 £67.16
70   COVER PLATE D80
Alpha part no. 2.010055		 £1.29
71   DRAUGHT DIVERTER REAR PANEL (C27)
Alpha part no. 2.012215		 £17.10
73   AIR PRESS SWITCH BRACKET (C27)
Alpha part no. 2.011601		 £2.65
74   BRACKET EXPANSION VESSEL (CB / C / SY)
Alpha part no. 2.011622		 £6.94
75 Part number 2.010989, BRACKET (CONTROL PANEL) BRACKET (CONTROL PANEL)
Alpha part no. 2.010989		 £1.05
76   R/S CHAMBER TOP PANEL (C23)
Alpha part no. 2.012279		 £29.50
78   R/S CHAMBER BOTTOM PANEL-C27
Alpha part no. 2.011958		 £27.88
80   COMB/CHAMB FRONT PANEL (C23)
Alpha part no. 2.011061		 £17.36
81   COMB/CHAMB REAR PANEL (C23)
Alpha part no. 2.011874		 £37.82
82   DRAUGHT DIVERTER BAFFLE PLATE (C23)
Alpha part no. 2.011986		 £5.33
83   SUPPORT PLATE (LEFT)
Alpha part no. 2.011195		 £4.32
84   SUPPORT PLATE (RIGHT)
Alpha part no. 2.011196		 £4.32
85   FRONT CASING PANEL(NEW FINISH)
Alpha part no. 2.011732		 £50.22
86   SIDE PANEL R/HAND(NEW FINISH)
Alpha part no. 2.011733		 £45.76
87   SIDE PANEL L/HAND(NEW FINISH)
Alpha part no. 2.011734		 £45.76
88   FLUE RESTRICTOR (81MM)(C23)
Alpha part no. 2.012335		 £13.40
89   SEALED CHAMBER COVER GROUP
Alpha part no. 3.012671		 £41.90
90 Part number 3.012705, GLASS (WITH GROMMET) GLASS (WITH GROMMET)
Alpha part no. 3.012705		 £4.32
91   UPPER FRAME SUPPORT
Alpha part no. 2.011621		 £5.30
94   CONTROL PANEL COMPLETE (C23)
Alpha part no. 3.015035		 £305.51
95   GLASS FOR L.E.D.
Alpha part no. 1.010365		 £1.69
96   CAP (P C B ACCESS HOLE)
Alpha part no. 1.011968		 £0.71
97 Part number 1.013340, DHW AND C.H CONTROL KNOB DHW AND C.H CONTROL KNOB
Alpha part no. 1.013340		 £1.95
98 Part number 1.014054, SELECTOR SWITCH KNOB SELECTOR SWITCH KNOB
Alpha part no. 1.014054
99   NOW USE 1.014144 GAS VALVE CONNECTOR
Alpha part no. 3.010173
99   GAS VALVE CABLE (CB50)
Alpha part no. 1.014144		 £61.80
103   GROMMET (FAN CABLE)
Alpha part no. 1.5759		 £1.10
104   GROMMET (APS CABLE)
Alpha part no. 1.6406		 £1.03
105   CONTROL PANEL (C23)
Alpha part no. 1.019386		 £54.26
106   CONTROL PANEL REAR COVER
Alpha part no. 1.015403
107 Part number 1.015404, COVER (TERMINAL BLOCK) COVER (TERMINAL BLOCK)
Alpha part no. 1.015404
108 Part number 1.019464, PCB (C23 & C27) PCB (C23 & C27)
Alpha part no. 1.019464		 £223.29
109   COVER (CLOCK CONNECTIONS)
Alpha part no. 1.015406		 £3.81
110   I D CARD (TERMINAL BLOCK)
Alpha part no. 1.015621		 £5.18
111 Part number 1.015753, CLOCK BLANKING PLATE CLOCK BLANKING PLATE
Alpha part no. 1.015753		 £2.47
112 Part number 1.016151, PRESSURE GAUGE (CB/SY/CD) PRESSURE GAUGE (CB/SY/CD)
Alpha part no. 1.016151		 £39.66
113 Part number 1.4005, TERMINAL BLOCK & FUSE HOLDER TERMINAL BLOCK & FUSE HOLDER
Alpha part no. 1.4005
114   CABLE CLAMP
Alpha part no. 1.4072		 £0.70
115   SCREW 3.9 X 13 SELF TAPPING
Alpha part no. 1.4139		 £0.99
116 Part number 1.6098, FUSE 2AMP (240/280/CB/SY/CD) FUSE 2AMP (240/280/CB/SY/CD)
Alpha part no. 1.6098		 £1.35
117   CABLE CLAMP (CB50)
Alpha part no. 1.7908		 £1.01
118   SCREW 3.5 X 19 SELF TAPPING
Alpha part no. 1.7967		 £1.12
119   PAPER WALL TEMPLATE
Alpha part no. 1.015631		 £25.36
120   WALL MOUNTING BRACKET
Alpha part no. 2.011146		 £22.87
128 Part number 1.015803, GAS VALVE (VK4105)(CB24/28/SY) GAS VALVE (VK4105)(CB24/28/SY)
Alpha part no. 1.015803		 £172.48
129   PIPE ISOL.VALVE/GAS VALVE
Alpha part no. 3.013115		 £22.37
130   DHW FLOW REGULATOR 10 LTR(C27) (YELLOW)
Alpha part no. 1.016595		 £10.78
138   INLET MANIFOLD ASSY (C23/C27)
Alpha part no. 3.014981		 £67.70
139 Part number 1.011126, PRESSURE RELIEF VALVE - 3 BAR (CB/CD/SY) PRESSURE RELIEF VALVE - 3 BAR (CB/CD/SY)
Alpha part no. 1.011126		 £24.74
140   RETAINING SCREW (P R V )
Alpha part no. 1.016169		 £1.32
160 Part number 3.015165, IGN ELECTRODE LEAD (C23 &C27) IGN ELECTRODE LEAD (C23 &C27)
Alpha part no. 3.015165		 £22.73
161 Part number 3.013213, LEAD FLAME SENS.ELECTRODE (CB24/28/SY) LEAD FLAME SENS.ELECTRODE (CB24/28/SY)
Alpha part no. 3.013213		 £5.99
162   SCREW 3.9 X 9.5 SELF TAPPING (CB50)
Alpha part no. 1.0152		 £1.12
164   CAP (CB50)
Alpha part no. 1.016150		 £2.40
165   SCREW M5 X 8
Alpha part no. 1.1176		 £1.51
166   RING M4
Alpha part no. 1.4246		 £0.99
167   SCREW SWAGEFORM M4 X 10
Alpha part no. 1.7030		 £1.00
169   SCREW SELF TAPPING 4.2 X 9.5
Alpha part no. 1.4557		 £0.99
170 Part number 1.5459, SCREW M3X6 SCREW M3X6
Alpha part no. 1.5459		 £0.31
171   NOW USE 1.7030 SCREW SELF TAPPING M4 X 8
Alpha part no. 1.016246
171   SCREW SWAGEFORM M4 X 10
Alpha part no. 1.7030		 £1.00
177 Part number 3.014936, BY PASS VALVE BY PASS VALVE
Alpha part no. 3.014936		 £66.26
184   PIPE - R/S CHAMBER TO CH FLOW
Alpha part no. 1.019278		 £36.69
198 Part number 1.016497, CAP (GAS VALVE) CAP (GAS VALVE)
Alpha part no. 1.016497		 £8.11
199   BLANKING GROMMET D18
Alpha part no. 1.017221		 £12.81
200   R/S/CH.SILICONE TUBE FITTING
Alpha part no. 1.017228		 £1.93
201   REAR FRAME SUPPORT BRACKET (CD24S/C)
Alpha part no. 2.011596		 £6.98
202   REAR PANEL R/HAND(NEW FINISH)
Alpha part no. 2.011735		 £28.89
203   REAR PANEL L/HAND(NEW FINISH)
Alpha part no. 2.011736		 £28.89
322 Part number 1.015597, ELECTRODE - IGN (C23 & C27) ELECTRODE - IGN (C23 & C27)
Alpha part no. 1.015597		 £14.51
326   D.12 PIPE GROMMET (CD24S/C)
Alpha part no. 1.011362		 £3.81
327   PIPE - SEALED CHAMB TO HT EXCH (C23/C27)
Alpha part no. 1.019384		 £13.42
328   PIPE - SEALED CHAMBER TO HOT OUTLET (C23/C27)
Alpha part no. 1.019381		 £35.14
329   PIPE - COLD WATER INLET TO SEALED CHAMBER (C23/C27)
Alpha part no. 1.019182		 £35.21
330   PIPE - HEAT EXCH TO SEALED CHAMBER (C23/C27)
Alpha part no. 1.019383		 £13.03
331   PIPE - PRIMARY HEAT EXCHANGER (C23/C27)
Alpha part no. 1.019385		 £17.08
332   BURNER IGNITION PLATE(C23/C27)
Alpha part no. 2.011739		 £4.65
333   AIR DISTRIBUTION BRACKET (C23/C27)
Alpha part no. 2.012271		 £8.95
501 Part number 6.5630140, 40mm CLAMP/SCREWS (FLUE BEND) 40MM CLAMP/SCREWS (FLUE BEND)
Alpha part no. 6.5630140

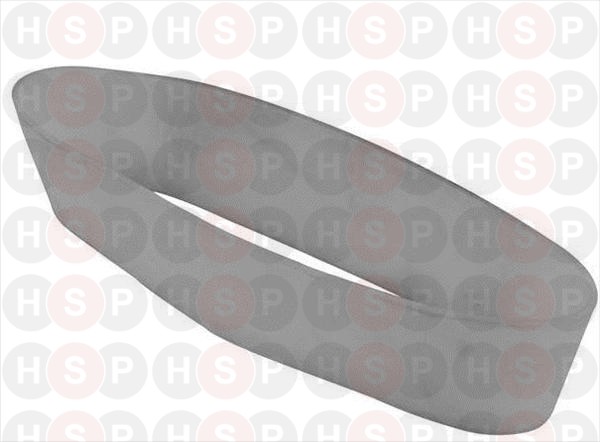

502 Part number 6.5404950, 40mm SEALING BAND (FLUE BEND) 40MM SEALING BAND (FLUE BEND)
Alpha part no. 6.5404950		 £9.88
503   90 FLUE BEND/CLAMP/SEAL
Alpha part no. 6.1000330		 £62.61
504 Part number 6.5630130, 75mm CLAMP/SCREWS (OUTER FLUE) 75MM CLAMP/SCREWS (OUTER FLUE)
Alpha part no. 6.5630130		 £38.00
505 Part number 6.5621890, 45mm CLAMP (INNER FLUE) 45MM CLAMP (INNER FLUE)
Alpha part no. 6.5621890		 £11.67
506   DUCT SUPPORT CLIP
Alpha part no. 6.5107710
509   OBSOLETE TAPPING SCREW
Alpha part no. 6.8100757
510 Part number 3.013165, FLUE HZNTL.TERMINAL KIT FLUE HZNTL.TERMINAL KIT
Alpha part no. 3.013165		 £47.46
511   OBSOLETE FLUE SEALING COLLAR
Alpha part no. 6.1000375


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
