WORCESTER
28 FSN GB - (Hydraulics)
Appliance Code: 47-406-33

Appliance Diagram

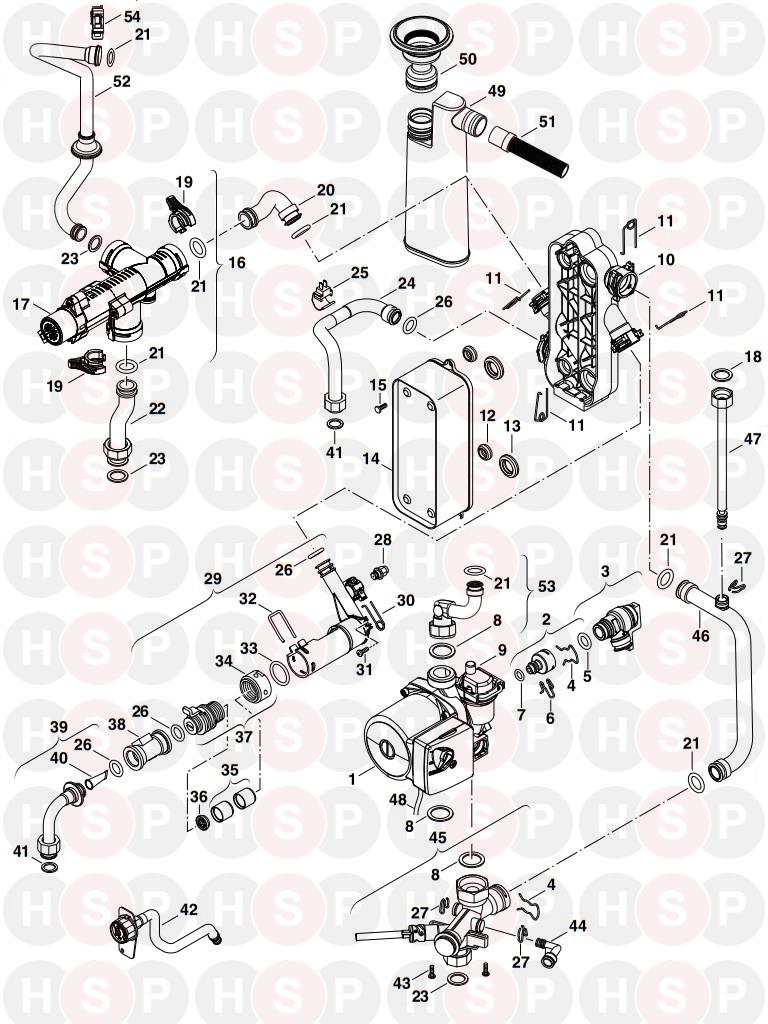

Hydraulics diagram for Worcester 28 Fsn GbClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   PUMP UPMO 15-50 CACAO 14 3H
Worcester part no. 8737604215		 £247.70
2   ADAPTER
Worcester part no. 87160107930		 £18.98
3   SAFETY RELIEF VALVE
Worcester part no. 87186438140		 £23.89
4 Part number 87112000160, WIREFORM SPRING WIREFORM SPRING
Worcester part no. 87112000160		 £0.60
5   O-RING
Worcester part no. 87167715970		 £18.98
6   WIREFORM SPRING (10X)
Worcester part no. 87147070240		 £4.80
7   O-RING (10X)
Worcester part no. 87102050900		 £4.80
8   WASHER (10X)
Worcester part no. 87101031640		 £11.04
9 Part number 87185050390, AUTOMATIC PURGER AUTOMATIC PURGER
Worcester part no. 87185050390		 £51.87

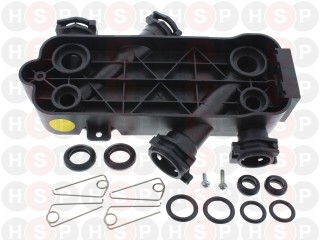

10 Part number 87160118190, LOWER HOUSING LOWER HOUSING
Worcester part no. 87160118190		 £72.41
11 Part number 87186846990, CLIP WIRE 18mm (10X) CLIP WIRE 18MM (10X)
Worcester part no. 87186846990		 £2.86
12 Part number 87167713250, GASKET (10x) GASKET (10X)
Worcester part no. 87167713250		 £2.54
13 Part number 87167710030, WASHER 18mm (10x) WASHER 18MM (10X)
Worcester part no. 87167710030		 £9.97
14 Part number 87167719870, HEAT EXCHANGER HEAT EXCHANGER
Worcester part no. 87167719870		 £185.82
15 Part number 87161064520, SCREW & WASHER ASSEMBLY M5X30 SCREW & WASHER ASSEMBLY M5X30
Worcester part no. 87161064520		 £2.68
16   10LVE 3-WAY SAIA W/O BYPASS
Worcester part no. 87186422110		 £85.42
17   MOTOR
Worcester part no. 87186429570		 £78.15
18   WASHER (10X)
Worcester part no. 87101031210		 £12.68
19   CABLE CLIP (10)
Worcester part no. 87186405650
20   PIPE PHE INLET SAIA
Worcester part no. 87186420590		 £17.35
21 Part number 87167711540, O-RING 17X4 (10X) AFTER FD992 O-RING 17X4 (10X) AFTER FD992
Worcester part no. 87167711540		 £2.71
22   FLOW PIPE CH OUT SAIA W/O ADAPTER
Worcester part no. 87186421930		 £18.98
23 Part number 87101030430, FIBRE WASHER 23.9 X 17.2 X 1.5 FIBRE WASHER 23.9 X 17.2 X 1.5
Worcester part no. 87101030430		 £2.92
24   PIPE
Worcester part no. 87160108710		 £24.85
25 Part number 87160108090, TEMPERATURE SENSOR TEMPERATURE SENSOR
Worcester part no. 87160108090		 £7.16
26 Part number 87161165490, O-RING 13,87X3,53 (10X) O-RING 13,87X3,53 (10X)
Worcester part no. 87161165490		 £3.23
26 Part number 87167711550, NOW USE 87161165490 O-RING 13,87X3,53 (10X) NOW USE 87161165490 O-RING 13,87X3,53 (10X)
Worcester part no. 87167711550
27   CABLE CLIP (10X)
Worcester part no. 87199053350		 £36.35
28 Part number 87174010160, BLOW OFF VALVE (L) 15BAR BLOW OFF VALVE (L) 15BAR
Worcester part no. 87174010160		 £8.84
29 Part number 87160118200, TURBINE CASE TURBINE CASE
Worcester part no. 87160118200		 £50.67
30 Part number 87167711670, RETAINING SPRING 10mm (10X) RETAINING SPRING 10MM (10X)
Worcester part no. 87167711670		 £2.58
31   SCREW M4X12 (10)
Worcester part no. 87186445540
32 Part number 87161064880, SAFETY CLIP SUPPLY SENSOR SAFETY CLIP SUPPLY SENSOR
Worcester part no. 87161064880		 £1.97
33 Part number 87161067470, O-RING 22X3 EPDM (10X) O-RING 22X3 EPDM (10X)
Worcester part no. 87161067470		 £3.03
34   ADAPTER
Worcester part no. 87161117970		 £6.96
35   SILENCER
Worcester part no. 87160117560		 £9.73
36 Part number 87161410570, FLOW LIMITER INSERT 10LT FLOW LIMITER INSERT 10LT
Worcester part no. 87161410570		 £6.59
37   FLOW SENSOR ADAPTER
Worcester part no. 87161124910		 £12.68
38 Part number 87170021320, TURBINE (BEFORE FD076) TURBINE (BEFORE FD076)
Worcester part no. 87170021320		 £62.58
39   FLOW PIPE
Worcester part no. 87160108080		 £22.70
40 Part number 87161064860, DHW FILTER INSERT DHW FILTER INSERT
Worcester part no. 87161064860		 £4.84
41 Part number 87101030450, WASHER 18.6 X 13.5 X 1.5 (10X) WASHER 18.6 X 13.5 X 1.5 (10X)
Worcester part no. 87101030450		 £3.04
42 Part number 87161164280, PRESSURE GAUGE AFTER FD985 PRESSURE GAUGE AFTER FD985
Worcester part no. 87161164280		 £22.02
43   SCREW (10X)
Worcester part no. 29142113040		 £3.70
44   ELBOW
Worcester part no. 87160107850		 £9.73
45   RETURN PIPE DISTRIBUTION
Worcester part no. 87186408540		 £36.35
47   ELBOW
Worcester part no. 87160107850		 £9.73
47   FLEXIBLE TUBE
Worcester part no. 87186448950		 £12.81
48   CABLE
Worcester part no. 87144018960		 £51.87
49   SIPHON
Worcester part no. 87160122730		 £14.09
50   FLOW PIPE
Worcester part no. 87160122720		 £9.73
51   HOSE
Worcester part no. 87186438610		 £6.96
52   PIPE HE OUTLET SAIA W/O ADAPTER
Worcester part no. 87186420600		 £31.97
53   PIPE
Worcester part no. 87160122760		 £55.75
54 Part number 87112000240, CLIP (10X) 18 AFTER FD992 CLIP (10X) 18 AFTER FD992
Worcester part no. 87112000240		 £13.34
55 Part number 87186411900, O-RING 6X2.5mm WRAS/KTW LUBRICATED (X10) O-RING 6X2.5MM WRAS/KTW LUBRICATED (X10)
Worcester part no. 87186411900		 £3.28
