VOKERA
VISION 25C ERP REV 18 (11/2020) - (Hydraulics 2)
Appliance Code: 47-364-25 REV 18

Appliance Diagram

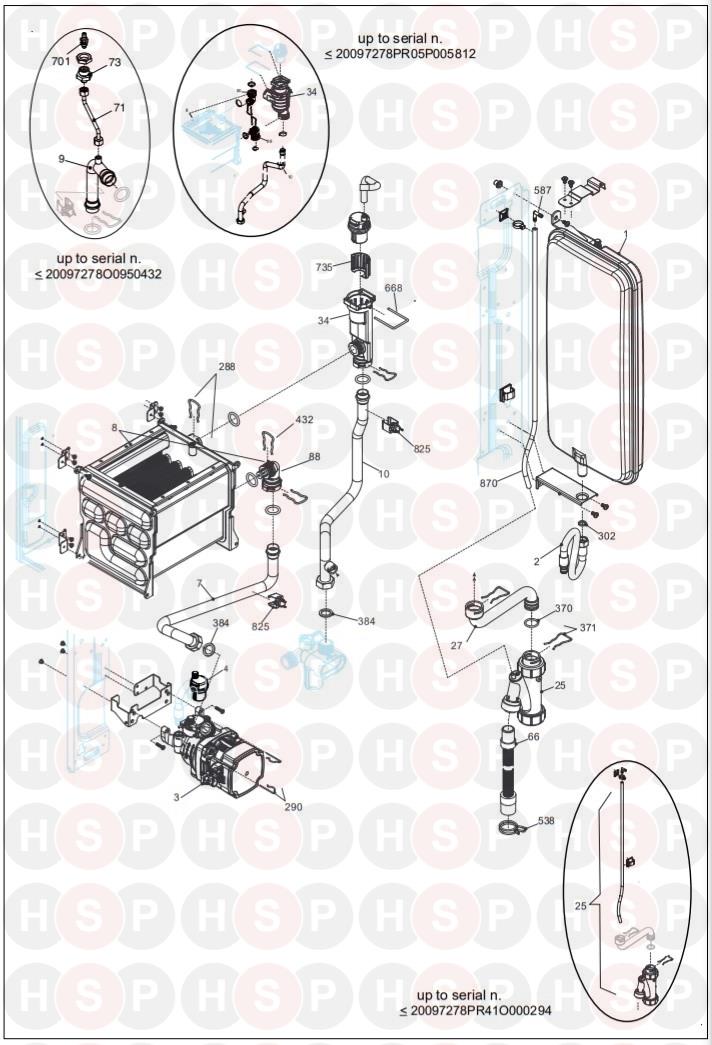

Hydraulics 2 diagram for Vokera Vision 25C ERP Rev 18 (11/2020)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 20138101, 8 Litre Expansion Vessel - Replaced 20029826 8 LITRE EXPANSION VESSEL - REPLACED 20029826
Vokera part no. 20138101		 £100.70
2 Part number 10028603, Pipe PIPE
Vokera part no. 10028603		 £12.85
4 Part number 10025485, Auto air vent bottle (Pump) AUTO AIR VENT BOTTLE (PUMP)
Vokera part no. 10025485		 £19.12
7   PIPE
Vokera part no. 20166123		 £32.04
8   NOW USE 20039923 CONDENSING EXCHANGER (FROM SERIAL NO. 20099228PR03P004675)
Vokera part no. 20163794
8 Part number 20039923, Exchanger Assembly rep 20025765 EXCHANGER ASSEMBLY REP 20025765
Vokera part no. 20039923		 £310.66
9   PIPE (FROM SERIAL NO. 20086245J4050097)
Vokera part no. 20090680		 £19.61
9   PIPE (FROM SERIAL NO. 20116906O0250001 OR 2012894O0250001)
Vokera part no. 20161310		 £12.21
10   NOW USE 20186278 PIPE (FROM SERIAL NO. 20099227PR02P003267)
Vokera part no. 20164545
10   PIPE (UP TO SERIAL NO. 20099227PR02P003266)
Vokera part no. 20166124		 £47.96
10   FLOW PIPE
Vokera part no. 20186278		 £25.46
16   COMBUSTION CHAMBER COVER
Vokera part no. 20005594		 £36.08
25   DRAINAGE PIPE AND SIPHON KIT (FROM SERIAL NO PR35O005381 OR PR34O002804)
Vokera part no. 20169871		 £20.60
25   SIPHON
Vokera part no. 20185155		 £17.19
27 Part number 20025743, PIPE TRAP PIPE TRAP
Vokera part no. 20025743		 £7.24
34 Part number 20019888, Air Separator (UP TO SERIAL NO. 20097278PR05P005812) AIR SEPARATOR (UP TO SERIAL NO. 20097278PR05P005812)
Vokera part no. 20019888		 £17.63
34 Part number 20032553, NOW USE 20019888 DEGASSER KIT NOW USE 20019888 DEGASSER KIT
Vokera part no. 20032553
34   HYDRAULIC CONNECTION (FROM SERIAL NO. 20097278PR05P005813)
Vokera part no. 20164544		 £5.09
60 Part number 20039953, Flow Connection for Compact A FLOW CONNECTION FOR COMPACT A
Vokera part no. 20039953		 £4.94
66 Part number 10027545, Flexible pipe FLEXIBLE PIPE
Vokera part no. 10027545		 £8.88
71   AIR BLEEDING CONNECTION PIPE (UP TO SERIAL NO 20099226O0950120)
Vokera part no. 20025746		 £9.71
73 Part number 10028431, COCK (up to serial no, 20099226O0950120) COCK (UP TO SERIAL NO, 20099226O0950120)
Vokera part no. 10028431		 £9.55
88 Part number 20039954, Return Connection for Compact A RETURN CONNECTION FOR COMPACT A
Vokera part no. 20039954		 £4.94
288 Part number 6898, O Ring O RING
Vokera part no. 6898		 £1.03
290 Part number 10027757, Locking Pin LOCKING PIN
Vokera part no. 10027757		 £0.77
290 Part number 2165, NOW USE 10027757 LOCKING PIN NOW USE 10027757 LOCKING PIN
Vokera part no. 2165
302 Part number 5025, WASHER WASHER
Vokera part no. 5025		 £0.92
370 Part number 10023533, O Ring O RING
Vokera part no. 10023533		 £1.36
371 Part number 10023532, Locking Pin LOCKING PIN
Vokera part no. 10023532		 £13.63
432 Part number 10024958, Locking Pin LOCKING PIN
Vokera part no. 10024958		 £0.98
538   HOSE CLAMP
Vokera part no. 20152306		 £1.99
587   CONNECTION (FROM SERIAL NO. PR35O005381 OR PR34O002804)
Vokera part no. 10030382		 £3.08
668 Part number 20019767, Locking Pin LOCKING PIN
Vokera part no. 20019767		 £0.43
701 Part number 10023235, VENT PLUG (up to serial no. 20099226O0950120) VENT PLUG (UP TO SERIAL NO. 20099226O0950120)
Vokera part no. 10023235		 £4.35
735   WATER FILTER
Vokera part no. 20165861		 £1.02
825 Part number 20081926, Thermistor/NTC Replaced 20003819 and 20004365 THERMISTOR/NTC REPLACED 20003819 AND 20004365
Vokera part no. 20081926		 £16.76
870   SILICONE TUBE (FROM SERIAL NO. PR35O005381 OR PR34O002804)
Vokera part no. 20169891		 £2.28
