WORCESTER
CWI47 LPG - (Heating Body)
Appliance Code: 7703411078

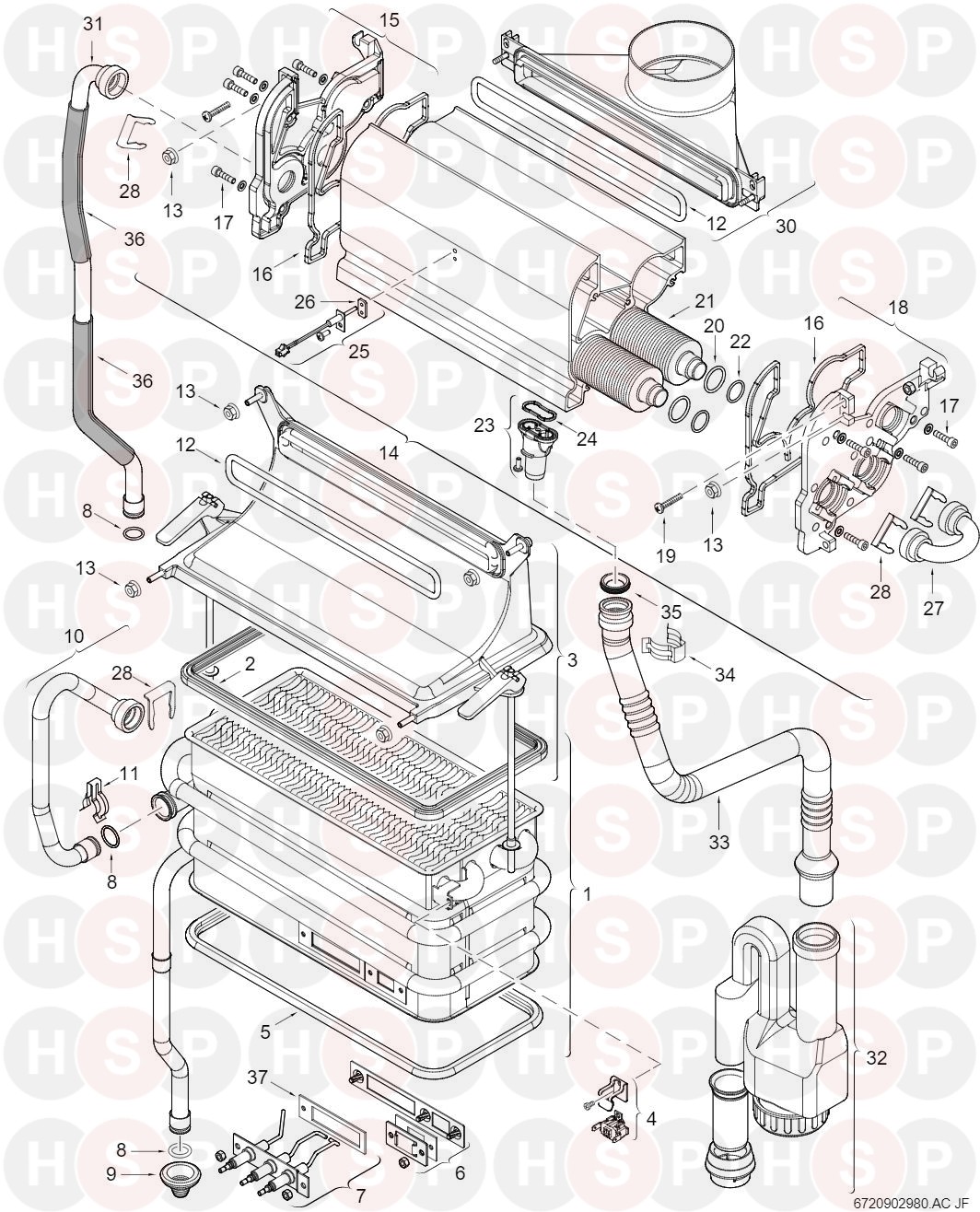

Appliance Diagram


Heating Body diagram for Worcester Cwi47 LpgClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

Part number 87047011160, SET OF SEALS SET OF SEALS
Worcester part no. 87047011160		 £72.41
1 Part number 87054064210, HEAT EXCHANGER HEAT EXCHANGER
Worcester part no. 87054064210		 £375.71

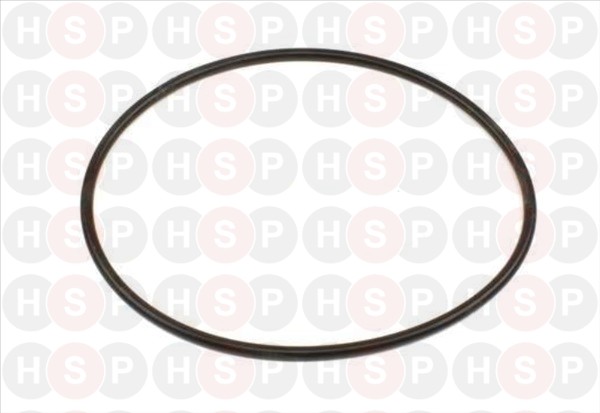

2 Part number 87047010520, WASHER seal WASHER SEAL
Worcester part no. 87047010520		 £22.70
3 Part number 87057001590, CONDENSING EXCHANGER INLET CONDENSING EXCHANGER INLET
Worcester part no. 87057001590		 £110.42
4 Part number 8738717112, TEMPERATURE LIMITER TEMPERATURE LIMITER
Worcester part no. 8738717112		 £15.22
5 Part number 87047010540, WASHER burner seal WASHER BURNER SEAL
Worcester part no. 87047010540		 £22.70
6   SITE WINDOW
Worcester part no. 87010004010		 £13.54

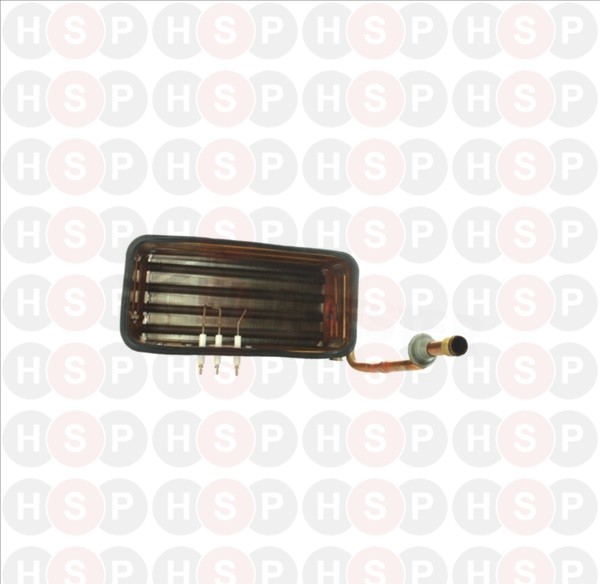

7 Part number 87013022490, IGNITION GROUP IGNITION GROUP
Worcester part no. 87013022490		 £26.25

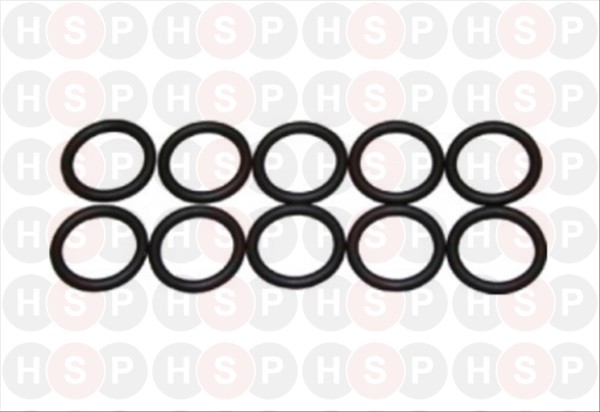

8 Part number 87002051470, O-RING (10X) O-RING (10X)
Worcester part no. 87002051470		 £15.69
9 Part number 87103030270, RUBBER SEAL RUBBER SEAL
Worcester part no. 87103030270		 £3.70

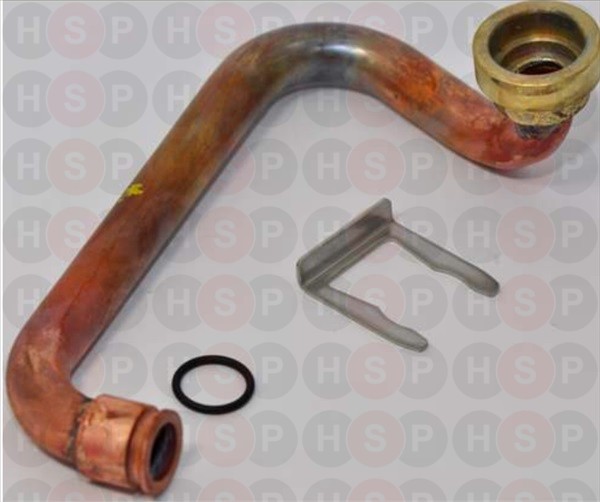

10 Part number 87007154930, PIPE FOR CONNECTION PIPE FOR CONNECTION
Worcester part no. 87007154930		 £31.97

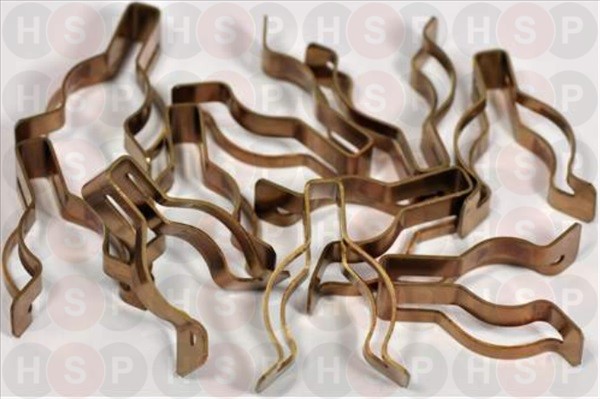

11 Part number 87012010280, CLIP (10X) CLIP (10X)
Worcester part no. 87012010280		 £14.09
12 Part number 87047010900, WASHER seal WASHER SEAL
Worcester part no. 87047010900		 £9.73

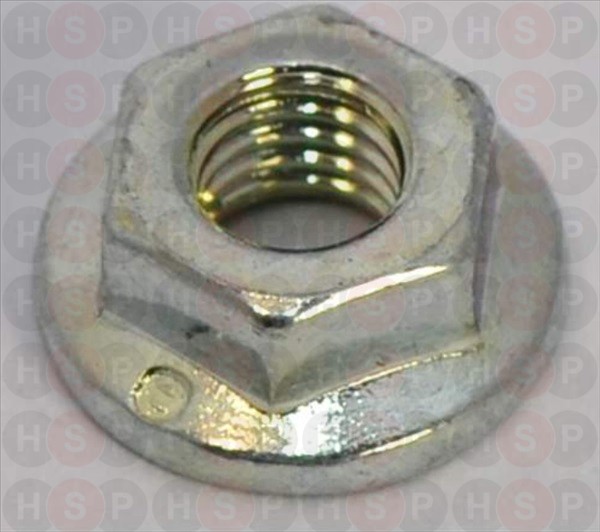

13 Part number 87033011570, UNION NUT UNION NUT
Worcester part no. 87033011570		 £2.21
14 Part number 87057001610, CONDENSING HEAT EXCHANGER CONDENSING HEAT EXCHANGER
Worcester part no. 87057001610		 £315.60
15   CONDENSING EXCHANGER LEFT SIDE
Worcester part no. 87057001620		 £36.35
16 Part number 87047010910, WASHER sealing connection piece WASHER SEALING CONNECTION PIECE
Worcester part no. 87047010910		 £9.73
17   SCREW (10X)
Worcester part no. 29180601620		 £11.04
18   CONDENSING EXCHANGER RIGHT SIDE
Worcester part no. 87057001630		 £36.35
19   SCREW (10X)
Worcester part no. 29106114960		 £8.33

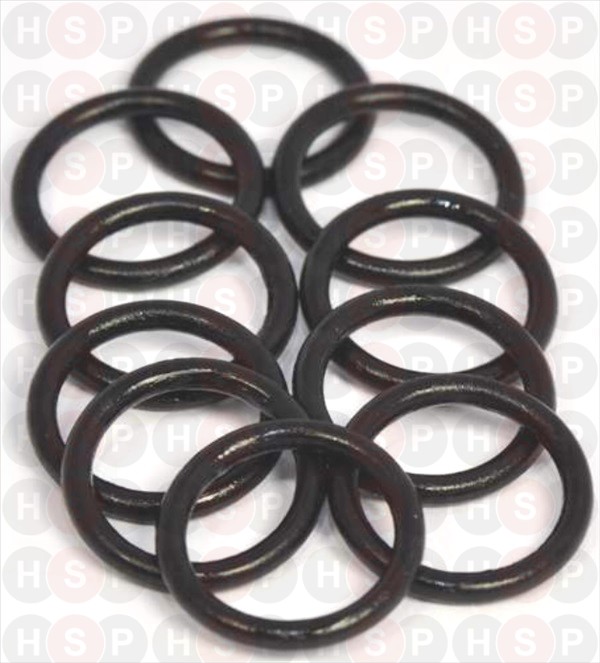

20 Part number 87002052260, O-RING (10X) O-RING (10X)
Worcester part no. 87002052260		 £9.73
21   CONDENSING FINCOIL
Worcester part no. 87007154020		 £85.42
22 Part number 87002052280, O-RING (10X) O-RING (10X)
Worcester part no. 87002052280		 £8.33
23   CONDENSATE DRAIN CONNECTOR
Worcester part no. 87055068380		 £11.04
24   WASHER (10X)
Worcester part no. 87047010920		 £14.09
25 Part number 87072064590, EXHAUST TEMPERATURE SENSOR EXHAUST TEMPERATURE SENSOR
Worcester part no. 87072064590		 £31.97
26   WASHER
Worcester part no. 87047010970		 £2.62
27   U-BEND PIPE
Worcester part no. 87033053520		 £31.97
28 Part number 87013000230, CLIP (10X) CLIP (10X)
Worcester part no. 87013000230		 £20.50
30 Part number 87055068410, FLUE GAS COLLECTOR FLUE GAS COLLECTOR
Worcester part no. 87055068410		 £45.53
31 Part number 87007153980, CONNECTING PIPE CONNECTING PIPE
Worcester part no. 87007153980		 £36.35

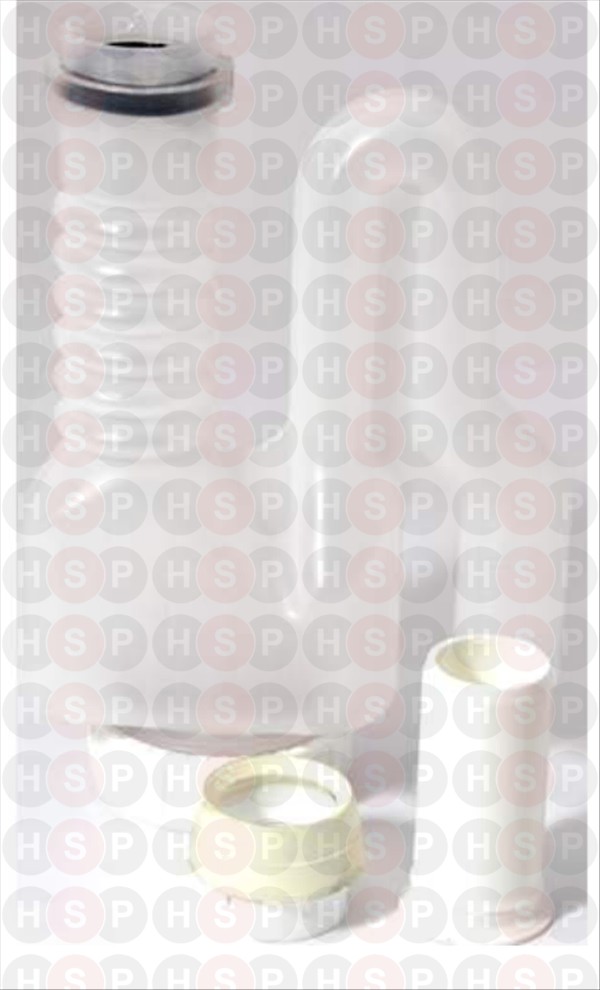

32 Part number 87052021410, SIPHON SIPHON
Worcester part no. 87052021410		 £27.29
33 Part number 87007031770, CONDENSATE DRAIN PIPE CONDENSATE DRAIN PIPE
Worcester part no. 87007031770		 £22.70
34 Part number 87161026070, NOW USE 87186880230 CLAMP SPRING NOW USE 87186880230 CLAMP SPRING
Worcester part no. 87161026070
34 Part number 87186880230, CLIP CLIP
Worcester part no. 87186880230		 £3.43

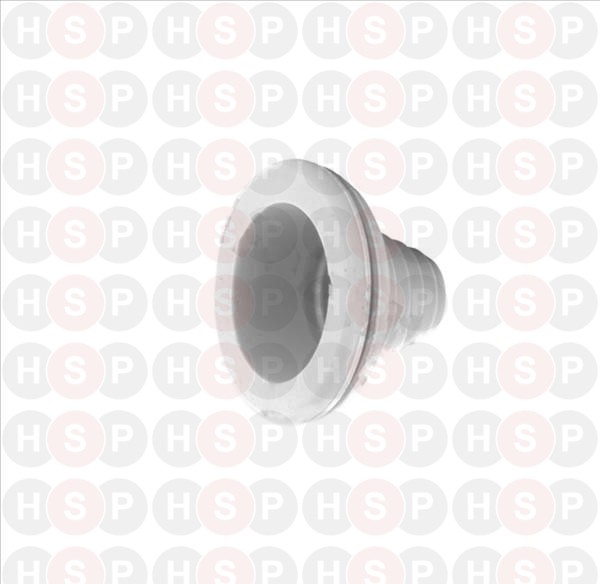

35 Part number 87047010940, Condensation drain seal CONDENSATION DRAIN SEAL
Worcester part no. 87047010940		 £3.70
36 Part number 87023030270, INSULATION (145X60) INSULATION (145X60)
Worcester part no. 87023030270		 £2.71
37   WASHER (10X)
Worcester part no. 87047010880		 £11.08
