RIELLO 40 FS10 3756435 (TYPE 564 T31) - (Exploded View)
Appliance Code: 3756435

Appliance Diagram


Exploded View diagram for Riello Riello 40 FS10 3756435 (Type 564 T31)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   COVER
Riello part no. 3007427
2 Part number 3006937, PLUG - 7 PIN - MALE PLUG - 7 PIN - MALE
Riello part no. 3006937		 £25.54
3 Part number 3006938, SOCKET 7 PIN SOCKET 7 PIN
Riello part no. 3006938		 £50.96
4 Part number 3007425, 6 POLE BLACK SOCKET 6 POLE BLACK SOCKET
Riello part no. 3007425		 £12.41
5 Part number 3013073, CONTROL BOX RMG 88 62 A2 CONTROL BOX RMG 88 62 A2
Riello part no. 3013073		 £194.40
6 Part number 3007423, PRESSURE SWITCH PRESSURE SWITCH
Riello part no. 3007423		 £93.75
7 Part number 3003784, CONTROL BOX BASE (RS AND RL) CONTROL BOX BASE (RS AND RL)
Riello part no. 3003784		 £20.91
8 Part number 3008865, MOTOR MOTOR
Riello part no. 3008865		 £133.66
9   COVER
Riello part no. 20025389
10 Part number 3002574, ELECTRICAL FILTER ELECTRICAL FILTER
Riello part no. 3002574		 £31.52
11 Part number 3008453, H T LEAD CE GS10/20 (X2) H T LEAD CE GS10/20 (X2)
Riello part no. 3008453		 £50.15
12 Part number 3012159, TRANSFORMER TRANSFORMER
Riello part no. 3012159		 £92.57
13 Part number 3002689, HT LEAD (X5) HT LEAD (X5)
Riello part no. 3002689		 £58.10

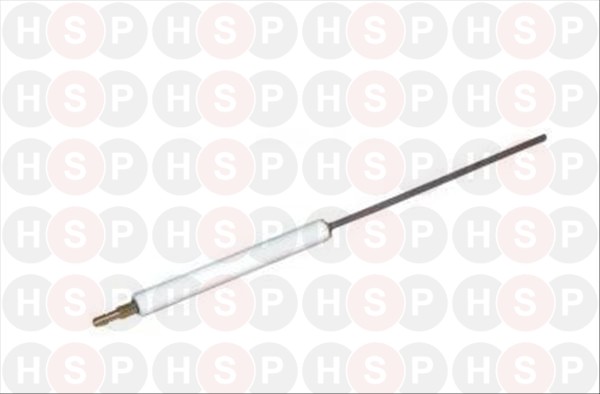

14 Part number 3006708, PROBE PROBE
Riello part no. 3006708		 £16.99
15 Part number 3006943, ELECTRODE ELECTRODE
Riello part no. 3006943		 £13.64
16 Part number 3007265, U BOLT (10 PCS) U BOLT (10 PCS)
Riello part no. 3007265		 £12.67
17   COLLAR
Riello part no. 3006688		 £16.46
18   ELBOW
Riello part no. 3006944		 £34.38
19 Part number 3006702, DIFFUSER/GAS NOZZLE DIFFUSER/GAS NOZZLE
Riello part no. 3006702		 £10.93
20 Part number 3006946, MANIFOLD MANIFOLD
Riello part no. 3006946		 £138.24
21 Part number 3005795, FLANGE GASKET (WAS 3008012) FLANGE GASKET (WAS 3008012)
Riello part no. 3005795		 £7.74
22 Part number 3006693, END CONE END CONE
Riello part no. 3006693		 £39.02
23   TEST POINT
Riello part no. 3005447		 £10.68
24 Part number 3006945, DISTRIBUTOR RING DISTRIBUTOR RING
Riello part no. 3006945		 £64.60
25   HINGE UNIT
Riello part no. 3000870		 £24.59
26 Part number 20087035, Capacitor Riello Mectron 4uf 3005798, 20087035 CAPACITOR RIELLO MECTRON 4UF 3005798, 20087035
Riello part no. 20087035		 £19.41
26 Part number 3007479, NOW USE 20087035 CAPACITOR 4 UF NOW USE 20087035 CAPACITOR 4 UF
Riello part no. 3007479
27 Part number 3006997, CONNECTION & TUBE FS5 CONNECTION & TUBE FS5
Riello part no. 3006997		 £14.01
28   CONNECTOR & TUBE FOR FS5
Riello part no. 3007588		 £5.99
29   AIR DAMPER
Riello part no. 3007205		 £15.18
30 Part number 3005788, FAN FAN
Riello part no. 3005788		 £19.20
