VOKERA
EVOLVE 32C REV 5 (07/2019) - (Wiring)
Appliance Code: 47-364-39 REV 5

Appliance Diagram

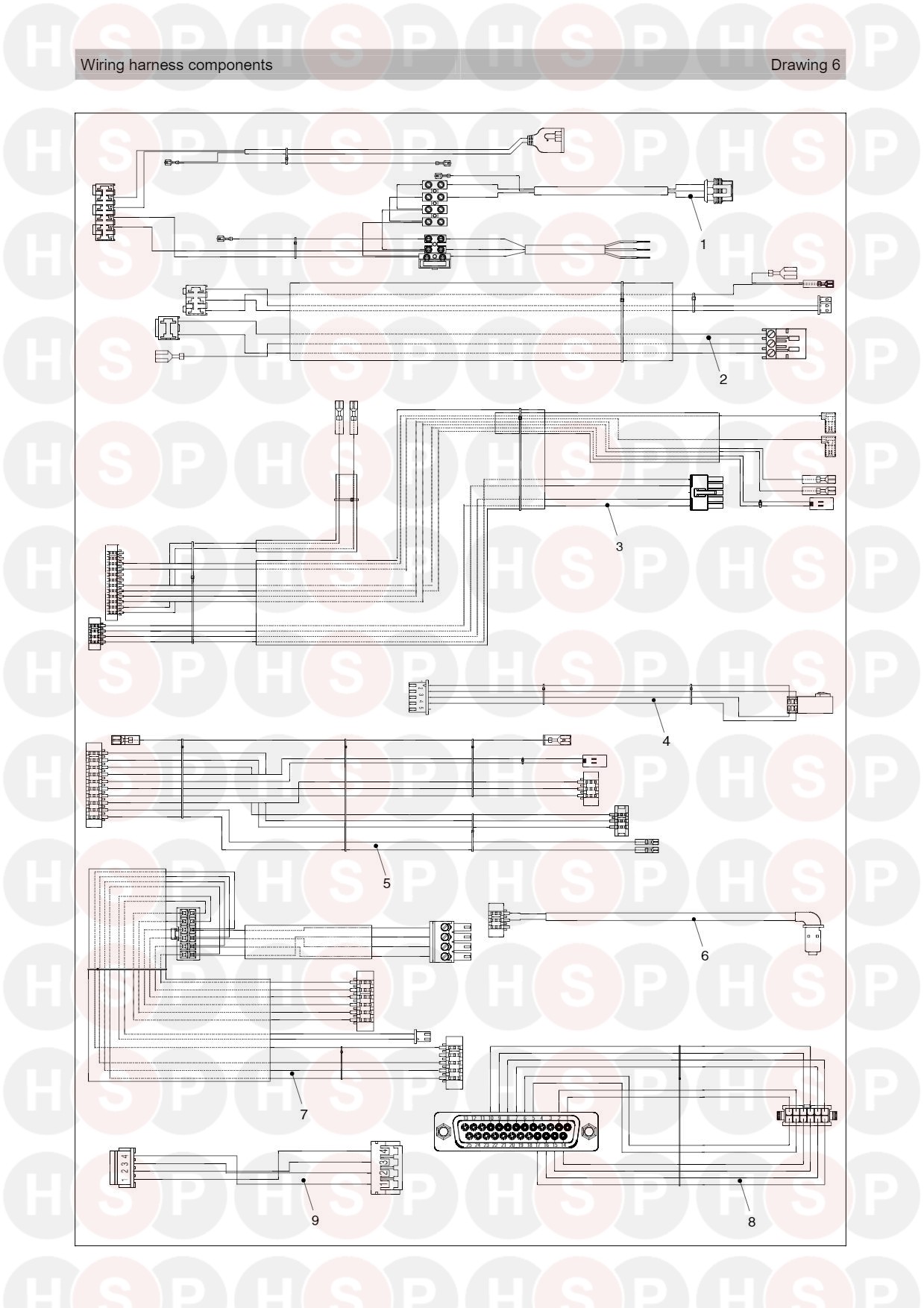

Wiring diagram for Vokera Evolve 32C Rev 5 (07/2019)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   POWER WIRING HARNESS
Vokera part no. 20132111
£89.50
2   IGNITION CABLE
Vokera part no. 20132114
£59.66
3   COMBUSTION CABLE
Vokera part no. 20154616
£30.31
4   THREE WAY VALVE CABLE
Vokera part no. 20123209
£8.00
5   LOW TENSION CABLE
Vokera part no. 20123210
£19.52
6   PUMP CABLE (PWM)
Vokera part no. 20132112
£44.74
7   EXTERNAL UTILITIES CABLE
Vokera part no. 20123214
£28.01
8   D-SUB 25 CONNECTOR CABLE
Vokera part no. 20163797
£21.97
9   WIRING HARNESS
Vokera part no. 20124832
£20.48
