VOKERA
COMPACT 29 HE REV 6 (11/2010) NG - (Hydraulics 2)
Appliance Code: 47-094-75 REV 6

Appliance Diagram


Hydraulics 2 diagram for Vokera Compact 29 HE Rev 6 (11/2010) NGClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 2573, Expansion Vessel Rep 106333 10 Litre EXPANSION VESSEL REP 106333 10 LITRE
Vokera part no. 2573		 £104.11
2 Part number 10025188, Flexible pipe for Expansion vessel FLEXIBLE PIPE FOR EXPANSION VESSEL
Vokera part no. 10025188		 £15.43
3 Part number 10027571, NOW USE 20185332 Pump NOW USE 20185332 PUMP
Vokera part no. 10027571
3   ERP PUMP - REPLACED 10027571 10027258 20039926 & 20005582
Vokera part no. 20185332		 £202.10
4 Part number 10025485, Auto air vent bottle (Pump) AUTO AIR VENT BOTTLE (PUMP)
Vokera part no. 10025485		 £19.12
6   PIPE
Vokera part no. 10027566		 £38.73
7   PIPE
Vokera part no. 10024130		 £19.31
8 Part number 01005246, Main Heat Exchanger rep 2378 & 1914 MAIN HEAT EXCHANGER REP 2378 & 1914
Vokera part no. 01005246		 £250.18
8 Part number 2378, NOW USE 01005246 HEAT EXCHANGER NOW USE 01005246 HEAT EXCHANGER
Vokera part no. 2378
9 Part number 10021041, Flow Pipe FLOW PIPE
Vokera part no. 10021041		 £20.16
10   PIPE
Vokera part no. 10027567		 £26.48
25 Part number 10027546, Siphon SIPHON
Vokera part no. 10027546		 £64.17
27 Part number 10027568, NOW USE 20066460 Pipe NOW USE 20066460 PIPE
Vokera part no. 10027568
27 Part number 20066460, Plastic Condense Pipe Replaced 10027568 PLASTIC CONDENSE PIPE REPLACED 10027568
Vokera part no. 20066460		 £27.00
43 Part number 01005411, Condensing unit CONDENSING UNIT
Vokera part no. 01005411		 £471.10
48 Part number 10024129, Short Pipe from Condense Unit SHORT PIPE FROM CONDENSE UNIT
Vokera part no. 10024129		 £26.95
49 Part number 10024131, Pipe PIPE
Vokera part no. 10024131		 £17.34
66 Part number 10027545, Flexible pipe FLEXIBLE PIPE
Vokera part no. 10027545		 £8.88
200 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023		 £0.43
201 Part number 5026, 1/2" Fibre Washer 1/2" FIBRE WASHER
Vokera part no. 5026		 £0.39
202 Part number 5041, Washer WASHER
Vokera part no. 5041		 £0.19
288 Part number 6898, O Ring O RING
Vokera part no. 6898		 £1.03
290 Part number 10027757, Locking Pin LOCKING PIN
Vokera part no. 10027757		 £0.77
290 Part number 2165, NOW USE 10027757 LOCKING PIN NOW USE 10027757 LOCKING PIN
Vokera part no. 2165
370 Part number 10023533, O Ring O RING
Vokera part no. 10023533		 £1.36
371 Part number 10023532, Locking Pin LOCKING PIN
Vokera part no. 10023532		 £13.63
393 Part number 10024141, O ring O RING
Vokera part no. 10024141		 £16.60
394 Part number 10024142, O ring O RING
Vokera part no. 10024142		 £0.69
395 Part number 10024143, O ring O RING
Vokera part no. 10024143		 £11.33
396 Part number 01005292, Connections kit CONNECTIONS KIT
Vokera part no. 01005292		 £29.99

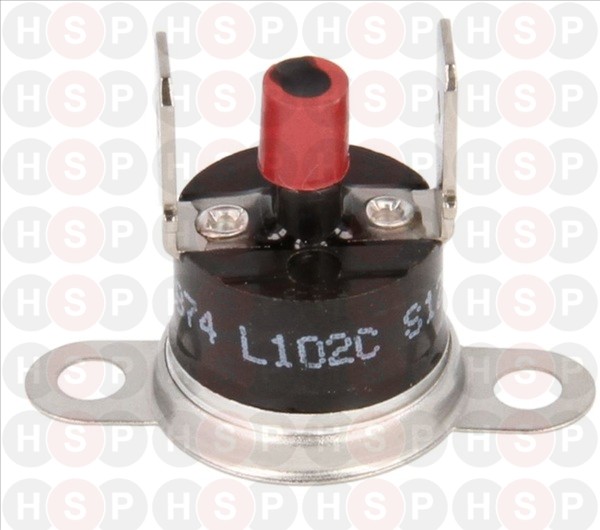

417 Part number 10024710, Limit thermostat LIMIT THERMOSTAT
Vokera part no. 10024710		 £11.78
520 Part number 10027352, Thermistor/NTC Sensor (20004978) THERMISTOR/NTC SENSOR (20004978)
Vokera part no. 10027352		 £13.58
532 Part number 10027540, Condense Unit Washer CONDENSE UNIT WASHER
Vokera part no. 10027540		 £8.88
