BAXI
MEGAFLO COMMERCIAL DIRECT/INDIRECT 400L-2500L 6 & 10 BAR - (Parts 1)
Appliance Code: DIRECT/INDIRECT 400L-2500L

Appliance Diagram

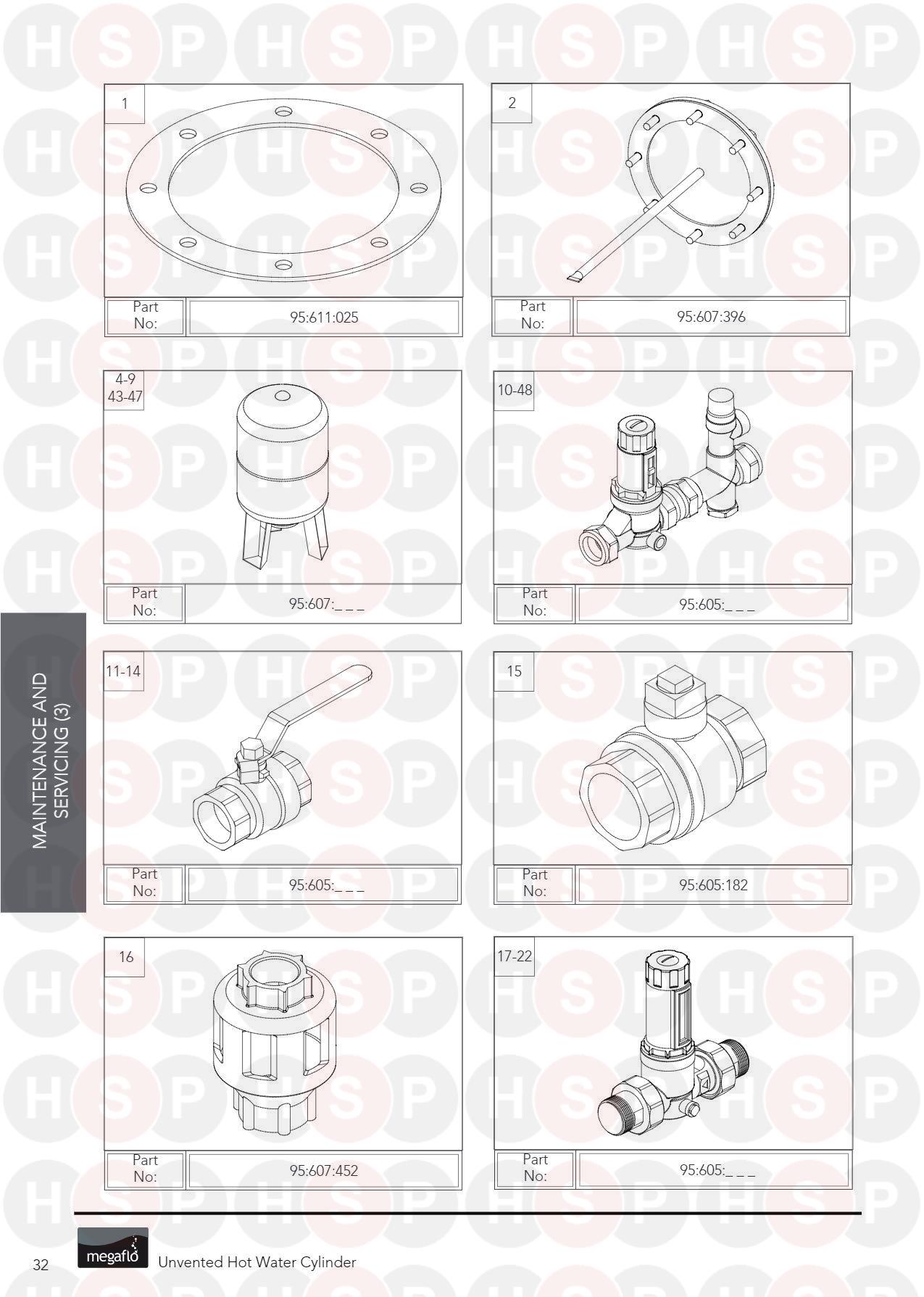

Parts 1 diagram for Baxi Megaflo Commercial Direct/Indirect 400L-2500L 6 & 10 BarClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 95611025, IMMERSION HEATER GASKET IMMERSION HEATER GASKET
Baxi part no. 95611025		 £58.87
2   BLANKING PLATE KIT
Baxi part no. 95607396		 £292.54
4   EXPANSION VESSEL BRACKET
Baxi part no. 95607444		 £56.87
5   EXP. VSL. 60L 3.5 - 6 BAR
Baxi part no. 95607445		 £204.49
6   EXP.VSL. 80L - 6BAR
Baxi part no. 95607447		 £229.11
7   EXP.VSL.100L - 6BAR
Baxi part no. 95607458		 £300.96
8   EXP.VSL.150L - 6BAR
Baxi part no. 95607461		 £465.16
9   1" 5-10B INTEGRATED INLT CTRL VLV
Baxi part no. 95605176		 £209.85
10   ISOLATING BALL VALVE 1"
Baxi part no. 95605178		 £48.29
11   ISOLATING BALL VALVE 1.1/4"
Baxi part no. 95605179		 £73.43
12   ISOLATING BALL VALVE 1.1/2"
Baxi part no. 95605180		 £82.04
13   ISOLATING BALL VALVE 2"
Baxi part no. 95605181		 £186.03
14   ISOLATING DRAIN VALVE 1"
Baxi part no. 95605182		 £54.89
15   TUNDISH 1 1/4" X 1 1/2"
Baxi part no. 95607452		 £48.62
16   PRV 1.1/4" - 6BAR
Baxi part no. 95605183		 £227.86
17   PRV 1.1/4" - 10BAR
Baxi part no. 95605184		 £202.57
18   PRV 1.1/2" - 6BAR
Baxi part no. 95605185		 £264.90
19   PRV 1.1/2" - 10BAR
Baxi part no. 95605186		 £280.92
20   PRV 2" - 6BAR
Baxi part no. 95605187		 £345.30
21   PRV 2" - 10BAR
Baxi part no. 95605188		 £372.06
22   SINGLE CHECK VALVE 1.1/4"
Baxi part no. 95605189		 £50.32
44   IMMERSION HEATER 6KW SINGLE PHASE
Baxi part no. 95970155		 £657.99
45   IMMERSION HEATER 9KW SINGLE PHASE
Baxi part no. 95970156		 £1,585.67
46   IMMERSION HEATER 12KW THREE PHASE
Baxi part no. 95970144		 £905.84
47   IMMERSION HEATER 18KW THREE PHASE
Baxi part no. 95970145
48   IMMERSION HEATER 24KW THREE PHASE
Baxi part no. 95970146		 £1,078.03
