REMEHA-COMMERCIAL
QUINTA PRO 115 - (Heat Exchanger)
Appliance Code: QUINTA PRO 115

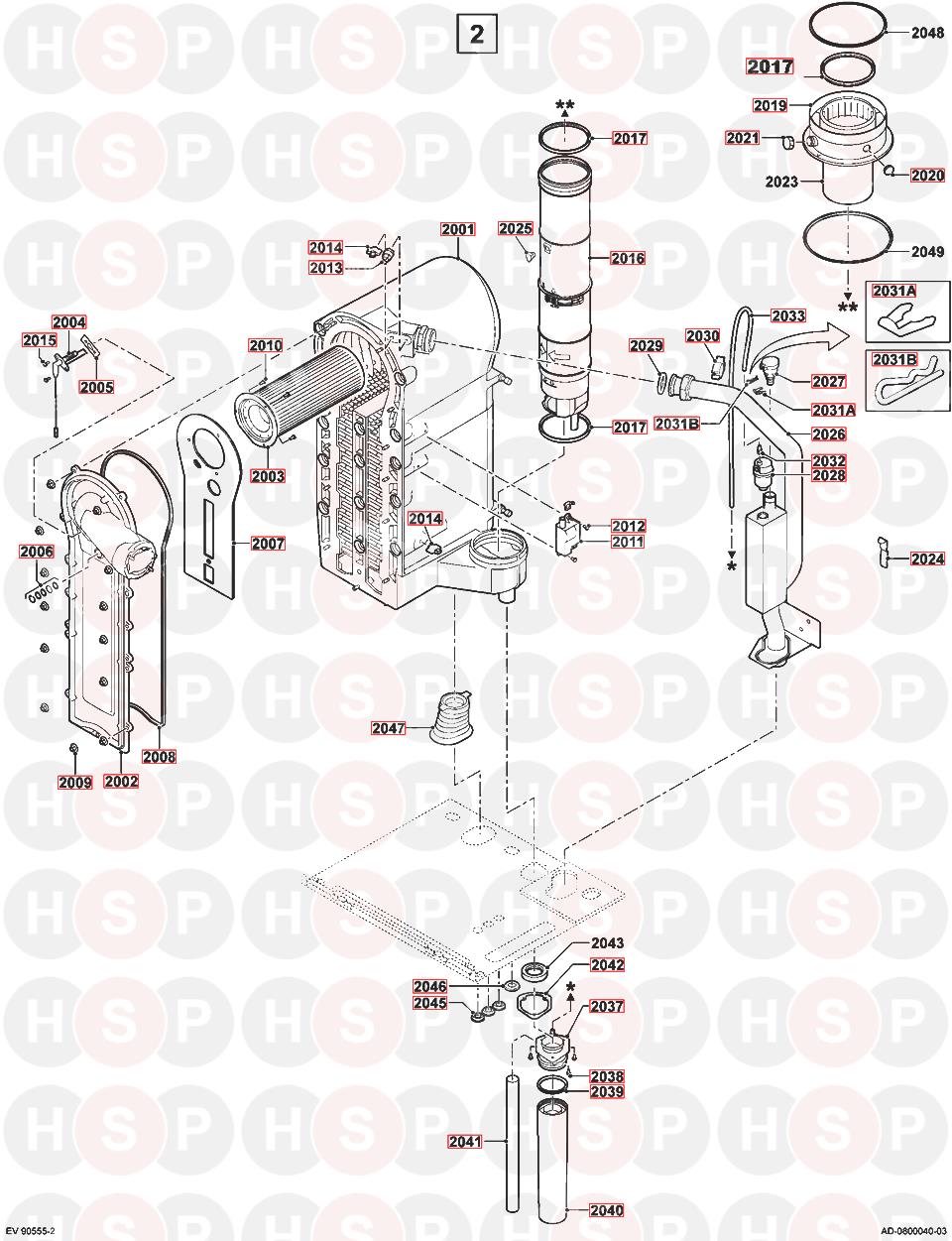

Appliance Diagram


Heat Exchanger diagram for Remeha-Commercial Quinta Pro 115Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2001 Part number S101550, Heat exchanger 90/115kW (AND Q85/Q115) HEAT EXCHANGER 90/115KW (AND Q85/Q115)
Remeha-Commercial part no. S101550
£2,972.10
2002 Part number S101564, Quinta Pro Heat Exchanger Front Plate QUINTA PRO HEAT EXCHANGER FRONT PLATE
Remeha-Commercial part no. S101564
£256.90
2003 Part number S57477, Burner Furigas Q85/115 c/w gasket BURNER FURIGAS Q85/115 C/W GASKET
Remeha-Commercial part no. S57477
£747.99
2004 Part number S101566, Quinta PRO Electrode Ignition/Ionisation c/w lead QUINTA PRO ELECTRODE IGNITION/IONISATION C/W LEAD
Remeha-Commercial part no. S101566
£38.33
2005 Part number S53489, Gasket for ignition electrode (Pack of 10) GASKET FOR IGNITION ELECTRODE (PACK OF 10)
Remeha-Commercial part no. S53489
£28.39
2006 Part number S59118, GLASS INSPECTION SET GLASS INSPECTION SET
Remeha-Commercial part no. S59118
£44.14
2007 Part number S54731, Insulation front plate heat exchanger INSULATION FRONT PLATE HEAT EXCHANGER
Remeha-Commercial part no. S54731
£76.64
2008 Part number S57241, Gasket front plate Quinta 45/65/85/115 (Red Seal) GASKET FRONT PLATE QUINTA 45/65/85/115 (RED SEAL)
Remeha-Commercial part no. S57241
£20.58
2009 Part number S54755, FLANGE NUT M6 FLANGE NUT M6
Remeha-Commercial part no. S54755
£25.55
2010   SCREW BURNER (20 PCS)
Remeha-Commercial part no. S100052
£11.58
2011 Part number S101619, Transformer Ignition Incl. Electrode Ignition/Ionisation TRANSFORMER IGNITION INCL. ELECTRODE IGNITION/IONISATION
Remeha-Commercial part no. S101619
£54.35
2012 Part number S101509, Screw 7985 M4X8 (5 Pcs) SCREW 7985 M4X8 (5 PCS)
Remeha-Commercial part no. S101509
£13.39

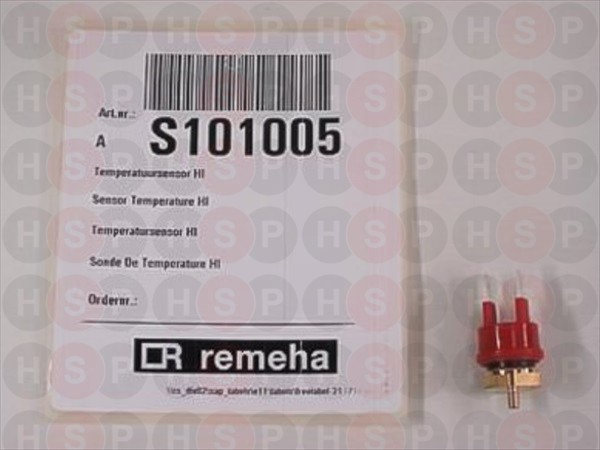

2013 Part number S101005, Temperature Sensor HI TEMPERATURE SENSOR HI
Remeha-Commercial part no. S101005
£112.13
2014 Part number S101003, Temperature Sensor NTC (2 Pcs) Quinta PRO 310/610 Pro TEMPERATURE SENSOR NTC (2 PCS) QUINTA PRO 310/610 PRO
Remeha-Commercial part no. S101003
£68.14
2015 Part number S48950, Screw M4x10 (50 pcs.) SCREW M4X10 (50 PCS.)
Remeha-Commercial part no. S48950
£17.74
2016 Part number 7631936, Flue Gas Discharge Pipe (c/w Seals) FLUE GAS DISCHARGE PIPE (C/W SEALS)
Remeha-Commercial part no. 7631936
£161.81
2017 Part number S101643, Sealing Ring 100 (5 Pcs) SEALING RING 100 (5 PCS)
Remeha-Commercial part no. S101643
£35.49
2017 Part number S55915, NOW USE S101643 Quinta Internal Flue Sealing Ring 100mm (5pcs) NOW USE S101643 QUINTA INTERNAL FLUE SEALING RING 100MM (5PCS)
Remeha-Commercial part no. S55915

2019   FLUE GAS PIPE / AIR INLET CONNECTION PIPE 100/150MM
Remeha-Commercial part no. S101563
£44.14
2020 Part number S62233, CAP CAP
Remeha-Commercial part no. S62233
£28.98
2021 Part number S62232, Screw cap flue gas measure point (5 pcs) Quinta PRO SCREW CAP FLUE GAS MEASURE POINT (5 PCS) QUINTA PRO
Remeha-Commercial part no. S62232
£36.90
2022 Part number S101643, Sealing Ring 100 (5 Pcs) SEALING RING 100 (5 PCS)
Remeha-Commercial part no. S101643
£35.49
2024 Part number S100901, Fixing Strip Heat Exchanger FIXING STRIP HEAT EXCHANGER
Remeha-Commercial part no. S100901
£42.71
2025 Part number S62288, Sampling Point Bung Quinta/310 Pro (For 210 PRO use S100850) SAMPLING POINT BUNG QUINTA/310 PRO (FOR 210 PRO USE S100850)
Remeha-Commercial part no. S62288
£7.11
2026   FLOW PIPE ASSEMBLY
Remeha-Commercial part no. S101572
£261.16
2027 Part number S101632, Water Pressure Sensor (Quinta Pro) WATER PRESSURE SENSOR (QUINTA PRO)
Remeha-Commercial part no. S101632
£42.71
2028 Part number S101608, Vent Auto Air Bleed Device (QP) VENT AUTO AIR BLEED DEVICE (QP)
Remeha-Commercial part no. S101608
£20.58
2029 Part number S100737, Sealing Ring 44x32x4mm (5pcs) SEALING RING 44X32X4MM (5PCS)
Remeha-Commercial part no. S100737
£19.16
2030   WIRE CLAMP 28-35 (5 PCS)
Remeha-Commercial part no. S101576
£12.86
2031A Part number S101644, Clip 10.2 (5 Pcs) CLIP 10.2 (5 PCS)
Remeha-Commercial part no. S101644
£13.39
2031B Part number 7605371, S Clip Hairpin 9.4 (Pk5) S CLIP HAIRPIN 9.4 (PK5)
Remeha-Commercial part no. 7605371
£6.03
2032 Part number S100895, Hose connection M7X1 HOSE CONNECTION M7X1
Remeha-Commercial part no. S100895
£1.48
2033 Part number S101570, Hose silicone 8x2x740 mm HOSE SILICONE 8X2X740 MM
Remeha-Commercial part no. S101570
£26.96
2037 Part number S101558, Siphon Body QP (Includes Upper Seal & Screws, NO CUP) SIPHON BODY QP (INCLUDES UPPER SEAL & SCREWS, NO CUP)
Remeha-Commercial part no. S101558
£17.74
2038 Part number S14254, Sheet-metal screw 4,2x9,5 (20 pcs.) SHEET-METAL SCREW 4,2X9,5 (20 PCS.)
Remeha-Commercial part no. S14254
£11.05
2039 Part number S101580, Sealing Ring 60mm SEALING RING 60MM
Remeha-Commercial part no. S101580
£14.76
2040 Part number S101559, Siphon Cup SIPHON CUP
Remeha-Commercial part no. S101559
£31.23
2041 Part number S101606, Syphon Hose (Quinta Pro) SYPHON HOSE (QUINTA PRO)
Remeha-Commercial part no. S101606
£22.71
2042 Part number S101581, Sealing Ring Syphon SEALING RING SYPHON
Remeha-Commercial part no. S101581
£29.81
2044   CAP BLIND SCU
Remeha-Commercial part no. S101298
£26.96
2045 Part number S62727, GROMMET 20mm GROMMET 20MM
Remeha-Commercial part no. S62727
£41.50
2046   GROMMET (5 PCS)
Remeha-Commercial part no. S101607
£19.16
2047   SEALANT RETURN CENTRAL HEATING
Remeha-Commercial part no. S101605
£31.23
