REMEHA-COMMERCIAL
GAS 120 ACE 115 KW - (Gas Connections)
Appliance Code: GAS 120 ACE 115 KW

Appliance Diagram


Gas Connections diagram for Remeha-Commercial Gas 120 ACE 115 kWClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   AIR INLET DAMPER
Remeha-Commercial part no. S101578
£48.55
2 Part number S101593, Gasket Set 115 kW GASKET SET 115 KW
Remeha-Commercial part no. S101593
£69.55
3 Part number S100036, Fan - Quinta, Quinta Pro, & Gas 110 115kW FAN - QUINTA, QUINTA PRO, & GAS 110 115KW
Remeha-Commercial part no. S100036
£518.06

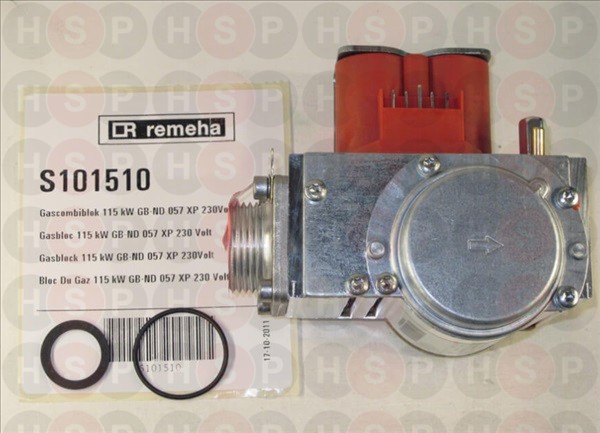

4 Part number S101510, Gas Block GB-ND 057 XP 230 Volts (QP115) GAS BLOCK GB-ND 057 XP 230 VOLTS (QP115)
Remeha-Commercial part no. S101510
£289.54
5 Part number S101595, Venturi 115 kW VENTURI 115 KW
Remeha-Commercial part no. S101595
£320.78
6 Part number S59215, Gasket ring Venturi/Gas supply pipe (5 pcs) GASKET RING VENTURI/GAS SUPPLY PIPE (5 PCS)
Remeha-Commercial part no. S59215
£19.16
7   FLANGE FOR GAS COMBI-BLOCK
Remeha-Commercial part no. S57827
£36.90
8 Part number S57828, O-ring Gas Pipe 26, 8 x 22 x 2, (5 pcs) O-RING GAS PIPE 26, 8 X 22 X 2, (5 PCS)
Remeha-Commercial part no. S57828
£8.80
9 Part number S101631, Nozzle Venturi 15kW NOZZLE VENTURI 15KW
Remeha-Commercial part no. S101631
£28.39
10   CAP - FLUE GAS SENSOR
Remeha-Broag part no. 7616249
£9.89
11 Part number S56155, Gasket 23.8 x 17.2 (20pc) GASKET 23.8 X 17.2 (20PC)
Remeha-Commercial part no. S56155
£29.81
12   SCREW - M4
Remeha-Broag part no. 95760050
£0.09

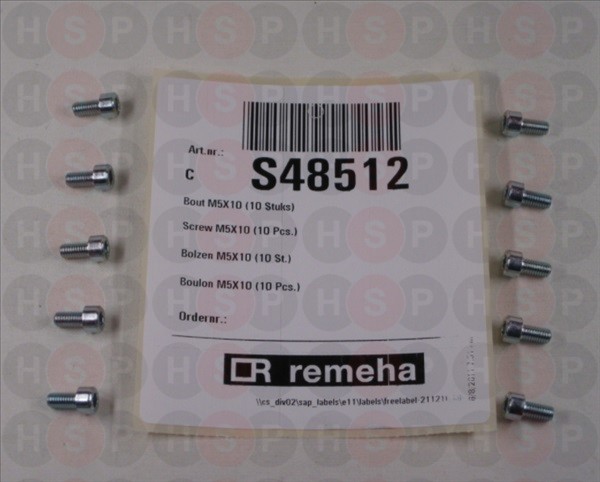

13 Part number S48512, Screw M5X10 (10 Pcs) SCREW M5X10 (10 PCS)
Remeha-Commercial part no. S48512
£19.16
14   CLAMP AIR INLET SILENCER
Remeha-Commercial part no. S101590
£8.98
