GLOWWORM
ENERGYSAVER COMBI 100 MK2 - (Mounting Bracket And Connections)
Appliance Code: 47-047-14

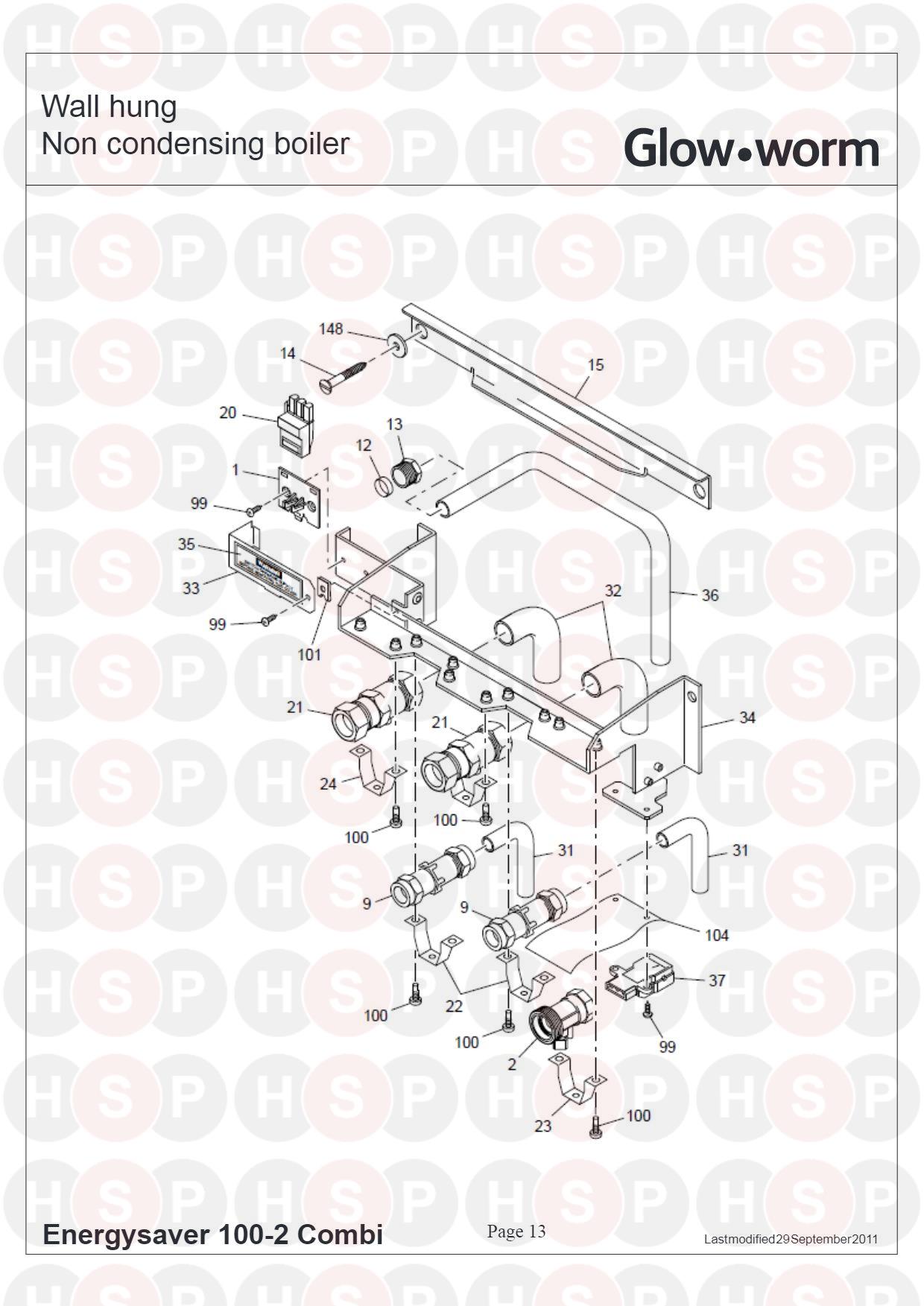

Appliance Diagram


Mounting Bracket And Connections diagram for Glowworm Energysaver Combi 100 MK2Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE BRACKET-ELKAY ALL-1
Glowworm part no. S202083

2   OBSOLETE GAS COCK BODY-BEMASAN 7020/A
Glowworm part no. S203664

9 Part number S208217, Water S/Cock WATER S/COCK
Glowworm part no. S208217
£25.60
12   OLIVE-PRESSURE RELIEF VALVE
Glowworm part no. S208541
£4.91
13   NUT-PRESSURE RELIEF VALVE
Glowworm part no. S208542
£4.91
14   OBSOLETE SCREW-NO.12X2 MS SLOT RHD ZP
Glowworm part no. S208573

15   OBSOLETE HANGING HOOK - AWB 03-78-01
Glowworm part no. S208699

20 Part number S230293, Electrical Plug ELECTRICAL PLUG
Glowworm part no. S230293
£5.99
21 Part number S230403, Water cock 22x22 WATER COCK 22X22
Glowworm part no. S230403
£47.89
22   BRACKET - DOMESTIC HOT WATER COCK
Glowworm part no. S432772
£4.91
23   OBSOLETE GAS COCK BRKT(3STTPF) S/FL
Glowworm part no. S432773

24   BRACKET-CENTRAL HEATING COCK
Glowworm part no. S432776
£4.91
31   OBSOLETE DOMESTIC PIPE - KIT
Glowworm part no. S456025

33   OBSOLETE ELECTRICS COVER(2XBEND)ESCOMBI
Glowworm part no. S456030

34   OBSOLETE FIXING JIG SUB-ASSY
Glowworm part no. S456035

35   OBSOLETE LABEL - ELECTRICAL WARNING
Glowworm part no. S456038

36 Part number S456040, OBSOLETE PRESSURE RELIEF PIPE - KIT OBSOLETE PRESSURE RELIEF PIPE - KIT
Glowworm part no. S456040

37   OBSOLETE PLUG ASSY
Glowworm part no. S456041

99 Part number SK2330, Screw (No8 X 3/8) SCREW (NO8 X 3/8)
Glowworm part no. SK2330

100 Part number SK8019, Screw ( M5X10mm ) SCREW ( M5X10MM )
Glowworm part no. SK8019
£6.61
101   NUT - SPIRE CAPT NO8
Glowworm part no. SK9327
£4.91
104   OBSOLETE LABEL - ELECTRICAL LOW VOLTAGE
Glowworm part no. S217120

123   SEAL RING
Glowworm part no. S801104
£4.91
124 Part number S801105, Seal ring SEAL RING
Glowworm part no. S801105
£4.91
132   OBSOLETE D.H.W. PIPE
Glowworm part no. 2000801357

133   OBSOLETE D.C.W. PIPE
Glowworm part no. 2000801356

135   OBSOLETE BASE (437703)
Glowworm part no. S801155

148   OBSOLETE WASHER-1/4 X1 MS PLAIN
Glowworm part no. S208375
