VIESSMANN
200-W B2HA 100KW SYSTEM (SERIAL NO. 7538259) - (Casing)
Appliance Code: 7538259

Appliance Diagram

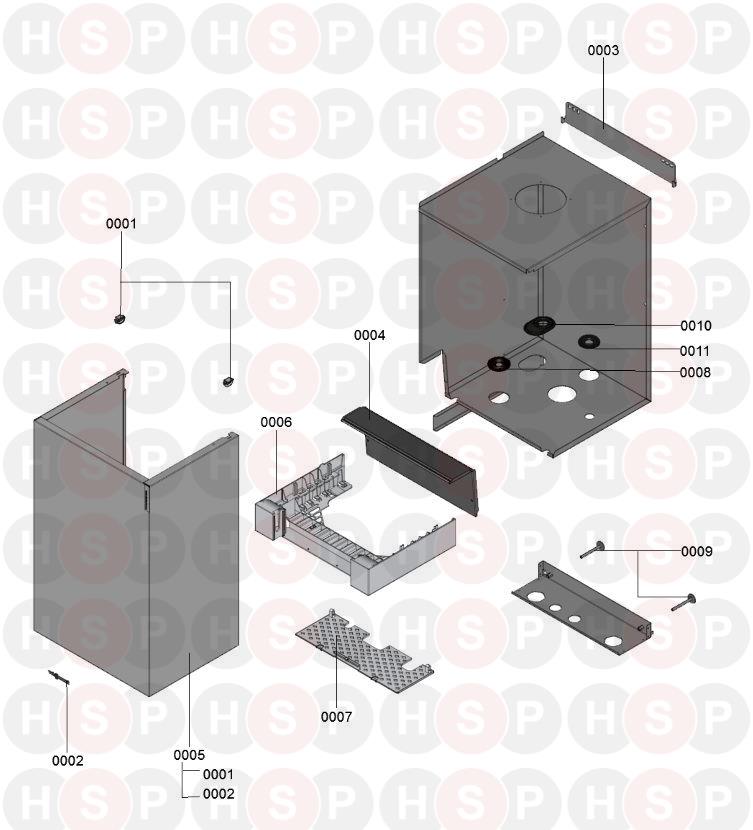

Casing diagram for Viessmann 200-W B2HA 100kW System (Serial No. 7538259)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0001 Part number 7817500, Mounting clip (set of 2) WB2B/B2Hx MOUNTING CLIP (SET OF 2) WB2B/B2HX
Viessmann part no. 7817500
£5.70
0002   NAME PLATE
Viessmann part no. 7839162
£14.00
0003 Part number 7826547, WALL MOUNTING BRACKET WB2B/B2H 160-352 WALL MOUNTING BRACKET WB2B/B2H 160-352
Viessmann part no. 7826547
£13.00
0004 Part number 7833473, COVER PANEL WB2B/B2HA 285-352 COVER PANEL WB2B/B2HA 285-352
Viessmann part no. 7833473
0005 Part number 7833654, Front sheet metal FRONT SHEET METAL
Viessmann part no. 7833654
£159.60
0006 Part number 7833699, CONTROL HOUSING B2H 160-352 CONTROL HOUSING B2H 160-352
Viessmann part no. 7833699
£44.00
0007   SAFETY GUARD
Viessmann part no. 7833701
£32.00
0008   SEALING GROMMET B1XA/B2H
Viessmann part no. 7839724
£7.90
0009   LEVELLING FEET (SET OF 2) B2H 160-352
Viessmann part no. 7835110
£24.00
0010   SEALING GROMMET 60X30 B2HA 285-352
Viessmann part no. 7839765
£9.10
0011   SEALING GROMMET D=28/7 B2HA 285-352
Viessmann part no. 7839761
£7.40
