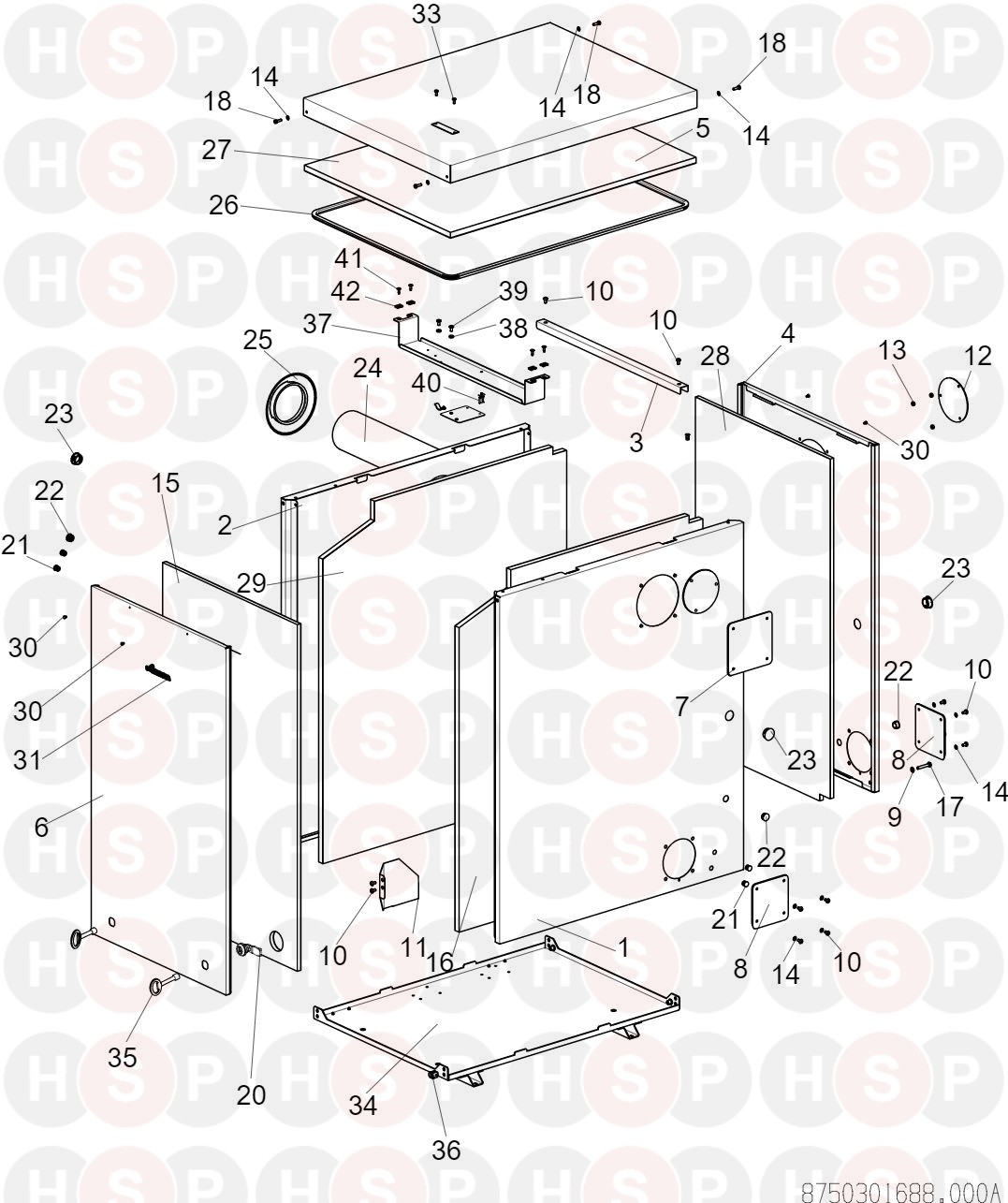

You can then pinch & zoom to adjust the size.
| 1 | CABINET RIGHT ASSEMBLY Worcester part no. 87186908510 |
£215.97 | ||
| 2 | CABINET LEFT ASSEMBLY Worcester part no. 87186908470 |
£184.51 | ||
| 3 | BRACE ASSEMBLY Worcester part no. 87161121050 |
£20.60 | ||
| 4 | CABINET REAR ASSEMBLY Worcester part no. 87186908550 |
£173.33 | ||
| 5 | CABINET TOP ASSEMBLY Worcester part no. 87161128260 |
£165.48 | ||
| 6 | COVER CABINET FRONT ASSY DM EXT Worcester part no. 8716117957 |
£177.11 | ||
| 7 | GASKET FLUE Worcester part no. 87161120920 |
£25.00 | ||
| 8 | GASKET VALVE Worcester part no. 87161120830 |
£15.86 | ||
| 9 |  |
WASHER 6MM ID FLAT Z/P M/S Worcester part no. 29160110140 |
£1.99 | |
| 10 |  |
SCREW M5 X 10 PAN HEAD POZI ZP BEFORE FD005 Worcester part no. 29124511520 |
£2.63 | |
| 11 | PLUG 15.9 Worcester part no. 87161126810 |
£2.83 | ||
| 11 | BRACKET ASSY CONDENSATE TRAP Worcester part no. 87186908830 |
|||
| 12 | GASKET PIPE Worcester part no. 87161120910 |
£24.70 | ||
| 13 |  |
NUT M5 Worcester part no. 29150110060 |
£2.56 | |
| 14 |  |
WASHER M5 FLAT Worcester part no. 29160110120 |
£0.75 | |
| 15 | INSULATION FRONT Worcester part no. 87161127140 |
£34.91 | ||
| 15 | INSULATION FRONT DM EXT Worcester part no. 8716117959 |
£41.06 | ||
| 16 | INSULATION RH Worcester part no. 87186908570 |
£59.07 | ||
| 17 | SCREW M6 X 35 N31A SR15/2 Worcester part no. 29110512070 |
£3.07 | ||
| 18 |  |
SCREW M5X16MM HEXAGON SLOTTED HEAD Worcester part no. 29111311580 |
£2.54 | |
| 20 | STUD 1/4 TURN BEFORE FD753 Worcester part no. 87161138190 |
£11.66 | ||
| 20 | LATCH QUARTER TURN AFTER FD754 Worcester part no. 8716117961 |
£8.34 | ||
| 21 | PLUG 11.0 Worcester part no. 87161126800 |
£2.78 | ||
| 23 | PLUG 22.2 Worcester part no. 87161132180 |
£3.18 | ||
| 24 | CONDUIT Worcester part no. 87161120780 |
£30.75 | ||
| 25 |  |
SHIELD Worcester part no. 87110003000 |
£14.96 | |
| 26 | SEAL TOP Worcester part no. 87161127120 |
£13.03 | ||
| 27 | INSULATION TOP Worcester part no. 87161127070 |
£22.13 | ||
| 28 | INSULATION REAR Worcester part no. 87186908580 |
£47.04 | ||
| 29 | INSULATION LH Worcester part no. 87186908560 |
£59.07 | ||
| 30 |  |
BLACK NYLON SNAP RIVET Worcester part no. 87161550390 |
£14.23 | |
| 31 | BADGE NAME PLATE EXT DANESMOOR 12/18 Worcester part no. 87186903510 |
£18.21 | ||
| 33 | SCREW ST4.2X9.5 TYPE F PAN HD POZI S/S Worcester part no. 8716117274 |
|||
| 34 | BASE ASSEMBLY Worcester part no. 87186908680 |
£193.24 | ||
| 35 |  |
KEY 1/4 TURN BEFORE FD753 Worcester part no. 87161140130 |
£19.90 | |
| 35 | KEY 8MM TRIANGLE UTILITY AFTER FD754 Worcester part no. 8716117962 |
£16.50 | ||
| 36 |  |
RECEPTACLE 1/4 TURN Worcester part no. 87161138180 |
£5.83 | |
| 37 | TOP PANEL SUPPORT Worcester part no. 8716119683 |
£35.68 | ||
| 38 | WASHER EXTERNAL TOOTH M5 SHAKEPROOF Worcester part no. 8716118166 |
£12.30 | ||
| 39 |  |
SCREW (10X) M5X12 Worcester part no. 29144114200 |
£2.95 | |
| 40 | CLIP Worcester part no. 8716119662 |
£0.12 | ||
| 41 |  |
SCREW (10X) 8X1/2" AFTER FD992 Worcester part no. 87161153060 |
£3.59 | |
| 42 |  |
NUT CAPTIVE NO:8 Worcester part no. 87161482040 |
£4.24 | |
