ACO 35 PLUS R8202956-01EN - EDITION 01 - 30/01/2006 - (Fan Burner Sealed Case)
Appliance Code: 47-116-46

Appliance Diagram


Fan Burner Sealed Case diagram for Ariston ACO 35 Plus R8202956-01EN - Edition 01 - 30/01/2006Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

101 Part number 61314834, EXCHANGER 35KW EXCHANGER 35KW
Ariston part no. 61314834		 £984.02
102 Part number 61313614, BURNER DOOR ASSY (TO 03/06) BURNER DOOR ASSY (TO 03/06)
Ariston part no. 61313614		 £241.66
107   FIXING BRACKET
Ariston part no. 61314854		 £13.17
108   FIXING BRACKET
Ariston part no. 61315040		 £16.44
109   HOOKING BRACKET
Ariston part no. 61306448		 £5.90
110 Part number 61317432, IGNITION ELECTRODE IGNITION ELECTRODE
Ariston part no. 61317432		 £29.74
111 Part number 61317433, IONISATION ELECTRODE IONISATION ELECTRODE
Ariston part no. 61317433		 £29.83
112 Part number 61314753, GASKET D:85-66.5-2.5 (TO 08/11) GASKET D:85-66.5-2.5 (TO 08/11)
Ariston part no. 61314753		 £8.11
113 Part number 65102070, CONDENSATE TRAP (LOWER) CONDENSATE TRAP (LOWER)
Ariston part no. 65102070		 £8.81
114 Part number 65102548, CONDENSATE TRAP (UPPER) CONDENSATE TRAP (UPPER)
Ariston part no. 65102548		 £7.03
115 Part number 61010125, TAPPING SCREW CBLSX D: 4.2-9.5 TAPPING SCREW CBLSX D: 4.2-9.5
Ariston part no. 61010125		 £0.42
116 Part number 60081265-02, SILICONE TUBE D: 21x2.5 L: 1M SILICONE TUBE D: 21X2.5 L: 1M
Ariston part no. 60081265-02		 £48.25
116   NOW USE 60081265-02 FLEXIBLE PIPE KIT
Ariston part no. 61315317
117   DUCT FIRST SECTION
Ariston part no. 60000023		 £36.97
118 Part number 61317450, STRAP 25.3-27.3 STRAP 25.3-27.3
Ariston part no. 61317450		 £3.18
119 Part number 61010131, SCREW HX M 5-12 SCREW HX M 5-12
Ariston part no. 61010131		 £0.42
121 Part number 990695, O-RING (3175 EPDM D=44.9) O-RING (3175 EPDM D=44.9)
Ariston part no. 990695		 £3.38
122 Part number 61308782, SCREW D: 5-14 SCREW D: 5-14
Ariston part no. 61308782		 £0.66
124   NOW USE 65110103 TUBE PVC D:21 L:750
Ariston part no. 61316715
124   TUBE PVC D:21 L:750
Ariston part no. 65110103		 £31.00
126 Part number 61010128, TAPPING SCREW CBLSX D: 4.2-25 TAPPING SCREW CBLSX D: 4.2-25
Ariston part no. 61010128		 £0.47
128   UNION
Ariston part no. 65103458		 £6.51
129 Part number 61305179, PIN PIN
Ariston part no. 61305179		 £1.66
131 Part number 61317451, STRAP 26.5-28.6 STRAP 26.5-28.6
Ariston part no. 61317451		 £3.28
132   STRAP 21.4-23.0
Ariston part no. 61317449		 £3.18
202   FLUE CONNECTION
Ariston part no. 61315055		 £37.39
203 Part number 61310088, GASKET D:66-58.4-9 (TO 03/06) GASKET D:66-58.4-9 (TO 03/06)
Ariston part no. 61310088		 £9.90
205 Part number 61306029, GASKET D:66.6 (TO 03/06) GASKET D:66.6 (TO 03/06)
Ariston part no. 61306029		 £12.93
212 Part number 61300262, GASKET (TO 03/06) GASKET (TO 03/06)
Ariston part no. 61300262		 £4.90
213 Part number 61306698, PLUG KIT (TO 03/06) PLUG KIT (TO 03/06)
Ariston part no. 61306698		 £8.27
222   OUTGOING FLUE BOX
Ariston part no. 61314748		 £50.89
227 Part number 60079486, TAPPING SCREW CBLZ D: 4.2-13 TAPPING SCREW CBLZ D: 4.2-13
Ariston part no. 60079486		 £0.44
228 Part number 991821, AIR RETURN COVER AIR RETURN COVER
Ariston part no. 991821		 £3.20
229   TAPPING SCREW CBLSX D: 4.2-32
Ariston part no. 61315056		 £1.37
230 Part number 60034377, WASHER D: 11.5-6.2-1 WASHER D: 11.5-6.2-1
Ariston part no. 60034377		 £0.55
231 Part number 61306030, GASKET D:129.4 (TO 03/06) GASKET D:129.4 (TO 03/06)
Ariston part no. 61306030		 £33.62
232   TAPPING SCREW D: 4.8-9.5
Ariston part no. 61007613		 £0.90

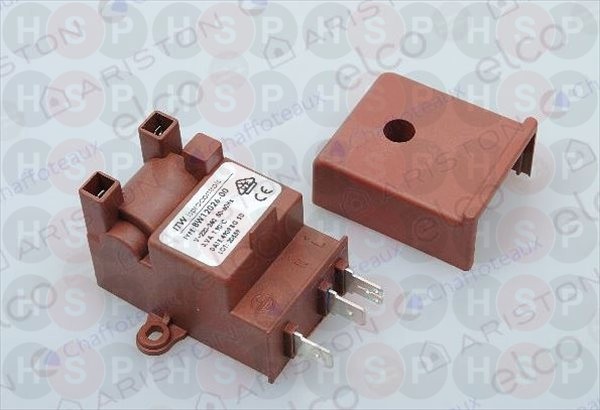

303 Part number 61002105-20, IGNITER IGNITER
Ariston part no. 61002105-20		 £50.54
304 Part number 60081273, FOAM SEAL 12.5x5 L: 2.5M FOAM SEAL 12.5X5 L: 2.5M
Ariston part no. 60081273		 £23.36
305   CASE
Ariston part no. 61317033		 £172.83
306 Part number 61010125, TAPPING SCREW CBLSX D: 4.2-9.5 TAPPING SCREW CBLSX D: 4.2-9.5
Ariston part no. 61010125		 £0.42
311   CASE COVER
Ariston part no. 61317032		 £192.59
314 Part number 61010109, GROMMET GROMMET
Ariston part no. 61010109		 £3.87
