ARISTON
ACO 35 HP MFFI R8215284-01EN - EDITION 01 - 02/01/2006 - (Electric Box)
Appliance Code: 47-116-36

Appliance Diagram


Electric Box diagram for Ariston ACO 35 HP MFFI R8215284-01EN - Edition 01 - 02/01/2006Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

601   CONTROL PANEL (COMPLETE)
Ariston part no. 65102191		 £124.90
602 Part number 65102220, NOW USE 65121089 PRESSURE GAUGE NOW USE 65121089 PRESSURE GAUGE
Ariston part no. 65102220
602   PRESSURE GAUGE
Ariston part no. 65121089		 £25.82
603 Part number 65103578, COMPLETE HINGE COMPLETE HINGE
Ariston part no. 65103578		 £11.94
609   ELECTRIC BOX COVER
Ariston part no. 65102195		 £3.18
610   TRIM
Ariston part no. 65102228		 £12.23
611 Part number 65103503, HIGH VOLTAGE WIRING HIGH VOLTAGE WIRING
Ariston part no. 65103503		 £18.05

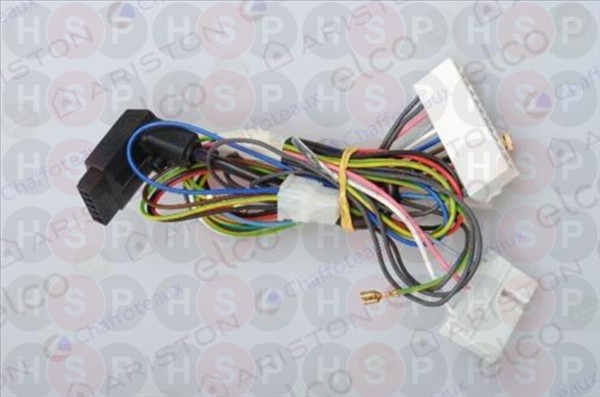

612 Part number 65102184, WIRING (INTERFACE - MAIN P.C.B.) WIRING (INTERFACE - MAIN P.C.B.)
Ariston part no. 65102184		 £6.17
613 Part number 65102194, REAR CLAMP REAR CLAMP
Ariston part no. 65102194		 £7.02
614 Part number 65102209, CONTROL PANEL CONTROL PANEL
Ariston part no. 65102209		 £15.08
615 Part number 65103508, P.C.B. VER.06 (ACO-MCU) P.C.B. VER.06 (ACO-MCU)
Ariston part no. 65103508		 £350.38
616 Part number 65102235, P.C.B. (DISPLAY) P.C.B. (DISPLAY)
Ariston part no. 65102235		 £101.66
617   P.C.B. COVER PLATE
Ariston part no. 65102234		 £4.91
619 Part number 65102185, WIRING (INTERFACE - DISPLAY P.C.B.) WIRING (INTERFACE - DISPLAY P.C.B.)
Ariston part no. 65102185		 £6.86
620 Part number 65102265, GASKET GASKET
Ariston part no. 65102265		 £1.55
621 Part number 65102249, DISPLAY GLASS DISPLAY GLASS
Ariston part no. 65102249		 £1.82
622 Part number 65102213, PUSH BUTTON GROUP (MENU) PUSH BUTTON GROUP (MENU)
Ariston part no. 65102213		 £5.17
623 Part number 65100755, SPINDLE (KNOB) SPINDLE (KNOB)
Ariston part no. 65100755		 £5.27
624 Part number 65100676, PUSH (CASE DOOR) PUSH (CASE DOOR)
Ariston part no. 65100676		 £4.83
625 Part number 999599, NOW USE 65120831 MECHANICAL CLOCK NOW USE 65120831 MECHANICAL CLOCK
Ariston part no. 999599
625   MECHANICAL TIMER 3V DC
Ariston part no. 65120831		 £84.11
634   LOW VOLTAGE WIRING
Ariston part no. 65103504		 £9.53
637 Part number 65102208, CASE DOOR CASE DOOR
Ariston part no. 65102208		 £11.03
638   CABLE (POWER SUPPLY)
Ariston part no. 65102187		 £4.95
639   WIRING (PROBE)
Ariston part no. 65103505		 £8.20
641 Part number 65103509, MODULE KIT (EEPROM ACO) MODULE KIT (EEPROM ACO)
Ariston part no. 65103509		 £40.27
649   PUSH BUTTON GROUP (MENU)
Ariston part no. 65102211		 £3.07
650 Part number 65102222, KNOB KNOB
Ariston part no. 65102222		 £1.33
651 Part number 990357, CLIPS CLIPS
Ariston part no. 990357		 £4.63
652 Part number 990381, CONNECTOR (ROOM THERMOSTAT) CONNECTOR (ROOM THERMOSTAT)
Ariston part no. 990381		 £3.19
653 Part number 65102254, CONNECTOR CONNECTOR
Ariston part no. 65102254		 £2.63
654 Part number 571562, CABLE CLAMP CABLE CLAMP
Ariston part no. 571562		 £2.67
655   CABLE HOLDER
Ariston part no. 65100754		 £2.40
657 Part number 65102186, CABLE (FAN) CABLE (FAN)
Ariston part no. 65102186		 £12.92
