ARISTON
ACO 27 RFFI GPL (EDITION 6 DECEMBER 2010) - (Water Section)
Appliance Code: 41-116-09 GPL EDITION 6

Appliance Diagram


Water Section diagram for Ariston ACO 27 RFFI GPL (Edition 6 December 2010)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

501   FILLING UP UNION
Ariston part no. 65102899		 £47.96

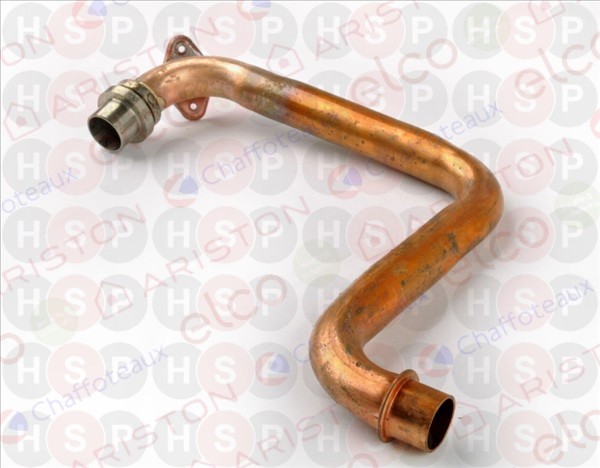

503   DELIVERY PIPE (TO 06/05)
Ariston part no. 65102243		 £23.01
503   DELIVERY PIPE (FROM 07/05)
Ariston part no. 65103206		 £41.09
504 Part number 990438, SCREW (M4X102) SCREW (M4X102)
Ariston part no. 990438		 £7.91
506 Part number 990386, U-CLIP U-CLIP
Ariston part no. 990386		 £4.85
508 Part number 998424, O-RING O-RING
Ariston part no. 998424		 £1.09
515 Part number 999473, BY-PASS BY-PASS
Ariston part no. 999473		 £6.48
516 Part number 65102300, MANIFOLD (C.H. FLOW) MANIFOLD (C.H. FLOW)
Ariston part no. 65102300		 £14.13
521 Part number 990383, O-RING (C.H. FLOW MANIFOLD) O-RING (C.H. FLOW MANIFOLD)
Ariston part no. 990383		 £4.25
522 Part number 995936, NOW USE 65157028 FLANGE (C.H. FLOW) NOW USE 65157028 FLANGE (C.H. FLOW)
Ariston part no. 995936
522   FLANGE (C.H. FLOW)
Ariston part no. 65157028		 £13.18
523 Part number 990360, OBSOLETE GASKET (DELIVERY GROUP) OBSOLETE GASKET (DELIVERY GROUP)
Ariston part no. 990360
524 Part number 990404, LOCK FLANGE LOCK FLANGE
Ariston part no. 990404		 £2.95
525 Part number 65102015, VALVE RUBBER WASHER (3BAR) VALVE RUBBER WASHER (3BAR)
Ariston part no. 65102015		 £1.49
526 Part number 65101295, RUBBER WASHER RUBBER WASHER
Ariston part no. 65101295		 £4.43
527 Part number 998517, O-RING O-RING
Ariston part no. 998517		 £1.00
528 Part number 571548, U-CLIP U-CLIP
Ariston part no. 571548		 £4.35
529 Part number 65102220, NOW USE 65121089 PRESSURE GAUGE NOW USE 65121089 PRESSURE GAUGE
Ariston part no. 65102220
529   PRESSURE GAUGE
Ariston part no. 65121089		 £25.82
530 Part number 990385, U-CLIP U-CLIP
Ariston part no. 990385		 £4.68
531 Part number 65104683, AUTO AIR VENT WITH O-RING (FROM 11/06) AUTO AIR VENT WITH O-RING (FROM 11/06)
Ariston part no. 65104683		 £12.08
531 Part number 995865, AUTO AIR VENT WITH O-RING (TO 10/06) AUTO AIR VENT WITH O-RING (TO 10/06)
Ariston part no. 995865		 £10.28
533   PIPE (C.H. RETURN) (TO 06/05)
Ariston part no. 65102244		 £14.04
533 Part number 65103218, PIPE (C.H. RETURN) (FROM 07/05) PIPE (C.H. RETURN) (FROM 07/05)
Ariston part no. 65103218		 £41.02
535 Part number 990388, BY-PASS PIPE BY-PASS PIPE
Ariston part no. 990388		 £15.55
536 Part number 997153, U-CLIP U-CLIP
Ariston part no. 997153		 £1.47
537 Part number 65103222, SAFETY VALVE SAFETY VALVE
Ariston part no. 65103222		 £11.74
538 Part number 65102902, NOW USE 65120951 PUMP HEAD NOW USE 65120951 PUMP HEAD
Ariston part no. 65102902
538   PUMP PARA MS/7-50/SC-6
Ariston part no. 65120951		 £239.95
541 Part number 65100038, FIXING BRACKET (RETURN PIPE) FIXING BRACKET (RETURN PIPE)
Ariston part no. 65100038		 £2.86
542 Part number 990393, O-RING O-RING
Ariston part no. 990393		 £3.61
543 Part number 990363, GASKET (RETURN GROUP) GASKET (RETURN GROUP)
Ariston part no. 990363		 £4.92
544 Part number 995932, FLANGE (C.H. RETURN) FLANGE (C.H. RETURN)
Ariston part no. 995932		 £18.09
545 Part number 998738, GASKET (PUMP HEAD) GASKET (PUMP HEAD)
Ariston part no. 998738		 £3.94
546 Part number 65104681, MANIFOLD (C.H. RETURN) MANIFOLD (C.H. RETURN)
Ariston part no. 65104681		 £61.69
546 Part number 65104682, MANIFOLD (C.H. RETURN) (FROM 11/06) MANIFOLD (C.H. RETURN) (FROM 11/06)
Ariston part no. 65104682		 £47.57
547 Part number 65100421, U-CLIP U-CLIP
Ariston part no. 65100421		 £2.98
548 Part number 990405, CONTACT NTC PROBE CONTACT NTC PROBE
Ariston part no. 990405		 £14.92
549 Part number 65101007, FIXING PLATE (PROBE) FIXING PLATE (PROBE)
Ariston part no. 65101007		 £3.40
550 Part number 65102301, PLUG PLUG
Ariston part no. 65102301		 £5.78
551 Part number 990488, O-RING O-RING
Ariston part no. 990488		 £1.65
552 Part number 990489, O-RING O-RING
Ariston part no. 990489		 £1.32
555 Part number 990390, PLUG (DIVERTER VALVE) PLUG (DIVERTER VALVE)
Ariston part no. 990390		 £9.88
574 Part number 998077, O-RING O-RING
Ariston part no. 998077		 £1.53
575 Part number 65101382, RETAINING CLIP (AUTO AIR VENT) RETAINING CLIP (AUTO AIR VENT)
Ariston part no. 65101382		 £2.09
576 Part number 995976, O-RING O-RING
Ariston part no. 995976		 £1.65
