BAXI
24 HE SYSTEM (BEFORE SERIAL NO BTF 0932) - (Wiring)
Appliance Code: 41-075-47 BEFORE

Appliance Diagram


Wiring diagram for Baxi 24 HE System (Before Serial No BTF 0932)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

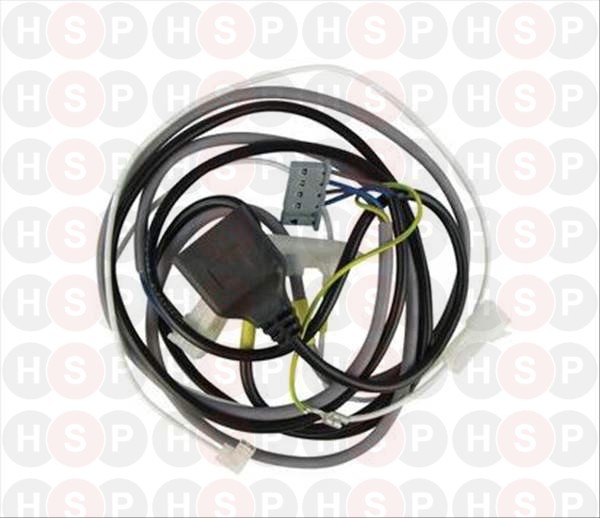

701 Part number 5114777, WIRING HARNESS WIRING HARNESS
Baxi part no. 5114777
£41.79
702   WIRING HARNESS
Baxi part no. 5114779
£17.07
703 Part number 5114783, WIRING HARNESS - FAN/IGNITOR WIRING HARNESS - FAN/IGNITOR
Baxi part no. 5114783
£30.48
704 Part number 5118391, PUMP WIRING MEGAFLO PUMP WIRING MEGAFLO
Baxi part no. 5118391
£56.21
705 Part number 5114787, EARTH CABLE - PCB EARTH CABLE - PCB
Baxi part no. 5114787
£3.10
706   EARTH CABLE
Baxi part no. 5118392
£12.57
707   TERM BLOCK HARNESS
Baxi part no. 5118394
£12.70
708 Part number 5118393, PCB/SEL SWITCH CABL PCB/SEL SWITCH CABL
Baxi part no. 5118393
£16.20
710   PLUG - PCB
Baxi part no. 5115101
£3.26
711 Part number 5114788, CABLE CABLE
Baxi part no. 5114788
£10.31
