VOKERA
UNICA I36 REV 1 ERP (05/2015) - (Burner)
Appliance Code: 47-364-24 REV 1

Appliance Diagram

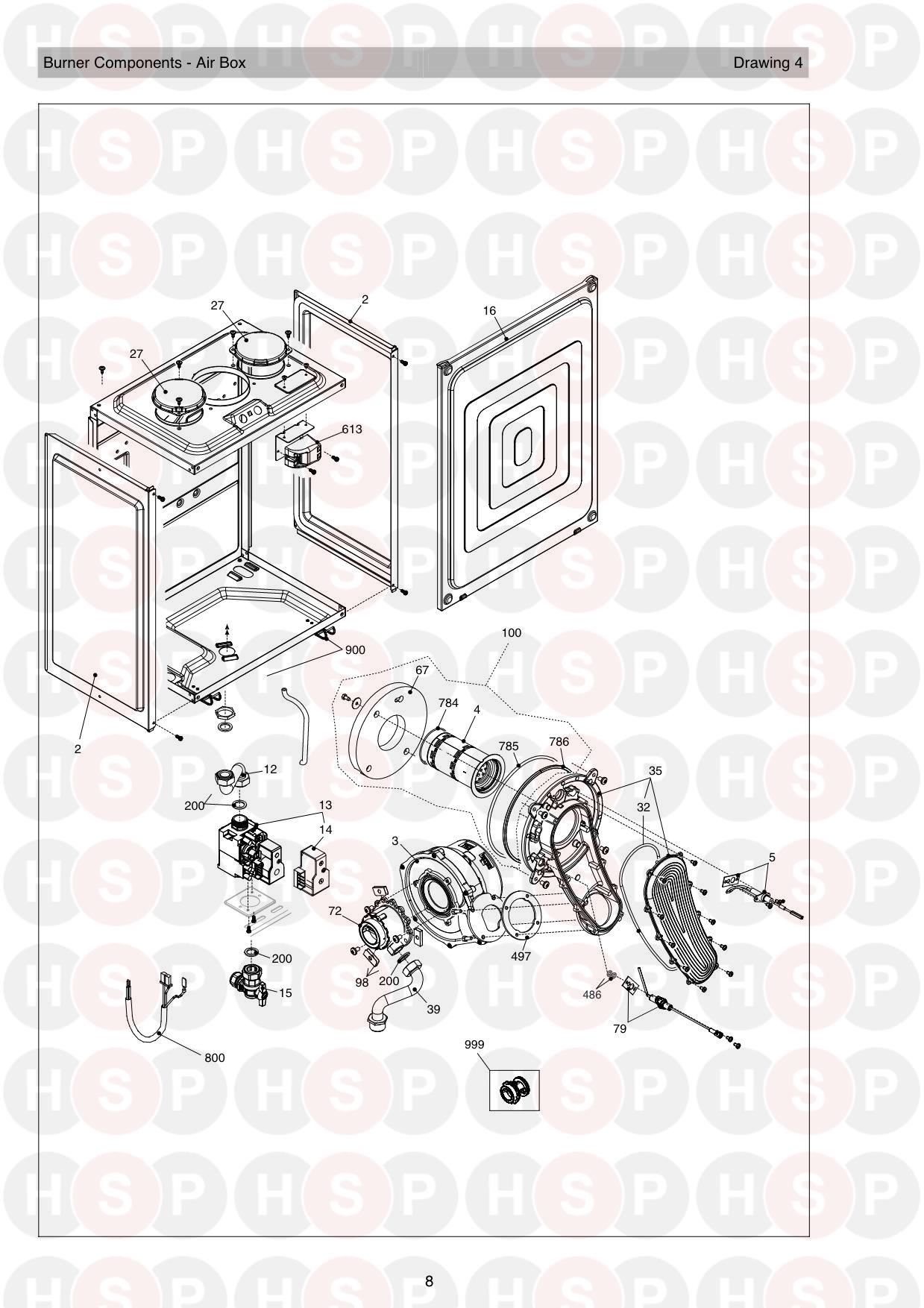

Burner diagram for Vokera Unica i36 Rev 1 ERP (05/2015)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2   ROOMSEALED CHAMBER SIDE
Vokera part no. 10026231
£33.11
3 Part number 20085965, Fan (from serial n.>20065834J2050001) FAN (FROM SERIAL N.>20065834J2050001)
Vokera part no. 20085965
£316.19
4   BURNER
Vokera part no. 20086673
£70.57
5   NOW USE 20119995 IGNITION ELECTRODE
Vokera part no. 20057856

5   IGNITION ELECTRODE - REPLACES 20057856 (FROM SERIAL NO. 20101253N1450193)
Vokera part no. 20119995
£13.22
12   GAS PIPE
Vokera part no. 10028620
£15.28
13 Part number 20039202, Gas valve Rep 10028538 & 10027187 & 20025752 GAS VALVE REP 10028538 & 10027187 & 20025752
Vokera part no. 20039202
£170.04
14 Part number 20040675, Gas Valve Solenoid (Fits 20039202/20035533) GAS VALVE SOLENOID (FITS 20039202/20035533)
Vokera part no. 20040675
£79.58
15 Part number 10020897, Gas Cock GAS COCK
Vokera part no. 10020897
£26.04
16   AIR BOX FRONT COVER
Vokera part no. 20071912
£50.25
27   PLASTIC HOLE COVER
Vokera part no. 20005586
£1.65
32   WASHER
Vokera part no. 20057870
£2.99
35   AIR/GAS MANIFOLD
Vokera part no. 20057885
£20.68
39   GAS PIPE
Vokera part no. 20071908
£36.12
67   TRYTON
Vokera part no. 20057858
£24.52
72   MIXER
Vokera part no. 20076998
£85.42
79 Part number 20072077, NOW USE 20119996 Sensing Electrode NOW USE 20119996 SENSING ELECTRODE
Vokera part no. 20072077

79   SENSING/DETECTION ELECTRODE - REPLACED 20072077 AND 20057857
Vokera part no. 20119996
£9.88
98   MIXER SPACER
Vokera part no. 20036990
£0.75
100   BURNER ASSEMBLY
Vokera part no. 20071914
£68.75
200 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023
£0.43
486 Part number 10026325, O ring O RING
Vokera part no. 10026325
£2.52
497 Part number 10026796, Fan Gasket FAN GASKET
Vokera part no. 10026796
£7.18
613 Part number 20001563, NOW USE 20002969 IGNITION TRANSFORMER NOW USE 20002969 IGNITION TRANSFORMER
Vokera part no. 20001563

613 Part number 20002969, Ignition transformer with wires Rep 10026237 & 20001563 IGNITION TRANSFORMER WITH WIRES REP 10026237 & 20001563
Vokera part no. 20002969
£42.16
784   WASHER
Vokera part no. 20057871

785   WASHER
Vokera part no. 20057878
£5.09
786 Part number 20057872, GLASS FIBRE GLASS FIBRE
Vokera part no. 20057872
£4.19
800   CN1 TO IGN TRANSFORMER, CN3 TO FAN.
Vokera part no. 20057874
£27.70
900   COMBUSTION CHAMBER CLIP AND 2 RIVETS
Vokera part no. 20061168
£2.32
999   LPG TO NG CONVERSION KIT
Vokera part no. 20083995
£44.95
999   NG TO LPG CONVERSION KIT
Vokera part no. 20083996
£47.59
