VOKERA
SABRE 25 HE PLUS (NEW VERSION) REV 7 (07/2016) - (Hydraulics 1)
Appliance Code: 47-364-08 REV 7

Appliance Diagram

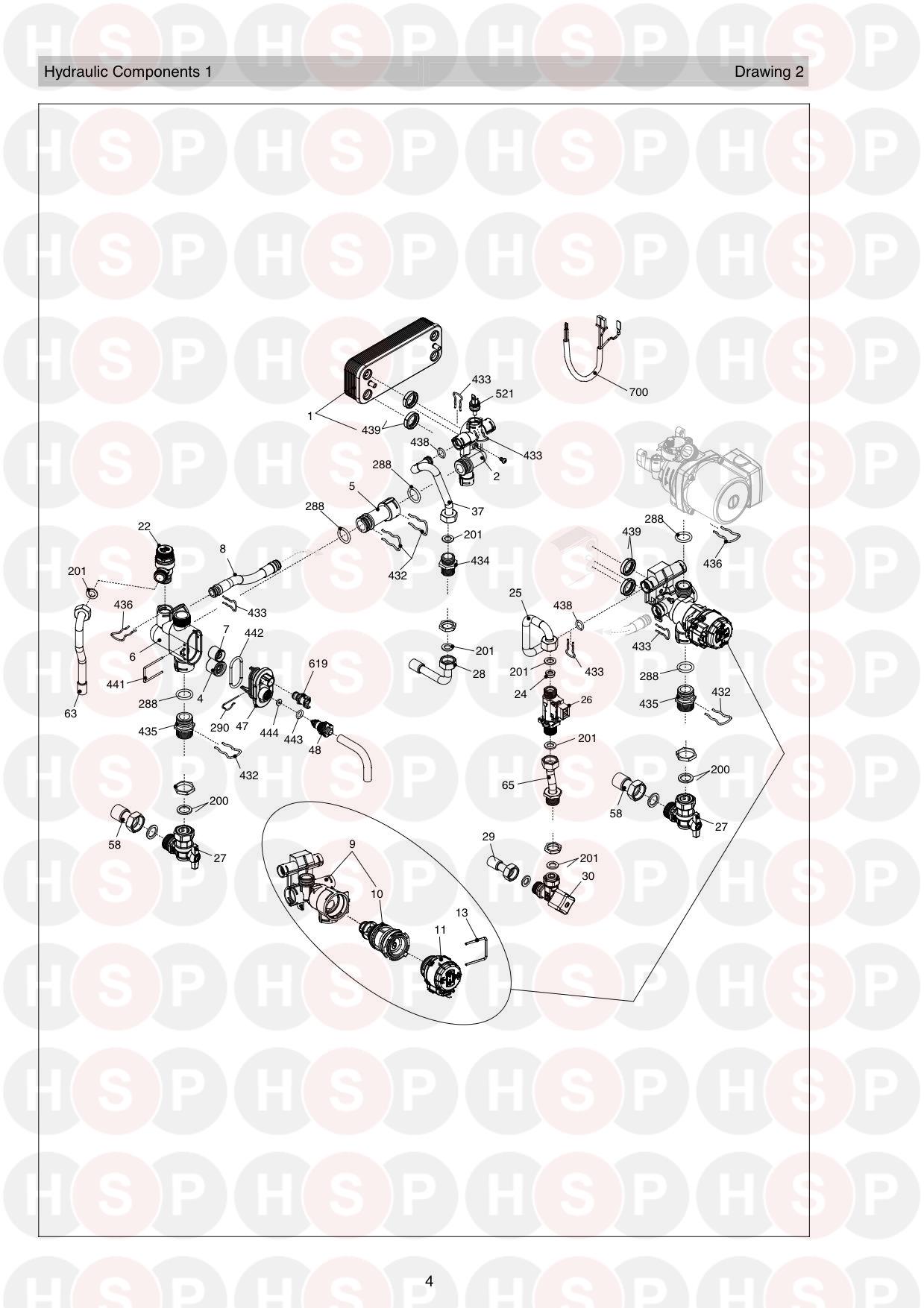

Hydraulics 1 diagram for Vokera Sabre 25 HE Plus (New Version) Rev 7 (07/2016)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 8036, Domestic Heat Exchanger (with 4 x 7999 O DOMESTIC HEAT EXCHANGER (WITH 4 X 7999 O
Vokera part no. 8036		 £127.41
2   FITTING / UNION REPLACED 10026194
Vokera part no. 20092620		 £5.33
4 Part number 10025056, Non return valve NON RETURN VALVE
Vokera part no. 10025056		 £5.11
5   CONNECTION
Vokera part no. 10024647		 £3.93
6   BYPASS BODY
Vokera part no. 10024642		 £12.07
7 Part number 1552, Valve For DHW Bypass VALVE FOR DHW BYPASS
Vokera part no. 1552		 £7.77
8   PIPE
Vokera part no. 10025057		 £10.93
9   3 WAY MANIFOLD & CARTRIDGE
Vokera part no. 20021497		 £70.57
10 Part number 20043594, 3 way valve cartridge Rep 20017597 3 WAY VALVE CARTRIDGE REP 20017597
Vokera part no. 20043594		 £44.96
11 Part number 20017594, Actuator/Motorised valve ACTUATOR/MOTORISED VALVE
Vokera part no. 20017594		 £59.42
13 Part number 20017598, Square Locking Pin (COMPACT VERSION) SQUARE LOCKING PIN (COMPACT VERSION)
Vokera part no. 20017598		 £1.44
22 Part number 20044364, Safety valve Rep 10025055 & 20034917 & 20043820 SAFETY VALVE REP 10025055 & 20034917 & 20043820
Vokera part no. 20044364		 £22.49
24 Part number 10026043, Flow governor 8 Litres Per Min (White) FLOW GOVERNOR 8 LITRES PER MIN (WHITE)
Vokera part no. 10026043		 £6.24
25   PIPE
Vokera part no. 10024982		 £8.91
26 Part number 20073700, NOW USE 10022349 ACTUATOR NOW USE 10022349 ACTUATOR
Vokera part no. 20073700
26 Part number 10022349, DHW Actuator replaces 10020330 DHW ACTUATOR REPLACES 10020330
Vokera part no. 10022349		 £33.95
27 Part number 1592, 3/4" Heat water cock 3/4" HEAT WATER COCK
Vokera part no. 1592		 £16.13
28 Part number 20025758, Copper Pipe (L Shape) COPPER PIPE (L SHAPE)
Vokera part no. 20025758		 £8.94
29 Part number 20025756, Copper Tail 15mm COPPER TAIL 15MM
Vokera part no. 20025756		 £6.90
30 Part number 20035394, COCK COCK
Vokera part no. 20035394		 £17.73
37   PIPE
Vokera part no. 20013140		 £12.21
47 Part number 10024643, Cover for by-pass assembly COVER FOR BY-PASS ASSEMBLY
Vokera part no. 10024643		 £10.94
48 Part number 10024646, Discharge Valve with O ring (10025064) & Washer (10025066) DISCHARGE VALVE WITH O RING (10025064) & WASHER (10025066)
Vokera part no. 10024646		 £7.85
58 Part number 20025757, Copper Tail 22mm COPPER TAIL 22MM
Vokera part no. 20025757		 £8.07
63   PIPE
Vokera part no. 20036120		 £10.53
65   PIPE
Vokera part no. 10024983		 £10.61
200 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023		 £0.43
201 Part number 5026, 1/2" Fibre Washer 1/2" FIBRE WASHER
Vokera part no. 5026		 £0.39
288 Part number 6898, O Ring O RING
Vokera part no. 6898		 £1.03
290 Part number 10027757, Locking Pin LOCKING PIN
Vokera part no. 10027757		 £0.77
290 Part number 2165, NOW USE 10027757 LOCKING PIN NOW USE 10027757 LOCKING PIN
Vokera part no. 2165
432 Part number 10024958, Locking Pin LOCKING PIN
Vokera part no. 10024958		 £0.98
433 Part number 10024986, Locking Pin LOCKING PIN
Vokera part no. 10024986		 £0.98
434 Part number 10024985, Nipple NIPPLE
Vokera part no. 10024985		 £11.88
435 Part number 10025059, Connection CONNECTION
Vokera part no. 10025059		 £11.53
436 Part number 10025062, Locking Pin LOCKING PIN
Vokera part no. 10025062		 £2.26
438 Part number 10024988, O ring O RING
Vokera part no. 10024988		 £0.81
439 Part number 10025067, O ring O RING
Vokera part no. 10025067		 £2.61
441 Part number 10025063, Locking Pin LOCKING PIN
Vokera part no. 10025063		 £0.98
442 Part number 10025065, O ring O RING
Vokera part no. 10025065		 £1.91
443 Part number 10025064, O ring O RING
Vokera part no. 10025064		 £5.30
444 Part number 10025066, Washer WASHER
Vokera part no. 10025066		 £3.27
521 Part number 10027351, Thermistor/NTC Sensor THERMISTOR/NTC SENSOR
Vokera part no. 10027351		 £7.96
619 Part number 20003181, Water pressure switch - Replaced 10028141 WATER PRESSURE SWITCH - REPLACED 10028141
Vokera part no. 20003181		 £9.83
700 Part number 20017596, CN4 to Motorised Valve CN4 TO MOTORISED VALVE
Vokera part no. 20017596		 £36.90
