VOKERA
MYNUTE 15 VHE ERP REV 12 (02/2017) LPG - (Casing Electrics)
Appliance Code: 41-094-68 REV 12 LPG

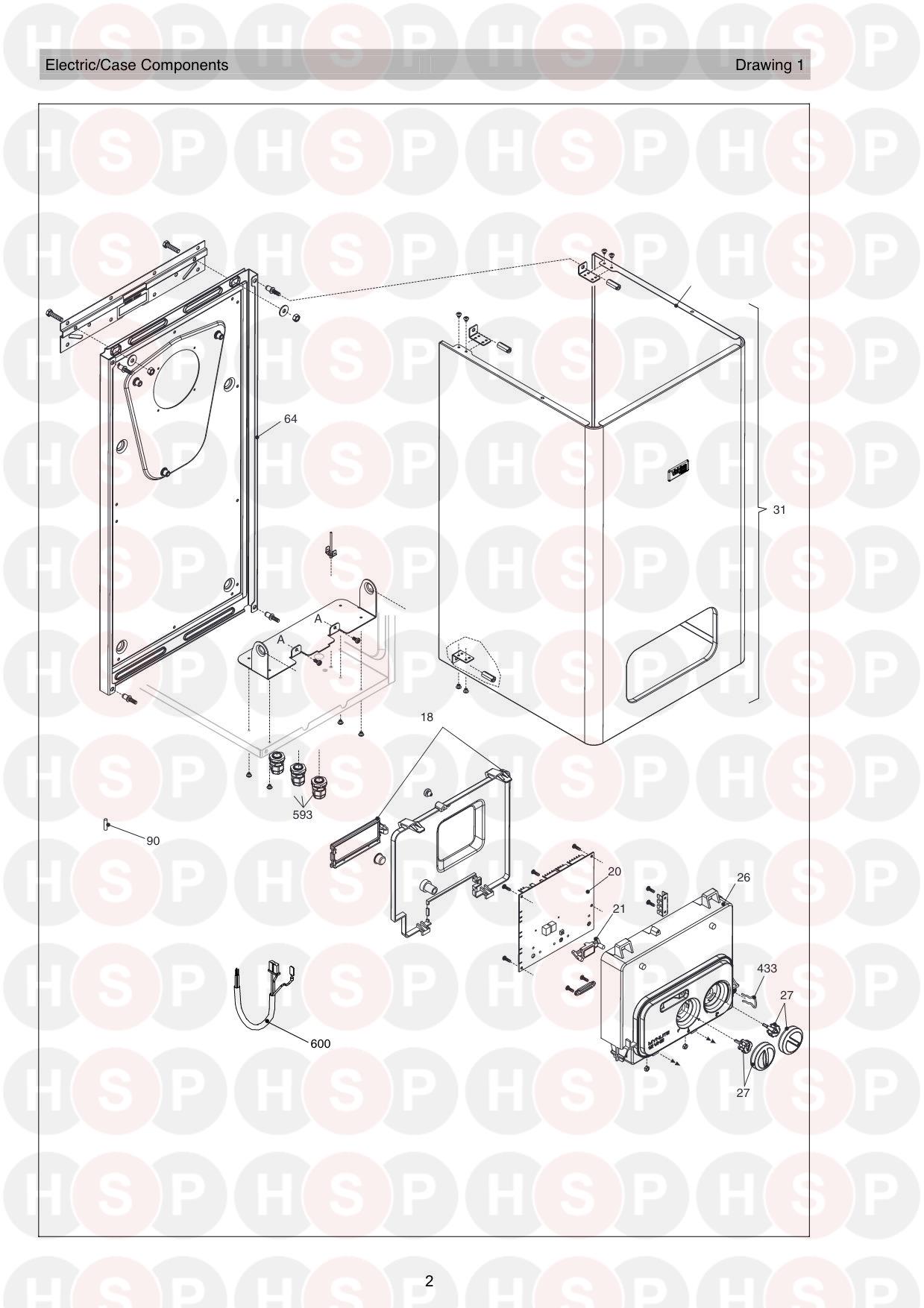

Appliance Diagram


Casing Electrics diagram for Vokera Mynute 15 VHE ERP Rev 12 (02/2017) LPGClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

18   REAR INSTRUMENT PANEL
Vokera part no. 20000121		 £14.01
20 Part number 10029717, Main Printed Circuit Board MAIN PRINTED CIRCUIT BOARD
Vokera part no. 10029717		 £194.17
21 Part number 10028557, LED light guide LED LIGHT GUIDE
Vokera part no. 10028557		 £4.03
26   INSTRUMENT PANEL
Vokera part no. 20000168		 £22.28
27 Part number 10028559, Knob assembly KNOB ASSEMBLY
Vokera part no. 10028559		 £5.73
31   CASING
Vokera part no. 20000122		 £101.86
64   FRAME
Vokera part no. 20000139
90 Part number 3478, 3 Amp Fuse (individual) 3 AMP FUSE (INDIVIDUAL)
Vokera part no. 3478		 £2.05
433 Part number 10024986, Locking Pin LOCKING PIN
Vokera part no. 10024986		 £0.98
593   DRAIN PLUG
Vokera part no. 20000143		 £23.97
600   PUMP CABLE
Vokera part no. 20000134		 £8.49
600   CN1 TO M3A, M3 AND FAN
Vokera part no. 20000136		 £26.59
