VOKERA
MYNUTE 35HE ERP REV. 2 (02/2017) - (Hydraulics 1)
Appliance Code: 41-094-64 REV. 2

Appliance Diagram

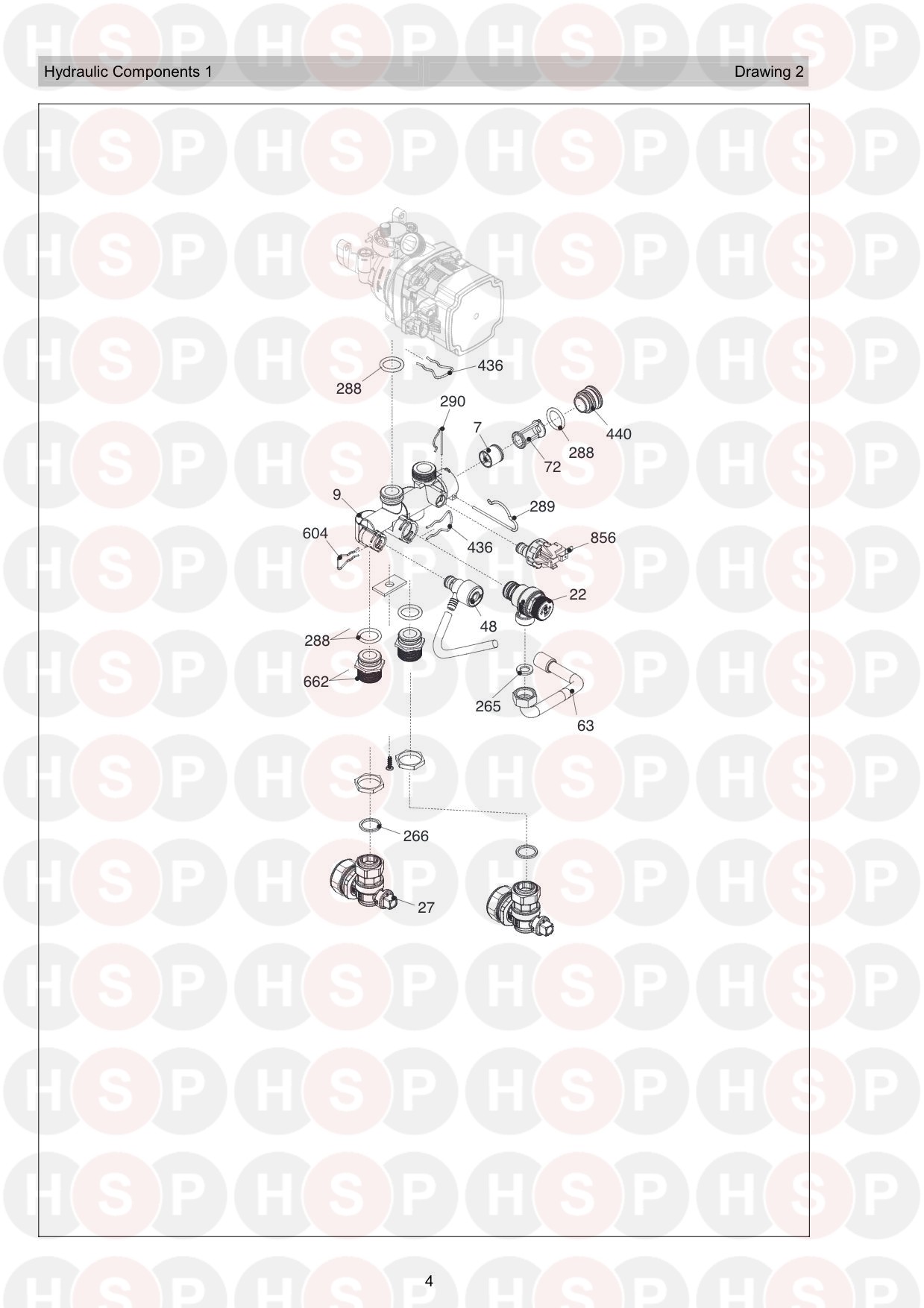

Hydraulics 1 diagram for Vokera Mynute 35HE ERP Rev. 2 (02/2017)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

7 Part number 1552, Valve For DHW Bypass VALVE FOR DHW BYPASS
Vokera part no. 1552
£7.77
9   HEATING DISTRIB.
Vokera part no. 20005568
£8.30
22 Part number 20044364, Safety valve Rep 10025055 & 20034917 & 20043820 SAFETY VALVE REP 10025055 & 20034917 & 20043820
Vokera part no. 20044364
£22.49
27 Part number 10029757, Heating Cock 28mm HEATING COCK 28MM
Vokera part no. 10029757
£38.00
48   COCK
Vokera part no. 20000533
£5.63
63   PIPE
Vokera part no. 20035609
£14.33
72   BY PASS VALVE LOCK
Vokera part no. 20068965
£1.47
265 Part number 5236, Washer WASHER
Vokera part no. 5236
£0.69
266 Part number 5237, Washer 28mm WASHER 28MM
Vokera part no. 5237
£0.88
288 Part number 6898, O Ring O RING
Vokera part no. 6898
£1.03
289 Part number 2223, Locking Pin LOCKING PIN
Vokera part no. 2223
£3.76
290 Part number 10027757, Locking Pin LOCKING PIN
Vokera part no. 10027757
£0.77
290 Part number 2165, NOW USE 10027757 LOCKING PIN NOW USE 10027757 LOCKING PIN
Vokera part no. 2165

436 Part number 10025062, Locking Pin LOCKING PIN
Vokera part no. 10025062
£2.26
440   AUTOMATIC BY-PASS PLUG
Vokera part no. 10024645
£4.76
604   CLIP
Vokera part no. 20000539
£0.44
662   CONNECTION
Vokera part no. 20014074
£7.54
856 Part number 20046560, Pressure switch same as 2726? PRESSURE SWITCH SAME AS 2726?
Vokera part no. 20046560
£23.58
