VOKERA
LINEA ONE ERP REV 12 (03/2016) - (Burner Air Box)
Appliance Code: 47-364-03

Appliance Diagram

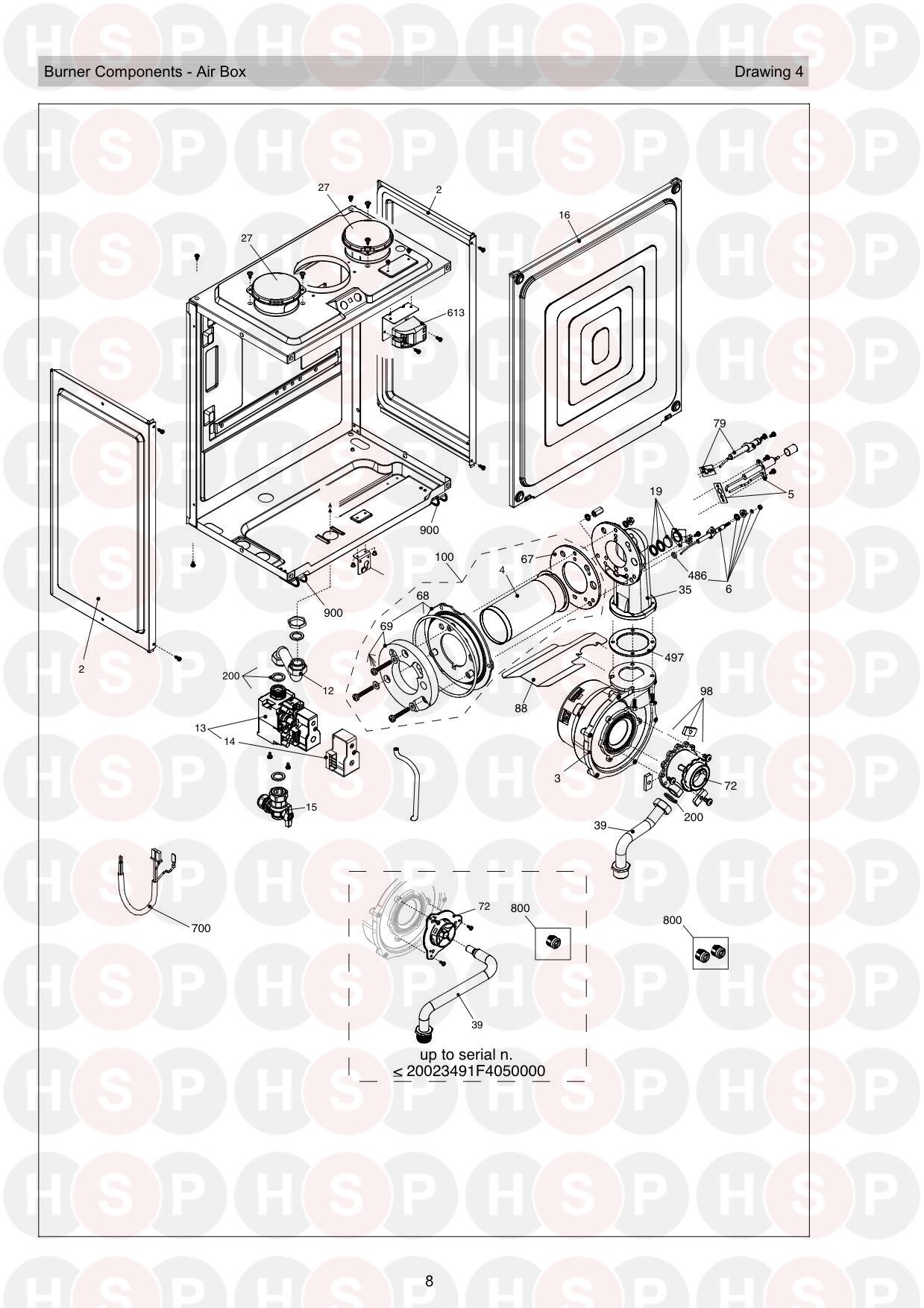

Burner Air Box diagram for Vokera Linea One ERP Rev 12 (03/2016)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2   ROOMSEALED CHAMBER SIDE
Vokera part no. 10026231		 £33.11
3   FAN
Vokera part no. 20083136
4   BURNER
Vokera part no. 20086250		 £54.79
5 Part number 10027620, NOW USE 20074728 Spark/Ignition electrode Replaced NOW USE 20074728 SPARK/IGNITION ELECTRODE REPLACED
Vokera part no. 10027620
5 Part number 20074728, Spark/Ignition electrode Replaced 10027620 SPARK/IGNITION ELECTRODE REPLACED 10027620
Vokera part no. 20074728		 £21.43
6 Part number 10026316, Sensing electrode SENSING ELECTRODE
Vokera part no. 10026316		 £12.30
12 Part number 10026318, Gas pipe GAS PIPE
Vokera part no. 10026318		 £16.45
13 Part number 20039202, Gas valve Rep 10028538 & 10027187 & 20025752 GAS VALVE REP 10028538 & 10027187 & 20025752
Vokera part no. 20039202		 £170.04
14 Part number 20040675, Gas Valve Solenoid (Fits 20039202/20035533) GAS VALVE SOLENOID (FITS 20039202/20035533)
Vokera part no. 20040675		 £79.58
15 Part number 10020897, Gas Cock GAS COCK
Vokera part no. 10020897		 £26.04
16   ROOMSEALED CHAMBER COVER
Vokera part no. 10026230		 £43.50
19 Part number 10026328, Glass assembly GLASS ASSEMBLY
Vokera part no. 10026328		 £8.31
27   PLASTIC HOLE COVER
Vokera part no. 20005586		 £1.65
35 Part number 10028420, Air gas conveyor AIR GAS CONVEYOR
Vokera part no. 10028420		 £49.54
39   GAS PIPE REPLACED 10027196
Vokera part no. 10028206		 £23.88
39   GAS PIPE
Vokera part no. 20024600		 £17.82
67 Part number 10026322, Washer WASHER
Vokera part no. 10026322		 £21.67
68   FLANGE AND INSULATION
Vokera part no. 20046837		 £32.68
69 Part number 20046839, Tryton and Screws TRYTON AND SCREWS
Vokera part no. 20046839		 £17.09
72 Part number 20015932, Mixer Replaced 10024295 MIXER REPLACED 10024295
Vokera part no. 20015932		 £40.32
72   MIXER (RED)
Vokera part no. 20031497		 £95.49
79 Part number 10028422, Flame detection electrode FLAME DETECTION ELECTRODE
Vokera part no. 10028422		 £21.15
88 Part number 20006411, Fan baffle FAN BAFFLE
Vokera part no. 20006411		 £8.46
98   MIXER SPACER
Vokera part no. 20036990		 £0.75
100   BURNER ASSEMBLY
Vokera part no. 20016328		 £129.07
200 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023		 £0.43
486 Part number 10026325, O ring O RING
Vokera part no. 10026325		 £2.52
497 Part number 10026796, Fan Gasket FAN GASKET
Vokera part no. 10026796		 £7.18
613 Part number 20001563, NOW USE 20002969 IGNITION TRANSFORMER NOW USE 20002969 IGNITION TRANSFORMER
Vokera part no. 20001563
613 Part number 20002969, Ignition transformer with wires Rep 10026237 & 20001563 IGNITION TRANSFORMER WITH WIRES REP 10026237 & 20001563
Vokera part no. 20002969		 £42.16
700 Part number 10026336, J10 to Gas valve cable J10 TO GAS VALVE CABLE
Vokera part no. 10026336		 £24.40
700 Part number 10026558, TSC1 (ignition transformer) to Spark electrode Wiring TSC1 (IGNITION TRANSFORMER) TO SPARK ELECTRODE WIRING
Vokera part no. 10026558		 £10.79
700   IGNITION FLAME WIRING HARNESS
Vokera part no. 20016280		 £28.64
700   PUMP CABLE (PWM)
Vokera part no. 20024202		 £29.71
700   PUMP CABLE
Vokera part no. 20025884		 £15.91
800 Part number 01005448, NG to LPG conversion kit (5.0 jet) Replaced 01005390 NG TO LPG CONVERSION KIT (5.0 JET) REPLACED 01005390
Vokera part no. 01005448		 £17.73
800   LPG TO NG CONVERSION KIT (7.0 JET)
Vokera part no. 01005466
800   LPG TO NG CONVERSION KIT
Vokera part no. 20031414
800   LPG CONVERSION KIT
Vokera part no. 20031415		 £29.19
900   COMBUSTION CHAMBER CLIP AND 2 RIVETS
Vokera part no. 20061168		 £2.32
