VAILLANT
ECOTEC PLUS 418 VU 186/6-5 OVZ 2016-2019 - (07 Casing)
Appliance Code: 41-694-15

Appliance Diagram

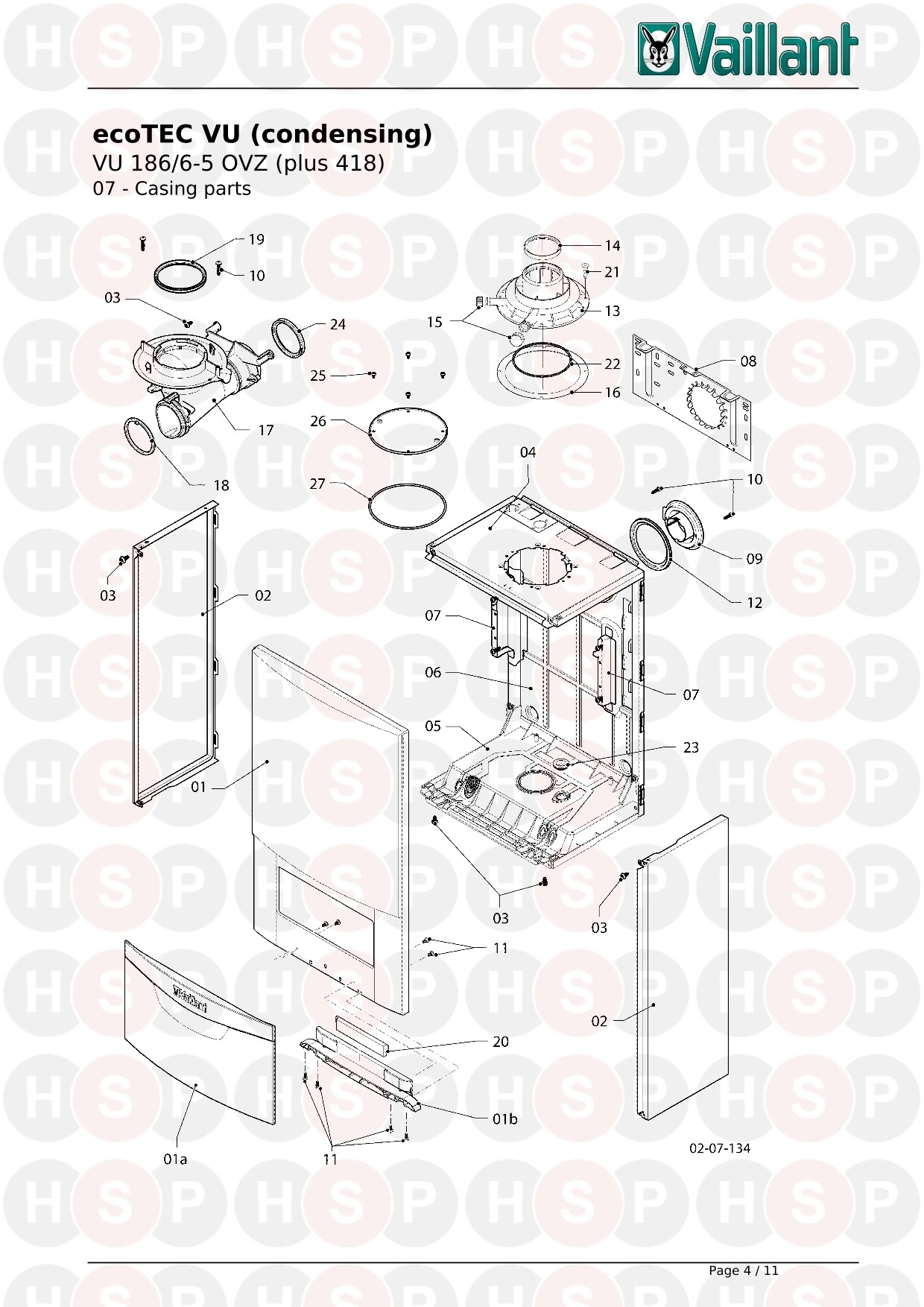

07 Casing diagram for Vaillant Ecotec Plus 418 VU 186/6-5 OVZ 2016-2019Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

01   FRONT PANEL
Vaillant part no. 0020195626		 £141.77
01A   FLAP
Vaillant part no. 0020195627		 £38.12
01B   HINGE
Vaillant part no. 0020195628		 £6.71
02   SIDE PANEL
Vaillant part no. 0020195629		 £35.26
03 Part number 0020073877, Screw (PK10) SCREW (PK10)
Vaillant part no. 0020073877		 £6.71
04   PRICE ON APPLICATION
Vaillant part no. 0000
05   PRICE ON APPLICATION
Vaillant part no. 0000
06   PRICE ON APPLICATION
Vaillant part no. 0000
07   PRICE ON APPLICATION
Vaillant part no. 0000
08 Part number 0020231183, Support, wall hanging SUPPORT, WALL HANGING
Vaillant part no. 0020231183		 £12.89
09 Part number 0020197017, Cover plate COVER PLATE
Vaillant part no. 0020197017		 £6.53
10 Part number 0020195503, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 0020195503		 £6.53
11 Part number 193538, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 193538		 £6.66
12 Part number 0020211085, Gasket GASKET
Vaillant part no. 0020211085		 £6.53
13 Part number 0020144596, Adapter, 60/100 ADAPTER, 60/100
Vaillant part no. 0020144596		 £11.90
14 Part number 981233, Lip seal EPDM (DN 60) LIP SEAL EPDM (DN 60)
Vaillant part no. 981233		 £7.57
15 Part number 0020195490, Cap, (PK5) CAP, (PK5)
Vaillant part no. 0020195490		 £6.53
16 Part number 0020144596, Adapter, 60/100 ADAPTER, 60/100
Vaillant part no. 0020144596		 £11.90
17 Part number 0020231179, Adapter, flue gas ADAPTER, FLUE GAS
Vaillant part no. 0020231179		 £15.93
18 Part number 0020195477, Gasket GASKET
Vaillant part no. 0020195477		 £6.53
19 Part number 981227, Sealing ring EPDM (DN 80) SEALING RING EPDM (DN 80)
Vaillant part no. 981227		 £6.69
20 Part number 0020211086, Plate, ecoTEC plus PLATE, ECOTEC PLUS
Vaillant part no. 0020211086		 £6.53
21 Part number 0020198239, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 0020198239		 £6.53
22 Part number 981227, Sealing ring EPDM (DN 80) SEALING RING EPDM (DN 80)
Vaillant part no. 981227		 £6.69
23 Part number 509120, Gasket, (PK10) GASKET, (PK10)
Vaillant part no. 509120		 £12.95
24 Part number 0020231180, Lip seal LIP SEAL
Vaillant part no. 0020231180		 £6.53
25 Part number 108542, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 108542		 £6.53
26 Part number 0020231181, Cover plate (top) COVER PLATE (TOP)
Vaillant part no. 0020231181		 £7.11
27 Part number 0020231181, Cover plate (top) COVER PLATE (TOP)
Vaillant part no. 0020231181		 £7.11
