IDEAL
ULTRA SYSTEM 24 - (Boiler Exploded View IE)
Appliance Code: 41-002-03

Appliance Diagram


Boiler Exploded View IE diagram for Ideal Ultra System 24Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

101 Part number 174827, HYDROBLOCK CLIP KIT HYDROBLOCK CLIP KIT
Ideal part no. 174827		 £25.10
102 Part number 175549, HYDROBLOCK GASKET KIT - (AAC & AAB ONLY) HYDROBLOCK GASKET KIT - (AAC & AAB ONLY)
Ideal part no. 175549		 £68.94
102 Part number 177535, HYDROBLOCK GASKET KIT (ABS & ABY ONWARDS) HYDROBLOCK GASKET KIT (ABS & ABY ONWARDS)
Ideal part no. 177535		 £70.25
103 Part number 175558, HYDROBLOCK FIXINGS KIT (AAC & AAB ONLY) HYDROBLOCK FIXINGS KIT (AAC & AAB ONLY)
Ideal part no. 175558		 £27.28
103 Part number 176454, HYDROBLOCK FIXINGS KIT (ABS & ABY ONWARDS) HYDROBLOCK FIXINGS KIT (ABS & ABY ONWARDS)
Ideal part no. 176454		 £18.83
104 Part number 175923, CH RETURN VALVE PACK (IND) CH RETURN VALVE PACK (IND)
Ideal part no. 175923		 £26.17
105 Part number 175528, CH FLOW PACK CH FLOW PACK
Ideal part no. 175528		 £40.95
108 Part number 175670, PUMP HEAD KIT (AAC & AAB ONLY) PUMP HEAD KIT (AAC & AAB ONLY)
Ideal part no. 175670		 £211.22
108 Part number 176455, NOW USE 182357 PUMP HEAD KIT - GRUNDFOS 59200322 (ABS & ABY ONWARDS) NOW USE 182357 PUMP HEAD KIT - GRUNDFOS 59200322 (ABS & ABY ONWARDS)
Ideal part no. 176455
108 Part number 177925, PUMP HEAD KIT ErP 98927074 ( ACQ ONWARDS - 2015 ERP) PUMP HEAD KIT ERP 98927074 ( ACQ ONWARDS - 2015 ERP)
Ideal part no. 177925		 £285.72
108 Part number 179263, PUMP HOUSING IB (99190650) PUMP HOUSING IB (99190650)
Ideal part no. 179263		 £84.69
108   PUMP HEAD KIT
Ideal part no. 182357		 £204.87
109   CONNECTOR - PUMP G3/4 C/W O RING & CLIP
Ideal part no. 175975		 £51.62

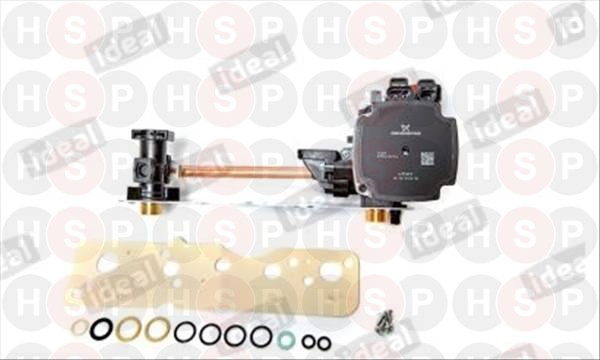

109   PUMP COMPLETE KIT SYSTEM IE
Ideal part no. 176635		 £336.05
110 Part number 175804, KIT-AUTO AIR VENT WITH O RING 12.0113 (PRE ABY) KIT-AUTO AIR VENT WITH O RING 12.0113 (PRE ABY)
Ideal part no. 175804		 £48.00
110 Part number 176457, AUTO AIR VENT - GRUNDFOS 59200320 (ABY ONWARDS) AUTO AIR VENT - GRUNDFOS 59200320 (ABY ONWARDS)
Ideal part no. 176457		 £44.94
113 Part number 175413, PRESSURE RELIEF VALVE KIT (AAC & AAB ONLY) PRESSURE RELIEF VALVE KIT (AAC & AAB ONLY)
Ideal part no. 175413		 £16.43
113 Part number 176610, PRV KIT (ABS & ABY ONWARDS) PRV KIT (ABS & ABY ONWARDS)
Ideal part no. 176610		 £41.91
114 Part number 175545, PIPE - PRV OUTLET (AAC & AAB ONLY) PIPE - PRV OUTLET (AAC & AAB ONLY)
Ideal part no. 175545		 £18.16
114 Part number 177536, PIPE PRV OUTLET (ABS & ABY ONWARDS) PIPE PRV OUTLET (ABS & ABY ONWARDS)
Ideal part no. 177536		 £19.30
115   UPPER FLOW PIPE
Ideal part no. 176636		 £24.04
115   LOWER FLOW PIPE
Ideal part no. 176637		 £22.83
115   PIPE FLOW SYSTEM IE
Ideal part no. 177763		 £27.17
115   PIPE FLOW ASSEMBLY SYSTEM IE
Ideal part no. 177803		 £62.52
116 Part number 175547, PIPE - RETURN (AAC & AAB ONLY) PIPE - RETURN (AAC & AAB ONLY)
Ideal part no. 175547		 £30.07
116   PIPE RETURN ( ABS & ABY ONWARDS)
Ideal part no. 177538		 £34.50
117   PIPE - EXPANSION VESSEL KIT
Ideal part no. 176000		 £29.95
117 Part number 177539, HOSE EXPANSION VESSEL KIT (ABS & ABY ONWARDS) HOSE EXPANSION VESSEL KIT (ABS & ABY ONWARDS)
Ideal part no. 177539		 £33.83
117 Part number 177707, CLIP EXPANSION VESSEL (ABS & ABY ONWARDS) CLIP EXPANSION VESSEL (ABS & ABY ONWARDS)
Ideal part no. 177707		 £4.44
118 Part number 176001, EXPANSION VESSEL KIT (AAC & AAB ONLY) EXPANSION VESSEL KIT (AAC & AAB ONLY)
Ideal part no. 176001		 £93.15
118 Part number 177540, EXPANSION VESSEL KIT (ABS & ABY ONWARDS) EXPANSION VESSEL KIT (ABS & ABY ONWARDS)
Ideal part no. 177540		 £103.92
120 Part number 175992, FLOW GROUP KIT LOGIC SYSTEM (AAB ONLY) FLOW GROUP KIT LOGIC SYSTEM (AAB ONLY)
Ideal part no. 175992		 £96.39
120   FLOW GROUP KIT (ABY ONWARDS)
Ideal part no. 177716		 £92.75
121   BY-PASS PIPE KIT (AAB ONLY)
Ideal part no. 176003		 £77.24
121 Part number 177715, BY PASS KIT 99104550 (ABS ONWARDS) BY PASS KIT 99104550 (ABS ONWARDS)
Ideal part no. 177715		 £65.50
131 Part number 175596, WATER PRESSURE TRANSDUCER (PRE ABU) WATER PRESSURE TRANSDUCER (PRE ABU)
Ideal part no. 175596		 £31.32
131 Part number 176480, WATER PRESSURE SWITCH-GRUNDFOS 59200312 (ABU ONWARDS) WATER PRESSURE SWITCH-GRUNDFOS 59200312 (ABU ONWARDS)
Ideal part no. 176480		 £41.27
132   HYDROBLOCK COMPLETE KIT SYSTEM IE
Ideal part no. 176638		 £514.15
132   HYDROBLOCK SYSTEM ASSEMBLY IE
Ideal part no. 177667		 £295.35
132 Part number 177938, HYDROBLOCK ErP COMPLETE KIT SYSTEM IE HYDROBLOCK ERP COMPLETE KIT SYSTEM IE
Ideal part no. 177938		 £277.47
135 Part number 175679, PRESSURE GAUGE KIT PRESSURE GAUGE KIT
Ideal part no. 175679		 £19.92
136 Part number 175703, PIPE - PRV Drain pipe - external PIPE - PRV DRAIN PIPE - EXTERNAL
Ideal part no. 175703		 £36.65
137   KIT - PUMP CONNECTOR (ELECTRICAL)
Ideal part no. 175745		 £15.76
138 Part number 175929, WASHERS KIT-PIPE-HYDROBLOCK EPDM QTY 10 WASHERS KIT-PIPE-HYDROBLOCK EPDM QTY 10
Ideal part no. 175929		 £21.24
139 Part number 175979, FLOW SENSOR KIT FLOW SENSOR KIT
Ideal part no. 175979		 £51.21
140   FLOW MANIFOLD KIT SYSTEM IE
Ideal part no. 176676		 £93.55
141 Part number 176553, PUMP DRAIN KIT GRUNDFOS 59200316 PUMP DRAIN KIT GRUNDFOS 59200316
Ideal part no. 176553		 £5.04
201 Part number 175645, GAS LINE GASKETS KIT (AAC & AAB ONLY) GAS LINE GASKETS KIT (AAC & AAB ONLY)
Ideal part no. 175645		 £84.36
201 Part number 177541, GAS LINE GASKETS KIT (ABS & ABY ONWARDS) GAS LINE GASKETS KIT (ABS & ABY ONWARDS)
Ideal part no. 177541		 £66.39
202   GAS LINE FIXINGS KIT (AAC & AAB ONLY)
Ideal part no. 175646		 £34.54
202   GAS LINE FIXINGS KIT (ABS & ABY ONWARDS)
Ideal part no. 177542		 £22.20
203 Part number 175526, GAS COCK VALVE PACK GAS COCK VALVE PACK
Ideal part no. 175526		 £20.23
203 Part number 176562, GAS COCK TEST NIPPLE SCREW GAS COCK TEST NIPPLE SCREW
Ideal part no. 176562		 £5.67
204 Part number 175561, PIPE - GAS INLET (AAV & AAB ONLY) PIPE - GAS INLET (AAV & AAB ONLY)
Ideal part no. 175561		 £22.05
204 Part number 177543, PIPE GAS INLET (ABS & ABY ONWARDS) PIPE GAS INLET (ABS & ABY ONWARDS)
Ideal part no. 177543		 £29.63
205 Part number 175562, GAS VALVE KIT (PRE ABS) GAS VALVE KIT (PRE ABS)
Ideal part no. 175562		 £203.49
205 Part number 177544, GAS VALVE KIT (ABS & ABY ONWARDS) GAS VALVE KIT (ABS & ABY ONWARDS)
Ideal part no. 177544		 £114.65
205 Part number 177582, GAS VALVE KIT (LPG) (ABK ONWARDS) GAS VALVE KIT (LPG) (ABK ONWARDS)
Ideal part no. 177582		 £135.14
205 Part number 177706, CLIP GAS VALVE (ABS & ABY ONWARDS) CLIP GAS VALVE (ABS & ABY ONWARDS)
Ideal part no. 177706		 £4.68
206 Part number 175563, PIPE - GAS INJECTOR (AAC & AAB ONLY) PIPE - GAS INJECTOR (AAC & AAB ONLY)
Ideal part no. 175563		 £15.75
206 Part number 177545, PIPE GAS INJECTOR (ABS & ABY ONWARDS) PIPE GAS INJECTOR (ABS & ABY ONWARDS)
Ideal part no. 177545		 £18.42
208 Part number 175610, INJECTOR 24KW INJECTOR 24KW
Ideal part no. 175610		 £26.56
211 Part number 175566, INJECTOR ASSEMBLY KIT 24KW INJECTOR ASSEMBLY KIT 24KW
Ideal part no. 175566		 £30.63
211 Part number 177546, INJECTOR ASSEMBLY KIT 24KW INJECTOR ASSEMBLY KIT 24KW
Ideal part no. 177546		 £31.82
214 Part number 175567, VENTURI VENTURI
Ideal part no. 175567		 £25.49
215 Part number 175569, FAN KIT FAN KIT
Ideal part no. 175569		 £166.14
216 Part number 175570, GASKET - FAN GASKET - FAN
Ideal part no. 175570		 £18.36
217 Part number 175571, BURNER KIT BURNER KIT
Ideal part no. 175571		 £109.53
218 Part number 175572, GASKET - BURNER GASKET - BURNER
Ideal part no. 175572		 £20.59
221 Part number 175574, SEAL - SUMP CLEANOUT COVER SEAL - SUMP CLEANOUT COVER
Ideal part no. 175574		 £7.09
221 Part number 175896, SUMP KIT XN, XO ONWARDS SUMP KIT XN, XO ONWARDS
Ideal part no. 175896		 £56.37
221 Part number 175954, CLEAN OUT COVER & GASKET-SUMP From XT prefix CLEAN OUT COVER & GASKET-SUMP FROM XT PREFIX
Ideal part no. 175954		 £13.41
223 Part number 175575, MANIFOLD-SUMP SEAL MANIFOLD-SUMP SEAL
Ideal part no. 175575		 £7.58
223 Part number 175576, FLUE MANIFOLD FLUE MANIFOLD
Ideal part no. 175576		 £39.29
223 Part number 175579, FLUE MANIFOLD TOP-LOWER SEAL FLUE MANIFOLD TOP-LOWER SEAL
Ideal part no. 175579		 £7.58
224 Part number 175578, FLUE MANIFOLD TOP (COMBI PRE ZY - COMBI E/ES PRE AAQ) FLUE MANIFOLD TOP (COMBI PRE ZY - COMBI E/ES PRE AAQ)
Ideal part no. 175578		 £41.38
224 Part number 176986, FLUE MANIFOLD TOP (COMBI ZY ONWARDS - COMBI ES AAQ ONWARDS) FLUE MANIFOLD TOP (COMBI ZY ONWARDS - COMBI ES AAQ ONWARDS)
Ideal part no. 176986		 £43.46
227 Part number 175581, CLAMP RETAINING - FLUE TURRET (COMBI PRE ZY - COMBI E/ES PRE AAQ) CLAMP RETAINING - FLUE TURRET (COMBI PRE ZY - COMBI E/ES PRE AAQ)
Ideal part no. 175581		 £8.37
227 Part number 175983, CLAMP RETAINING FLUE TURRET (COMBI ZY ONWARDS - COMBI ES AAQ ONWARDS) CLAMP RETAINING FLUE TURRET (COMBI ZY ONWARDS - COMBI ES AAQ ONWARDS)
Ideal part no. 175983		 £7.10
228 Part number 175582, HOSE - CONDENSATE INTERNAL HOSE - CONDENSATE INTERNAL
Ideal part no. 175582		 £9.51
229 Part number 175583, SIPHON TRAP KIT SIPHON TRAP KIT
Ideal part no. 175583		 £23.10
230 Part number 175584, OBSOLETE SIPHON TRAP CAP AND SEAL OBSOLETE SIPHON TRAP CAP AND SEAL
Ideal part no. 175584
231 Part number 175586, CONDENSATE OUTLET CONNECTION CONDENSATE OUTLET CONNECTION
Ideal part no. 175586		 £7.74
232 Part number 175620, TURRET/MANIFOLD GASKET TURRET/MANIFOLD GASKET
Ideal part no. 175620		 £12.77
233 Part number 175640, FLUE SENSING NIPPLE KIT FLUE SENSING NIPPLE KIT
Ideal part no. 175640		 £27.87
233 Part number 176938, FLUE TURRET WITH SAMPLE POINT (11 3818) FLUE TURRET WITH SAMPLE POINT (11 3818)
Ideal part no. 176938		 £35.59
233 Part number 176939, O RING - FLUE NOSE (11 0752) O RING - FLUE NOSE (11 0752)
Ideal part no. 176939		 £10.35
233 Part number 176940, FLUE TURRET THREADED CAP (12 03523) FLUE TURRET THREADED CAP (12 03523)
Ideal part no. 176940		 £9.41
233 Part number 176941, FLUE TURRET AIR STOPPER (12 03524) FLUE TURRET AIR STOPPER (12 03524)
Ideal part no. 176941		 £9.77
301 Part number 175626, BOX FIXINGS HINGE & SPRING KIT BOX FIXINGS HINGE & SPRING KIT
Ideal part no. 175626		 £23.20
302 Part number 175935, KIT - PRIMARY PCB (AAB ONLY) (A BCC CARD MUST BE PURCHASED WITH THIS ITEM) KIT - PRIMARY PCB (AAB ONLY) (A BCC CARD MUST BE PURCHASED WITH THIS ITEM)
Ideal part no. 175935		 £200.14
302 Part number 175958, KIT BCC CARD LOGIC/LOGIC + HEAT 24 KIT BCC CARD LOGIC/LOGIC + HEAT 24
Ideal part no. 175958		 £25.28
302 Part number 177708, PRIMARY PCB I12 (ABY ONWARDS) (A BCC CARD MUST BE PURCHASED WITH THIS ITEM) PRIMARY PCB I12 (ABY ONWARDS) (A BCC CARD MUST BE PURCHASED WITH THIS ITEM)
Ideal part no. 177708		 £201.30
303 Part number 175978, CUI BOARD KIT 2 POTENTIOMETER CUI BOARD KIT 2 POTENTIOMETER
Ideal part no. 175978		 £104.03
304 Part number 175589, CONTROL THERMISTOR (FLOW/RETURN) pack of 2- Withdrawn : 16/01/2017 CONTROL THERMISTOR (FLOW/RETURN) PACK OF 2- WITHDRAWN : 16/01/2017
Ideal part no. 175589
304 Part number 176432, CONTROL THERMISTOR CONTROL THERMISTOR
Ideal part no. 176432		 £10.53
306 Part number 175591, ELECTRODE - IGNITION ELECTRODE - IGNITION
Ideal part no. 175591		 £23.26
306 Part number 178950, GASKET IGNITION ELECTRODE GASKET IGNITION ELECTRODE
Ideal part no. 178950		 £3.59
307 Part number 175592, ELECTRODE - DETECTION ELECTRODE - DETECTION
Ideal part no. 175592		 £16.88
307   GASKET DETECTION ELECTRODE
Ideal part no. 178949		 £3.59
308 Part number 175593, IGNITOR UNIT (PRE ADP) IGNITOR UNIT (PRE ADP)
Ideal part no. 175593		 £35.17
308 Part number 178205, IGNITOR UNIT CLIP ON (ADP ONWARDS) IGNITOR UNIT CLIP ON (ADP ONWARDS)
Ideal part no. 178205		 £33.25
309 Part number 175594, THERMISTOR - NO FLOW THERMISTOR - NO FLOW
Ideal part no. 175594		 £10.81
310   WRIST STRAP
Ideal part no. 175595		 £15.48
311 Part number 177387, KNOB POTENTIOMETER WHITE KNOB POTENTIOMETER WHITE
Ideal part no. 177387		 £8.85
312 Part number 175597, HARNESS - EARTH HT (PRE ADP) HARNESS - EARTH HT (PRE ADP)
Ideal part no. 175597		 £6.34
312   HARNESS EARTH HT (ADP ONWARDS)
Ideal part no. 178207		 £9.55
313 Part number 175598, IGNITION LEAD IGNITION LEAD
Ideal part no. 175598		 £16.74
314   CONTROL BOX LENS
Ideal part no. 175599		 £19.42
315 Part number 175600, HARNESS - CUI TO PRIMARY (AAO ONWARDS) HARNESS - CUI TO PRIMARY (AAO ONWARDS)
Ideal part no. 175600		 £17.36
316   HARNESS MAINS INSTALLATION
Ideal part no. 176009		 £15.48
317 Part number 176010, HARNESS MAINS VOLTAGE HARNESS MAINS VOLTAGE
Ideal part no. 176010		 £50.14
317   HARNESS MAINS SYSTEM
Ideal part no. 177668		 £39.27
317 Part number 177926, HARNESS MAINS ErP SYSTEM HARNESS MAINS ERP SYSTEM
Ideal part no. 177926		 £45.87
318   HARNESS SAFETY EXTRA LOW VOLTAGE SYST IE
Ideal part no. 176639		 £24.65
318   HARNESS LOW VOLTAGE SYSTEM IE
Ideal part no. 177710		 £27.03
318   HARNESS SELV ERP SYSTEM IE
Ideal part no. 177929		 £27.17
320 Part number 175604, HARNESS - DETECTION earth lead no longer required HARNESS - DETECTION EARTH LEAD NO LONGER REQUIRED
Ideal part no. 175604		 £14.54
324   CONTROL BOX LID KIT
Ideal part no. 175623		 £29.07
325 Part number 176207, IGNITION ELECTRODE KIT IGNITION ELECTRODE KIT
Ideal part no. 176207		 £28.44
328 Part number 175627, PCB FUSE PCB FUSE
Ideal part no. 175627		 £3.79
329   HARNESS TRUNKING (AAC & AAB ONLY)
Ideal part no. 175554		 £17.31
329 Part number 177565, HARNESS TRUNKING (ABS & ABY ONWARDS) HARNESS TRUNKING (ABS & ABY ONWARDS)
Ideal part no. 177565		 £13.38
330   COVER - TERMINAL BLOCK
Ideal part no. 175728		 £7.49
401 Part number 173870, PIPE CLIP PIPE CLIP
Ideal part no. 173870		 £5.05
401   HEAT ENGINE KIT SYSTEM IE
Ideal part no. 176644		 £401.08
402 Part number 175617, HEAT ENGINE FIXINGS KIT (AAC & AAB ONLY) HEAT ENGINE FIXINGS KIT (AAC & AAB ONLY)
Ideal part no. 175617		 £23.60
402 Part number 177567, HEAT ENGINE FIXINGS KIT (ABS & ABY ONWARDS) HEAT ENGINE FIXINGS KIT (ABS & ABY ONWARDS)
Ideal part no. 177567		 £16.06
403 Part number 175618, HEAT ENGINE GASKET KIT (AAC & AAB ONLY) HEAT ENGINE GASKET KIT (AAC & AAB ONLY)
Ideal part no. 175618		 £58.05
403 Part number 177568, HEAT ENGINE GASKET KIT (ABS & ABY ONWARDS) HEAT ENGINE GASKET KIT (ABS & ABY ONWARDS)
Ideal part no. 177568		 £61.25
404   HEAT EXCHANGER PLUG KIT SYSTEM IE
Ideal part no. 176645		 £31.01
501 Part number 175525, NOW USE 176846 ACCESSORY PACK NOW USE 176846 ACCESSORY PACK
Ideal part no. 175525
501 Part number 176846, ACCESSORY PACK ACCESSORY PACK
Ideal part no. 176846		 £7.50
502 Part number 175656, FRONT PANEL SCREWS FRONT PANEL SCREWS
Ideal part no. 175656		 £3.34
503 Part number 175619, WALL MOUNTING BRACKET KIT WALL MOUNTING BRACKET KIT
Ideal part no. 175619		 £15.48
504   FRONT PANEL KIT LOGIC SYSTEM
Ideal part no. 176002		 £173.17
504   FRONT PANEL ASSEMBLY SYSTEM
Ideal part no. 177724		 £181.84
505 Part number 175591, ELECTRODE - IGNITION ELECTRODE - IGNITION
Ideal part no. 175591		 £23.26
505   FASCIA KIT
Ideal part no. 176031		 £18.04
505   FASCIA KIT HEAT/SYSTEM
Ideal part no. 177757		 £18.12
506   BRACKET - GAS VALVE KIT (AAC & AAB ONLY)
Ideal part no. 175630		 £20.31
506   BRACKET GAS VALVE KIT (ABS & ABY ONWARDS)
Ideal part no. 177569		 £19.95
507   BRACKET - EXPANSION VESSEL
Ideal part no. 175631		 £19.55
508 Part number 175639, GROMMET - CHASSIS DRAIN GROMMET - CHASSIS DRAIN
Ideal part no. 175639		 £10.81
509 Part number 175665, SEAL - SEALING PANEL SEAL - SEALING PANEL
Ideal part no. 175665		 £22.94
510   BADGE KIT ZANUSSI ULTRA SYSTEM
Ideal part no. 178945		 £9.47
511 Part number 175672, GROMMETS- CABLE ENTRY GROMMETS- CABLE ENTRY
Ideal part no. 175672		 £11.84
512   FRONT PANEL INFILL KIT
Ideal part no. 176005		 £48.28
514   FRONT PANEL ANCHOR POINT (SINGLE ANCHOR POINT)
Ideal part no. 177373		 £8.28
517   FRONT PANEL ASS ZANUSSI ULTRA SYSTEM
Ideal part no. 178946		 £124.21


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
