WORCESTER
GREENSTAR 18 RI HE LPG - (Heat Exchanger)
Appliance Code: 41-311-78

Appliance Diagram


Heat Exchanger diagram for Worcester Greenstar 18 RI HE LPGClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 87161157400, HEAT EXCHANGER BARE C/W OLD SUMP BEFORE FD887 HEAT EXCHANGER BARE C/W OLD SUMP BEFORE FD887
Worcester part no. 87161157400		 £452.35
1 Part number 87161157410, HEAT EXCHANGER BARE C/W NEW SUMP AFTER FD888 HEAT EXCHANGER BARE C/W NEW SUMP AFTER FD888
Worcester part no. 87161157410		 £446.62
2 Part number 87133011140, NUT NUT
Worcester part no. 87133011140		 £3.36
4 Part number 87154069240, CONDENSATE SUMP ASSEMBLY BEFORE FD886 CONDENSATE SUMP ASSEMBLY BEFORE FD886
Worcester part no. 87154069240		 £38.31
5 Part number 87155035280, COVER - SERVICE ACCESS COVER - SERVICE ACCESS
Worcester part no. 87155035280		 £5.48
6 Part number 29181601560, SCREW M5X14 PAN HEAD POZI ZP SCREW M5X14 PAN HEAD POZI ZP
Worcester part no. 29181601560		 £2.54
7 Part number 87101031910, SEAL SEAL
Worcester part no. 87101031910		 £4.15
8 Part number 87110043240, SEAL SEAL
Worcester part no. 87110043240		 £6.71
9 Part number 87229638580, TEMPERATURE LIMITER BEFORE FD886 TEMPERATURE LIMITER BEFORE FD886
Worcester part no. 87229638580		 £30.48
10 Part number 87156000180, INSPECTION WINDOW INSPECTION WINDOW
Worcester part no. 87156000180		 £3.61
11 Part number 87072061960, HIGH LIMIT STAT 120 DEC HIGH LIMIT STAT 120 DEC
Worcester part no. 87072061960		 £6.63
12 Part number 87434010910, RETAINING KIT RETAINING KIT
Worcester part no. 87434010910		 £8.87
16 Part number 87133011800, FLANGED NUT M8 BEFORE FD790 FLANGED NUT M8 BEFORE FD790
Worcester part no. 87133011800		 £2.95
16   PLATE & NUT RETAINING AFTER FD791
Worcester part no. 87161143330		 £3.47
17 Part number 87131040510, THREADED STUD M8 X 45 THREADED STUD M8 X 45
Worcester part no. 87131040510		 £4.15
18 Part number 87161105340, GASKET BURNER WB6 GASKET BURNER WB6
Worcester part no. 87161105340		 £9.92

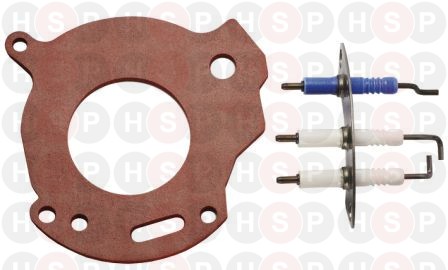

19 Part number 87161163810, ELECTRODES ELECTRODES
Worcester part no. 87161163810		 £30.75
19 Part number 87181070870, NOW USE 87161163810 ELECTRODES NOW USE 87161163810 ELECTRODES
Worcester part no. 87181070870
20 Part number 87161163790, BURNER BURNER
Worcester part no. 87161163790		 £60.53
20 Part number 87181206160, NOW USE 87161163790 BURNER NOW USE 87161163790 BURNER
Worcester part no. 87181206160
21 Part number 87161064710, AIR/GAS MANIFOLD CLAMP PLATE AIR/GAS MANIFOLD CLAMP PLATE
Worcester part no. 87161064710		 £13.57
23 Part number 87161066880, CONTROL SENSOR CONTROL SENSOR
Worcester part no. 87161066880		 £11.06
24 Part number 87161068400, SEAL SEAL
Worcester part no. 87161068400		 £5.17
25 Part number 87105062670, TEMPERATURE LIMITER ASSY AFTER FD887 TEMPERATURE LIMITER ASSY AFTER FD887
Worcester part no. 87105062670		 £40.94
26 Part number 87161138290, Gasket sump AFTER FD887 GASKET SUMP AFTER FD887
Worcester part no. 87161138290		 £2.17
27 Part number 87186813620, CONDENSATE SUMP ASSEMBLY AFTER FD887 CONDENSATE SUMP ASSEMBLY AFTER FD887
Worcester part no. 87186813620		 £16.37
30 Part number 87161070460, BAFFLE SET BAFFLE SET
Worcester part no. 87161070460		 £37.16
