WORCESTER
W275-1KV1P31S0595 7701431757 - (Burner)
Appliance Code: 7701431757

Appliance Diagram

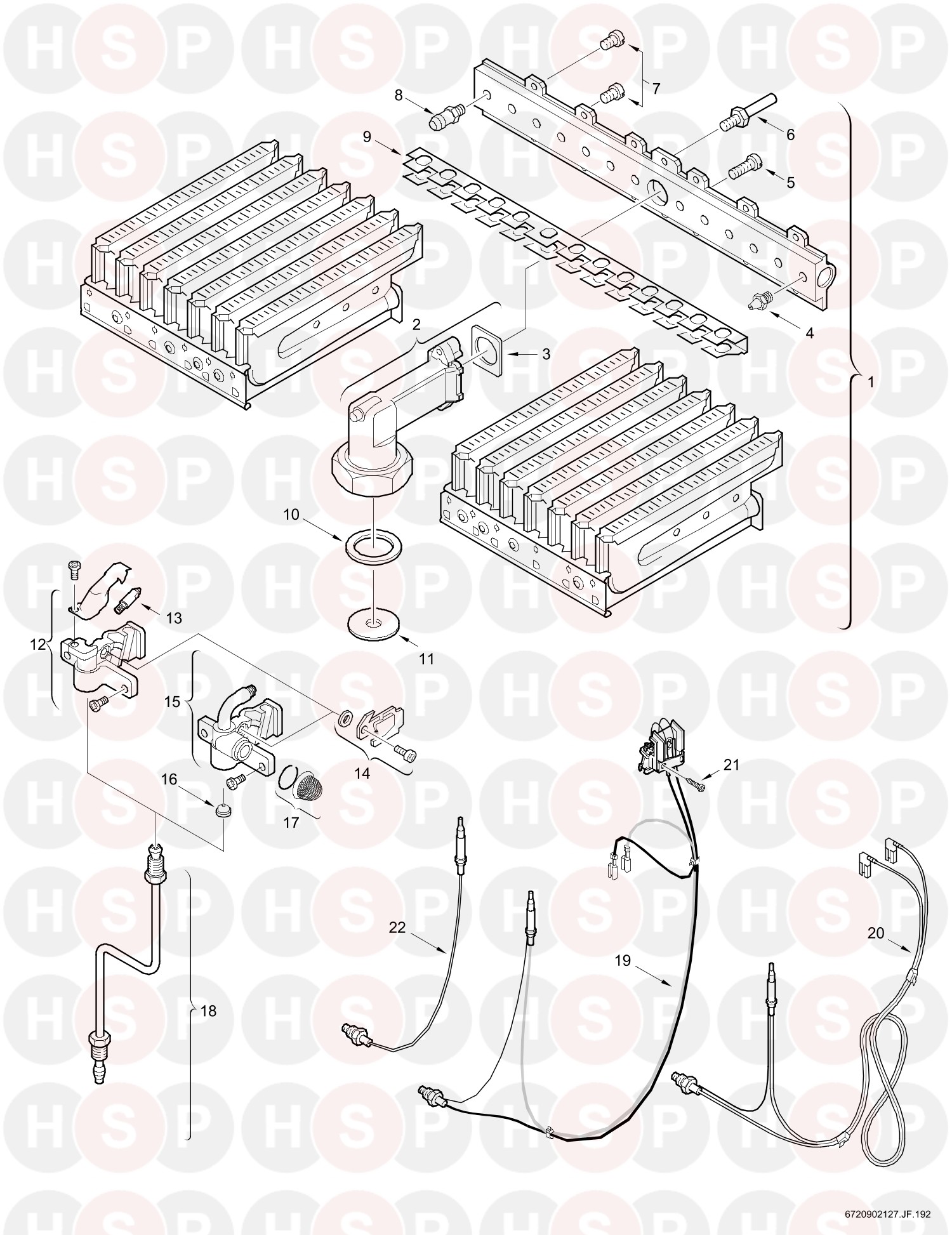

Burner diagram for Worcester W275-1KV1P31S0595 7701431757Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 87081200820, BURNER BURNER
Worcester part no. 87081200820
£155.22
2   CONNECTOR
Worcester part no. 87052090140
£23.85
3   WASHER (10X)
Worcester part no. 87010030100
£0.72
4   NOZZLE (72) (10X)
Worcester part no. 87082021280
£7.35
5   SCREW M4 X 12 PHILLIPS (10X)
Worcester part no. 29109521220
£0.67
6   SCREW (10X)
Worcester part no. 87034040890
£0.78
7   SCREW M3,5X10 (10X)
Worcester part no. 87034010690
£0.59
8 Part number 87033051910, PRESSURE TAPPING PRESSURE TAPPING
Worcester part no. 87033051910
£2.45
9   CROSS IGNITION BRIDGE
Worcester part no. 87113043370
£1.81
10 Part number 87101030600, WASHER 1" (10X) WASHER 1" (10X)
Worcester part no. 87101030600
£3.04
11   THROTTLE DISC (6,0)
Worcester part no. 87001001790
£1.52
14 Part number 87013090610, COVERING SHEET COVERING SHEET
Worcester part no. 87013090610
£4.19
15   PILOT BURNER (41.1)
Worcester part no. 87181050510
£16.20
16 Part number 87482001730, PILOT INJECTOR (49) (10X) PILOT INJECTOR (49) (10X)
Worcester part no. 87482001730
£2.45
17   STRAINER
Worcester part no. 87005070550
£3.36
18   NOW USE 87107071660 PIPE - PILOT GAS
Worcester part no. 87007073200

18 Part number 87107071660, PIPE - PILOT GAS PIPE - PILOT GAS
Worcester part no. 87107071660
£32.54
19 Part number 87072060740, FLUE GAS SAFETY DEVICE FLUE GAS SAFETY DEVICE
Worcester part no. 87072060740
£63.30
21 Part number 87134030130, SCREW (10X) SCREW (10X)
Worcester part no. 87134030130
£0.79
