DANESMOOR UTILITY 12/18 7716100141 - (Control Box)
Appliance Code: 7716100141

Appliance Diagram

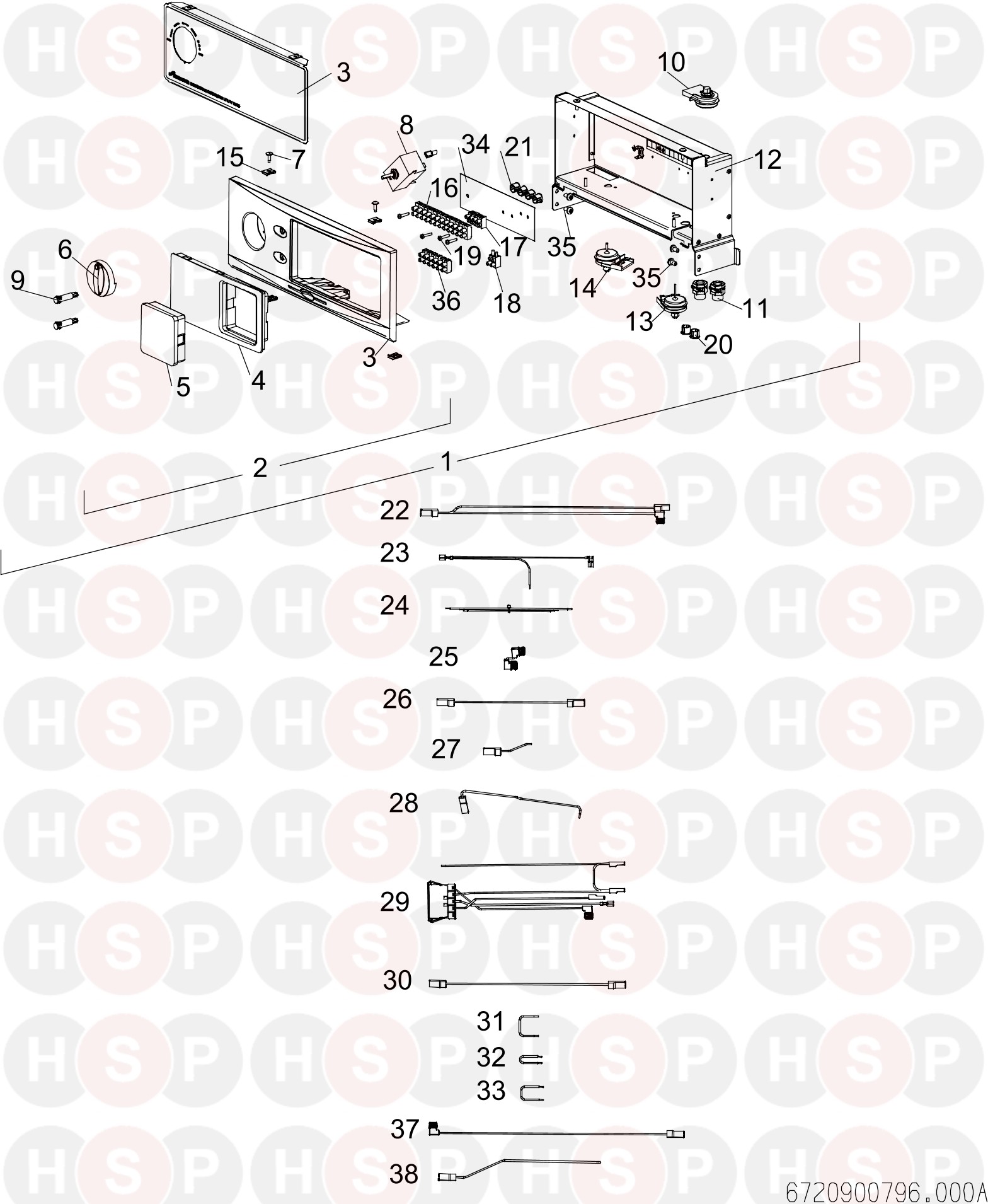

Control Box diagram for Worcester Danesmoor Utility 12/18 7716100141Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   FACIA & CONTROL BOX ASSEMBLY
Worcester part no. 87186903670		 £265.46
2   FACIA ASSEMBLY
Worcester part no. 87186903640		 £53.70
6 Part number 87161053850, KNOB CONTROL KNOB CONTROL
Worcester part no. 87161053850		 £2.24
7 Part number 87161153060, SCREW (10X) 8X1/2" AFTER FD992 SCREW (10X) 8X1/2" AFTER FD992
Worcester part no. 87161153060		 £3.59
8 Part number 87161076210, THERMOSTAT CONTROL CH THERMOSTAT CONTROL CH
Worcester part no. 87161076210		 £33.75
9 Part number 87161054570, NEON INDICATOR RED NEON INDICATOR RED
Worcester part no. 87161054570		 £4.92
10 Part number 87161076230, THERMOSTAT HIGH LIMIT THERMOSTAT HIGH LIMIT
Worcester part no. 87161076230		 £20.53
11 Part number 87161123330, BUSH M16 CORD GRIP BUSH M16 CORD GRIP
Worcester part no. 87161123330		 £5.93
12   CONTROL BOX ASSEMBLY
Worcester part no. 87186905340		 £197.31
13 Part number 87161076250, THERMOSTAT MANUAL RESET THERMOSTAT MANUAL RESET
Worcester part no. 87161076250		 £22.27
14 Part number 87161076240, THERMOSTAT FLUE MANUAL THERMOSTAT FLUE MANUAL
Worcester part no. 87161076240		 £24.87
15 Part number 87161482040, NUT CAPTIVE NO:8 NUT CAPTIVE NO:8
Worcester part no. 87161482040		 £4.24
19   SCREW M3X16MM ZC PL P/H TAPTITE SCR
Worcester part no. 29144112270		 £2.00
20 Part number 87161410500, GROMMET NYLON OPEN-CLOSE GROMMET NYLON OPEN-CLOSE
Worcester part no. 87161410500		 £6.39
21 Part number 87161411030, PLUG HOLE HEYCO DP500 PLUG HOLE HEYCO DP500
Worcester part no. 87161411030		 £3.88
23   HARNESS EARTH
Worcester part no. 87161134200		 £3.07
25   HARNESS - FLUE SENSOR
Worcester part no. 87161077760		 £3.45
26   HARNESS ORANGE
Worcester part no. 87161134210		 £3.07
27   HARNESS FLUE STAT TO TERMINAL
Worcester part no. 87186808160		 £3.43
29   HARNESS - BURNER CONNECTOR ASSEMBLY
Worcester part no. 87186905990		 £20.25
30 Part number 87161130470, HARNESS-HIGHLIGHT LIMIT SENSOR HARNESS-HIGHLIGHT LIMIT SENSOR
Worcester part no. 87161130470		 £2.45
33   CABLE 2.15DIA BROWN
Worcester part no. 87161077540		 £4.02
36   TERMINAL BLOCK 6-POLE
Worcester part no. 87161078930		 £3.73
37   HARNESS THERMOSTAT BROWN
Worcester part no. 87161130510		 £3.57
38   HARNESS-THERMOSTAT TO TERMINAL
Worcester part no. 87161130450		 £3.33
