BUDERUS
BUDERUS 600 -24C - (Exploded View)
Appliance Code: 47-110-01

Appliance Diagram

Exploded View diagram for Buderus Buderus 600 -24C Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

	SCREW (10X) Worcester part n^o. 36404S	£5.87
	OBSOLETE SCREW M5X10 Worcester part n^o. 36406
	SEALING 80 MM Worcester part n^o. 38419	£2.62
	OBSOLETE MANIFOLD GAS EQUIP NAT L,60 USA Worcester part n^o. 38458
	THERMOCOUPLE LM60 EQUIPE Worcester part n^o. 38460	£20.32
	PIPE VENTING Worcester part n^o. 38476	£27.97
	CURVE RETURN Worcester part n^o. 38620	£28.44
	ADAPTER SENSOR Worcester part n^o. 67903206	£7.91
	SEALING 4X21X30 (5X) Worcester part n^o. 7098962	£8.68
	NUT + CLAMPING RING Worcester part n^o. 7098968	£26.30
	SEALING 50MM (5X) Worcester part n^o. 7099058	£20.86
	CONNECTION HW-TANK/SENSOR Worcester part n^o. 7099140	£16.75

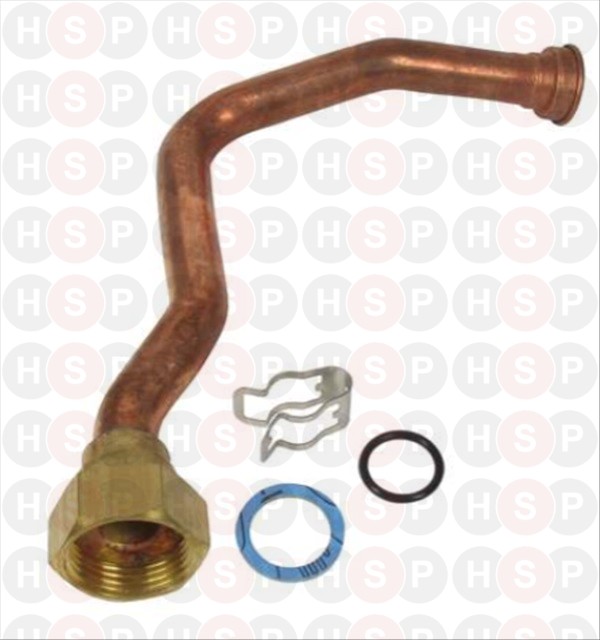

	SUPPLY PIPE HW-TANK Worcester part n^o. 7099159	£7.62
	O-RING 9.25X1.78 (10X) Worcester part n^o. 7099165	£17.75
	O-RING 14.48X2.62 (10X) Worcester part n^o. 7099167	£29.39
	PIPE - DRAIN VALVE Worcester part n^o. 7099752	£30.35
	CONNECTION RETURN Worcester part n^o. 7099786	£49.28
	EXHAUST ADAPTER DOUBLE Worcester part n^o. 7099820	£58.03
	SEALING 1/2" (10X) Worcester part n^o. 7100192	£9.13
	SEALING (10 PC) Worcester part n^o. 7100196	£15.05
	FILL AND DRAIN COCK Worcester part n^o. 7100622	£18.96
	LOCKING PIN SUCTION PIPE Worcester part n^o. 73053	£5.38
	CONVERSION SET 3P IT Worcester part n^o. 73285	£16.04
	GB162 SEALING GASKET 10-PAK Worcester part n^o. 73368S	£16.04
	SET OF NUTS M6 (10X) Worcester part n^o. 73408S	£6.72
	SCREW M5X20 (10 PC) 36 Worcester part n^o. 73572
	PUMP 1"-130 UPER 15-50 Worcester part n^o. 73800	£209.72
	DOOR Worcester part n^o. 75129	£23.72
	VALVE - CH 22MM Worcester part n^o. 75961	£6.36
	CONNECTION HEAT EXCHANGER Worcester part n^o. 75962	£6.60
	GAS COCK Worcester part n^o. 76679	£37.68
	CODE PLUG N600-24C Worcester part n^o. 7746900208	£15.09
	3 WAY VALVE Worcester part n^o. 78016	£199.24
	O-RING 18.72X2.62 (10X) Worcester part n^o. 8718601961	£18.26
1	CONNECTION SUPPLY Worcester part n^o. 7099830	£98.85
2	AUTOMATIC AIR VENT Worcester part n^o. 7099180	£18.45
3	CLIP (2 PC) Worcester part n^o. 7099676	£6.45
4	CENTRAL HEATING SENSOR Worcester part n^o. 7100136	£40.59
5	CLIP (5 PC) Worcester part n^o. 7099708	£9.51
6	FLOW PIPE HEAT EXCHANGER Worcester part n^o. 7099640	£39.93
7	CLIP (5X GR./ 5X KL.) Worcester part n^o. 7099436	£30.54
8	BACK SIDE HEAT EXCHANGER Worcester part n^o. 7099636	£122.67
9	GASKET HEAT EXCHANGER Worcester part n^o. 8718600021	£15.23
10	SEALING BURNER/GAS/AIR SUPPLY Worcester part n^o. 7099689	£12.97
11	BURNER Worcester part n^o. 7099678	£75.10
12	HEAT EXCHANGER (SPIRAL) C1 Worcester part n^o. 7099645	£141.52
13	FRONT SIDE HEAT EXCHANGER Worcester part n^o. 7099634	£185.55
14	SIGHT GLASS Worcester part n^o. 7099706	£11.68
15	FASTENERS (4 PC) Worcester part n^o. 7099734	£35.58
16	COVER VENTILATION BOX Worcester part n^o. 7099148	£112.53
17	CASING Worcester part n^o. 7099097	£156.29
18	SYPHON Worcester part n^o. 75969	£25.43
19	SYPHON CAP Worcester part n^o. 7100842	£8.03
20	DRAIN PIPE SYPHON Worcester part n^o. 7099626	£21.79
22	FLUE-GAS SENSOR Worcester part n^o. 7099456	£17.17
23	SEALING Worcester part n^o. 7099450	£9.57
24	EXHAUST PIPE Worcester part n^o. 7099448	£73.88
25	SEALING Worcester part n^o. 7099762	£12.23
26	CONDENSATE COLLECTOR Worcester part n^o. 7099452	£65.19
27	SEALING Worcester part n^o. 7099686	£10.64
28	COMBUSTION DIVIDER Worcester part n^o. 7099646	£37.05
29	ISOLATION COMBUSTION DIVIDER Worcester part n^o. 7099658	£30.53
30	FAN Worcester part n^o. 7099987	£402.93
31	GAS AIR SUPPLY Worcester part n^o. 7099391	£34.83
32	SEALING FAN/VENTURI (5X) Worcester part n^o. 7099712	£12.94
33	VENTURI 19-24KW Worcester part n^o. 7099654	£86.19
34	GAS VALVE Worcester part n^o. 7099652	£227.55
35	RECTIFIER Worcester part n^o. 7099642	£20.53
36	SUCTION PIPE Worcester part n^o. 7099660	£24.44
37	GAS PIPE Worcester part n^o. 7099674	£57.47
38	CONNECTION PLATE 60/100MM Worcester part n^o. 77463	£55.60
39	SEALING D100MM Worcester part n^o. 77464	£4.93
40	CLIP ADAPTER Worcester part n^o. 7099720	£6.68
41	WALL MOUNTING Worcester part n^o. 7099173	£12.50
42	OBSOLETE PANEL Worcester part n^o. 38463
43	SEALING VENTILATION COVER Worcester part n^o. 7099150	£17.06
44	SEALING BUSH Worcester part n^o. 7099666	£19.76
45	SEALING CONDENSATE PIPE Worcester part n^o. 73561	£8.48
46	CABLE HARNESS Worcester part n^o. 7099632	£72.36
47	UBA CONTROL UNIT Worcester part n^o. 38324	£312.78
48	POWER SWITCH (5X) Worcester part n^o. 7100384	£26.64
49	THERMOMANOMETER Worcester part n^o. 75300	£49.28
50	COVER UBA Worcester part n^o. 7099104	£35.05
51	CABLE HARNESS HIGH VOLTAGE Worcester part n^o. 75304	£37.91
52	O-RING 26.3X5.33 (10 PC) Worcester part n^o. 7099718	£12.49
53	SEALING (2 PC) Worcester part n^o. 7099794	£7.25
54	RETURN PUMP/HEAT EXCHANGER Worcester part n^o. 7099638	£44.48
55	NOW USE 75303 PUMP 1"-130 UP 15-50 Worcester part n^o. 75302
55	PUMP 1"-130 UPS 15-50 Worcester part n^o. 75303	£147.66
56	NOW USE 8738901137 EXPANSION VESSEL Worcester part n^o. 38461
56	NOW USE 8738901137 EXPANSION TANK Worcester part n^o. 7099126
56	EXPANSION VESSEL 9 [L] Worcester part n^o. 8738901137	£98.73
57	CONNECTION EXPANSION TANK Worcester part n^o. 7099162	£33.93
58	MANIFOLD ASSEMBLY Worcester part n^o. 20378
59	SAFETY VALVE Worcester part n^o. 7100888	£22.54
61	CONNECTION BY-PASS Worcester part n^o. 38613	£36.07
62	CLIP Worcester part n^o. 7099132	£11.17
63	CONNECTION RETURN Worcester part n^o. 7099125	£33.14
64	LOCKING PIN (5 +1 PC) Worcester part n^o. 7100866	£10.33
65	CONNECTION PUMP Worcester part n^o. 7099766	£38.10
66	CONNECTION SUPPLY Worcester part n^o. 7099178	£29.95
68	WIRE LIAIS.THERMOSTAT.L. 700 Worcester part n^o. 38802
70	CLIP - 2X LARGE 2X SMALL (4X) Worcester part n^o. 7099156	£8.21
71	RETURN PIPE HOT WATER TANK Worcester part n^o. 7099158	£30.35
72	NOW USE 8738901126 SENSOR Worcester part n^o. 7099187
72	TEMPERATURE SENSOR Worcester part n^o. 8738901126	£82.04
73	SENSOR Worcester part n^o. 7099164	£32.21
74	INSULATION PLATE Worcester part n^o. 7099129	£10.70
75	SANITARY PIPE COLD Worcester part n^o. 7099138	£13.26
76	FLOW REGULATOR Worcester part n^o. 7099143	£45.91
77	3 WAY VALVE BODY Worcester part n^o. 7098972	£114.38
78	3 WAY VALVE CARTRIDGE Worcester part n^o. 7098973	£94.40
79	CAP 3-WAY VALVE Worcester part n^o. 7099790	£7.46
80	3 WAY VALVE MOTOR Worcester part n^o. 73317	£78.32
81	GLOW IGNITOR Worcester part n^o. 78105	£68.52
82	IONISATION ELECTRODE Worcester part n^o. 7100238	£28.86
83	MEASURE NIPPLE CAP (SET) Worcester part n^o. 7099425	£12.53
84	ONE-WAY VALVE Worcester part n^o. 7098240	£10.09
85	SEALING (5X) Worcester part n^o. 7098778	£6.45
86	CAP Worcester part n^o. 7099460	£8.48
87	SEALING SET DRAIN PIPE (3X2PC) Worcester part n^o. 7099628	£15.39
88	ISOL. FRONTS. HEAT EXCHANGER Worcester part n^o. 7099668	£27.77
89	INSOLATION BACK HEAT EXCHANGER Worcester part n^o. 7099670	£34.60
90	SEALING (5X) Worcester part n^o. 7099710	£12.77
91	CONNECTION CABLE FAN Worcester part n^o. 7099726	£26.96
92	BRACKET ION.ELEK./GLOW IGNITER. Worcester part n^o. 7099738	£14.09
93	GASKET FAN/GAS/AIR SUPPLY(5 PC) Worcester part n^o. 7099985	£7.60
94	SEALING 1/2" (10X) Worcester part n^o. 7100192	£9.13
95	SEALING (5X) Worcester part n^o. 7100198	£9.26
