WORCESTER
WR325-5AM1E12S0506 (MARCH 2000 ONWARDS) 7702311028 - (Heating Body)
Appliance Code: 52-311-02

Appliance Diagram


Heating Body diagram for Worcester WR325-5AM1E12S0506 (March 2000 Onwards) 7702311028Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

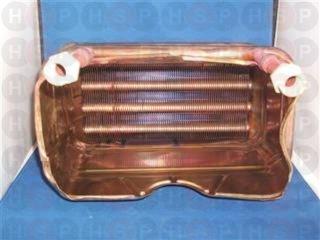

1 Part number 87054061980, HEATING BODY HEATING BODY
Worcester part no. 87054061980
£358.55
2   WASHER 25OD X 21ID X 2MM (10X)
Worcester part no. 87001031250
£1.84
3   LOCKNUT G 1/2" (10X)
Worcester part no. 87133000180
£2.70
4   NOW USE 8738717110 TEMPERATURE LIMIT 120 DEG C
Worcester part no. 87072061510

4   TEMPERATURE LIMITER
Worcester part no. 8738717110
£19.22
5   PIPE - COLD WATER
Worcester part no. 87007056450
£57.52
6 Part number 87101030450, WASHER 18.6 X 13.5 X 1.5 (10X) WASHER 18.6 X 13.5 X 1.5 (10X)
Worcester part no. 87101030450
£2.95
7   RETAINING CLIP (10X)
Worcester part no. 87047050250
£0.79
8 Part number 87002050230, O-RING (10X) O-RING (10X)
Worcester part no. 87002050230
£1.55
9   DRAIN OFF VALVE
Worcester part no. 87085050040
£46.43
10   WASHER
Worcester part no. 87001030060
£0.78
14   SCREW M4X6MM STEEL PHILLIPS PAN HD
Worcester part no. 29109511160
£0.59
