WORCESTER
HEATSLAVE 15/19-OSO-GB OIL COM (JULY 1996 ONWARDS) 7716100004 - (Hydraulics)
Appliance Code: 7716100004

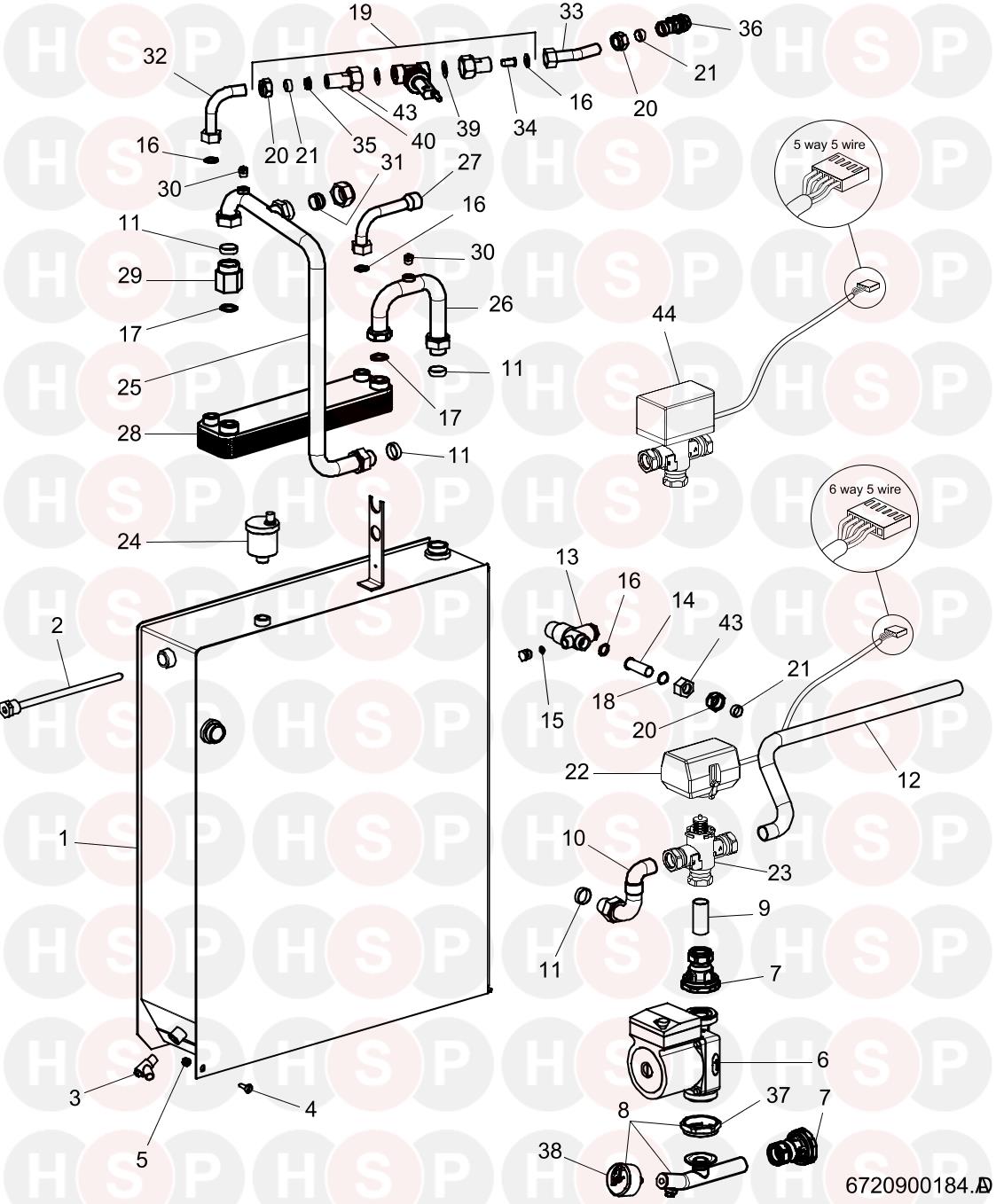

Appliance Diagram


Hydraulics diagram for Worcester Heatslave 15/19-Oso-GB Oil COM (July 1996 Onwards) 7716100004Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

  VC VALVE CONTROL BOX KIT
Worcester part no. 87161052040		 £244.15
  TANK INSULATION
Worcester part no. 87161422420		 £28.15
1   TANK ASSEMBLY
Worcester part no. 87161202890		 £472.32
2 Part number 87161402430, THERMOSTAT POCKET BEFORE FD988 THERMOSTAT POCKET BEFORE FD988
Worcester part no. 87161402430		 £15.98
3 Part number 87161424310, DRAIN COCK 1/4 DRAIN COCK 1/4
Worcester part no. 87161424310		 £2.56
4 Part number 29100911970, SCREW MACHINE M6X16MM SLOTTED BEFORE FD782 SCREW MACHINE M6X16MM SLOTTED BEFORE FD782
Worcester part no. 29100911970		 £18.96
5 Part number 29150110070, NUT M6 FULL HEX Z/P M/S NUT M6 FULL HEX Z/P M/S
Worcester part no. 29150110070		 £2.68
6 Part number 87161135940, NOW USE 8716120416 STANDARD 15/60 PUMP HEAD NOW USE 8716120416 STANDARD 15/60 PUMP HEAD
Worcester part no. 87161135940
6 Part number 87161431050, PUMP UPS 15-60 12 OCL(50526639) PUMP UPS 15-60 12 OCL(50526639)
Worcester part no. 87161431050
6   PUMP HEAD UPMO 7M C/W INST PLUG
Worcester part no. 8716120416		 £189.33
7 Part number 87161424170, VALVE 22MM X 1-1/2 VALVE 22MM X 1-1/2
Worcester part no. 87161424170		 £25.73
8 Part number 87161200540, PRESS GAUGE/DRAIN ASSY PRESS GAUGE/DRAIN ASSY
Worcester part no. 87161200540		 £49.34
9 Part number 87161001300, PIPE - PUMP TO DIVERTER VALVE PIPE - PUMP TO DIVERTER VALVE
Worcester part no. 87161001300		 £4.32
10   PIPE - DIV VALVE TO TANK ASSY
Worcester part no. 87161200630		 £41.40
11 Part number 87161402960, RING-COMPRESSION 22MM RING-COMPRESSION 22MM
Worcester part no. 87161402960		 £4.31
12   PIPE - CENTRAL HEATING FLOW
Worcester part no. 87161001040		 £21.58
13 Part number 87161424160, VALVE PR.REL.1/2 X15MM X 1/8 VALVE PR.REL.1/2 X15MM X 1/8
Worcester part no. 87161424160		 £13.20
14   PIPE - HEAT EX TO PR VALVE
Worcester part no. 87161001120		 £22.27
15 Part number 87161409120, WASHER WASHER
Worcester part no. 87161409120		 £2.63
16 Part number 87101030450, WASHER 18.6 X 13.5 X 1.5 (10X) WASHER 18.6 X 13.5 X 1.5 (10X)
Worcester part no. 87101030450		 £2.95
16 Part number 87161156800, WASHER 18.6 X 13.5 X 1.5 (1X) WASHER 18.6 X 13.5 X 1.5 (1X)
Worcester part no. 87161156800		 £0.86
17 Part number 87101030430, FIBRE WASHER 23.9 X 17.2 X 1.5 FIBRE WASHER 23.9 X 17.2 X 1.5
Worcester part no. 87101030430		 £2.84
17 Part number 87161156740, WASHER 23.9 X 17.2 X 1.5 (X1) BEFORE FD991 WASHER 23.9 X 17.2 X 1.5 (X1) BEFORE FD991
Worcester part no. 87161156740		 £2.84
18 Part number 87161405510, WASHER BACKING 15MM WASHER BACKING 15MM
Worcester part no. 87161405510		 £4.45
19 Part number 87161200690, FLOW SWITCH ASSEMBLY FLOW SWITCH ASSEMBLY
Worcester part no. 87161200690		 £81.86
20 Part number 87161402880, SET OF NUTS SET OF NUTS
Worcester part no. 87161402880		 £4.15
21 Part number 87161402890, RING-COMPRESSION 15MM RING-COMPRESSION 15MM
Worcester part no. 87161402890		 £2.80
22 Part number 87161049200, DIVERTER ACTUATOR DIVERTER ACTUATOR
Worcester part no. 87161049200		 £137.94
23 Part number 87161049190, DIVERTER VALVE BODY C/W CARTRIDGE DIVERTER VALVE BODY C/W CARTRIDGE
Worcester part no. 87161049190		 £92.10
23 Part number 87161051320, DIVERTER VALVE CARTRIDGE DIVERTER VALVE CARTRIDGE
Worcester part no. 87161051320		 £70.94
24 Part number 87161405000, AIR-VENT AUTOMATIC 3/8 (SS KIT) AIR-VENT AUTOMATIC 3/8 (SS KIT)
Worcester part no. 87161405000		 £11.25
25   PIPE - W-W HT EX TO HT EX ASSY
Worcester part no. 87161200670		 £88.00
26 Part number 87161200680, PIPE - W-W HT EX TO TANK ASSY PIPE - W-W HT EX TO TANK ASSY
Worcester part no. 87161200680		 £22.98
27 Part number 87161200650, PIPE - W-W HEAT EX TO DHW ASSY PIPE - W-W HEAT EX TO DHW ASSY
Worcester part no. 87161200650		 £23.18
28 Part number 87161429060, HEAT EXCHANGER SWEP TYPE E8/14 HEAT EXCHANGER SWEP TYPE E8/14
Worcester part no. 87161429060		 £188.34
29 Part number 87161200960, CHECK VALVE ASSEMBLY CHECK VALVE ASSEMBLY
Worcester part no. 87161200960		 £18.76
30 Part number 87161402380, AIR VENT 1/8 BSP AIR VENT 1/8 BSP
Worcester part no. 87161402380		 £17.04
31 Part number 87161402460, 22MM BLANKING PLUG 22MM BLANKING PLUG
Worcester part no. 87161402460		 £25.47
32 Part number 87161001140, PIPE - W-W HT EX TO FLOW SWITCH PIPE - W-W HT EX TO FLOW SWITCH
Worcester part no. 87161001140		 £8.87
33 Part number 87161001110, PIPE - FLOW SWITCH TO ISO VALVE PIPE - FLOW SWITCH TO ISO VALVE
Worcester part no. 87161001110		 £5.35
34 Part number 87161484010, GAUZE FILTER GAUZE FILTER
Worcester part no. 87161484010		 £4.31
35 Part number 87161058690, FLOW REGULATOR 15/LM 4GPM FLOW REGULATOR 15/LM 4GPM
Worcester part no. 87161058690		 £5.17
36 Part number 87161424180, ISOLATOR VALVE 15MM-ONE C/NUT ISOLATOR VALVE 15MM-ONE C/NUT
Worcester part no. 87161424180		 £20.54
37   CAP NUT - 1 1/2 BSP ( PUMP NUT )
Worcester part no. 87161405150		 £7.95
38 Part number 87161423580, GAUGE PRES.50MMX1/8BACK 4BAR GAUGE PRES.50MMX1/8BACK 4BAR
Worcester part no. 87161423580		 £15.58
39 Part number 87161409190, WASHER 24 X 12 X 1.50 WASHER 24 X 12 X 1.50
Worcester part no. 87161409190		 £2.63
40 Part number 87161402580, REGULATOR COMPRESSION FITTING REGULATOR COMPRESSION FITTING
Worcester part no. 87161402580		 £7.91
43 Part number 87161402840, NUT CAP 15MM NUT CAP 15MM
Worcester part no. 87161402840		 £2.96
44 Part number 87161201310, DIVERTER VALVE ASSEMBLY V4044F1125 DIVERTER VALVE ASSEMBLY V4044F1125
Worcester part no. 87161201310		 £173.02
