WORCESTER
24 SBI - (Superstructure)
Appliance Code: 41-311-44

Appliance Diagram


Superstructure diagram for Worcester 24 SBIClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

Part number 77161922040, COMBUSTION INSULATION PACK COMBUSTION INSULATION PACK
Worcester part no. 77161922040
  OPEN VENT COVER PLATE C/W SEAL
Worcester part no. 87161002370		 £3.88
1 Part number 87161482040, NUT CAPTIVE NO:8 NUT CAPTIVE NO:8
Worcester part no. 87161482040		 £4.24
2 Part number 87101030430, FIBRE WASHER 23.9 X 17.2 X 1.5 FIBRE WASHER 23.9 X 17.2 X 1.5
Worcester part no. 87101030430		 £2.84
2 Part number 87161156740, WASHER 23.9 X 17.2 X 1.5 (X1) BEFORE FD991 WASHER 23.9 X 17.2 X 1.5 (X1) BEFORE FD991
Worcester part no. 87161156740		 £2.84
3   HARNESS MAIN SBI SYSTEM
Worcester part no. 87161214610		 £12.30
4 Part number 87161214830, HARNESS GAS VALVE AND OVERHEAT HARNESS GAS VALVE AND OVERHEAT
Worcester part no. 87161214830		 £18.57
5 Part number 87161201230, PIPE - PRIMARY FLOW PIPE - PRIMARY FLOW
Worcester part no. 87161201230		 £21.01
6 Part number 87161213310, PIPE - PRIMARY RETURN ASSEMBLY PIPE - PRIMARY RETURN ASSEMBLY
Worcester part no. 87161213310
7 Part number 87161407040, SEAL-AIR VENT SEAL-AIR VENT
Worcester part no. 87161407040		 £4.85
8 Part number 87161482000, RETAINING BOLT LH RETAINING BOLT LH
Worcester part no. 87161482000		 £5.48
9 Part number 87161482010, RETAINING BOLT RH RETAINING BOLT RH
Worcester part no. 87161482010		 £5.48
10   BUNG-PILOT LARGE HOLE (5 PACK)
Worcester part no. 87161407070		 £7.16
11 Part number 87161407080, RUBBER GROMMET RUBBER GROMMET
Worcester part no. 87161407080
12 Part number 29151911050, NUT-WING M5 MS ZN PL TABLE 2 NUT-WING M5 MS ZN PL TABLE 2
Worcester part no. 29151911050		 £2.79
13   FLUE SPIGOT
Worcester part no. 87161013140
14 Part number 87161402490, FLUE SAMPLING TUBE KIT FLUE SAMPLING TUBE KIT
Worcester part no. 87161402490		 £6.14
15 Part number 87161000970, RETAINING BOLT GUIDE RETAINING BOLT GUIDE
Worcester part no. 87161000970		 £2.83
16 Part number 87161000450, HEAT EX. RETAINER HEAT EX. RETAINER
Worcester part no. 87161000450
17 Part number 87161422010, COMBUSTION REAR INSULATION COMBUSTION REAR INSULATION
Worcester part no. 87161422010		 £4.67
18 Part number 87161422000, COMBUSTION FRONT INSULATION COMBUSTION FRONT INSULATION
Worcester part no. 87161422000		 £4.67
19 Part number 87161422020, COMBUSTION SIDE INSULATION COMBUSTION SIDE INSULATION
Worcester part no. 87161422020		 £10.42
20 Part number 87161000210, COMBUSTION CHAMBER FRONT-SIDES COMBUSTION CHAMBER FRONT-SIDES
Worcester part no. 87161000210
21 Part number 87161483030, PRIMARY H.W. THERMISTOR CLIP PRIMARY H.W. THERMISTOR CLIP
Worcester part no. 87161483030		 £2.11
22 Part number 87161423020, NTC/THERMISTOR DHW NTC/THERMISTOR DHW
Worcester part no. 87161423020		 £13.03

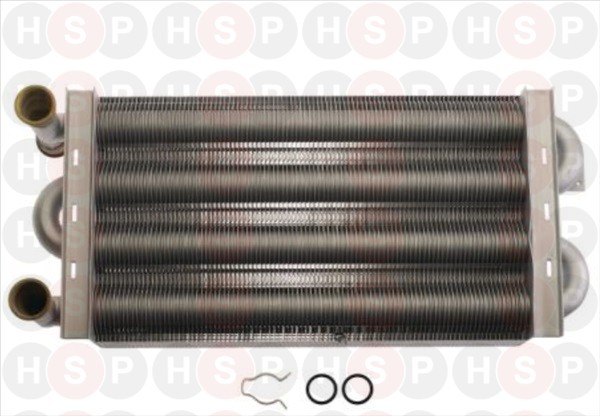

23 Part number 87161428000, GAS-WATER HEAT EXCHANGER GAS-WATER HEAT EXCHANGER
Worcester part no. 87161428000		 £241.66
24 Part number 87161423030, OVERHEAT THERMOSTAT OVERHEAT THERMOSTAT
Worcester part no. 87161423030		 £24.04
25 Part number 29144114110, SCREW M3X6mm ZC PL P/H TAPTITE AFTER FD992 SCREW M3X6MM ZC PL P/H TAPTITE AFTER FD992
Worcester part no. 29144114110		 £2.79
26   FLUE HOOD ASSEMBLY RSF
Worcester part no. 87161202420
27 Part number 87161214560, FAN ASSEMBLY SYSTEM 24KW FAN ASSEMBLY SYSTEM 24KW
Worcester part no. 87161214560		 £130.83
28 Part number 87161153060, SCREW (10X) 8X1/2" AFTER FD992 SCREW (10X) 8X1/2" AFTER FD992
Worcester part no. 87161153060		 £3.59
29 Part number 87161200470, PIPE - AIR VENT PIPE - AIR VENT
Worcester part no. 87161200470
30 Part number 87161405000, AIR-VENT AUTOMATIC 3/8 (SS KIT) AIR-VENT AUTOMATIC 3/8 (SS KIT)
Worcester part no. 87161405000		 £11.25
31 Part number 87161010800, BEIGE SILICONE TUBING 1M LONG BEIGE SILICONE TUBING 1M LONG
Worcester part no. 87161010800		 £9.29
32 Part number 87161010810, RED SILICONE TUBING 5M LONG RED SILICONE TUBING 5M LONG
Worcester part no. 87161010810		 £17.40
33 Part number 87161412050, T PIECE MOULDING REF 416TEEP T PIECE MOULDING REF 416TEEP
Worcester part no. 87161412050		 £3.36
34 Part number 87161408050, O-RING 2.62 X 15.54 ID EP O-RING 2.62 X 15.54 ID EP
Worcester part no. 87161408050		 £2.79
35 Part number 87161483170, CLAMP SPRING CLAMP SPRING
Worcester part no. 87161483170		 £5.80
36 Part number 87161408060, O-RING 2.62 X 17.86 AFTER FD992 O-RING 2.62 X 17.86 AFTER FD992
Worcester part no. 87161408060		 £2.79
37 Part number 87161202540, INNER CASING COVER ASSEMBLY INNER CASING COVER ASSEMBLY
Worcester part no. 87161202540
38 Part number 87161006400, SEAL SEAL
Worcester part no. 87161006400		 £12.57
39 Part number 87161407030, SEAL-BURNER MANIFOLD SEAL-BURNER MANIFOLD
Worcester part no. 87161407030		 £4.85
40   BURNER NG
Worcester part no. 87161426490		 £104.26
40   BURNER LPG
Worcester part no. 87161426500		 £116.00
41 Part number 87161402080, MAIN BURNER INJECTOR SET MAIN BURNER INJECTOR SET
Worcester part no. 87161402080		 £6.75
41 Part number 87161402090, MAIN BURNER INJECTOR - LPG MAIN BURNER INJECTOR - LPG
Worcester part no. 87161402090		 £6.75
42 Part number 87161401020, NUT M4 EXTENDED NUT M4 EXTENDED
Worcester part no. 87161401020		 £4.94
43 Part number 87161051860, ELECTRODE SPARK AFTER FD292 ELECTRODE SPARK AFTER FD292
Worcester part no. 87161051860		 £12.43
43 Part number 87161421000, SPARK ELECTRODE ASSEMBLY BEFORE FD291 SPARK ELECTRODE ASSEMBLY BEFORE FD291
Worcester part no. 87161421000		 £8.13
44 Part number 87161203450, FLAME SENCE ELECTRODE AND HARNESS FLAME SENCE ELECTRODE AND HARNESS
Worcester part no. 87161203450		 £11.64
45 Part number 87161202360, HARNESS IGNITION ASSEMBLY HARNESS IGNITION ASSEMBLY
Worcester part no. 87161202360
46 Part number 87161209800, HARNESS FAN 24/28I HARNESS FAN 24/28I
Worcester part no. 87161209800		 £6.79
47 Part number 87161410000, AIR FLOW SENSOR AIR FLOW SENSOR
Worcester part no. 87161410000		 £8.26
48   BURNER GAUZE
Worcester part no. 87161426010		 £19.27
49 Part number 87161412110, BLANKING CAP RED BLANKING CAP RED
Worcester part no. 87161412110		 £2.63
50 Part number 87161000030, PIPE - AIR PRESSURE SWITCH PIPE - AIR PRESSURE SWITCH
Worcester part no. 87161000030		 £16.90
51 Part number 87161407050, SEAL-18mm TUBE SEAL-18MM TUBE
Worcester part no. 87161407050		 £6.91
