VAILLANT
SUSTAIN 24 VUW 246/7-2 - (05 Gas Section)
Appliance Code: 47-044-79

Appliance Diagram

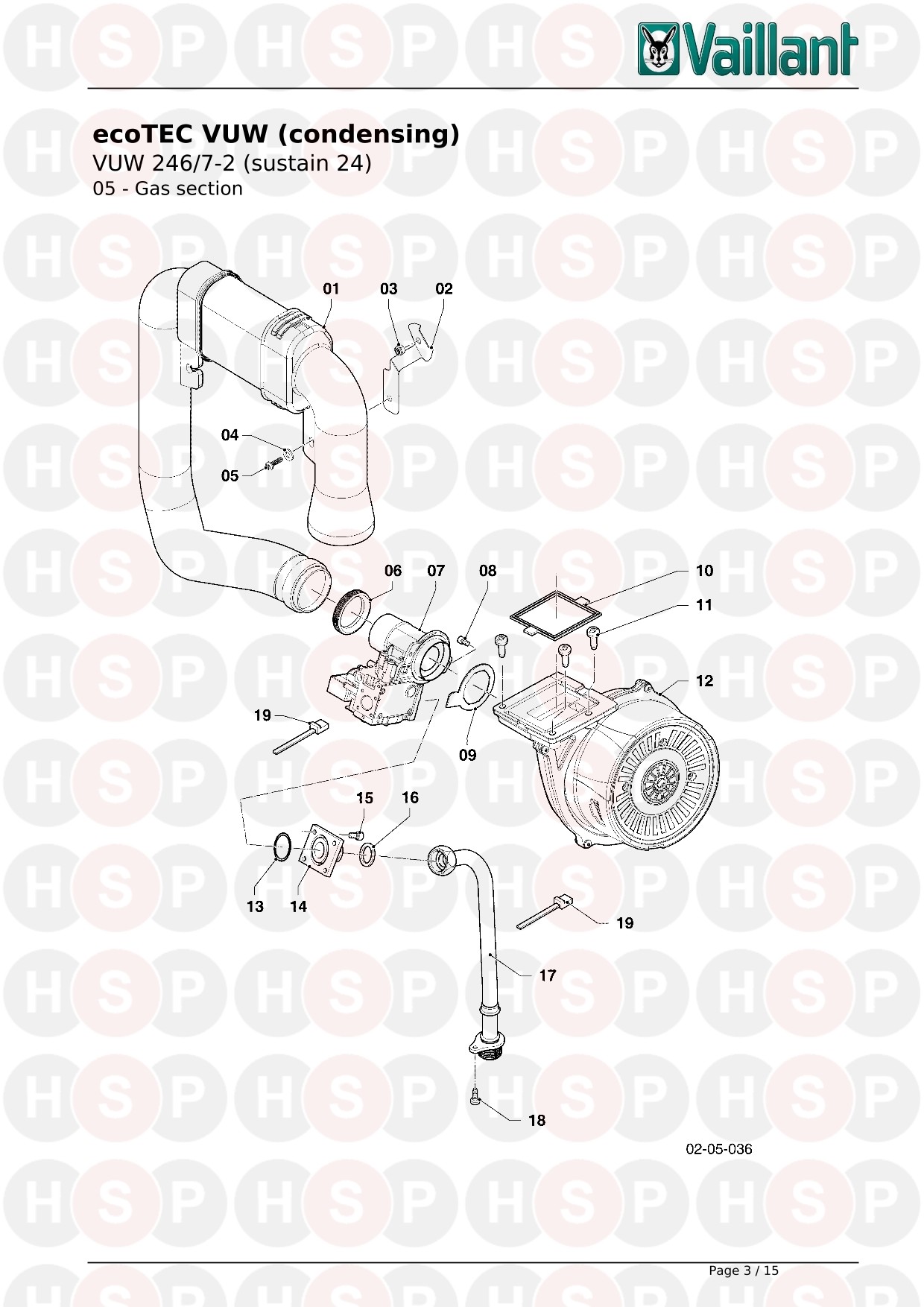

05 Gas Section diagram for Vaillant Sustain 24 VUW 246/7-2Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 0020135146, AIR INLET PIPE AIR INLET PIPE
Vaillant part no. 0020135146
£20.26
2 Part number 0020135151, Support air inlet duct SUPPORT AIR INLET DUCT
Vaillant part no. 0020135151
£6.66
3 Part number 0020026537, Nut, M6 (PK5) NUT, M6 (PK5)
Vaillant part no. 0020026537
£6.66
4 Part number 0020135152, Washer, (PK10) WASHER, (PK10)
Vaillant part no. 0020135152
£6.66
5 Part number 0020133833, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 0020133833
£6.66
6 Part number 981111, Gasket GASKET
Vaillant part no. 981111
£6.66
7 Part number 0020240266, GAS CONTROL VALVE GAS CONTROL VALVE
Vaillant part no. 0020240266
£106.25
8 Part number 509685, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 509685
£6.66
9 Part number 0020135141, Gasket, fan GASKET, FAN
Vaillant part no. 0020135141
£6.66
10 Part number 193594, Gasket GASKET
Vaillant part no. 193594
£6.69
11 Part number 193597, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 193597
£6.69
12 Part number 0020216847, Fan FAN
Vaillant part no. 0020216847
£144.98
13 Part number 0020133834, O-ring (PK10) O-RING (PK10)
Vaillant part no. 0020133834
£6.66
14 Part number 0020010868, Adapter piece (gas valve) ADAPTER PIECE (GAS VALVE)
Vaillant part no. 0020010868
£13.29
15 Part number 105904, Screw (set) SCREW (SET)
Vaillant part no. 105904
£6.66
16 Part number 981142, Sealing ring, (PK10) SEALING RING, (PK10)
Vaillant part no. 981142
£8.62
17 Part number 0020240268, GAS PIPE GAS PIPE
Vaillant part no. 0020240268
£27.41
18 Part number 0020211098, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 0020211098
£6.53
19 Part number 0020240262, WIRING HARNESS WIRING HARNESS
Vaillant part no. 0020240262
£35.83
