HEATLINE
CAPRIZ 2 24C 2015 ONWARDS - (05 Hydraulics)
Appliance Code: 47-157-27

Appliance Diagram


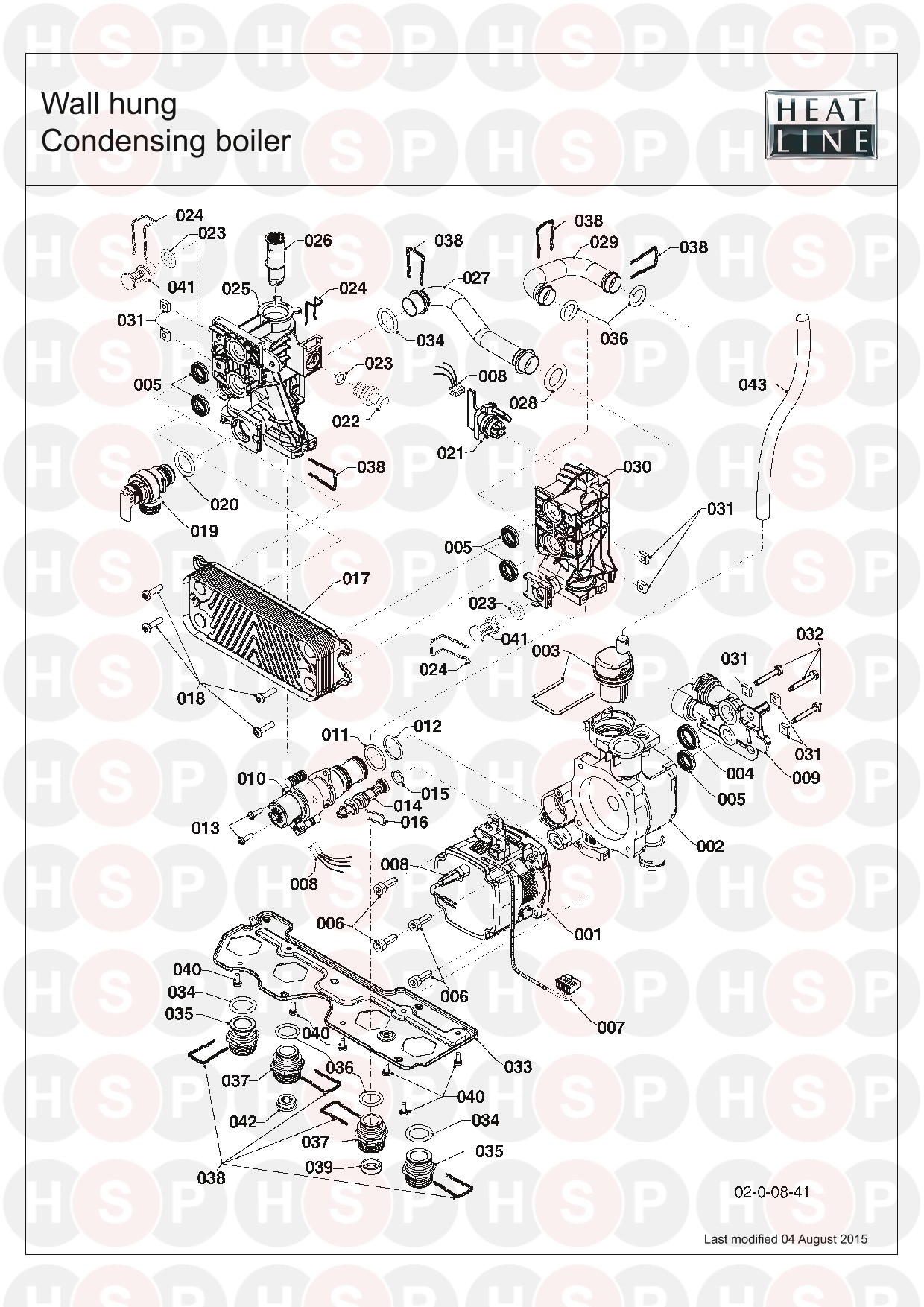

05 Hydraulics diagram for Heatline Capriz 2 24C 2015 OnwardsClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   PUMP MOTOR
Glowworm part no. 0020213118
£280.53
2   HOUSING, PUMP
Glowworm part no. 0020213138
£80.43
3   AUTOMATIC AIR VENT
Glowworm part no. 0020213136
£16.08
4 Part number 0020213100, Gasket, (PK10) GASKET, (PK10)
Glowworm part no. 0020213100
£6.80
5   GASKET, (PK10)
Glowworm part no. 0020213137
£6.80
6   SCREW, PUMP (X4)
Glowworm part no. 0020213099
£6.80
7   CABLE
Glowworm part no. 0020213121
£10.30
8   HARNESS, COMBI
Glowworm part no. 0020195252
£19.73
9   HYDROBLOCK
Glowworm part no. 0020213113
£10.14
10   DIVERTER VALVE
Glowworm part no. 0020213112
£44.60
11   O-RING, (PK10)
Glowworm part no. 0020213107
£6.80
12   O-RING, (PK10)
Glowworm part no. 0020213106
£6.80
13 Part number 0020213101, Screw, (PK10) SCREW, (PK10)
Glowworm part no. 0020213101
£6.80
14   BYPASS
Glowworm part no. 0020213109
£9.76
15   O-RING, (PK10)
Glowworm part no. 0020213130
£6.80
16 Part number 0020213132, Clip, (PK10) CLIP, (PK10)
Glowworm part no. 0020213132
£6.80
17   HEAT EXCHANGER, 12 PLATES
Glowworm part no. 0020213111
£78.35
18   SCREW, (PK10)
Glowworm part no. 0020213103
£6.80
19 Part number 0020213114, Pressure relief valve PRESSURE RELIEF VALVE
Glowworm part no. 0020213114
£15.26
20   O-RING, (PK10)
Glowworm part no. 0020213134
£7.90
21   FLOW SENSOR
Glowworm part no. 0020213122
£29.83
22   PLUG, PRESSURE SENSOR
Glowworm part no. 0020213110
£6.80
23   O-RING, (PK10)
Glowworm part no. 0020210212
£6.58
24 Part number 0020206485, Clip, (PK10) CLIP, (PK10)
Glowworm part no. 0020206485
£6.58
25   HYDROPLATE, R-DIN OUTLET
Glowworm part no. 0020213115
£42.72
26   FILTER
Glowworm part no. 0020213129
£6.80
27   PIPE, BYPASS
Glowworm part no. 0020195247
£16.68
28   O-RING, (PK10)
Glowworm part no. 0020213108
£6.80
29   PIPE, PUMP-SHE
Glowworm part no. 0020195246
£10.19
30 Part number 0020195245, Pipe, flow sensor PIPE, FLOW SENSOR
Glowworm part no. 0020195245
£41.27
31   NUT, (PK3)
Glowworm part no. 0020213102
£6.80
32   SCREW, (PK10)
Glowworm part no. 0020213128
£6.80
33   SUPPORT BRACKET
Glowworm part no. 0020213116
£6.80
34   O-RING (X10)
Glowworm part no. 0020213127
£6.80
35   NIPPLE, G3/4 BRASS, HW
Glowworm part no. 0020195251
£6.80

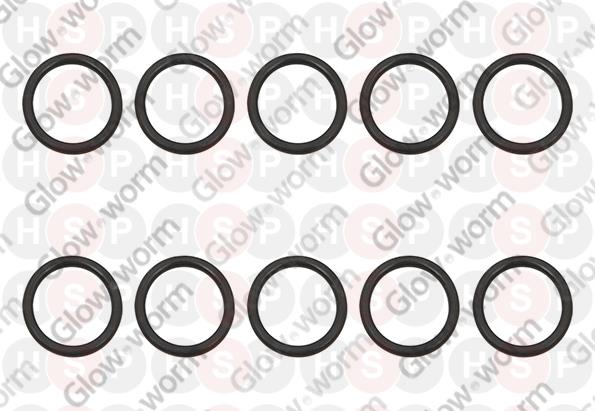

36 Part number 0020213133, O-ring, (PK10) O-RING, (PK10)
Glowworm part no. 0020213133
£6.80
37   NIPPLE, G3/4, DW
Glowworm part no. 0020213117
£6.80
38 Part number 0020195559, Clip, (PK10) CLIP, (PK10)
Glowworm part no. 0020195559
£6.58
39   FILTER
Glowworm part no. 0020213131
£6.80
40 Part number 0020213135, Screw, (PK10) SCREW, (PK10)
Glowworm part no. 0020213135
£6.80
41   PLUG
Glowworm part no. 0020213105
£6.80
42   FLOW LIMITER, (PK10)
Glowworm part no. 0020203964
£16.07
43   HOSE
Glowworm part no. 0020218976
£6.80
