RIELLO
G10 COH 110 3744634 (TYPE 443T58) - (Burner Exploded View)
Appliance Code: 3744364

Appliance Diagram

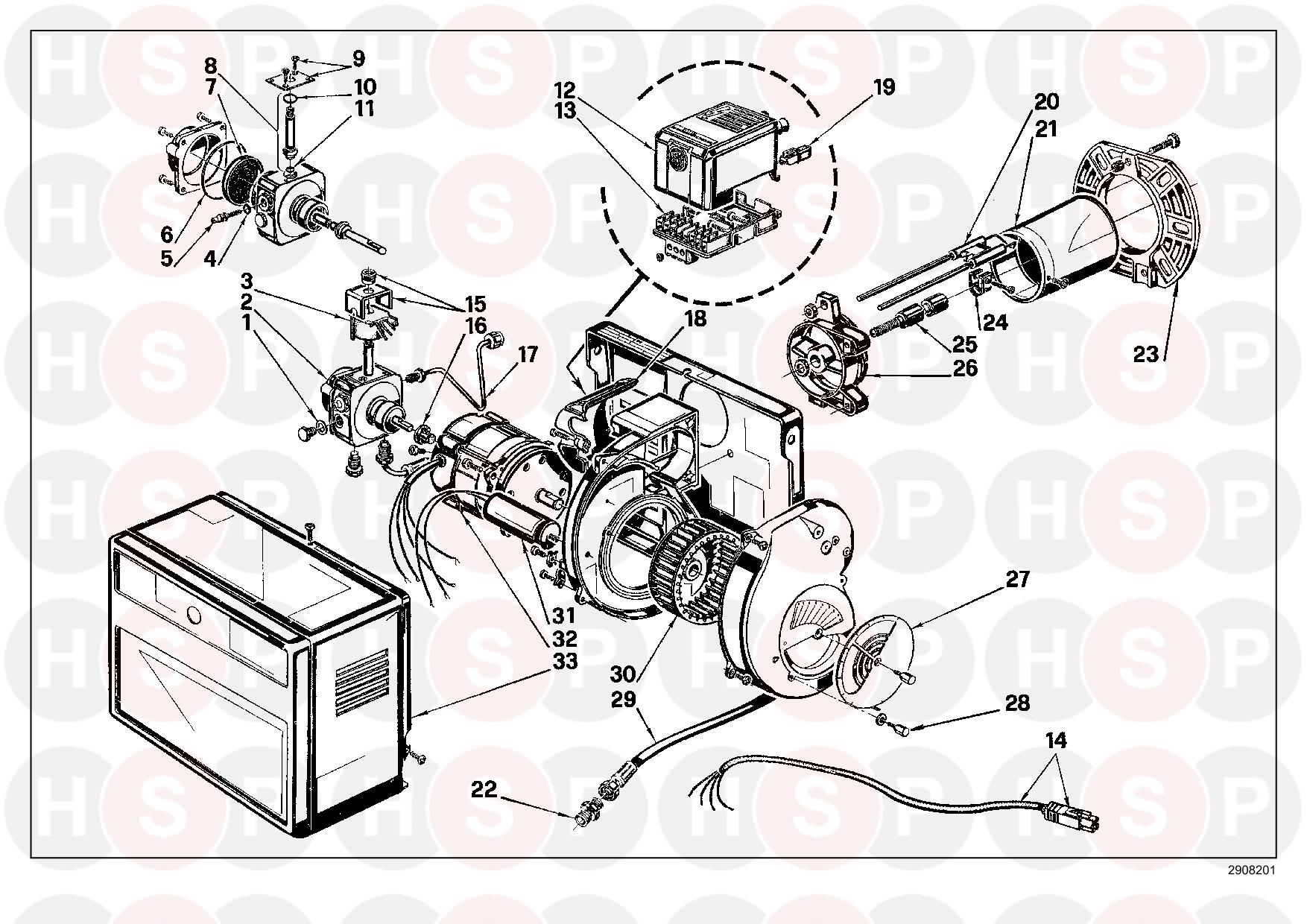

Burner Exploded View diagram for Riello G10 COH 110 3744634 (Type 443T58)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 3007077, WASHER SEAL 10 PCS WASHER SEAL 10 PCS
Riello part no. 3007077		 £7.57
2 Part number 20031996, RIELLO - OIL PUMP RIELLO - OIL PUMP
Riello part no. 20031996		 £122.86
3 Part number 3002279, COIL COIL
Riello part no. 3002279		 £16.30
4 Part number 3007169, RING OR (10PCS) RING OR (10PCS)
Riello part no. 3007169		 £8.76
5 Part number 3007202, OBSOLETE REGULATOR (G5BF) OBSOLETE REGULATOR (G5BF)
Riello part no. 3007202		 £6.43
6 Part number 3007175, O ring (10 pcs) O RING (10 PCS)
Riello part no. 3007175		 £15.98
7 Part number 3005719, FILTER MTN. 2/3/5 FILTER MTN. 2/3/5
Riello part no. 3005719		 £3.22
8 Part number 3006925, NOW USE 3020437 PUMP SOLENOID SHAFT NOW USE 3020437 PUMP SOLENOID SHAFT
Riello part no. 3006925
8 Part number 3020437, NEEDLE VALVE NEEDLE VALVE
Riello part no. 3020437		 £40.35
9 Part number 3007203, PLATE (5 PCS) G5BF PLATE (5 PCS) G5BF
Riello part no. 3007203		 £10.07
10 Part number 3007176, O RING (PK 10) O RING (PK 10)
Riello part no. 3007176		 £9.01
11 Part number 3007177, O Ring (10 pcs.) O RING (10 PCS.)
Riello part no. 3007177		 £7.14
12 Part number 3001156, CONTROL BOX 530 SE CONTROL BOX 530 SE
Riello part no. 3001156		 £107.98
13 Part number 3002278, CONTROL BOX BASE (G5-G20) CONTROL BOX BASE (G5-G20)
Riello part no. 3002278		 £12.78
14   OBSOLETE WIELAND WIRING HARNESS
Riello part no. 3007793
15 Part number 3006553, COVER CAGE AND NUT COVER CAGE AND NUT
Riello part no. 3006553		 £6.66
16 Part number 3000443, COUPLING (10PCS) COUPLING (10PCS)
Riello part no. 3000443		 £7.74
17 Part number 3008472, TUBE TUBE
Riello part no. 3008472		 £7.34
18   COVER
Riello part no. 3006556		 £4.56
19 Part number 3002280, NOW USE 20132573 PHOTOCELL NOW USE 20132573 PHOTOCELL
Riello part no. 3002280
19   FLAME SENSOR (REPLACES 3002280)
Riello part no. 20132573		 £28.53
20 Part number 3007708, ELECTRODE ASSY (G5X SPECIAL) ELECTRODE ASSY (G5X SPECIAL)
Riello part no. 3007708		 £18.61
21 Part number 3006001, CONICAL COMB.HEAD CONICAL COMB.HEAD
Riello part no. 3006001		 £31.89
22 Part number 3003602, CONNECTOR (G5BF) CONNECTOR (G5BF)
Riello part no. 3003602		 £4.44
23 Part number 3008636, FLANGE (replaces 3005786) FLANGE (REPLACES 3005786)
Riello part no. 3008636		 £16.45
24 Part number 3006552, ELECTRODE CLAMP (10 PCS) ELECTRODE CLAMP (10 PCS)
Riello part no. 3006552		 £19.47
25 Part number 3005724, NOZZLE HOLDER MTN 3 NOZZLE HOLDER MTN 3
Riello part no. 3005724		 £9.89
26 Part number 3007796, COLLAR COLLAR
Riello part no. 3007796		 £16.82
27 Part number 3007204, AIR DAMPER AIR DAMPER
Riello part no. 3007204		 £14.93
28   SCREW (12 PCS)
Riello part no. 3008448		 £68.24
29 Part number 20022601, Oil Hose Line 3/8" Angled Male 3/8" OIL HOSE LINE 3/8" ANGLED MALE 3/8"
Riello part no. 20022601		 £18.69
30 Part number 3005708, FAN FAN
Riello part no. 3005708		 £20.62
31 Part number 20087025, CAPACITOR P2 R40 G2 - G10 [ CAPACITOR P2 R40 G2 - G10 [
Riello part no. 20087025		 £17.24
32 Part number 3007971, MOTOR (REPLACES 3007355) MOTOR (REPLACES 3007355)
Riello part no. 3007971		 £114.82
33   COVER G5 ECONOMY
Riello part no. 3008473		 £30.18
