VAILLANT
MAG-SINE 250/7 ATZFW H 1977-1992 - (07 Casing Parts)
Appliance Code: 52-044-09

Appliance Diagram

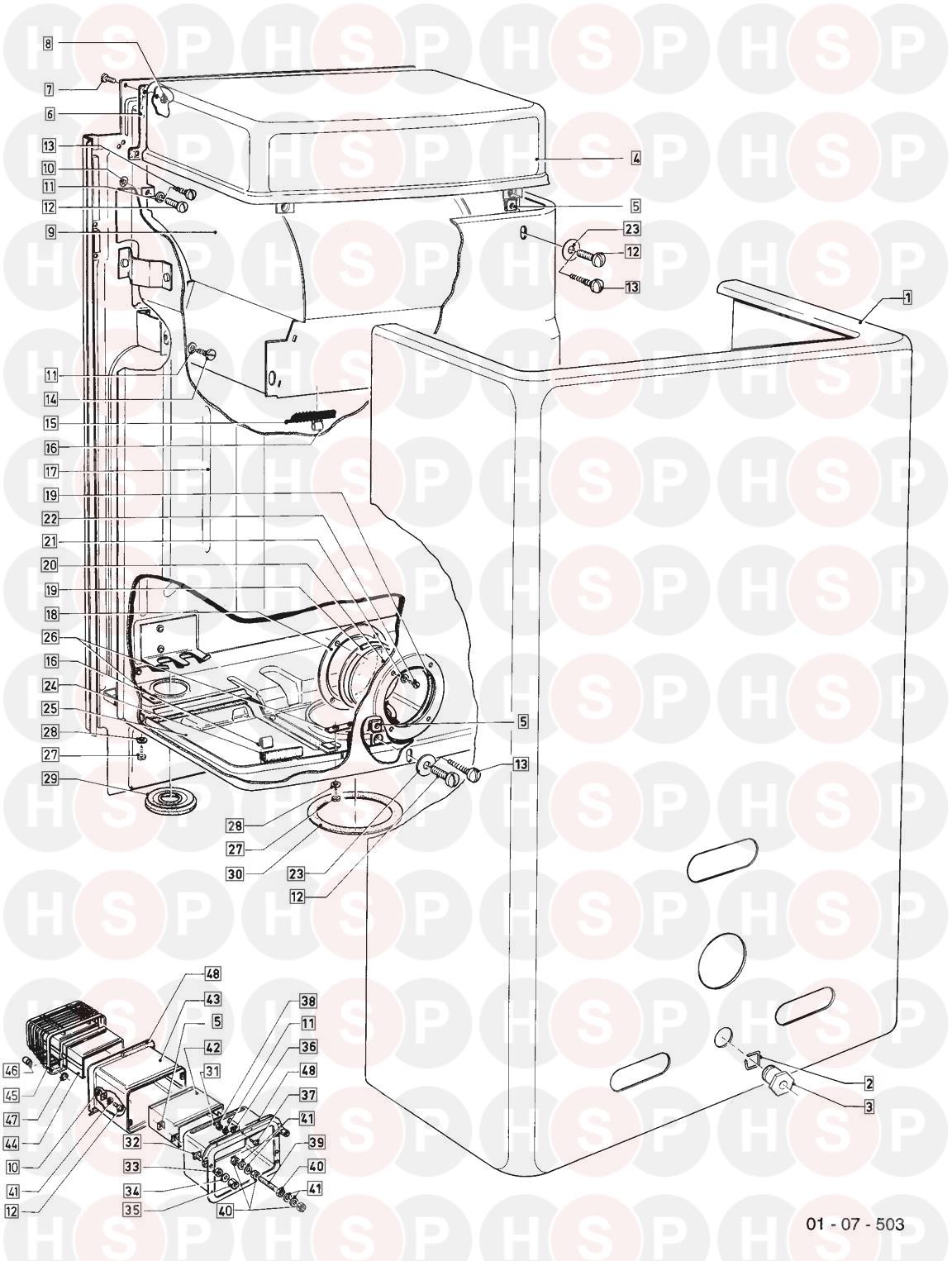

07 Casing Parts diagram for Vaillant Mag-Sine 250/7 Atzfw H 1977-1992Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

5   OBSOLETE SNAP NUT
Vaillant part no. 158209
6 Part number 980763, packing ring PACKING RING
Vaillant part no. 980763		 £5.55
7   OBSOLETE SCREW
Vaillant part no. 500055
8   HEXAGONAL NUT
Vaillant part no. 040009		 £5.63
10   OBSOLETE WASHER
Vaillant part no. 286401
11 Part number 492032, Washer WASHER
Vaillant part no. 492032		 £5.63
12   OBSOLETE SCREW
Vaillant part no. 070340
13 Part number 235738, Tapping screw TAPPING SCREW
Vaillant part no. 235738
14 Part number 235727, screw SCREW
Vaillant part no. 235727		 £5.13
16 Part number 280204, OBSOLETE clip OBSOLETE CLIP
Vaillant part no. 280204
18 Part number 282249, INSPECTION WINDOW RING INSPECTION WINDOW RING
Vaillant part no. 282249		 £3.91
19 Part number 981746, packing ring PACKING RING
Vaillant part no. 981746		 £3.91
20 Part number 161225, OBSOLETE Inspection glass OBSOLETE INSPECTION GLASS
Vaillant part no. 161225
21   OBSOLETE DISC
Vaillant part no. 950242
22 Part number 235748, Tapping screw ISO 7049 TAPPING SCREW ISO 7049
Vaillant part no. 235748		 £5.13
23   OBSOLETE DISC
Vaillant part no. 070005
26   OBSOLETE HINGE
Vaillant part no. 195934
27 Part number 088624, Screw (kit) SCREW (KIT)
Vaillant part no. 088624		 £6.66
28   DISC
Vaillant part no. 950239		 £5.13
29 Part number 980765, NOW USE 0020085467 grommet NOW USE 0020085467 GROMMET
Vaillant part no. 980765
29 Part number 0020085467, Gasket GASKET
Vaillant part no. 0020085467		 £6.54
30   OBSOLETE PACKING RING
Vaillant part no. 980832
33 Part number 114848, Hexagon nut HEXAGON NUT
Vaillant part no. 114848		 £3.91
34   OBSOLETE DISC
Vaillant part no. 191350
35   OBSOLETE NUT
Vaillant part no. 212718
37   OBSOLETE SCREW
Vaillant part no. 202612
38   NUT
Vaillant part no. 950237		 £3.91
39   OBSOLETE CONNECTION PIECE
Vaillant part no. 084848
40   NUT
Vaillant part no. 950237		 £3.91
42   OBSOLETE FLUE EXTENSION DUCT
Vaillant part no. 145577
45   OBSOLETE PROTECTION GRILL
Vaillant part no. 073662
46   BUSH
Vaillant part no. 124835		 £3.91
47   OBSOLETE SAFETY DISC
Vaillant part no. 115520
48   OBSOLETE SEALING PROFILE
Vaillant part no. 282822
