WORCESTER
26/32-OOO-GB UTILITY (MAY 1996 ONWARDS) 7716100011 - (Electrical)
Appliance Code: 7716100011

Appliance Diagram


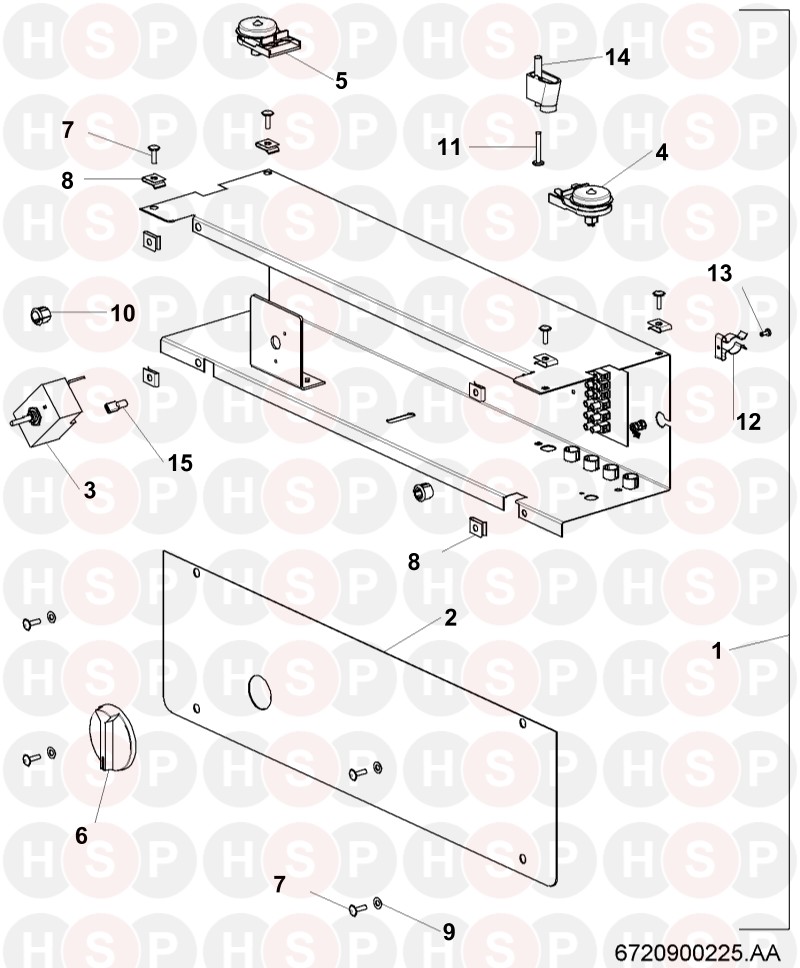

Electrical diagram for Worcester 26/32-OOO-GB Utility (May 1996 Onwards) 7716100011Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   CONTROL BOX ASSEMBLY WITH BAFFLE LABEL -
Worcester part no. 87161201100
£131.35
2   FACIA PANEL ASSEMBLY
Worcester part no. 87161201080
£11.80
3 Part number 87161423090, FLOW THERMOSTAT FLOW THERMOSTAT
Worcester part no. 87161423090
£29.03
4 Part number 87161423920, THERMOSTAT MANUAL RESET 900mm CAPILLARY THERMOSTAT MANUAL RESET 900MM CAPILLARY
Worcester part no. 87161423920
£28.93

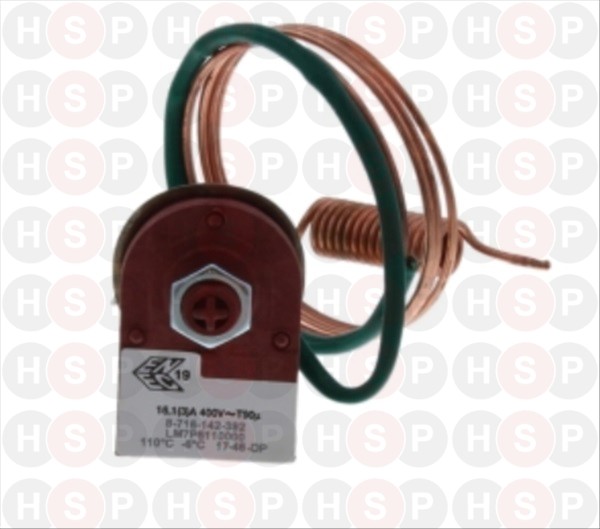

5 Part number 87161423110, T/STAT HIGH LIMIT L07-P1022 T/STAT HIGH LIMIT L07-P1022
Worcester part no. 87161423110
£42.88
6 Part number 87161410550, KNOB CONTROL GREY KNOB CONTROL GREY
Worcester part no. 87161410550
£5.26
7 Part number 87161153060, SCREW (10X) 8X1/2" AFTER FD992 SCREW (10X) 8X1/2" AFTER FD992
Worcester part no. 87161153060
£3.59
8 Part number 87161482040, NUT CAPTIVE NO:8 NUT CAPTIVE NO:8
Worcester part no. 87161482040
£4.24
9 Part number 29160110100, WASHER M4 FLAT Z/P M/S WASHER M4 FLAT Z/P M/S
Worcester part no. 29160110100
£2.63
10 Part number 87161410500, GROMMET NYLON OPEN-CLOSE GROMMET NYLON OPEN-CLOSE
Worcester part no. 87161410500
£6.39
11   SCREW NO.6X1" TYPE B ZP P/H ST SC
Worcester part no. 29124212150
£17.31
12 Part number 87161550380, CLIP - TOOL 1/2" CLIP - TOOL 1/2"
Worcester part no. 87161550380
£17.31
13 Part number 29144114110, SCREW M3X6mm ZC PL P/H TAPTITE AFTER FD992 SCREW M3X6MM ZC PL P/H TAPTITE AFTER FD992
Worcester part no. 29144114110
£2.79
14 Part number 87161411010, CLAMP CABLE TYPE KB2 INSULOID CLAMP CABLE TYPE KB2 INSULOID
Worcester part no. 87161411010
£17.44
