RDB1 12/18 3516010 (TYPE 484LD2X) - (Burner Diagram)
Appliance Code: 3516010

Appliance Diagram


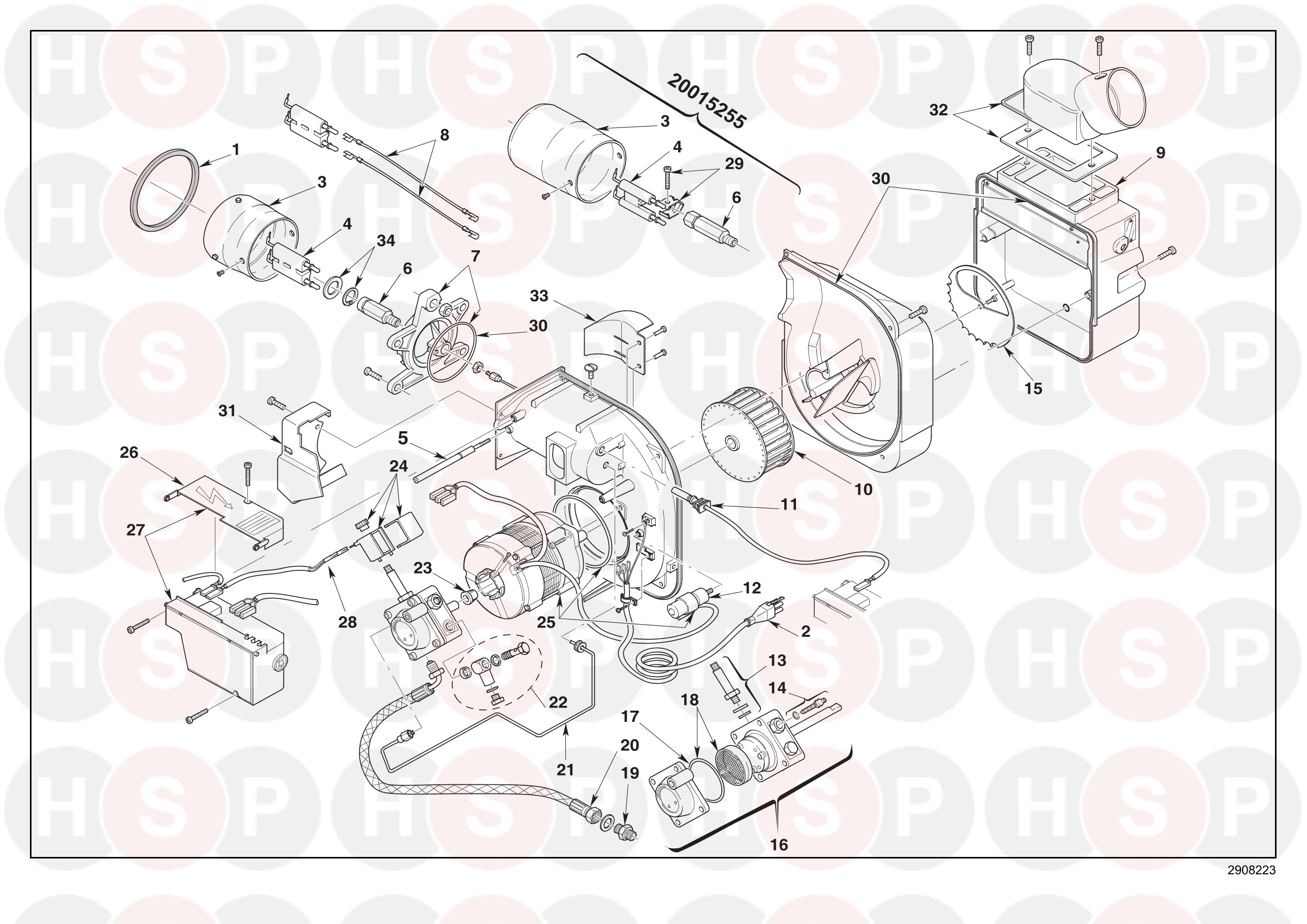

Burner Diagram diagram for Riello RDB1 12/18 3516010 (Type 484LD2X)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 3020261, GASKET GASKET
Riello part no. 3020261		 £17.85
2   6 POLE SOCKET
Riello part no. 3020251
3   BLAST TUBE
Riello part no. 3020253		 £72.78
4 Part number 3008860, ELECTRODE GROUP ELECTRODE GROUP
Riello part no. 3008860		 £21.14
5 Part number 3008875, ELECTRODE CLAMP ELECTRODE CLAMP
Riello part no. 3008875		 £8.20
6 Part number 3008861, NOZZLE HOLDER NOZZLE HOLDER
Riello part no. 3008861		 £14.87
7 Part number 3020264, BURNER MOUNTING COLLAR BURNER MOUNTING COLLAR
Riello part no. 3020264		 £45.66
8 Part number 3008794, HIGH VOLTAGE LEAD (6 PCS) HIGH VOLTAGE LEAD (6 PCS)
Riello part no. 3008794		 £11.58
9 Part number 3008647, AIR DAMPER ASSEMBLY AIR DAMPER ASSEMBLY
Riello part no. 3008647		 £79.92
10 Part number 3005708, FAN FAN
Riello part no. 3005708		 £20.62
11 Part number 3007541, NOW USE 20132553 PHOTO CELL NOW USE 20132553 PHOTO CELL
Riello part no. 3007541
11   PHOTODIODE ANA REP 3008471,3007541, 3062784
Riello part no. 20132553		 £36.47
12   CAPACITOR
Riello part no. 20081248		 £31.26
13 Part number 3007871, NEEDLE VALVE NEEDLE VALVE
Riello part no. 3007871		 £27.29
14 Part number 20032135, PRESSURE REGULATOR PRESSURE REGULATOR
Riello part no. 20032135		 £4.89
15   AIR DAMPER DISC RDB1
Riello part no. 3020308		 £30.63
16 Part number 20030953, RIELLO - OIL PUMP RIELLO - OIL PUMP
Riello part no. 20030953		 £125.51
17 Part number 3007175, O ring (10 pcs) O RING (10 PCS)
Riello part no. 3007175		 £15.98
18 Part number 3020436, PUMP FILTER 3020436 RDB 3008653 PUMP FILTER 3020436 RDB 3008653
Riello part no. 3020436		 £8.40
19 Part number 3009046, CONNECTOR (BOULTERS) CONNECTOR (BOULTERS)
Riello part no. 3009046		 £3.66
20 Part number 20022603, FLEXIBLE HOSE FLEXIBLE HOSE
Riello part no. 20022603		 £22.30
21 Part number 3008644, TUBE TUBE
Riello part no. 3008644		 £34.80
22   PRESSURE GAUGE
Riello part no. 20043034
22   PRESSURE GAUGE
Riello part no. 3020267
23 Part number 3000443, COUPLING (10PCS) COUPLING (10PCS)
Riello part no. 3000443		 £7.74
24 Part number 3008648, COIL COIL
Riello part no. 3008648		 £21.09
25 Part number 20071577, Motor C/W Capacitor MOTOR C/W CAPACITOR
Riello part no. 20071577		 £124.05
26 Part number 20071577, Motor C/W Capacitor MOTOR C/W CAPACITOR
Riello part no. 20071577		 £124.05
26   PROTECTION
Riello part no. 20091563
27 Part number 20037830, CONTROL BOX M0535 CONTROL BOX M0535
Riello part no. 20037830		 £188.51
27   NOW USE 20037830 CONTROL BOX
Riello part no. 3020265
28 Part number 3008851, H T LEADS ( WAS 3008877) H T LEADS ( WAS 3008877)
Riello part no. 3008851		 £7.35
30 Part number 3008878, SEAL KIT SEAL KIT
Riello part no. 3008878		 £9.42
31   COIL PROTECTION
Riello part no. 3020260		 £17.50
32   BF AIR INTAKE
Riello part no. 3020259		 £20.12
33   BULKHEAD
Riello part no. 3020262		 £10.03
34   SHUTTER
Riello part no. 3020254		 £12.78
