WORCESTER
15/19-OOO-GB UTILITY 7716100039 - (Casing)
Appliance Code: 7716100039

Appliance Diagram

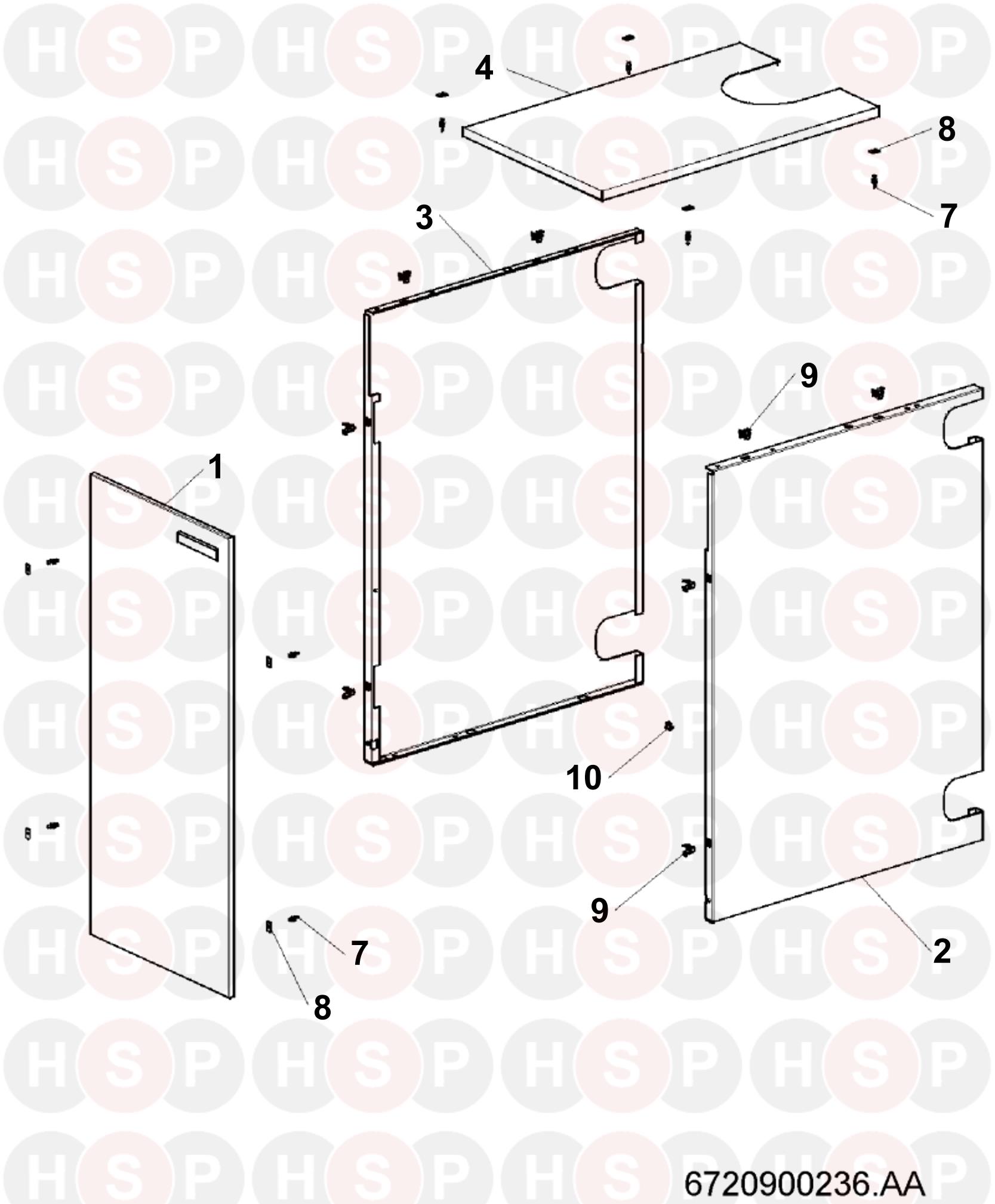

Casing diagram for Worcester 15/19-OOO-GB Utility 7716100039Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   TOP PANEL BLANKING PLATE ASSY
Worcester part no. 87161206790
£32.20
1   FRONT PANEL ASSEMBLY(50-70 70-90)
Worcester part no. 87161207800
£56.74
2 Part number 87161207150, R.H. SIDE PANEL ASSEMBLY R.H. SIDE PANEL ASSEMBLY
Worcester part no. 87161207150
£63.21
3 Part number 87161207160, L.H. SIDE PANEL ASSEMBLY L.H. SIDE PANEL ASSEMBLY
Worcester part no. 87161207160
£63.21
4 Part number 87161207220, TOP PANEL ASSEMBLY (PJSB 20-25) TOP PANEL ASSEMBLY (PJSB 20-25)
Worcester part no. 87161207220
£66.88
7 Part number 87161405120, STUD 2BA BRASS BALL NEW DESIGN BEFORE FD991 STUD 2BA BRASS BALL NEW DESIGN BEFORE FD991
Worcester part no. 87161405120
£3.03
8 Part number 87161550020, NUT 2BA FLAT BLACK M/S BEFORE FD991 NUT 2BA FLAT BLACK M/S BEFORE FD991
Worcester part no. 87161550020
£2.57
9 Part number 87161405130, CLIP - SPRING REF MFO319 SOFT (5 PACK) BEFORE FD991 CLIP - SPRING REF MFO319 SOFT (5 PACK) BEFORE FD991
Worcester part no. 87161405130
£9.24
10   WIRE SADDLE
Worcester part no. 87161411710
£17.15
