VALOR GAS FIRE
BLACK BEAUTY UNIGAS II MODEL 473 - (Exploded View)
Appliance Code: 32-810-58

Appliance Diagram


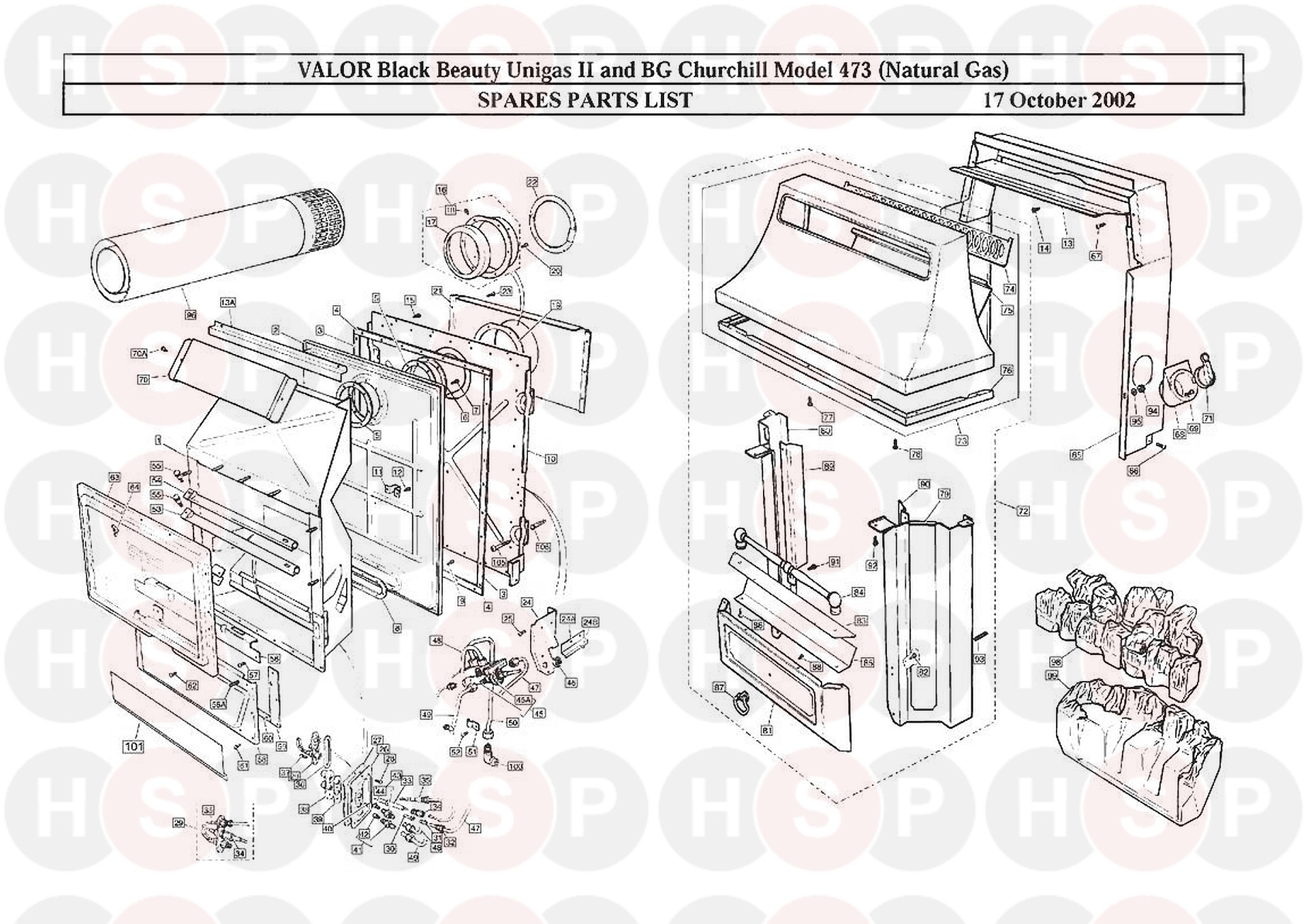

Exploded View diagram for Valor Gas Fire Black Beauty Unigas II Model 473Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE FIREBOX UNIT ASSY
Valor Gas Fire part no. 0524799
2   OBSOLETE AIR DUCT TRAY
Valor Gas Fire part no. 0524809
3   OBSOLETE AIR DUCT TRAY SIDES GASKET
Valor Gas Fire part no. 0549179
4   OBSOLETE GASKET AIR DUCT TRAY TOP/BOTTO
Valor Gas Fire part no. 0549189
5   OBSOLETE FLUE SPIGOT VENT GASKET
Valor Gas Fire part no. 0524819
6   OBSOLETE FLUE SPIGOT
Valor Gas Fire part no. 0524829
7   OBSOLETE SCREW
Valor Gas Fire part no. 0534729
8   OBSOLETE AIR DUCT VENT GASKET
Valor Gas Fire part no. 0524839
9   OBSOLETE SCREW
Valor Gas Fire part no. 0534729
10   BACK PANEL ASSY
Valor Gas Fire part no. 0524849
11   OBSOLETE 479 SPACER BRKT
Valor Gas Fire part no. 0550799
12   8X3/8 SCREW
Valor Gas Fire part no. 0511569
13   TOP HEATSHIELD ASSY
Valor Gas Fire part no. 0524859
13A   OBSOLETE AIR DUCT TRAY COVER
Valor Gas Fire part no. 0538689
14   OBSOLETE SCREW
Valor Gas Fire part no. 0509829
15   OBSOLETE M4X10 POZI PAN T/ITE BLACK SCREW
Valor Gas Fire part no. 0513509
16   INLET SPIGOT ASSY
Valor Gas Fire part no. 0524869
17   OBSOLETE SPIGOT RESTRICTOR
Valor Gas Fire part no. 0524879
18   8X3/8 SCREW
Valor Gas Fire part no. 0511569
19   OBSOLETE GASKET
Valor Gas Fire part no. 0524329
20   8X3/8 SCREW
Valor Gas Fire part no. 0511569
21   OBSOLETE COOLER PLATE
Valor Gas Fire part no. 0524889
22   OBSOLETE SEALING RING
Valor Gas Fire part no. 0524899
23   OBSOLETE M4X10 POZI PAN T/ITE BLACK SCREW
Valor Gas Fire part no. 0513509
24   OBSOLETE GAS TAP BRKT
Valor Gas Fire part no. 0524909
24A   OBSOLETE SUPPORT ANGLE
Valor Gas Fire part no. 0525359
24B Part number 0534629, SCREW SCREW
Valor Gas Fire part no. 0534629
25 Part number 0502649, NOW USE 633988 M5X10 POZI PAN HD SCREW BLACK NOW USE 633988 M5X10 POZI PAN HD SCREW BLACK
Valor Gas Fire part no. 0502649
25   SCREW M5X10 PAN.POZ.BLACK
Valor Gas Fire part no. 633988
26   OBSOLETE BULKHEAD PLATE
Valor Gas Fire part no. 0524919
27   OBSOLETE BULKHEAD GASKET
Valor Gas Fire part no. 0524929
28   OBSOLETE SCREW
Valor Gas Fire part no. 0534729
29 Part number 0524939, PILOT UNIT PILOT UNIT
Valor Gas Fire part no. 0524939
30 Part number 0524949, OBSOLETE PILOT INJECTOR OBSOLETE PILOT INJECTOR
Valor Gas Fire part no. 0524949
31   OBSOLETE PILOT INJECTOR OLIVE
Valor Gas Fire part no. 0524959
32   OBSOLETE TUBING NUT
Valor Gas Fire part no. 0513869
33 Part number 0524939, PILOT UNIT PILOT UNIT
Valor Gas Fire part no. 0524939
33 Part number 0524979, ELECTRODE ELECTRODE
Valor Gas Fire part no. 0524979
34   OBSOLETE ELECTRODE EXTENDED NUT
Valor Gas Fire part no. 0524989
35 Part number 0524939, PILOT UNIT PILOT UNIT
Valor Gas Fire part no. 0524939
35 Part number 0524999, THERMOCOUPLE THERMOCOUPLE
Valor Gas Fire part no. 0524999
36   OBSOLETE PILOT UNIT GASKET
Valor Gas Fire part no. 0525009
37   OBSOLETE SCREW
Valor Gas Fire part no. 0534729
38 Part number 0525019, INJECTOR CARRIER INJECTOR CARRIER
Valor Gas Fire part no. 0525019
39   OBSOLETE INJECTOR CARRIER GASKET
Valor Gas Fire part no. 0525029
40   OBSOLETE SCREW
Valor Gas Fire part no. 0534729
41 Part number 0525039, INJECTOR & CARRIER ASSY INJECTOR & CARRIER ASSY
Valor Gas Fire part no. 0525039
43 Part number 0525049, INJECTOR & CARRIER ASSY INJECTOR & CARRIER ASSY
Valor Gas Fire part no. 0525049
44 Part number 0525059, INJECTOR INJECTOR
Valor Gas Fire part no. 0525059
45 Part number 0525069, OBSOLETE Gas Tap OBSOLETE GAS TAP
Valor Gas Fire part no. 0525069
45A Part number 0525339, PIEZO GENERATOR 800mm PIEZO GENERATOR 800MM
Valor Gas Fire part no. 0525339
46   LOCK NUT
Valor Gas Fire part no. 0502739
47   OBSOLETE PIPE ASSY : PILOT TAP
Valor Gas Fire part no. 0525079
48   OBSOLETE PIPE ASSY : TAP DEC BNR
Valor Gas Fire part no. 0525089
49   OBSOLETE PIPE ASSY : TAP MAIN BNR
Valor Gas Fire part no. 0525099
50   OBSOLETE PIPE ASSY : INLET
Valor Gas Fire part no. 0525109
51   OBSOLETE PIPE CLAMP
Valor Gas Fire part no. 0549719
52   OBSOLETE SCREW
Valor Gas Fire part no. 0533329
53 Part number 0525119, MAIN BURNER TUBE MAIN BURNER TUBE
Valor Gas Fire part no. 0525119
54 Part number 0525129, DECORATIVE BURNER TUBE DECORATIVE BURNER TUBE
Valor Gas Fire part no. 0525129
55   OBSOLETE SECURING LWR FR PANEL SCREW
Valor Gas Fire part no. 0549109
56 Part number 0525139, Front Support Bar FRONT SUPPORT BAR
Valor Gas Fire part no. 0525139
57   OBSOLETE M4X10 POZI PAN T/ITE BLACK SCREW
Valor Gas Fire part no. 0513509
58 Part number 0538709, OBSOLETE BURNER BOX UNIT ASSY OBSOLETE BURNER BOX UNIT ASSY
Valor Gas Fire part no. 0538709
58A   OBSOLETE M5 STUD
Valor Gas Fire part no. 0549319
59   OBSOLETE F/BOX SIDES BURNER/BOX GASKET
Valor Gas Fire part no. 0549549
60 Part number 0549559, OBSOLETE AIR DUCT BASE/B BOX GASKET OBSOLETE AIR DUCT BASE/B BOX GASKET
Valor Gas Fire part no. 0549559
60   OBSOLETE BALANCED FLUE SEAL SET
Valor Gas Fire part no. 5512001
61   OBSOLETE M4X10 POZI PAN T/ITE BLACK SCREW
Valor Gas Fire part no. 0513509
62   OBSOLETE M4X10 POZI PAN T/ITE BLACK SCREW
Valor Gas Fire part no. 0513509
63 Part number 0525159, OBSOLETE WINDOW UNIT OBSOLETE WINDOW UNIT
Valor Gas Fire part no. 0525159
64 Part number 0533249, OBSOLETE WING NUT OBSOLETE WING NUT
Valor Gas Fire part no. 0533249
64 Part number 636102, OBSOLETE NUT WING M5 SN OBSOLETE NUT WING M5 SN
Valor Gas Fire part no. 636102
66 Part number 0502649, NOW USE 633988 M5X10 POZI PAN HD SCREW BLACK NOW USE 633988 M5X10 POZI PAN HD SCREW BLACK
Valor Gas Fire part no. 0502649
66   SCREW M5X10 PAN.POZ.BLACK
Valor Gas Fire part no. 633988
67 Part number 0534629, SCREW SCREW
Valor Gas Fire part no. 0534629
68   OBSOLETE BEZEL
Valor Gas Fire part no. 0525179
69   M4X12 POZI PAN TT CH/B
Valor Gas Fire part no. 0552839
70   OBSOLETE FIREBOX TOP SHIELD
Valor Gas Fire part no. 0525189
70A Part number 0534629, SCREW SCREW
Valor Gas Fire part no. 0534629
71 Part number 0525199, CONTROL KNOB & CLIP CONTROL KNOB & CLIP
Valor Gas Fire part no. 0525199
74   OUTLET GRILLE ATB10
Valor Gas Fire part no. 0520119
75   OBSOLETE CANOPY BAFFLE
Valor Gas Fire part no. 0520129
76   OBSOLETE CANOPY TRIM
Valor Gas Fire part no. 0520139
77 Part number 0534629, SCREW SCREW
Valor Gas Fire part no. 0534629
78 Part number 0534629, SCREW SCREW
Valor Gas Fire part no. 0534629
82   SCREW NO8 X 3/8INCH
Valor Gas Fire part no. 0547479
84   OBSOLETE DECORATIVE FRONT BAR
Valor Gas Fire part no. 0561299
85   OBSOLETE APRON EXTENSION
Valor Gas Fire part no. 0561309
86   OBSOLETE SCREW
Valor Gas Fire part no. 0533329
87   PULL RING
Valor Gas Fire part no. 0509619
88   OBSOLETE SCREW 5/32X3/8 SLOT HEAD
Valor Gas Fire part no. 0561319
89   OBSOLETE RH SIDE TRIM
Valor Gas Fire part no. 0525229
90   OBSOLETE LH SIDE TRIM
Valor Gas Fire part no. 0525239
91   SCREW
Valor Gas Fire part no. 0513359
92 Part number 0534629, SCREW SCREW
Valor Gas Fire part no. 0534629
93   OBSOLETE M5 STUD
Valor Gas Fire part no. 0557569
94   OBSOLETE KNURLED THUMB NUT
Valor Gas Fire part no. 0514679
95   OBSOLETE .8MM BLACK FIBRE WASHER
Valor Gas Fire part no. 0549419
96 Part number 0524669, FLUE UNIT & TERMINAL END FLUE UNIT & TERMINAL END
Valor Gas Fire part no. 0524669
98 Part number 0525269, COALS PACK COALS PACK
Valor Gas Fire part no. 0525269
99 Part number 0525259, COAL BED COAL BED
Valor Gas Fire part no. 0525259
100 Part number 0532519, ELBOW ELBOW
Valor Gas Fire part no. 0532519
