VALOR GAS FIRE
MODEL 348 BLACK BEAUTY - (Engine)
Appliance Code: 32-032-90

Appliance Diagram


Engine diagram for Valor Gas Fire Model 348 Black BeautyClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

10   OBSOLETE BACK PANEL INNER
Valor Gas Fire part no. 5135177

20   OBSOLETE INFILL PLATE
Valor Gas Fire part no. 3002195

30   OBSOLETE SCREW 8X3/8 ZP POZI PAN
Valor Gas Fire part no. 100K150

40 Part number 3002184, BURNER BAFFLE BURNER BAFFLE
Valor Gas Fire part no. 3002184
50 Part number 5111246, Assy Box Radiator ASSY BOX RADIATOR
Valor Gas Fire part no. 5111246
60   OBSOLETE FLUE SPIGOT
Valor Gas Fire part no. 3000518

70   OBSOLETE RESTRICTOR (UNPTD)
Valor Gas Fire part no. 3002300

80   OBSOLETE GASKET - FLUE SPIGOT
Valor Gas Fire part no. 3001008

90 Part number 0534629, SCREW SCREW
Valor Gas Fire part no. 0534629
100   OBSOLETE FOOT
Valor Gas Fire part no. 3000893

120   OBSOLETE NUT M5 PRESSED STEEL
Valor Gas Fire part no. 100B403

130   OBSOLETE FLOOR PLATE
Valor Gas Fire part no. 3000827

140   OBSOLETE SPARK GENERATOR BRKT
Valor Gas Fire part no. 5134532

150 Part number 5110489, Air Guide Plate AIR GUIDE PLATE
Valor Gas Fire part no. 5110489
160   OBSOLETE PILOT SHIELD
Valor Gas Fire part no. 3000840

170   NO8X3/8 S/T NI PL MIN 5 MICRON
Valor Gas Fire part no. 100A785
180 Part number 0540899, F.S.D VALVE F.S.D VALVE
Valor Gas Fire part no. 0540899

180   OBSOLETE FSD VALVE ATB08
Valor Gas Fire part no. 730K146

190   OBSOLETE LOCKNUT
Valor Gas Fire part no. 0528839

190   OBSOLETE LOCKNUT ATB08
Valor Gas Fire part no. 220K830

200   OBSOLETE TEE PIECE
Valor Gas Fire part no. 5134437

210   GAS VALVE - SLIDER 348
Valor Gas Fire part no. 5134751
220   OBSOLETE OLIVE NUT
Valor Gas Fire part no. 0523389

220   OBSOLETE 8MM OLIVE NUT ATB08
Valor Gas Fire part no. 220K567

230   OBSOLETE 8.2MM OLIVE
Valor Gas Fire part no. 5137254

240 Part number 5108851, OBSOLETE Interrupter Block OBSOLETE INTERRUPTER BLOCK
Valor Gas Fire part no. 5108851

250   OBSOLETE CONTROLS MOUNTING BRACKET
Valor Gas Fire part no. 5134436

260 Part number 0540959, MICROSWITCH MICROSWITCH
Valor Gas Fire part no. 0540959
260   OBSOLETE IGNITION MICROSWITCH ATB08
Valor Gas Fire part no. 720A269

270   OBSOLETE INSULATION PAD
Valor Gas Fire part no. 620B099

280   OBSOLETE NO.2X1/2 PAN HD POZI SCREW
Valor Gas Fire part no. 0553359

280   OBSOLETE NO.2X1/2 PAN HD POZI ATB08
Valor Gas Fire part no. 100A503

290   OBSOLETE MICROSWITCH & LEAD ASSY ATB08
Valor Gas Fire part no. 020K931

290 Part number 0540969, OBSOLETE MICROSWITCH & LEADS ASSY OBSOLETE MICROSWITCH & LEADS ASSY
Valor Gas Fire part no. 0540969

300   OBSOLETE BRIDGING BRACKET
Valor Gas Fire part no. 0573339

300   OBSOLETE BRACKET BRIDGING ATB08
Valor Gas Fire part no. 320B285

310   OBSOLETE LOCKNUT
Valor Gas Fire part no. 0539689

310   OBSOLETE LOCKNUT ATB08
Valor Gas Fire part no. 220K863

320 Part number 0575749, CONTROL LEVER ASSY CONTROL LEVER ASSY
Valor Gas Fire part no. 0575749
330   LOCK NUT
Valor Gas Fire part no. 0502739
340   OBSOLETE NUT
Valor Gas Fire part no. 0532259

340 Part number 062441, NUT-FULL HEX 6MM ZINC PLTD NUT-FULL HEX 6MM ZINC PLTD
Valor Gas Fire part no. 062441
350   WASHER SHAKEPROOF
Valor Gas Fire part no. 0540939
370   OBSOLETE PIVOT PIN
Valor Gas Fire part no. 0540949

380   IGNITION CABLE
Valor Gas Fire part no. 5138802
390   INJECTOR CAT 28 SIZE 170
Valor Gas Fire part no. 5135301
400   INJECTOR CARRIER
Valor Gas Fire part no. 5134431
410   INJECTOR CARRIER ASSY LOWER
Valor Gas Fire part no. 5134447
420   OBSOLETE SCREW - PRESSURE TEST
Valor Gas Fire part no. 220K561

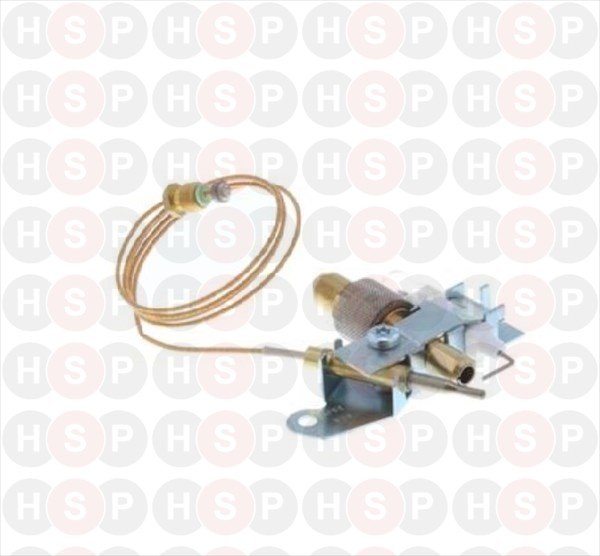

430   PILOT UNIT - COPRECI NG
Valor Gas Fire part no. 5139239
440   OBSOLETE PIPE - TAP TO INJECTOR
Valor Gas Fire part no. 5134456

450   OBSOLETE PIPE - TEE TO INJECTOR
Valor Gas Fire part no. 5134457

460   PIPE INLET
Valor Gas Fire part no. 5134797
470   PIPE PILOT
Valor Gas Fire part no. 5134798
480   OBSOLETE STIFFENING BRACKET
Valor Gas Fire part no. 5135624

490   OBSOLETE SCREW M5X15 PAN STEEL
Valor Gas Fire part no. 100D166

500   OBSOLETE WING NUT
Valor Gas Fire part no. 100K296

510   OBSOLETE M5 WASHER SHAKEPROOF EXTERNAL
Valor Gas Fire part no. 100K310

520   SLIDER ASSY
Valor Gas Fire part no. 5135276
530 Part number 5110472, RADIANT PACK (4) RADIANT PACK (4)
Valor Gas Fire part no. 5110472
560   OBSOLETE SCREW M4 SELF CUTTING
Valor Gas Fire part no. 0541319

590   KNOB
Valor Gas Fire part no. 5134574
600 Part number 0541179, OBSOLETE SHOULDER SCREW OBSOLETE SHOULDER SCREW
Valor Gas Fire part no. 0541179

610   SLIDER PLATE
Valor Gas Fire part no. 5134450
620 Part number 5122420, SPARK GENERATOR SPARK GENERATOR
Valor Gas Fire part no. 5122420
630 Part number 0542349, OBSOLETE Electrode 245-255MM Lead OBSOLETE ELECTRODE 245-255MM LEAD
Valor Gas Fire part no. 0542349

640   OBSOLETE ACCESSORY PACK
Valor Gas Fire part no. 3001080

650   OBSOLETE INLET ELBOW
Valor Gas Fire part no. 020A050

660   CLOSURE PLATE ASSY
Valor Gas Fire part no. 5135646
660   CLOSURE PLATE ASSY
Valor Gas Fire part no. 5135646
670   OBSOLETE COVER PLATE - HEAT EXCHANGER
Valor Gas Fire part no. 3000847BY

680   OBSOLETE COVER STRIP
Valor Gas Fire part no. 3001707AY

880   OBSOLETE FOOT SUPPORT ASSY
Valor Gas Fire part no. 5111160

960   EXTENSION BRACKET (KNOB)
Valor Gas Fire part no. 5134564
1190   BURNER ASSEMBLY
Valor Gas Fire part no. 5134445
1200   OBSOLETE RESTRICTOR
Valor Gas Fire part no. 3002300A4

1210   OBSOLETE FOOT ASSEMBLY
Valor Gas Fire part no. 3001023

1220   OBSOLETE COVER PLATE
Valor Gas Fire part no. 5110593BY

1270   OBSOLETE FIX
Valor Gas Fire part no. 100K007

1310   PILOT, LEAD & BAFFLE REPLACEMENT KIT
Valor Gas Fire part no. 5138847
1320   OBSOLETE PILOT BAFFLE
Valor Gas Fire part no. 5138974

1390   OBSOLETE TIE - LEAD
Valor Gas Fire part no. 600K250
