VALOR GAS FIRE
MODEL 754 AMOUR, ARTURA, ASPECT, ASPECT GLASS, ECLIPSE, FASCINATION, LANDSCAPE, SERENITY, TRANQUILITY, VISIA MODEL - (Engine)
Appliance Code: 32-032-59

Appliance Diagram

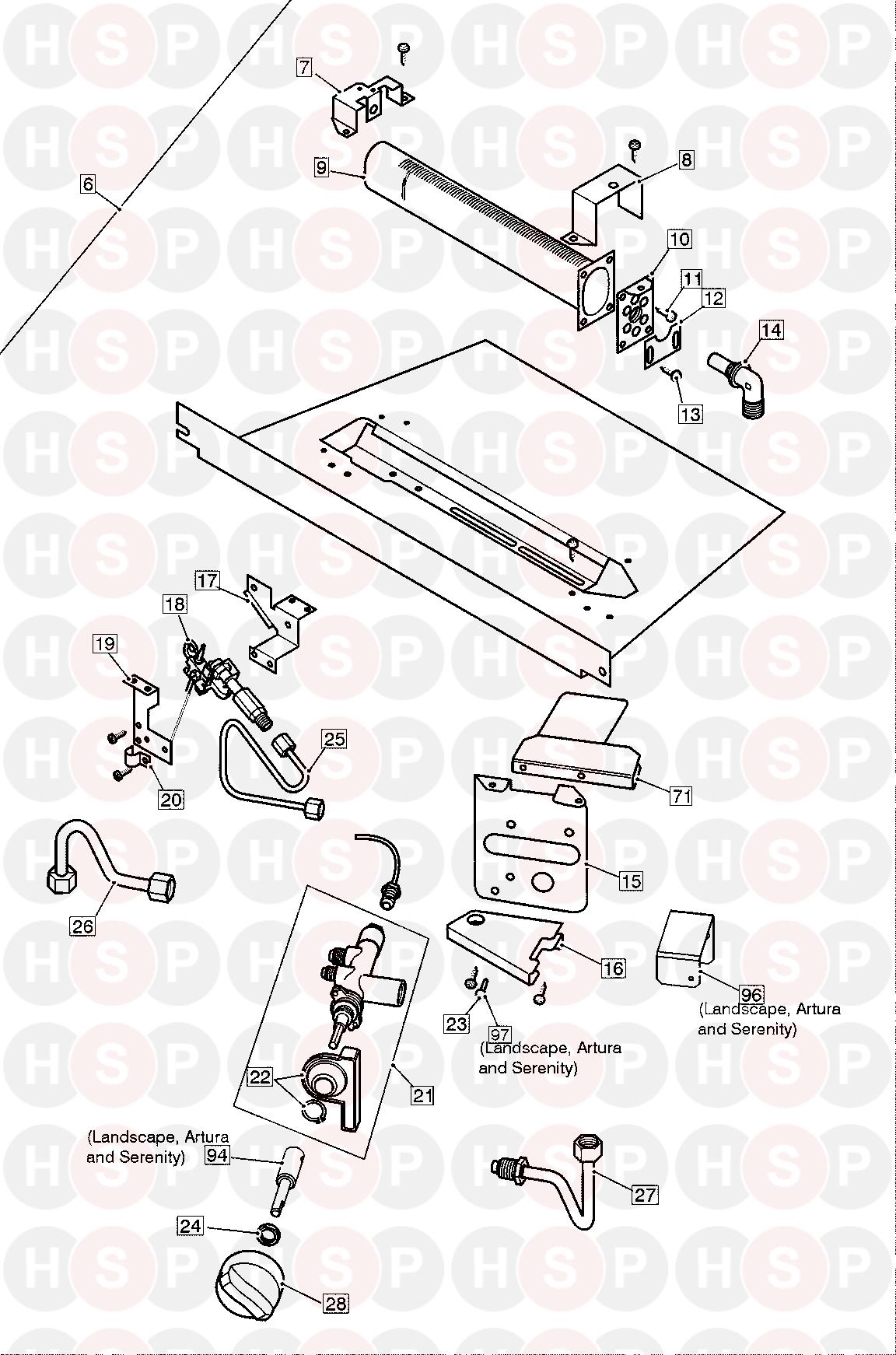

Engine diagram for Valor Gas Fire Model 754 Amour, Artura, Aspect, Aspect Glass, Eclipse, Fascination, Landscape, Serenity, Tranquility, Visia ModelClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

6   OBSOLETE BURNER MODULE ASSY (BOWL)
Valor Gas Fire part no. 5108415

6   OBSOLETE BURNER MODULE ASSY
Valor Gas Fire part no. 5113171

6   OBSOLETE BURNER MODULE ASSY. -ARTURA
Valor Gas Fire part no. 5113512

6   OBSOLETE BURNER MODULE ASSY(BOWL)
Valor Gas Fire part no. 5130897

7   OBSOLETE BURNER BRACKET LH
Valor Gas Fire part no. 3003065

8   OBSOLETE BURNER BRACKET RH
Valor Gas Fire part no. 3003064

9   OBSOLETE BURNER BOWL ATB08
Valor Gas Fire part no. 3003205

10   OBSOLETE AERATION PLATE
Valor Gas Fire part no. 3003170

11   OBSOLETE NO8 X 3/8 PAN HD POZI SCREWS
Valor Gas Fire part no. 0536699

12   OBSOLETE AERATION COVER PLATE
Valor Gas Fire part no. 5108408

13   OBSOLETE NO8 X 3/8 PAN HD POZI SCREWS
Valor Gas Fire part no. 0536699

14   INJECTOR CAT 82 SIZE 065 ATB08
Valor Gas Fire part no. 5108138
15   BRACKET GAS TAP
Valor Gas Fire part no. 3003182
16   OBSOLETE HEAT BAFFLE
Valor Gas Fire part no. 5115223

17   OBSOLETE PILOT BRACKET
Valor Gas Fire part no. 3003176

18 Part number 3002988, PILOT UNIT(STAMPED-166)ATB08 PILOT UNIT(STAMPED-166)ATB08
Valor Gas Fire part no. 3002988
19   BRACKET INLET PIPE
Valor Gas Fire part no. 3003177
20   OBSOLETE PIPE CLAMP
Valor Gas Fire part no. 0549719

21 Part number 5108221, GAS TAP BOWL ATB08 GAS TAP BOWL ATB08
Valor Gas Fire part no. 5108221
22 Part number 5108923, OBSOLETE SPARK GENERATOR & CIRCLIP OBSOLETE SPARK GENERATOR & CIRCLIP
Valor Gas Fire part no. 5108923

23   OBSOLETE INDICATOR
Valor Gas Fire part no. 0530939

24   LOCK NUT
Valor Gas Fire part no. 0502739
25   PIPE ASSY PILOT (MANUAL)
Valor Gas Fire part no. 5108783
26   PIPE ASSY INLET (MANUAL)
Valor Gas Fire part no. 5108659
27   OBSOLETE PIPE ASSY BURNER (MANUAL)
Valor Gas Fire part no. 5108784

28 Part number 0545979, CONTROL KNOB CONTROL KNOB
Valor Gas Fire part no. 0545979
71   OBSOLETE HEAT BAFFLE ASSY
Valor Gas Fire part no. 5110197

94   ADAPTER
Valor Gas Fire part no. 5112269
96   OBSOLETE BRACKET (OFF POSITION)
Valor Gas Fire part no. 5112491
