VALOR GAS FIRE
ADORN MODEL 622 (ADORN, VISAGE, ICON, ELEGAN) - (Ceramics)
Appliance Code: 32-811-33

Appliance Diagram


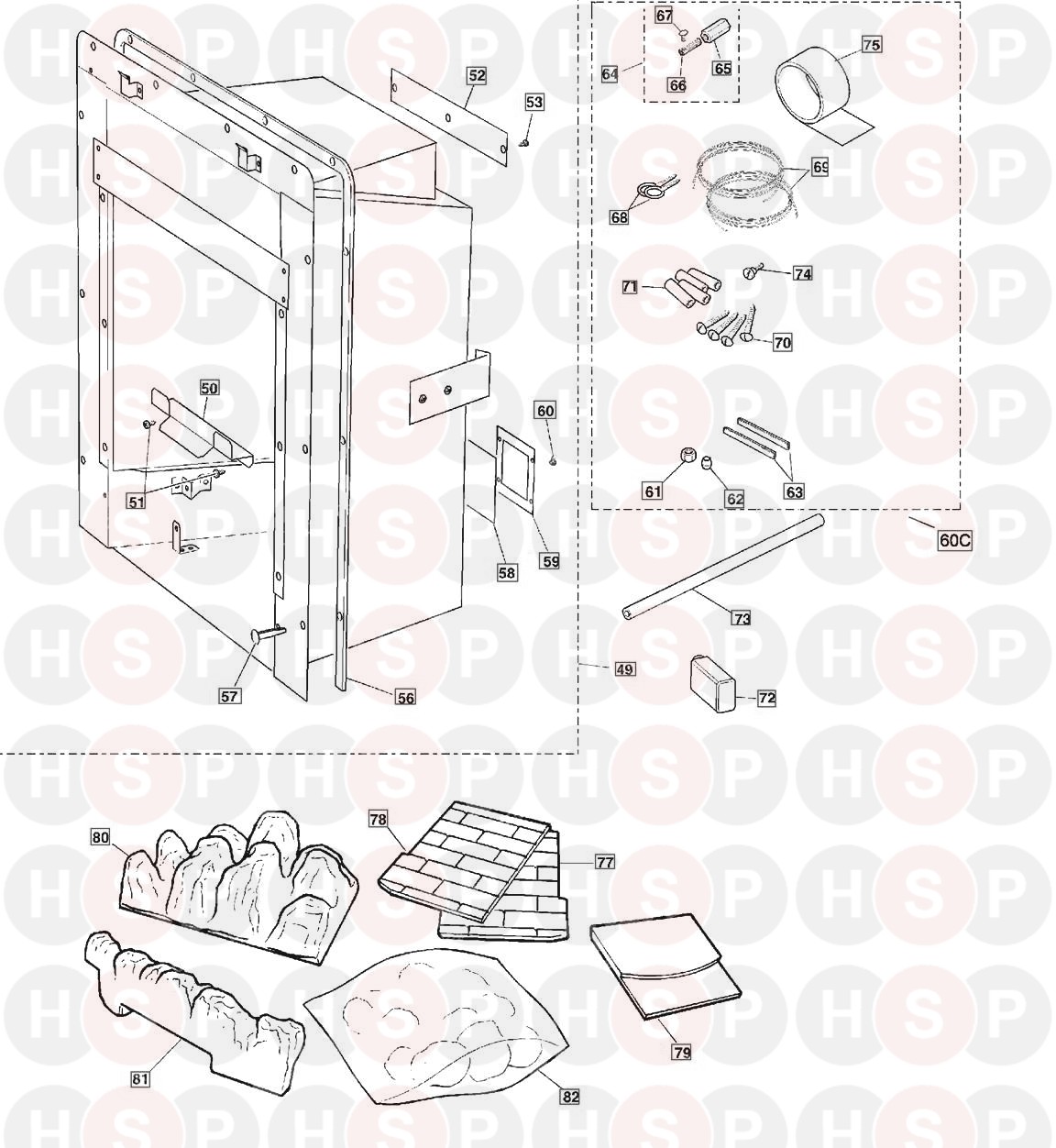

Ceramics diagram for Valor Gas Fire Adorn Model 622 (Adorn, Visage, Icon, Elegan)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

49   OBSOLETE CONVECTION BOX UNIT ASSY
Valor Gas Fire part no. 0541109

50   OBSOLETE REAR COAL SUPPORT
Valor Gas Fire part no. 0541129

51   OBSOLETE NO8X3/8 SELF TAP SCREW
Valor Gas Fire part no. 0536809

52   RESTRICTOR PLATE
Valor Gas Fire part no. 0541139
53 Part number 0534629, SCREW SCREW
Valor Gas Fire part no. 0534629
56   OBSOLETE TOP & SIDES SEAL
Valor Gas Fire part no. 0518789

57   OBSOLETE (FASTENER)1/2 POINTED BINDER
Valor Gas Fire part no. 0542879

58   OBSOLETE SEAL
Valor Gas Fire part no. 0541449

59   OBSOLETE CLAMP PLATE
Valor Gas Fire part no. 0541439

60 Part number 0534629, SCREW SCREW
Valor Gas Fire part no. 0534629
60C Part number 0559689, 622 Accessory Pack 622 ACCESSORY PACK
Valor Gas Fire part no. 0559689
61   OBSOLETE OLIVE NUT
Valor Gas Fire part no. 0523389

62   OBSOLETE OLIVE
Valor Gas Fire part no. 0519779

63 Part number 0541159, NOW USE 5512003 SEAL U BOTTOM/SIDES NOW USE 5512003 SEAL U BOTTOM/SIDES
Valor Gas Fire part no. 0541159

63 Part number 3002221, NOW USE 5512003 SEAL NOW USE 5512003 SEAL
Valor Gas Fire part no. 3002221

63 Part number 5512003, INSET SEAL KIT INSET SEAL KIT
Valor Gas Fire part no. 5512003
63 Part number 5512003, INSET SEAL KIT INSET SEAL KIT
Valor Gas Fire part no. 5512003
64 Part number 0542739, NOW USE 5109975 CABLE CLAMPING UNIT ASSEMBLY NOW USE 5109975 CABLE CLAMPING UNIT ASSEMBLY
Valor Gas Fire part no. 0542739

64 Part number 5109975, CABLE RETENTION KIT CABLE RETENTION KIT
Valor Gas Fire part no. 5109975
65 Part number 0542739, NOW USE 5109975 CABLE CLAMPING UNIT ASSEMBLY NOW USE 5109975 CABLE CLAMPING UNIT ASSEMBLY
Valor Gas Fire part no. 0542739

65 Part number 0542749, NOW USE 5109975 CABLE UNIT ASSY NOW USE 5109975 CABLE UNIT ASSY
Valor Gas Fire part no. 0542749

65 Part number 5109975, CABLE RETENTION KIT CABLE RETENTION KIT
Valor Gas Fire part no. 5109975
66   NOW USE 5109975 CABLE ADJUSTER BOLT
Valor Gas Fire part no. 0542759

66 Part number 5109975, CABLE RETENTION KIT CABLE RETENTION KIT
Valor Gas Fire part no. 5109975
67   OBSOLETE M4X12MM TH/SCREW
Valor Gas Fire part no. 0542769

68   OBSOLETE 12G X 55MM SCREW-EYE
Valor Gas Fire part no. 0542779

69 Part number 0542799, NOW USE 5109975 TENSION WIRE NOW USE 5109975 TENSION WIRE
Valor Gas Fire part no. 0542799

69 Part number 5109975, CABLE RETENTION KIT CABLE RETENTION KIT
Valor Gas Fire part no. 5109975
70   OBSOLETE WOOD SCREW
Valor Gas Fire part no. 0508409

71   OBSOLETE NO.12X1.5 FIBRE RAWLPLUG
Valor Gas Fire part no. 0542789

72 Part number 0553389, 9 VOLT PP35 BATTERY 9 VOLT PP35 BATTERY
Valor Gas Fire part no. 0553389
73 Part number 0525949, SMOKE MATCH HOLDER SMOKE MATCH HOLDER
Valor Gas Fire part no. 0525949
73 Part number 0541169, NOW USE 0525949 SMOKE HOLDER NOW USE 0525949 SMOKE HOLDER
Valor Gas Fire part no. 0541169

74 Part number 0541179, OBSOLETE SHOULDER SCREW OBSOLETE SHOULDER SCREW
Valor Gas Fire part no. 0541179

75 Part number 0563069, OBSOLETE SEALING TAPE BRIDGING TUBE OBSOLETE SEALING TAPE BRIDGING TUBE
Valor Gas Fire part no. 0563069

77 Part number 0541249, MOD. WALLS KIT - 622 MOD. WALLS KIT - 622
Valor Gas Fire part no. 0541249
78 Part number 0541249, MOD. WALLS KIT - 622 MOD. WALLS KIT - 622
Valor Gas Fire part no. 0541249
79 Part number 0541259, OBSOLETE BACK BRICK OBSOLETE BACK BRICK
Valor Gas Fire part no. 0541259

80 Part number 0541269, OBSOLETE COAL BASE OBSOLETE COAL BASE
Valor Gas Fire part no. 0541269

80   OBSOLETE COAL BASE
Valor Gas Fire part no. 0544969

81 Part number 0541279, OBSOLETE FRONT COAL OBSOLETE FRONT COAL
Valor Gas Fire part no. 0541279

82 Part number 0541289, COAL SET COAL SET
Valor Gas Fire part no. 0541289
