VALOR GAS FIRE
MODEL BR627 DREAM FIRESLIDE, COALFLAME & LIMOUSIN - (Burner Tray)
Appliance Code: 32-032-22

Appliance Diagram


Burner Tray diagram for Valor Gas Fire Model Br627 Dream Fireslide, Coalflame & LimousinClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE BURNER UNIT ASSY BR622
Valor Gas Fire part no. 0571739

2   OBSOLETE SUPPORT BRACKET
Valor Gas Fire part no. 0572219

3 Part number 0540979, PILOT/ODS ASSY PILOT/ODS ASSY
Valor Gas Fire part no. 0540979
3 Part number 0544929, PILOT UNIT PILOT UNIT
Valor Gas Fire part no. 0544929
4 Part number 0567619, LINT GUARD LINT GUARD
Valor Gas Fire part no. 0567619
5   AIR SHUTTER
Valor Gas Fire part no. 0546139
6   OBSOLETE INJECTOR CARRIER
Valor Gas Fire part no. 0572209

7   OBSOLETE BURNER PLAQUE & GASKET SET
Valor Gas Fire part no. 0569549

8   OBSOLETE GASKET BOTTOM
Valor Gas Fire part no. 0574719

9   OBSOLETE GAUZE
Valor Gas Fire part no. 0574729

10   OBSOLETE GASKET TOP
Valor Gas Fire part no. 0574739

11   OBSOLETE BURNER CLAMP
Valor Gas Fire part no. 0574749

12 Part number 0540899, F.S.D VALVE F.S.D VALVE
Valor Gas Fire part no. 0540899

13   OBSOLETE ELBOW OLIVE & NUT ASSY
Valor Gas Fire part no. 0540909

14   OBSOLETE OLIVE NUT
Valor Gas Fire part no. 0523389

15   OBSOLETE OLIVE
Valor Gas Fire part no. 0519779

16 Part number 0540919, GAS VALVE GAS VALVE
Valor Gas Fire part no. 0540919
17 Part number 0522389, OBSOLETE THERMOCOUPLE INTERRUPTER OBSOLETE THERMOCOUPLE INTERRUPTER
Valor Gas Fire part no. 0522389

18   CONTROLS BRACKET
Valor Gas Fire part no. 0573329

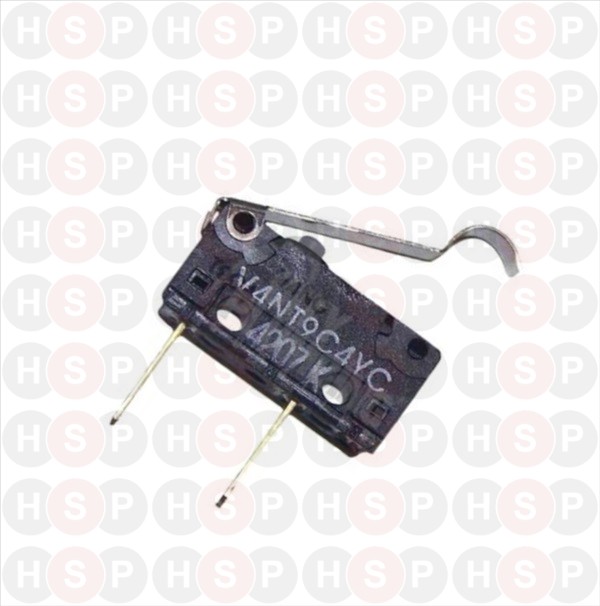

19 Part number 0540959, MICROSWITCH MICROSWITCH
Valor Gas Fire part no. 0540959
20 Part number 0554999, Insulation Pad INSULATION PAD
Valor Gas Fire part no. 0554999
21   OBSOLETE NO.2X1/2 PAN HD POZI SCREW
Valor Gas Fire part no. 0553359

22 Part number 0540969, OBSOLETE MICROSWITCH & LEADS ASSY OBSOLETE MICROSWITCH & LEADS ASSY
Valor Gas Fire part no. 0540969

23   OBSOLETE BRIDGING BRACKET
Valor Gas Fire part no. 0573339

24   OBSOLETE LOCKNUT
Valor Gas Fire part no. 0539689

25   LOCK NUT
Valor Gas Fire part no. 0502739
26   OBSOLETE INLET PIPE ASSY
Valor Gas Fire part no. 0573349

27 Part number 0541029, NOW USE SP020A050 INLET ELBOW ASSY NOW USE SP020A050 INLET ELBOW ASSY
Valor Gas Fire part no. 0541029

27 Part number 0581639, NOW USE SP020A050 ACCESSORY PACK ELBOW NOW USE SP020A050 ACCESSORY PACK ELBOW
Valor Gas Fire part no. 0581639

27   INLET ELBOW
Valor Gas Fire part no. SP020A050
28   PIPE ASSY VALVE TO INJECTOR
Valor Gas Fire part no. 0574759
29 Part number 0575749, CONTROL LEVER ASSY CONTROL LEVER ASSY
Valor Gas Fire part no. 0575749
30   WASHER SHAKEPROOF
Valor Gas Fire part no. 0540939
31   OBSOLETE NUT
Valor Gas Fire part no. 0532259

31 Part number 062441, NUT-FULL HEX 6MM ZINC PLTD NUT-FULL HEX 6MM ZINC PLTD
Valor Gas Fire part no. 062441
32   OBSOLETE PIVOT PIN
Valor Gas Fire part no. 0540949

33   OBSOLETE INJECTOR CAT 31 SIZE 440
Valor Gas Fire part no. 0569539

33   OBSOLETE INJECTOR
Valor Gas Fire part no. 0581199

34   OBSOLETE PIPE ASSY TAP TO PILOT
Valor Gas Fire part no. 0574769

35   OBSOLETE IGNITION CARRIER BRKT
Valor Gas Fire part no. 0573359

36   NOW USE 5122420 ELECTRONIC IGNITION UNIT
Valor Gas Fire part no. 0554949

36 Part number 5122420, SPARK GENERATOR SPARK GENERATOR
Valor Gas Fire part no. 5122420
37 Part number 0542349, OBSOLETE Electrode 245-255MM Lead OBSOLETE ELECTRODE 245-255MM LEAD
Valor Gas Fire part no. 0542349

38   OBSOLETE ELECTRODE LEAD
Valor Gas Fire part no. 0513199

39   OBSOLETE MICROSWITCH COVER PRINTED
Valor Gas Fire part no. 0573389

40   OBSOLETE PIPE CLAMP
Valor Gas Fire part no. 0549719

41   OBSOLETE GROMMET
Valor Gas Fire part no. 0574779

42   GROMMET
Valor Gas Fire part no. 0566349
43 Part number 0573309, OBSOLETE CONTROL KNOB OBSOLETE CONTROL KNOB
Valor Gas Fire part no. 0573309

44 Part number 0541179, OBSOLETE SHOULDER SCREW OBSOLETE SHOULDER SCREW
Valor Gas Fire part no. 0541179

49   OBSOLETE TRIM BURNER TRAY
Valor Gas Fire part no. 0574789

50 Part number 0572659, REAR COAL SUPPORT BRACKET REAR COAL SUPPORT BRACKET
Valor Gas Fire part no. 0572659
51   OBSOLETE SCREW PACK DREAM F/S
Valor Gas Fire part no. 0572429

52   OBSOLETE OLIVE NUT
Valor Gas Fire part no. 0523389

53   OBSOLETE OLIVE
Valor Gas Fire part no. 0519779

54 Part number 0566429, OBSOLETE FOAM SEAL OBSOLETE FOAM SEAL
Valor Gas Fire part no. 0566429

55 Part number 0542739, NOW USE 5109975 CABLE CLAMPING UNIT ASSEMBLY NOW USE 5109975 CABLE CLAMPING UNIT ASSEMBLY
Valor Gas Fire part no. 0542739

55 Part number 5109975, CABLE RETENTION KIT CABLE RETENTION KIT
Valor Gas Fire part no. 5109975
56 Part number 0542739, NOW USE 5109975 CABLE CLAMPING UNIT ASSEMBLY NOW USE 5109975 CABLE CLAMPING UNIT ASSEMBLY
Valor Gas Fire part no. 0542739

56 Part number 0542749, NOW USE 5109975 CABLE UNIT ASSY NOW USE 5109975 CABLE UNIT ASSY
Valor Gas Fire part no. 0542749

56 Part number 5109975, CABLE RETENTION KIT CABLE RETENTION KIT
Valor Gas Fire part no. 5109975
57   NOW USE 5109975 CABLE ADJUSTER BOLT
Valor Gas Fire part no. 0542759

58   OBSOLETE M4X12MM TH/SCREW
Valor Gas Fire part no. 0542769

59 Part number 0546339, NO. 10 X45 SCREW EYE NO. 10 X45 SCREW EYE
Valor Gas Fire part no. 0546339
60 Part number 0542799, NOW USE 5109975 TENSION WIRE NOW USE 5109975 TENSION WIRE
Valor Gas Fire part no. 0542799

60 Part number 5109975, CABLE RETENTION KIT CABLE RETENTION KIT
Valor Gas Fire part no. 5109975
61 Part number 0563069, OBSOLETE SEALING TAPE BRIDGING TUBE OBSOLETE SEALING TAPE BRIDGING TUBE
Valor Gas Fire part no. 0563069

62 Part number 0553389, 9 VOLT PP35 BATTERY 9 VOLT PP35 BATTERY
Valor Gas Fire part no. 0553389
71   OBSOLETE CONVECTION/HOTBOX UNIT ASSY
Valor Gas Fire part no. 0573829

71   OBSOLETE HOT BOX ASSY
Valor Gas Fire part no. 0578099

71   OBSOLETE HOT BOX ASSY
Valor Gas Fire part no. 0581799
