RAVENHEAT
CSI SYSTEM - NG/LPG WITH/WITHOUT TIMER - (Boiler Exploded View)
Appliance Code: 41-581-02

Appliance Diagram


Boiler Exploded View diagram for Ravenheat CSI System - NG/LPG With/Without TimerClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 0014FRO06005/0, INSTRUMENT PANEL-TIMER RSF82/84 CSI85 INSTRUMENT PANEL-TIMER RSF82/84 CSI85
Ravenheat part no. 0014FRO06005/0
2 Part number 0012COM06005/0, MAIN SWITCH RSF84/100 CSI 85 SYSTEM MAIN SWITCH RSF84/100 CSI 85 SYSTEM
Ravenheat part no. 0012COM06005/0		 £19.51
4 Part number 0012POT05005/0, D.H.W/C.H. POTENTIOMETER RSF82/84/100 D.H.W/C.H. POTENTIOMETER RSF82/84/100
Ravenheat part no. 0012POT05005/0		 £40.98
5 Part number 0007TER03010/0, OVERHEAT THERMOSTAT RSF82/84/100/ OVERHEAT THERMOSTAT RSF82/84/100/
Ravenheat part no. 0007TER03010/0		 £29.20
6 Part number 0001CAM06005/0, COMBUSTION CHAMBER CSI COMBUSTION CHAMBER CSI
Ravenheat part no. 0001CAM06005/0		 £107.04
7 Part number 0001DIA06005/0, FLUE RESTRICTION RING 79CSI FLUE RESTRICTION RING 79CSI
Ravenheat part no. 0001DIA06005/0		 £9.79
8 Part number 5027055, WATER PRESSURE GAUGE RSF82,84/100 WATER PRESSURE GAUGE RSF82,84/100
Ravenheat part no. 5027055		 £42.78
9 Part number 0007TER05005/0, DHW/CH SENSOR RSF82/84/100/CSI85/LS80 DHW/CH SENSOR RSF82/84/100/CSI85/LS80
Ravenheat part no. 0007TER05005/0		 £19.10
10 Part number 0014VET01005/0, SIGHT GLASS SIGHT GLASS
Ravenheat part no. 0014VET01005/0		 £7.79
13   FLUE HOOD
Ravenheat part no. 0001CAP06005/0		 £41.78
15 Part number 5021103, 500 MIL. AMP FUSE 500 MIL. AMP FUSE
Ravenheat part no. 5021103		 £0.89
16   PRINTED CONTROL BOARD SYSTEM
Ravenheat part no. 0012CIR05005/1		 £185.14
17 Part number 0014MAN06015/0, THERMOSTAT KNOB RSF84/100/85/SYS/LS80 THERMOSTAT KNOB RSF84/100/85/SYS/LS80
Ravenheat part no. 0014MAN06015/0		 £4.77
18 Part number 0012GEN05005/0, PRINT.IGN BRD SIT-BLUE84/82/100/85/SY/PR PRINT.IGN BRD SIT-BLUE84/82/100/85/SY/PR
Ravenheat part no. 0012GEN05005/0		 £193.83
21 Part number 5003066, COVER COMBUSTION CHAMBER COVER COMBUSTION CHAMBER
Ravenheat part no. 5003066
22 Part number 0008VAL03005/0, GAS VALVE - SIT GAS VALVE - SIT
Ravenheat part no. 0008VAL03005/0		 £199.12
25 Part number 5012114, PILOT BURNER ASSEMBLY NAT GAS PILOT BURNER ASSEMBLY NAT GAS
Ravenheat part no. 5012114
26 Part number 0002SCA06012/1, CSI HEAT EXCHANGER P.FIT CSI HEAT EXCHANGER P.FIT
Ravenheat part no. 0002SCA06012/1		 £246.74
27 Part number 0014RAC06005/0, CONDENSATE TRAP 3/4 CONDENSATE TRAP 3/4
Ravenheat part no. 0014RAC06005/0
29   PIPE COLD FEED BK FRAME - 3 WAY CSI
Ravenheat part no. 0010TUB06010/0		 £26.35
30 Part number 5015015/N, AIR PURGE VALVE (NEW TYPE) (KR) AIR PURGE VALVE (NEW TYPE) (KR)
Ravenheat part no. 5015015/N		 £12.08
31 Part number 5018025, GASKET 18.5 x 11.5 x 2 GASKET 18.5 X 11.5 X 2
Ravenheat part no. 5018025		 £0.77
32 Part number 5018030, GASKET 24 x 15 x 2 GASKET 24 X 15 X 2
Ravenheat part no. 5018030		 £0.77
33 Part number 0012VEN03005/0, RL108 FAN CSI 20/20 RSF84/100 58mm OUT RL108 FAN CSI 20/20 RSF84/100 58MM OUT
Ravenheat part no. 0012VEN03005/0		 £190.91
37 Part number 1015PAN06005/0, INS PAD SET CSI85, SYSTEM, PRIMARY INS PAD SET CSI85, SYSTEM, PRIMARY
Ravenheat part no. 1015PAN06005/0
39 Part number 0012FUS05015/0, INTERNAL FUSE 2A INTERNAL FUSE 2A
Ravenheat part no. 0012FUS05015/0		 £0.89
45 Part number 5023020, DEPRESSION CHAMBER PILOT SEAL DEPRESSION CHAMBER PILOT SEAL
Ravenheat part no. 5023020		 £4.26
46 Part number 0014GUA01020/0, FLUE GASKET (SUPPLIED WITH BOILER) FLUE GASKET (SUPPLIED WITH BOILER)
Ravenheat part no. 0014GUA01020/0		 £4.76
47   DEPRESSION CHAMBER CSI
Ravenheat part no. 0001CAM06010/0		 £107.04
48 Part number 5012096, PILOT INJECTOR 0.27 NATURAL GAS PILOT INJECTOR 0.27 NATURAL GAS
Ravenheat part no. 5012096		 £2.60
50 Part number 5021050, IGNITION ELECTRODE IGNITION ELECTRODE
Ravenheat part no. 5021050		 £10.06

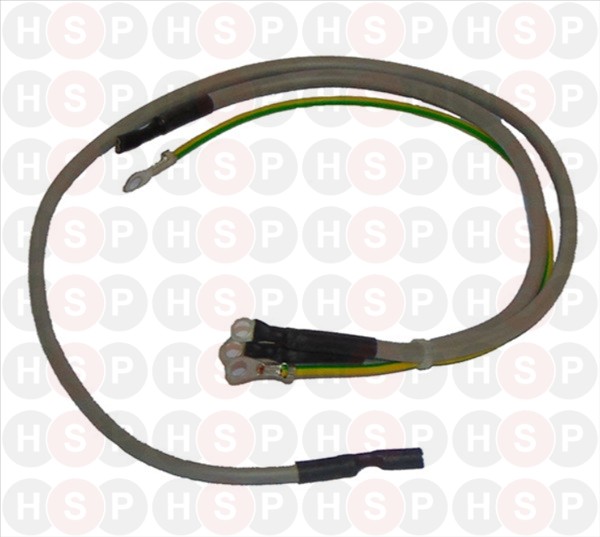

51 Part number 0012CAV06005/0, CABLE FOR ELECTRODE - CSI CABLE FOR ELECTRODE - CSI
Ravenheat part no. 0012CAV06005/0		 £7.24
61 Part number 0002SCA06005/0, CSI CONDENSING HEAT EXCHANGER CSI CONDENSING HEAT EXCHANGER
Ravenheat part no. 0002SCA06005/0		 £395.17
62 Part number 0003UGE03005/0, BURNER NOZZLE FOR NAT GAS 1.25 BURNER NOZZLE FOR NAT GAS 1.25
Ravenheat part no. 0003UGE03005/0		 £2.59
64   BACK FRAME RSF84/CSI
Ravenheat part no. 0001TEL08005/0		 £100.01
65 Part number 5018046, CH FLOW WASHER - DIVERTER VALVE CH FLOW WASHER - DIVERTER VALVE
Ravenheat part no. 5018046		 £0.77
68 Part number 0003BRU06015/0, MAIN BURNER NAT GAS - CSI PRIMARY MAIN BURNER NAT GAS - CSI PRIMARY
Ravenheat part no. 0003BRU06015/0		 £105.23
70 Part number 0013GUA03035/0, GAS VALVE GASKET 32X32X1.5 GAS VALVE GASKET 32X32X1.5
Ravenheat part no. 0013GUA03035/0		 £1.08
79 Part number 0005PRE03010/0, LOW WATER PRESSURE SWITCH LOW WATER PRESSURE SWITCH
Ravenheat part no. 0005PRE03010/0		 £34.72
80 Part number 5009080, 1 1/2" BSP CIRCULATION PUMP 1 1/2" BSP CIRCULATION PUMP
Ravenheat part no. 5009080		 £143.67

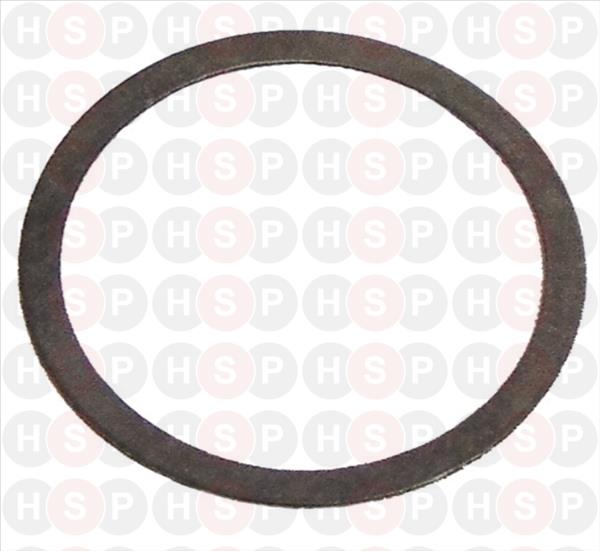

81 Part number 0013GUA01045/0, FIBRE GASKET 48 X 42 (SIGHT GLASS WASHER) FIBRE GASKET 48 X 42 (SIGHT GLASS WASHER)
Ravenheat part no. 0013GUA01045/0		 £2.12
82   1" BSP BRASS MANIFOLD - WILO
Ravenheat part no. 0011COL01005/2
83 Part number 5015010, SAFETY RELIEF VALVE SCREW TO SCREW FIT SAFETY RELIEF VALVE SCREW TO SCREW FIT
Ravenheat part no. 5015010		 £14.46
85 Part number 0012FUS05020/0, INTERNAL FUSE - 4A INTERNAL FUSE - 4A
Ravenheat part no. 0012FUS05020/0		 £0.89
87 Part number 5021312, NYLON TUBES FROM PRESS. SWITCH 0.5M NYLON TUBES FROM PRESS. SWITCH 0.5M
Ravenheat part no. 5021312		 £6.82
89 Part number 0005PRE05006/0, INT.AIR PRESS.SW. HUBA + BRACKET ALL MOD INT.AIR PRESS.SW. HUBA + BRACKET ALL MOD
Ravenheat part no. 0005PRE05006/0		 £47.58
93 Part number CSIFB, 90° Boiler Bend 90° BOILER BEND
Ravenheat part no. CSIFB		 £2,999.00
95 Part number NFE, FLUE EXTENSION (1M) CSI,820,82,84,100 FLUE EXTENSION (1M) CSI,820,82,84,100
Ravenheat part no. NFE
97   OBSOLETE
Ravenheat part no. 0019TER06005/0
100   8 LT EXPANSION VESSEL - 3/8 THREAD
Ravenheat part no. 0004VAS06010/0		 £81.39
105 Part number TM6192, DIGITAL TIMER DIGITAL TIMER
Ravenheat part no. TM6192		 £65.09
111   EARTH SCREW - CSI PRIMARY
Ravenheat part no. 0011RIV06006/0		 £9.79
112   BLOCKAGE - CONDENSATE CSI PRIMARY
Ravenheat part no. 0011RIV06005/0		 £13.42
113   WIRE - EARTH CSI PRIMARY
Ravenheat part no. 0012CAV06015/0		 £7.24
114   GASKET 100MM DIA. FLUE
Ravenheat part no. 0014GUA06010/0		 £5.37
115   GASKET 60MM DIA. FLUE
Ravenheat part no. 0014GUA06005/0		 £3.99
116   GASKET 80MM DIA. FLUE - CSI SYSTEM
Ravenheat part no. 0014GUA06015/0		 £4.68
117   OBSOLETE TWIN FLUE HEADER
Ravenheat part no. 40013
