IDEAL
LOGIC + COMBI 35 - (Controls)
Appliance Code: 47-348-67

Appliance Diagram

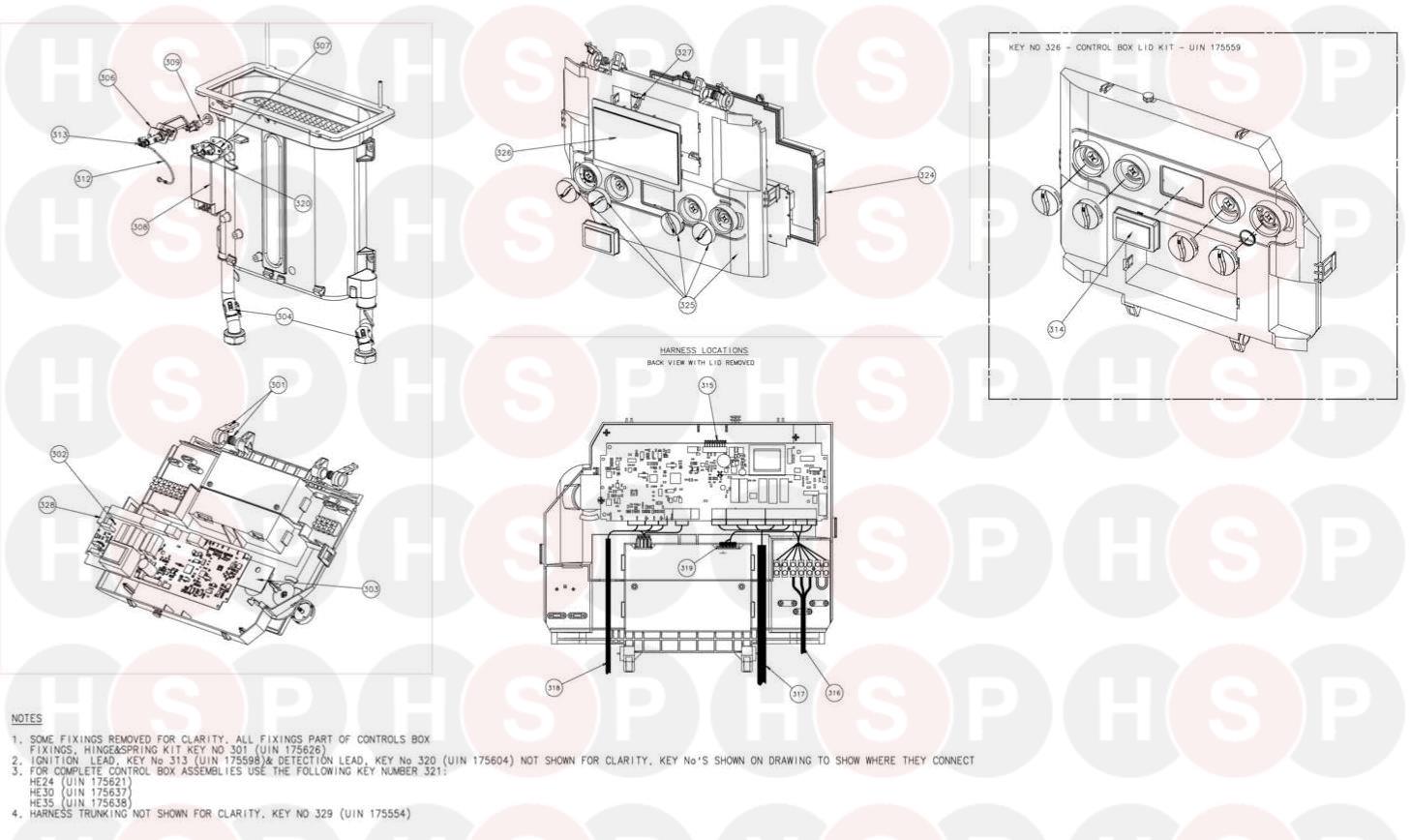

Controls diagram for Ideal Logic + Combi 35Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

301 Part number 175626, BOX FIXINGS HINGE & SPRING KIT BOX FIXINGS HINGE & SPRING KIT
Ideal part no. 175626		 £23.20
302 Part number 175938, KIT - BCC COMBI PLUS 35 (PRE ZJ) KIT - BCC COMBI PLUS 35 (PRE ZJ)
Ideal part no. 175938		 £25.28
302 Part number 175939, KIT - PRIMARY PCB COMBI PLUS Pre AAX (A BCC CARD MUST BE PURCHASED WITH THIS ITEM) KIT - PRIMARY PCB COMBI PLUS PRE AAX (A BCC CARD MUST BE PURCHASED WITH THIS ITEM)
Ideal part no. 175939		 £238.28
302 Part number 176404, KIT - BCC COMBI PLUS 35 (ZJ ONLY) Pre AAX KIT - BCC COMBI PLUS 35 (ZJ ONLY) PRE AAX
Ideal part no. 176404		 £25.28
302 Part number 176806, KIT - BCC COMBI PLUS 35 (AAX & ONWARDS) KIT - BCC COMBI PLUS 35 (AAX & ONWARDS)
Ideal part no. 176806		 £25.28
302 Part number 176984, PRIMARY PCB I6 AAX Only (A BCC CARD MUST BE PURCHASED WITH THIS ITEM) PRIMARY PCB I6 AAX ONLY (A BCC CARD MUST BE PURCHASED WITH THIS ITEM)
Ideal part no. 176984		 £230.01
302 Part number 177661, PRIMARY PCB I6 / 2 From ABR (A BCC CARD MUST BE PURCHASED WITH THIS ITEM) PRIMARY PCB I6 / 2 FROM ABR (A BCC CARD MUST BE PURCHASED WITH THIS ITEM)
Ideal part no. 177661		 £235.09
303 Part number 175713, NOW USE 177764 CUI BOARD KIT Pre ABK NOW USE 177764 CUI BOARD KIT PRE ABK
Ideal part no. 175713
303 Part number 177764, CUI BOARD 4 POT KM721-i6 KIT From ABK - Onwards - Composite Waterset CUI BOARD 4 POT KM721-I6 KIT FROM ABK - ONWARDS - COMPOSITE WATERSET
Ideal part no. 177764		 £126.23
304 Part number 175589, CONTROL THERMISTOR (FLOW/RETURN) pack of 2- Withdrawn : 16/01/2017 CONTROL THERMISTOR (FLOW/RETURN) PACK OF 2- WITHDRAWN : 16/01/2017
Ideal part no. 175589
304 Part number 176432, CONTROL THERMISTOR CONTROL THERMISTOR
Ideal part no. 176432		 £10.53
306 Part number 175591, ELECTRODE - IGNITION ELECTRODE - IGNITION
Ideal part no. 175591		 £23.26
307 Part number 175592, ELECTRODE - DETECTION ELECTRODE - DETECTION
Ideal part no. 175592		 £16.88
308 Part number 175593, IGNITOR UNIT (PRE ADP) IGNITOR UNIT (PRE ADP)
Ideal part no. 175593		 £35.17
309 Part number 175594, THERMISTOR - NO FLOW THERMISTOR - NO FLOW
Ideal part no. 175594		 £10.81
312 Part number 175597, HARNESS - EARTH HT (PRE ADP) HARNESS - EARTH HT (PRE ADP)
Ideal part no. 175597		 £6.34
313 Part number 175598, IGNITION LEAD IGNITION LEAD
Ideal part no. 175598		 £16.74
314 Part number 175714, CONTROL BOX LENS CONTROL BOX LENS
Ideal part no. 175714		 £10.62
315 Part number 175600, HARNESS - CUI TO PRIMARY (AAO ONWARDS) HARNESS - CUI TO PRIMARY (AAO ONWARDS)
Ideal part no. 175600		 £17.36
316 Part number 175601, HARNESS - MAINS INSTALLATION HARNESS - MAINS INSTALLATION
Ideal part no. 175601		 £20.15
317 Part number 175644, HARNESS - MAINS VOLTAGE HARNESS - MAINS VOLTAGE
Ideal part no. 175644		 £48.61
317   HARNESS MAINS VOLTAGE
Ideal part no. 175715		 £37.98
317 Part number 176987, HARNESS MAINS VOLTAGE COMBI PLUS AAX Only HARNESS MAINS VOLTAGE COMBI PLUS AAX ONLY
Ideal part no. 176987		 £70.74
317 Part number 177552, HARNESS MAINS VOLTAGE HARNESS MAINS VOLTAGE
Ideal part no. 177552		 £50.09
317 Part number 177898, HARNESS MAINS ErP COMBI COMBI+ CODE HARNESS MAINS ERP COMBI COMBI+ CODE
Ideal part no. 177898		 £48.52
318 Part number 175716, HARNESS LOW VOLTAGE Pre ZJ HARNESS LOW VOLTAGE PRE ZJ
Ideal part no. 175716		 £35.75
318 Part number 176431, HARNESS LOW VOLTAGE From ZJ , Pre AAX HARNESS LOW VOLTAGE FROM ZJ , PRE AAX
Ideal part no. 176431		 £34.30
318 Part number 176988, HARNESS LOW VOLTAGE AAX Only HARNESS LOW VOLTAGE AAX ONLY
Ideal part no. 176988		 £25.32
318 Part number 177663, HARNESS LOW VOLTAGE From ABK Onwards but before ACQ - Composite Waterset HARNESS LOW VOLTAGE FROM ABK ONWARDS BUT BEFORE ACQ - COMPOSITE WATERSET
Ideal part no. 177663		 £25.70
318 Part number 177902, HARNESS SELV ErP COMBI PLUS ACQ onwards HARNESS SELV ERP COMBI PLUS ACQ ONWARDS
Ideal part no. 177902		 £30.30
319 Part number 175603, HARNESS OPENTHERM HARNESS OPENTHERM
Ideal part no. 175603		 £8.10
319 Part number 177555, HARNESS OPENTHERM ABK Onwards HARNESS OPENTHERM ABK ONWARDS
Ideal part no. 177555		 £9.06
320 Part number 175604, HARNESS - DETECTION earth lead no longer required HARNESS - DETECTION EARTH LEAD NO LONGER REQUIRED
Ideal part no. 175604		 £14.54
324   CONTROL BOX LID KIT
Ideal part no. 175623		 £29.07
325 Part number 175720, CONTROL BOX KIT FRONT KIT CONTROL BOX KIT FRONT KIT
Ideal part no. 175720		 £55.76
326 Part number 175624, PROGRAMMER BLANK INSERT "Blanking plate when programmer removed" PROGRAMMER BLANK INSERT "BLANKING PLATE WHEN PROGRAMMER REMOVED"
Ideal part no. 175624		 £10.73
327 Part number 175625, PLUG - TIMER LINK PLUG - TIMER LINK
Ideal part no. 175625		 £9.41
328 Part number 175627, PCB FUSE PCB FUSE
Ideal part no. 175627		 £3.79
