POTTERTON COMMERCIAL
NXR4 9-17 SECTION - (Boiler Components 2)
Appliance Code: NXR4

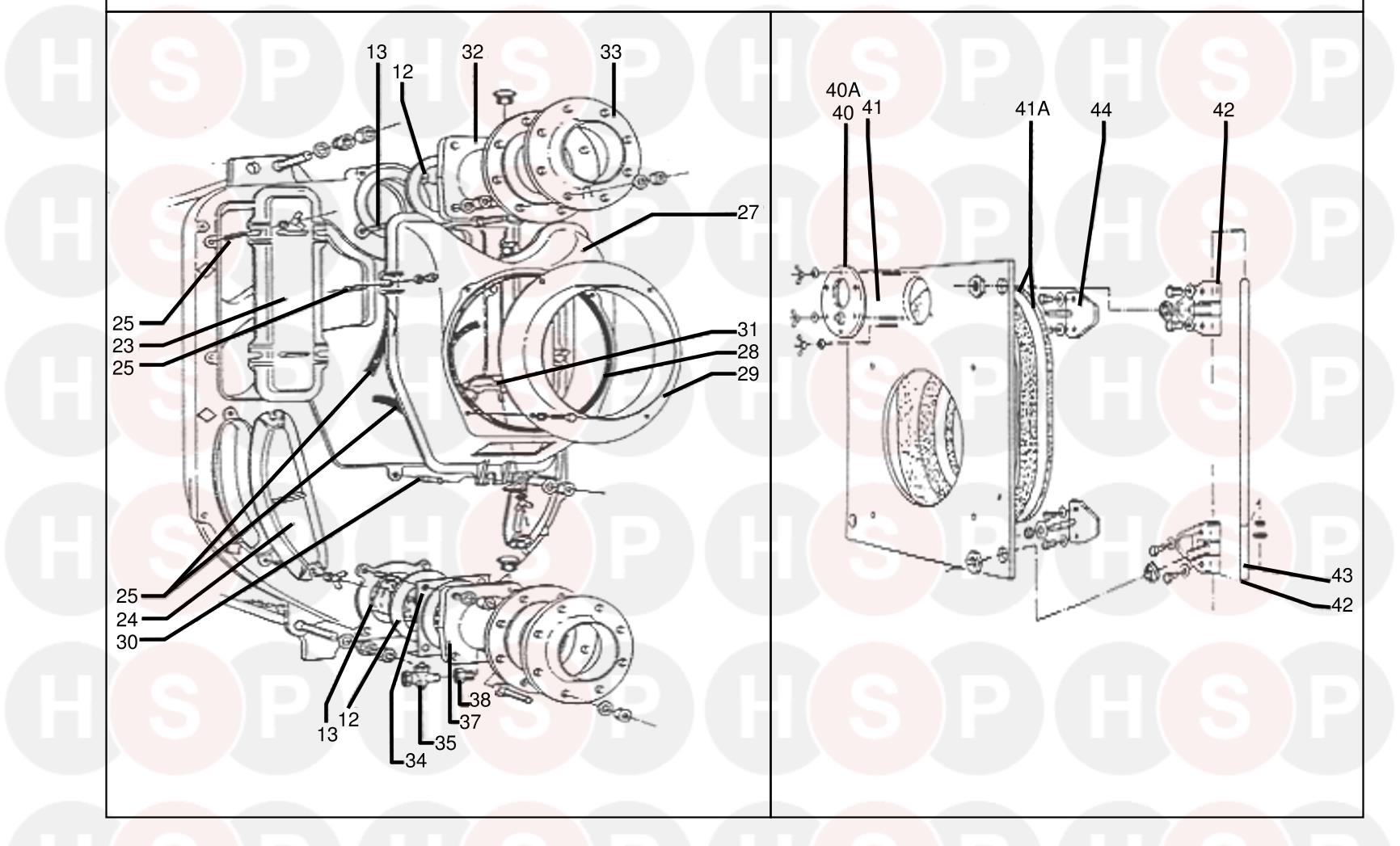

Appliance Diagram


Boiler Components 2 diagram for Potterton Commercial NXR4 9-17 SectionClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

12   NXR 4 FLANGE GSKT 130 X 170
Potterton part no. COM15601300
£30.33
23   OBSOLETE NXR4 FLUE COVER PLATE LARGE LRF
Potterton part no. COM17843429

24   NXR4 FLUE COVER PLATE CURVED
Potterton part no. COM17843439
£125.52
25   NXR4 STUD - 8MM X 45MM LONG
Potterton part no. COM15243514

27   OBSOLETE FLUE BOX MODEL 412 TO 417
Potterton part no. COM17850479

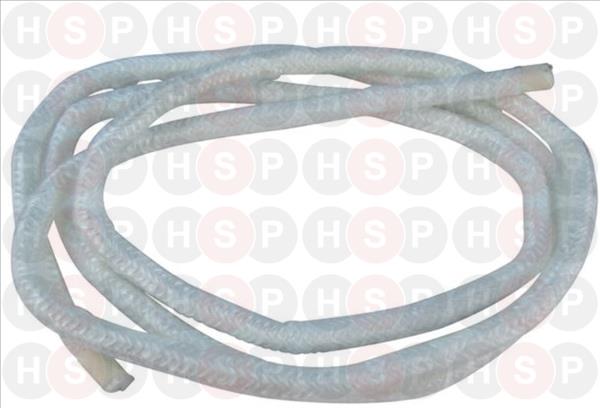

28 Part number S506129, ROPE SEAL X 2160MM ROPE SEAL X 2160MM
Potterton part no. S506129
£33.21
32   NXR4 FLOW MANIFOLD
Potterton part no. COM17865247
£155.27
33   NXR4 FLOW AND RETURN FLANGE
Potterton part no. COM17000766
£87.27
37   NXR4 RETURN MANIFOLD
Potterton part no. COM17865257
£104.76
38   NXR4 DRAIN COCK
Potterton part no. COM17006471
£42.49
40   NXR4 SIGHT GLASS COVER
Potterton part no. COM17834429
£142.85
40A Part number COM17007789, NXR4 SIGHT GLASS NXR4 SIGHT GLASS
Potterton part no. COM17007789
£36.49
41A Part number COM17405410, BURNER DOOR INSULATION ASSY BURNER DOOR INSULATION ASSY
Potterton part no. COM17405410
£190.05
42   NXR4 DOOR HINGE ASSEMBLY
Potterton part no. COM17834419
£67.40
