REMEHA-COMMERCIAL
GAS 350 - (Exploded View)
Appliance Code: 350

Appliance Diagram


Exploded View diagram for Remeha-Commercial Gas 350Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   (USE 57262) SEALANT DENSITOL 1/4 KG
Remeha-Broag part no. 2879
1   SEALANT DENSITOL 1/4 KG
Remeha-Commercial part no. 57262		 £33.36
2   SEAL NIPPLE JOINTING COMPOUND 125CC (RED LEAD)
Remeha-Commercial part no. 51279		 £36.68
3   GLUE TEROKAL 2444 0.34KG (NOW USED INSTEAD OF SABA GLUE)
Remeha-Commercial part no. 114422		 £49.54
4 Part number 23477, Cleaning brush boiler block CLEANING BRUSH BOILER BLOCK
Remeha-Commercial part no. 23477		 £51.51
6 Part number S4405, Gasket set F/R GASKET SET F/R
Remeha-Commercial part no. S4405		 £41.68
7   SECTION LEFT HAND END GAS 350/450
Remeha-Commercial part no. 54547		 £2,899.12
8 Part number 20017, Nipple NIPPLE
Remeha-Commercial part no. 20017		 £36.68
9 Part number 42659, Section intermediate Gas 350, 450, 3A, 3B, 3C & 3D SECTION INTERMEDIATE GAS 350, 450, 3A, 3B, 3C & 3D
Remeha-Commercial part no. 42659		 £2,447.32
10   SEAL WHITE CERAMIC ROPE 16MM
Remeha-Broag part no. 54717		 £18.50
11   THERMOSTAT DOWN DRAUGHT L6068A1009
Remeha-Broag part no. S6149		 £167.23
12 Part number 53284, Insulation radiation panel 482x51x900mm INSULATION RADIATION PANEL 482X51X900MM
Remeha-Commercial part no. 53284		 £139.66
13   SECTION RIGHT HAND END GAS 350/450
Remeha-Commercial part no. 54548		 £1,123.64
14 Part number S25786, Electrode water level control dungs 1/2" ELECTRODE WATER LEVEL CONTROL DUNGS 1/2"
Remeha-Commercial part no. S25786		 £171.75
15 Part number S43316, Pocket 1" L=160 POCKET 1" L=160
Remeha-Commercial part no. S43316		 £640.13
16 Part number 51143, Water pressure switch WATER PRESSURE SWITCH
Remeha-Commercial part no. 51143		 £78.08
17 Part number 36489, USE S36489 Pressure gauge 1/8" USE S36489 PRESSURE GAUGE 1/8"
Remeha-Broag part no. 36489
17 Part number S36489, Pressure gauge 1/8" PRESSURE GAUGE 1/8"
Remeha-Commercial part no. S36489		 £26.96
18   DISCONTINUED (USE S101676) CERAMIC TAPE 20X4MM
Remeha-Broag part no. 51241
18   CERAMIC TAPE 20X4MM (1M)
Remeha-Commercial part no. S101676		 £69.55
19 Part number S54190, Valve pilot gas + ignition gas line - For Gas 350 (Pilot Solenoid Valve) VALVE PILOT GAS + IGNITION GAS LINE - FOR GAS 350 (PILOT SOLENOID VALVE)
Remeha-Commercial part no. S54190
20   GASKET FOR INJECTOR (MAIN )
Remeha-Commercial part no. 34074		 £0.50
21   INJECTOR D=4.00MM
Remeha-Commercial part no. 51307		 £33.36
22 Part number S51639, Electrode Ignition ELECTRODE IGNITION
Remeha-Commercial part no. S51639
23 Part number S55497, Injector Pilot (NG) ionisation burner furigas c/w gauze INJECTOR PILOT (NG) IONISATION BURNER FURIGAS C/W GAUZE
Remeha-Commercial part no. S55497		 £17.74
24 Part number S48691, Electrode Ionisation ELECTRODE IONISATION
Remeha-Commercial part no. S48691
25 Part number 58057, Pilot Burner Assy C/W Electrodes & Injector Gas 350/450 PILOT BURNER ASSY C/W ELECTRODES & INJECTOR GAS 350/450
Remeha-Commercial part no. 58057
26   INSULATION RADIATION PANEL BURNER BELOW 350-4
Remeha-Commercial part no. 51183		 £11.49
26   INSULATION RADIATION PANEL BURNER BELOW 350-5
Remeha-Commercial part no. 51184		 £17.34
26   INSULATION RADIATION PANEL BURNER BELOW 350-6
Remeha-Commercial part no. 51185		 £47.13
26   INSULATION RADIATION PANEL BURNER BELOW 350-7
Remeha-Commercial part no. 51186		 £19.16
26   INSULATION RADIATION PANEL BURNER BELOW 350-8
Remeha-Commercial part no. 51187		 £24.13
26   INSULATION RADIATION PANEL BURNER BELOW 350-9
Remeha-Commercial part no. 51188		 £35.49
27   INSULATION RADIATION PANEL BURNER TOP 350-4
Remeha-Commercial part no. 51136		 £19.16
27   INSULATION RADIATION PANEL BURNER TOP 350-5
Remeha-Commercial part no. 51137		 £24.13
27   INSULATION RADIATION PANEL BURNER TOP 350-6
Remeha-Commercial part no. 51138		 £29.81
27   INSULATION RADIATION PANEL BURNER TOP 350-7
Remeha-Commercial part no. 51139		 £34.06
27   INSULATION RADIATION PANEL BURNER TOP 350-8
Remeha-Commercial part no. 51140		 £38.33
27   INSULATION RADIATION PANEL BURNER TOP 350-9
Remeha-Commercial part no. 51141		 £45.55
28 Part number 54714, SEAL WHITE CERAMIC ROPE 8mm SEAL WHITE CERAMIC ROPE 8MM
Remeha-Broag part no. 54714		 £5.93
29 Part number s59183, Burner bar ionisation furigas diameter 60mm BURNER BAR IONISATION FURIGAS DIAMETER 60MM
Remeha-Commercial part no. s59183		 £248.42
30 Part number 48405, Burner bar 3A/C(4 pcs) polidoro 45fl - PURCHASE ONLY NOT FOR SALE ON THIS P/N BURNER BAR 3A/C(4 PCS) POLIDORO 45FL - PURCHASE ONLY NOT FOR SALE ON THIS P/N
Remeha-Commercial part no. 48405

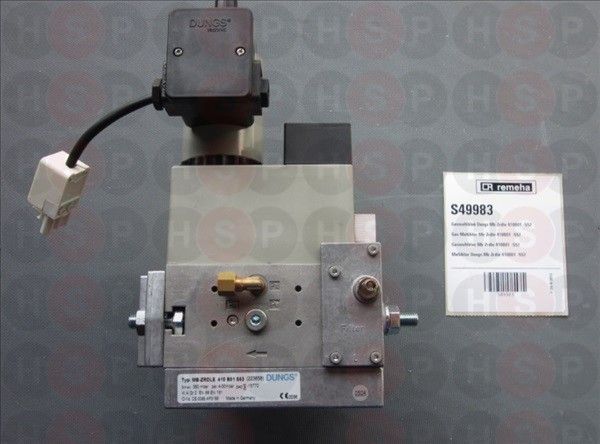

31 Part number S49983, Gas Valve - MB-ZRDLE 410 B01 S52 02JX00 GAS VALVE - MB-ZRDLE 410 B01 S52 02JX00
Remeha-Commercial part no. S49983		 £2,625.78
31 Part number S54176, Valve multi block (MB-ZRDLE 412 B01 S52) VALVE MULTI BLOCK (MB-ZRDLE 412 B01 S52)
Remeha-Commercial part no. S54176		 £3,192.10
32 Part number 51163, (USE S103280) Gasket 56o/d x 42i/d x 2mm (USE S103280) GASKET 56O/D X 42I/D X 2MM
Remeha-Broag part no. 51163
32 Part number S103280, Gasket D:56X42X2 (5x) GASKET D:56X42X2 (5X)
Remeha-Commercial part no. S103280		 £11.53
33   FLANGE 1" 7 - 8 SECTIONS
Remeha-Commercial part no. 36215		 £86.73
33   FLANGE 1-1/4" 9 - 12 SECTIONS
Remeha-Commercial part no. 36216		 £86.73
34 Part number 1035, (USE S103279) Pressure test nipple 1/8 (USE S103279) PRESSURE TEST NIPPLE 1/8
Remeha-Broag part no. 1035
34 Part number S103279, Pressure Test Nipple 1/8" Incl Loctite PRESSURE TEST NIPPLE 1/8" INCL LOCTITE
Remeha-Commercial part no. S103279		 £35.03
35   RETURN WATER DISTRIBUTION PIPE 4 SECTION
Remeha-Commercial part no. 51284		 £177.41
35   RETURN WATER DISTRIBUTION PIPE 5 SECTION
Remeha-Commercial part no. 51285		 £190.19
35   RETURN WATER DISTRIBUTION PIPE 6 SECTION
Remeha-Commercial part no. 51286		 £79.47
35   RETURN WATER DISTRIBUTION PIPE 7 SECTION
Remeha-Commercial part no. 51287		 £214.33
35   RETURN WATER DISTRIBUTION PIPE 8 SECTION
Remeha-Commercial part no. 51288		 £225.68
35   RETURN WATER DISTRIBUTION PIPE 9 SECTION
Remeha-Commercial part no. 51289		 £237.03
36   BUTTON LOCKOUT RE-SET
Remeha-Commercial part no. 51196		 £31.68
37   SWITCH ON/OFF 40C1350AL
Remeha-Commercial part no. S51393		 £11.86
38   OBSOLETE KNOB FOR CONTROL THERMOSTAT
Remeha-Broag part no. 51098		 £3.61
39   KNOB FOR HIGH/LOW THERMOSTAT
Remeha-Commercial part no. 51099		 £10.48
40 Part number S45309, Thermometer water temperature 0-120 THERMOMETER WATER TEMPERATURE 0-120
Remeha-Commercial part no. S45309		 £51.51
41 Part number S36446, Thermostat TEM high limit 110 C l&g rak 77.4471 THERMOSTAT TEM HIGH LIMIT 110 C L&G RAK 77.4471
Remeha-Commercial part no. S36446
42 Part number S46634, Thermostat control & H/L 35-95 degrees THERMOSTAT CONTROL & H/L 35-95 DEGREES
Remeha-Commercial part no. S46634		 £55.37
43 Part number S50422, Filter mains power nfb110rs FILTER MAINS POWER NFB110RS
Remeha-Commercial part no. S50422		 £51.51
44 Part number S38488, Water level device dungs WATER LEVEL DEVICE DUNGS
Remeha-Commercial part no. S38488		 £733.80
45   RELAY DELAY TIMER 180 SECS.
Remeha-Broag part no. 51192		 £146.59
46   BASE PLATE FOR CONTROL PANEL
Remeha-Commercial part no. S36629		 £80.90
47   POWER SUPPLY CABLE
Remeha-Commercial part no. S48695		 £24.18
48 Part number S48255, Transformer Ignition satronic zt 870 TRANSFORMER IGNITION SATRONIC ZT 870
Remeha-Commercial part no. S48255		 £156.13
49 Part number 26325, Plug cap brown M4 threaded pin +1k for Ignition electrode PLUG CAP BROWN M4 THREADED PIN +1K FOR IGNITION ELECTRODE
Remeha-Commercial part no. 26325		 £14.76
50 Part number S38605, Control panel tfi 812.2 model 10/dkg 972 (mod27) CONTROL PANEL TFI 812.2 MODEL 10/DKG 972 (MOD27)
Remeha-Commercial part no. S38605
51 Part number S44010, Cable for Ionisation electrode c/w connector L= 650 (Gas 350 & 450) CABLE FOR IONISATION ELECTRODE C/W CONNECTOR L= 650 (GAS 350 & 450)
Remeha-Commercial part no. S44010		 £26.96
52   PRESSURE SWITCH
Remeha-Commercial part no. 54480		 £96.82
53   GAS LEAK CONTROL BOX
Remeha-Commercial part no. S54455		 £1,493.74
54 Part number 43799, (USE S43799) Door snapper male (USE S43799) DOOR SNAPPER MALE
Remeha-Broag part no. 43799
54 Part number S43799, Door Snapper Male (10 pcs) DOOR SNAPPER MALE (10 PCS)
Remeha-Commercial part no. S43799		 £20.84
55 Part number 43798, Door snapper female (NEW PART NO. S43798) DOOR SNAPPER FEMALE (NEW PART NO. S43798)
Remeha-Broag part no. 43798
55 Part number S43798, Door Snapper Female (10 pcs) DOOR SNAPPER FEMALE (10 PCS)
Remeha-Commercial part no. S43798		 £26.68
